Save $201

Leica 11541510 1x C-Mount Adapter

Availability:

In stock


Compare

Convert the LEICA trinocular microscope phototube/head/port to traditional C-Mount type With different built-in reduction lens (1X, 0.7X, 0.55X, 0.35X) for achieving better field of view from microscope trinocular head(suitable for 1″, 2/3″, 1/1.8″, 1/2″, 1/2.5″, 1/3″ or 1/4″ inch CCD or CMOS sensor chips)

In stock

$299.00 $500.00

Leica C-Mount Adapter

Leica Microscope C-Mount Adapter

  • Convert the LEICA trinocular microscope phototube/head/port (have standard 35 mm outer diameter for the insertion end to phototube) to traditional C-Mount type(25.4 mm or 1 inch diameter with 32 threads per inch);
  • With different built-in reduction lens (1X, 0.7X, 0.55X, 0.35X) for achieving better field of view from microscope trinocular head(suitable for 1″, 2/3″, 1/1.8″, 1/2″, 1/2.5″, 1/3″ or 1/4″ inch CCD or CMOS sensor chips);
  • Can be installed in UIS trinocular tube such as: specially designed for LEICA DM series biology microscopes and industrial microscopes;
  • Build of material: stainless steel material;
  • Telecentric optics with low light deficiency;
  • Parfocal with different microscope objective lenses;
  • Diffraction limited MTF;
  • Aperture totally coupled with LEICA UIS microscope objective’s exit pupil;

Leica  Phototube to C-Mount Adaptor

Leica Model#

Our Catalogue #

11541510

BCA-L-1x

11541543

BCA-L-0.7x

11541544

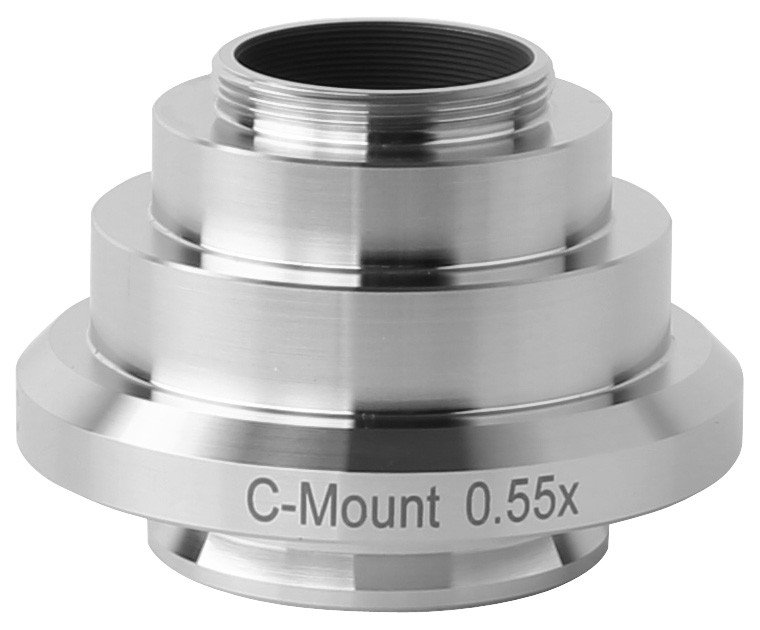

BCA-L-0.55x

11541512

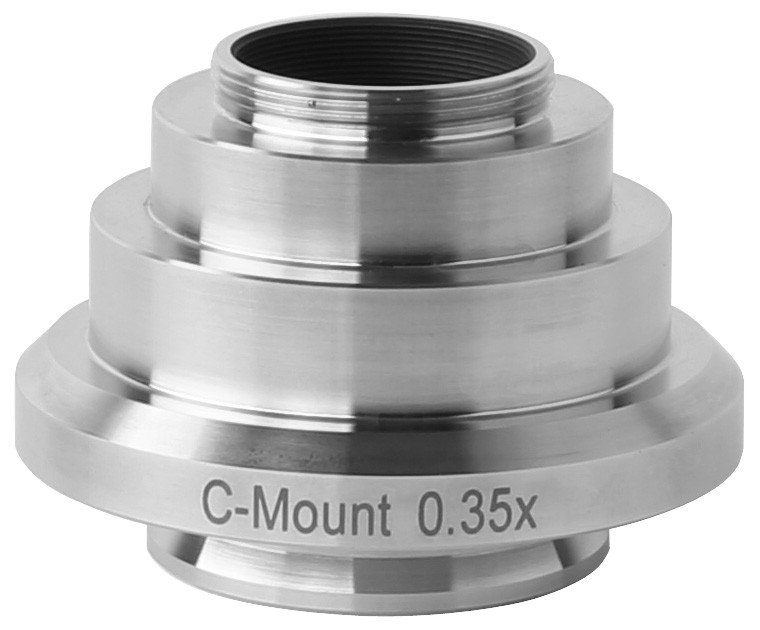

BCA-L-0.35x


Leica 11541510 1x C-Mount Adapter

Magnification

1X

0.70X

0.55X

0.35X

Sensor Size

1″, 2/3″

2/3″,1/1.8″,1/2″

1/1.8″,1/2″,1/2.5″

1/2.5″,1/3″,1/4″

Microscope

Specially designed for LEICA DM series biology microscopes and industrial microscopes

Drawing
Universal 0.66x C-Mount Adapter for leica BCA-X-0.66x-L

C-Mount/leica-c-mount_connection.jpg

Universal 0.66x C-Mount Adapter for leica BCA-X-0.66x-L

If you need help, please contact us and specify your microscope brand and model and your camera brand, model and chip size (if you know), Bioimager engineers will help you choose the right adaptor magnification;
