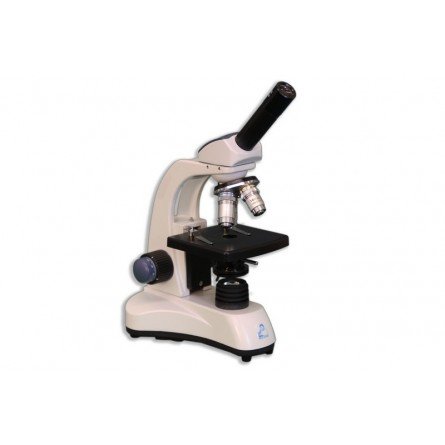

MT-11 Monocular Entry-Level Compound Microscope


The MT-10 Series Compound Microscopes have crisp, erect images over a wide field of view. These student microscopes are built to last, year after year. Just perfect for grade schools and high schools!

Request a Quote

The MT-10 Series Compound Microscopes have crisp, erect images over a wide field of view. These student microscopes are built to last, year after year. Just perfect for grade schools and high schools!

MT-11 Monocular Entry-Level Compound MicroscopeMT-11 Monocular Entry-Level Compound Microscope

The MT-10 Series features include:

  • Ergonomic Hand Grip for portability and ease of storage
  • Low positioned Ergonomic Coaxial Focus Control
  • Abbe condenser, N.A. 1.25 with iris diaphragm lever for height adjustability
  • Revolving Quadruple forward-facing nosepiece on ball bearings
  • Achromatic DIN Semi Plan Standard 4x, 10X, 40X, 100x objectives
  • Anti-Fungus treated optical parts for mold prevention
  • Digital models available with built in 1.3MP 1/2 chip CMOS USB2 Camera
  • LED variable intensity illumination generating even illumination and low electrical consumption
  • 2 year Warranty
SKU: MT-11 Categories: ,
ModelHeadMagnificationRechargableMechanical Stage
MT-10MonocularAchromat
4X, 10X, 40X, 100X
MT-11
MT-14Binocular
MT-16Monocular with Camera

VIEWING HEADS
Monocular 45° inclined tube and binocular 30° inclined tubes The digital versions are equipped with a 1.3 Mpixel 1/3 inch CMOS Color USB2 camera @ 1280x 1024 pixels.

EYEPIECES
Secured DIN WF 10x/18 mm with pointer.

OBJECTIVES
All models are equipped with achromatic corrected 4x/0.13, 10x/0.25, S40x/0.65 and S100x/1.25 objectives. All optical parts are anti-fungus treated.

STAGE
Plain 123 x 119 mm stage with 2 object clamps except for the MT-14 which is equipped with an integrated mechanical stage.

NOSEPIECE
Revolving quadruple forwarded nosepiece on ball-bearings.

CONDENSER
In height adjustable Abbe condenser.

ILLUMINATION
1 W intensity adjustable LED illumination with internal power supply. The MT-14 is equipped with internal batteries.

FOCUSING ADJUSTMENT
Coaxial coarse and 200 µm fine adjustments, 2 µm precision. Friction adjustment.

SOFTWARE
ImageFocus 4 capture & analysis software is supplied with each digital microscope model. The software is compatible with Windows XP, Vista, Windows 7 & 8, both 32 and 64 bits platforms
