The MT-10 Series Compound Microscopes have crisp, erect images over a wide field of view. These student microscopes are built to last, year after year. Just perfect for grade schools and high schools!

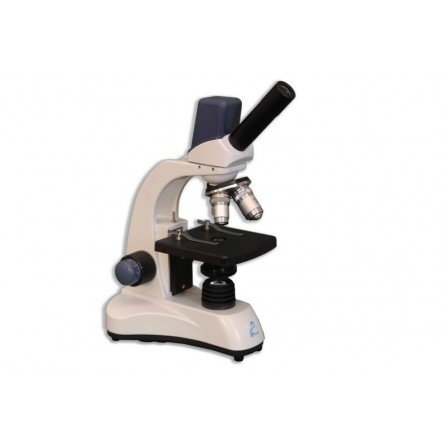

MT-16 Monocular Entry-Level Compound Microscope
The MT-10 Series Compound Microscopes have crisp, erect images over a wide field of view. These student microscopes are built to last, year after year. Just perfect for grade schools and high schools!
MT-16 Monocular Entry-Level Compound Microscope
The MT-10 Series features include:
- Ergonomic Hand Grip for portability and ease of storage
- Low positioned Ergonomic Coaxial Focus Control
- Abbe condenser, N.A. 1.25 with iris diaphragm lever for height adjustability
- Revolving Quadruple forward-facing nosepiece on ball bearings
- Achromatic DIN Semi Plan Standard 4x, 10X, 40X, 100x objectives
- Anti-Fungus treated optical parts for mold prevention
- Digital models available with built in 1.3MP 1/2 chip CMOS USB2 Camera
- LED variable intensity illumination generating even illumination and low electrical consumption
- 2 year Warranty
| Model | Head | Magnification | Rechargable | Mechanical Stage |
| MT-10 | Monocular | Achromat 4X, 10X, 40X, 100X |
– | – |
| MT-11 | – | – | ||
| MT-14 | Binocular | ✔ | ✔ | |
| MT-16 | Monocular with Camera | – | – |
VIEWING HEADS
Monocular 45° inclined tube and binocular 30° inclined tubes The digital versions are equipped with a 1.3 Mpixel 1/3 inch CMOS Color USB2 camera @ 1280x 1024 pixels.
EYEPIECES
Secured DIN WF 10x/18 mm with pointer.
OBJECTIVES
All models are equipped with achromatic corrected 4x/0.13, 10x/0.25, S40x/0.65 and S100x/1.25 objectives. All optical parts are anti-fungus treated.
STAGE
Plain 123 x 119 mm stage with 2 object clamps except for the MT-14 which is equipped with an integrated mechanical stage.
NOSEPIECE
Revolving quadruple forwarded nosepiece on ball-bearings.
CONDENSER
In height adjustable Abbe condenser.
ILLUMINATION
1 W intensity adjustable LED illumination with internal power supply. The MT-14 is equipped with internal batteries.
FOCUSING ADJUSTMENT
Coaxial coarse and 200 µm fine adjustments, 2 µm precision. Friction adjustment.
SOFTWARE
ImageFocus 4 capture & analysis software is supplied with each digital microscope model. The software is compatible with Windows XP, Vista, Windows 7 & 8, both 32 and 64 bits platforms
