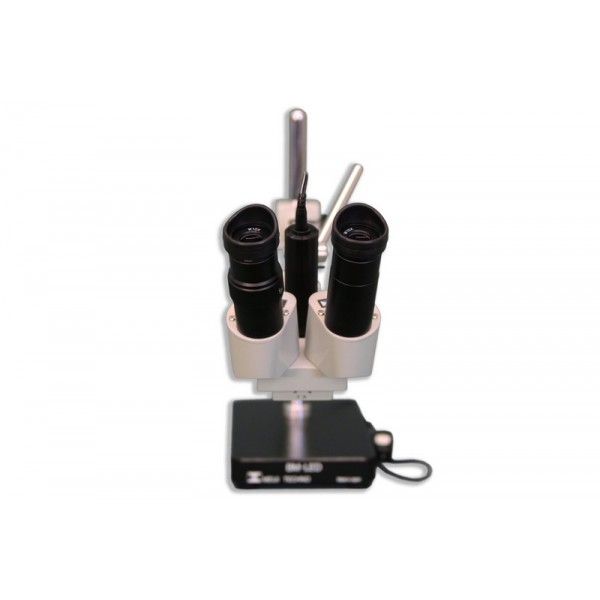

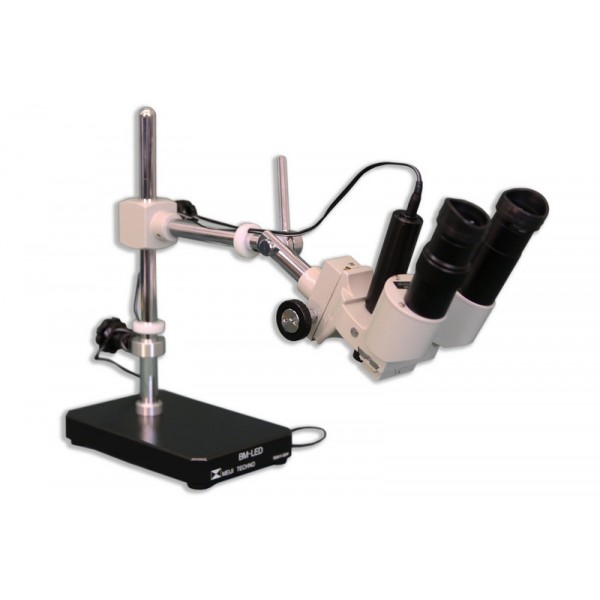

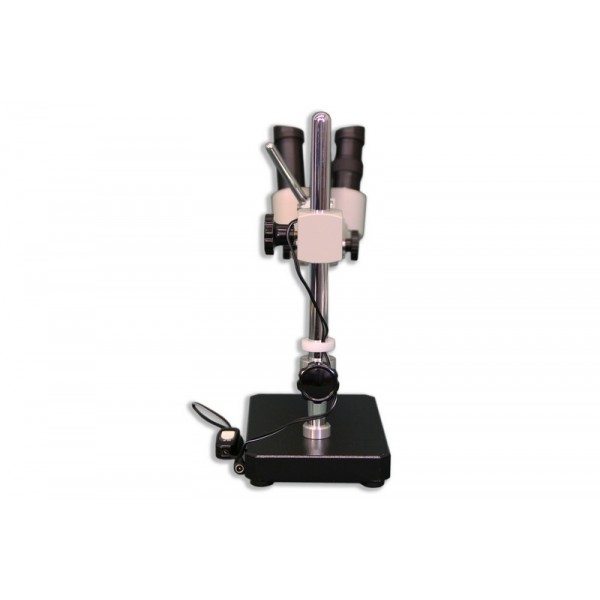

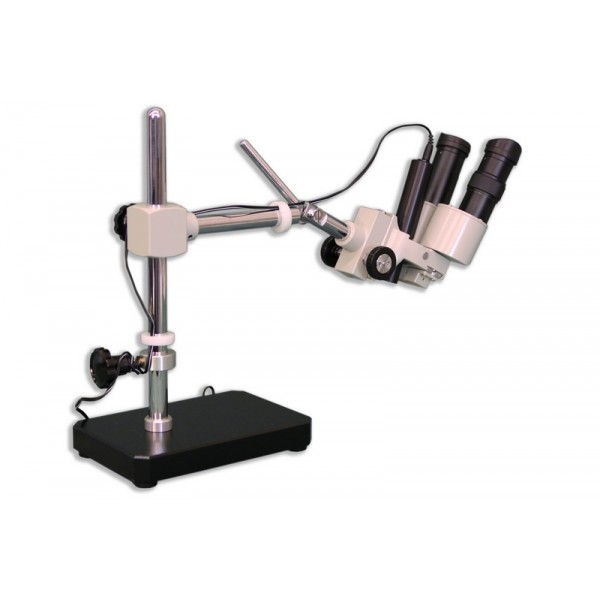

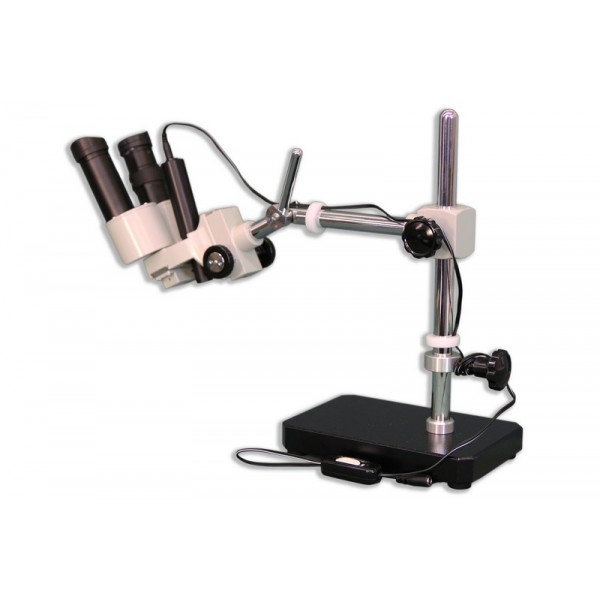

BM-2LED Meiji Techno Stereo Microscope (Japan)


BM and BMK LED Series Long Arm Stereo Microscopes from Meiji Techno are high quality industrial and healthcare quality stereo microscopes mounted on a 255mm horizontal inclinable arm supported by a 300mm vertical post and heavy cast base. The integral illuminators on BM Models feature a three lens condenser system fitted into the binocular body and an AC auto voltage sensing power supply.

$USD 875.00

Compare

BM and BMK LED Series Long Arm Stereo Microscopes from Meiji Techno are high quality industrial and healthcare quality stereo microscopes mounted on a 255mm horizontal inclinable arm supported by a 300mm vertical post and heavy cast base. The integral illuminators on BM Models feature a three lens condenser system fitted into the binocular body and an AC auto voltage sensing power supply.

The BM Series features include:

  • Upright stereoscopic images
  • High Quality optics with long working distance
  • Integral LED spot illuminator aligned with optical axis
  • Rated for 30,000 hours
  • Cool lighting
  • Auto voltage sensing
  • Magnification range 2.5X to 70X with optional lenses
  • Interpupillary distance 51mm to 80mm
  • Paired interchangeable parfocal objectives with quick-change dovetail slide mount

Please note: BM and BMK objectives are not interchangeable

Model Objective Eyepieces Magnifications Illuminatior
BM-1LED 1X and 2X WF10X 10X and 20X High Intensity LED
BM-2LED 1X, 2X and 3.5X 10X, 20X and 35X

OPTIONAL COMPONENTS & ACCESSORIES BELOW

Eyepieces
MA101: Widefield eyepieces 5X (paired), FN:22
MA102: Widefield eyepieces 10X (paired), FN:20 with 25mm reticle mount
MA103: Widefield eyepieces 15X (paired), FN:13 with 25mm reticle mount
MA104: Widefield eyepieces 20X (paired), FN:11 with 25mm reticle mount

Objectives for BM Series
MA113: Paired objective 0.5X for BM 40mm with WF10X 106mm
MA106: Paired objective 1X for BM 20mm with WF10X 170mm
MA107: Paired objective 2X for BM 10mm with WF10X 107mm
MA109: Paired objective 3.5X for BM 7mm with WF10X 70mm

Note: BM & BMK objectives are not interchangeable
