Miruc XY Axis Drive Master Technique Stage

In stock

$320.00

Dovetail sliding technology delivered by expert technique enables high quality and low price. These products are characterized by their smooth sliding action and high durability.

Also, the use of a clamp lever allows secure holding force and flexibility in the positioning and direction of the lever.

The bolt fixtures are coated with viscoelastic material that absorbs and reduces vibration and shock, and prevents screw loosening.



 Miruc XY Axis Drive Master Technique StageMiruc XY Axis Drive Master Technique StageMiruc XY Axis Drive Master Technique Stage
XYJK-40XYJK-60XYJK-90

Combination example

Miruc X Axis Drive Master Technique Stage

Clamp lever

The clamp lever fits commercially available hexagonal bolts, allowing the length of the screw to be adjusted, and the fixing position to be changed in order to avoid obstructing the lever.

Miruc X Axis Drive Master Technique Stage


Vibration resistance

The four hexagonal bolts that secure the base plate and L bracket to the stage main unit are coated with viscoelastic material, which reduces vibrations from machinery and devices, and prevents screw loosening.

Miruc X Axis Drive Master Technique Stage

Mounting direction flexibility

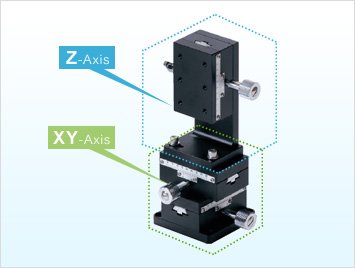

Compound stages, such as XZ and XYZ, etc., can combined in any desired mounting direction.

Miruc XY Axis Drive Master Technique Stage

 Miruc XY Axis Drive Master Technique StageMiruc XY Axis Drive Master Technique StageMiruc XY Axis Drive Master Technique Stage
XYJK-40XYJK-60XYJK-90



ModelStage surface

(mm)

Degree of movement (mm)Degree of movement per handle rotation

(mm)

Movement precision (μm)Load

bearing N

(kgf)

Minimum scale reading

(mm)

Weight

(kg)

StraightnessDegree of parallelism during operation
XYJK-4024.8 x 42± 1218202524.5 (2.5)0.10.29
XYJK-6040 x 60± 2118303034.3 (3.5)0.10.51
XYJK-9040 x 90± 3518303034.3 (3.5)0.10.73

* Material: stage body: aluminum alloy, surface treatment: matt black alumite

ModelStage surface

(mm)

Degree of movement (mm)Degree of movement per handle rotation

(mm)

Movement precision (μm)Load

bearing N

(kgf)

Minimum scale reading

(mm)

Weight

(kg)

StraightnessDegree of parallelism during operation
XYJK-4024.8 x 42± 1218202524.5 (2.5)0.10.29
XYJK-6040 x 60± 2118303034.3 (3.5)0.10.51
XYJK-9040 x 90± 3518303034.3 (3.5)0.10.73

* Material: stage body: aluminum alloy, surface treatment: matt black alumite

Brochures / Drawings

PDFDXF
XYJK-40XYJK-40
XYJK-60XYJK-60
XYJK-90XYJK-90

Combination examples

Miruc X Axis Drive Master Technique StageMiruc X Axis Drive Master Technique Stage



Brochures / Drawings

PDFDXF
XYJK-40XYJK-40
XYJK-60XYJK-60
XYJK-90XYJK-90

Miruc XY Axis Drive Master Technique Stage
Miruc XY Axis Drive Master Technique Stage
Miruc XY Axis Drive Master Technique Stage
Miruc X Axis Drive Master Technique Stage
Miruc X Axis Drive Master Technique Stage
Miruc X Axis Drive Master Technique Stage

Brochures / Drawings



PDFDXF
XYJK-40XYJK-40
XYJK-60XYJK-60
XYJK-90XYJK-90
