Meiji Techno latest inverted microscope line is the cost-effective TC-5000 Series Inverted Biological Microscopes.The TC5000 Series Microscopes have an integrated front mounted camera port with adapters available for 35mm, CCD/CMOS and other cameras.
Meiji Techno (Japan) product

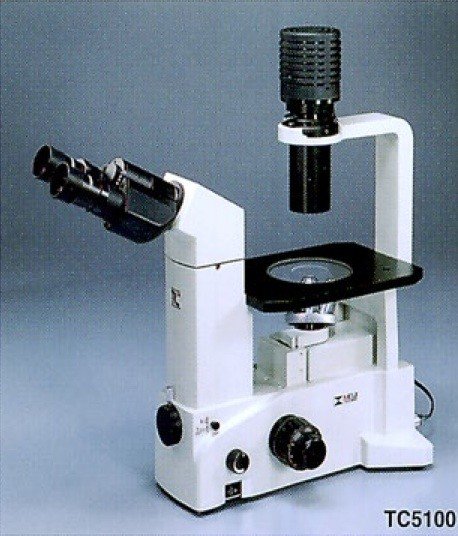

TC5000 Series: TC-5100 & TC-5200 models
Inverted biological compound microscope
Brightfield & phase contrast imaging
Bincoular, trinocular or ergonomic binocular vieiwng head,
infinity correcetd optical system F=200mm
TC LWD Plan achromat 109x and 20x obj lenses and optional 4x and 40x
The Meiji Techno Inverted biological microscope with infinity corrected optical system offers quality optics at an affordable price. Inverted microscope includes the following:

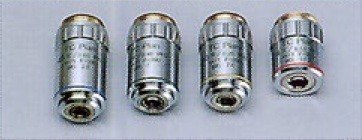

Objective Lenses: TC plan achromat infinity corrected long working distance objectives – LWD 10x (WD = 7.6mm) and LWD 20x (WD = 7.0mm). Mounted in quintuple nosepiece.
Eyepieces: Binocular Siedentopf head, inclined at 30°. Interpupilliary distance is adjustable from 53mm to 75mm. A graduated diopter adjustment is provided on the left eyetube. Includes paired SWH10x widefield high eyepoint eyepieces, FN 22 with a 25mm reticle mount. Optional SWH15x, SWH20x and SWH10x-F focusing eyepieces are available. Trinocular version available as well.
Total Magnification: 100x, 200x.
Specimen Stage: 180mm (X) x 245mm (Y) plain stage with replaceable glass insert with 45mm opening. Optional attachable mechanical stage (MA380/05) and a variety of specimen holders are available.
Focusing: Ergonomically low-positioned, coaxial, coarse and fine focus knobs with adjustable tension control. Range of travel is 9mm total – 1mm up and 8mm down. Rotations of fine focus is 0.2mm per revolution.
Illumination: Koehler 6v, 30w halogen lamp without iris. An aspheric condenser lens, a diffusion filter and a heat absorbing filter are also incorporated into the lamphouse. A lever-type iris diaphragm is provided for aperture control.
Light Focusing: Extra long working distance condenser, NA 0.30, WD 73mm. Optional condenser with NA 0.55, WD 20.5mm is available for more demanding work with 40x objectives (MA854).
Body: Chemical resistant baked enamel finish. Automatic voltage sensing power supply, removeable power cord.
Photo Port: Front mounted camera port suitable for CCD, 35mm or digital cameras. Optional camera adapters are available.
Size & Weight: 411mm (H) x 485mm (L) x 220mm (W), 23 lbs.
Warranty: Meiji Techno warrants this product against defects in material and/or workmanship for the life of the instrument from the date of original purchase to the original purchaser. Electrical warranty is 90 days.
Meiji Techno latest inverted microscope line is the cost-effectiveTC-5000 Series Inverted Biological Microscopes. The TC Series makes routine examining of tissue cultures, microbes and other live specimens in petri dishes and culture bottles fast and easy while delivering an excellent performance-to-cost ratio.
The TC Series is available in brightfield, phase contrast and epi-fluorescence models with either binocular or trinocular viewing head. The TC5000 Series Microscopes have an integrated front mounted camera port with adapters available for 35mm, CCD/CMOS and other cameras. TC Series Brightfield and Phase Contrast Models
Koehler w/o iris 6V 30W halogen
Quintuple Nosepiece w/LWD 10X & LWD 20X
180mm X 247mm
TC Condenser WD 73mm NA 0.30orTC Condenser2 WD 20.5mm NA 0.55
TC Condenser WD 73mm NA 0.30 orTC Condenser2 WD 20.5mm NA 0.55
100W Mercury + Koehler w/o iris 6V 30W halogen

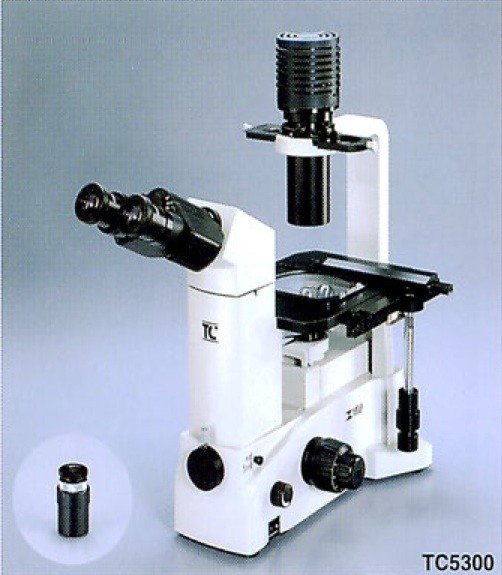

* Centering telescope is included with models TC-5300, TC-5400, TC-5500 & TC5600.

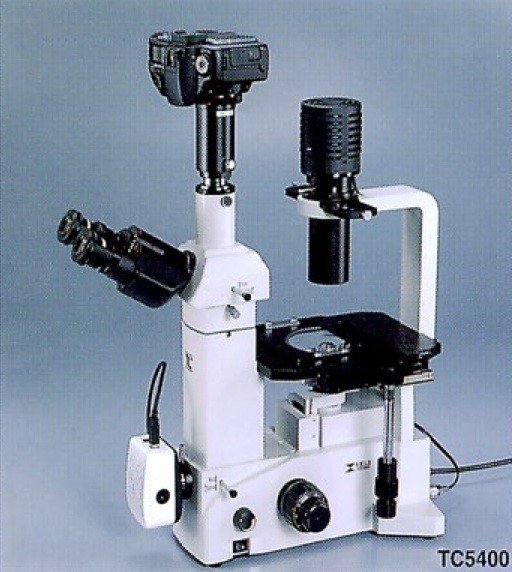

Binocular models, the TC5100, TC5300 and TC5500, incorporate the MA814 Siedentopf-type binocular head while the trinocular models, the TC5200, TC5400 and TC5600 have the MA816/10 Siedentopf-type trinocular head. The MA816/10 uses an 80/20 beam splitter that can be engaged for photo-microscopy. (100% to eyetubes or 80% to phototube and 20% to the eyetube.) Each microscope head has the eyetubes inclined at 30 degrees with the left eyetube having graduated diopter settings. The interpupillary distance on the viewing heads is adjustable between 53mm – 75mm.An optional ergonomic binocular head is also available.
10X Super Widefield High Eyepoint eyepieces are standard and 15X and 20X eyepieces are also available as an option. A Super Widefield High Eyepoint 10X focusable eyepiece that accepts standard 25mm reticules is also available.
The optional attachable mechanical stage measures 112mm(X) x 72mm(Y). It has ergonomically positioned right-handed coaxial drop down controls. It also accepts the following optional accessory plates: 35mm, 55mm, 65mm, Petrie Dish Holders, 96-well Terasaki Plate Holder, 1″ X 3″ glass slide holder, Hemacytometer holder.Slide, chamber, and petri dish holding plates of various sizes are available separately.

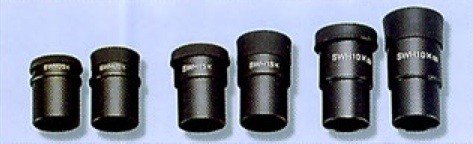

SWH10X Super Widefield High Eyepoint eyepiece, FN22 (standard) (accepts 25mm reticle)
SWH15X Super Widefield High Eyepoint eyepiece, FN16 (optional) (accepts 19mm reticle)
SWH20X Super Widefield High Eyepoint eyepiece, FN12 (optional) (accepts 19mm reticle)
SWH10X-F Super Widefield High Eyepoint focusing, FN22 (optional) (accepts 25mm reticle)
The optional attachable mechanical stage measures 112mm(X) x 72mm(Y). It has ergonomically positioned right-handed coaxial drop down controls. It also accepts the following optional accessory plates: 35mm, 55mm, 65mm, Petrie Dish Holders, 96-well Terasaki Plate Holder, 1″ X 3″ glass slide holder, Hemacytometer holder. Slide, chamber, and petri dish holding plates of various sizes are available separately.
Optional Mechanical Stage, movement: 112mm(X) x 72mm(Y) with drop down coaxial controls. (Requires at least one “holder” listed below. The most common for glass slides and hemocytometers would be MA378.)
Glass Slide Holder for 1″ X 3″ slides and Hemocytometer holder, fits MA380/05
Chamber holder, fits MA380/05
Terasaki plate holder, fits MA380/05
Petri Dish Holder for 35mm diameter dishes, fits MA380/05
Petri Dish Holder for 55mm diameter dishes, fits MA380/05
Petri Dish Holder for 65mm diameter dishes, fits MA380/05
The standard condenser has a working distance of 73mm.

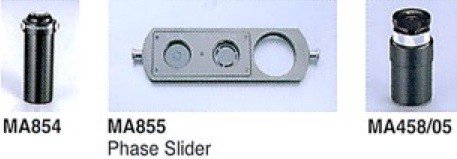

TC Condenser, N.A. 0.30, working distance 73mm (included)
Optional TC Condenser, N.A. 0.55, working distance 20.5mm (for use with 40X phase objective)
Phase Contrast Slider (included in Phase Contrast models)
Centering Telescope for phase contrast, O.D.= 30.0mm (included in PC models)
A powerful 6 volt 30 watt halogen bulb with pre-centered socket provides enhanced image quality and brightness for the observation of specimens.
Green interference filter in 51mm mount (546nm)
Cobalt clear filter in 51mm mount
Blue filter, LB100, in 51mm mount
Green filter, G533, in 51mm mount (533nm)
ND25 Neutral density filter for brightfield or phase contrast, in 51mm mount
Epi-Fluorescent Parts & Accessories
Fluorescent Illuminator Attachment
Lamphouse for 100W Mercury Lamp
Power supply for Lamphouse
Replacement Mercury Lamp HBO 100W/2
Basic Blue Excitation Filter set
Basic Green Excitation Filter set
UV Protection Filter
ND50 Neutral density filter for epi-illuminator (optional)
ND13 Neutral density filter for epi-illuminator (optional)
ND25 Neutral density filter for epi-illuminator (included with TC5500, TC5600)
Digital Camera Adapters

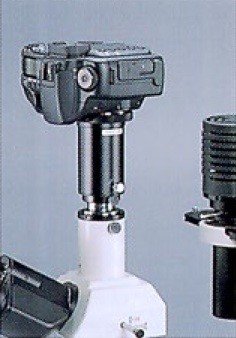

Digital camera adapter for non “C” mount type cameras (52mm O.D. thread), for front camera port (Requires additional DC adapter ring for your specific model camera. Please contact us for the exact DC ring part.)

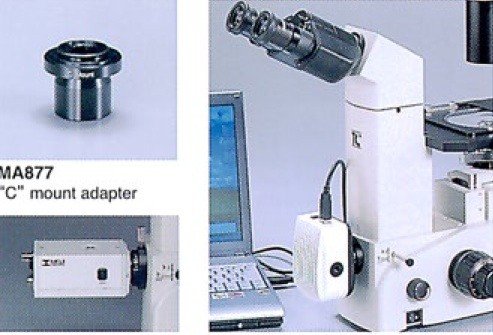

C-Mount Adapter for CCD/CMOS camera, for front port TC Series (no lens, port has 0.66x mag factor)
