ZJK-40 Miruc Z Axis Drive Master Technique Stage
Dovetail sliding technology delivered by expert technique enables high quality and low price. These products are characterized by their smooth sliding action and high durability.
Also, the use of a clamp lever allows secure holding force and flexibility in the positioning and direction of the lever.
The bolt fixtures are coated with viscoelastic material that absorbs and reduces vibration and shock, and prevents screw loosening.
| |
|
|

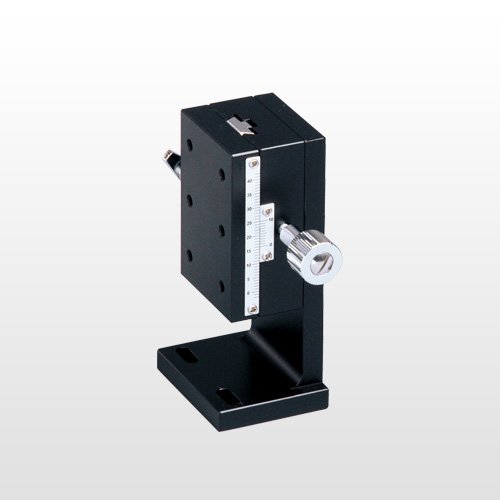

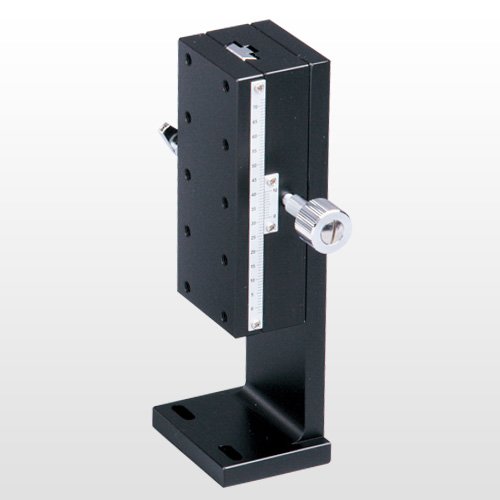

| ZJK-40 | ZJK-60 | ZJK-90 |

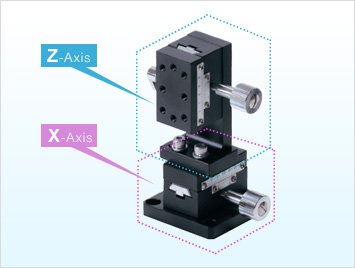

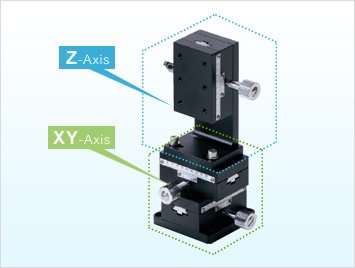

Combination examples
 |
 |
Clamp lever
The clamp lever fits commercially available hexagonal bolts, allowing the length of the screw to be adjusted, and the fixing position to be changed in order to avoid obstructing the lever.
Vibration resistance
The four hexagonal bolts that secure the base plate and L bracket to the stage main unit are coated with viscoelastic material, which reduces vibrations from machinery and devices, and prevents screw loosening.
Mounting direction flexibility
Compound stages, such as XZ and XYZ, etc., can combined in any desired mounting direction.
XJK-40 Miruc X Axis Drive Master Technique Stage
| |
|
|
| ZJK-40 | ZJK-60 | ZJK-90 |
| Model | Stage surface
(mm) |
Degree of movement(mm) | Degree of movement per handle rotation(mm) | Movement precision (μm) | Load bearing N(kgf) | Minimum scale reading(mm) | Weight(kg) | |
| Straightness | Degree of parallelism during operation | |||||||
| ZJK-40 *1 | 24.8 x 42 | ± 12 | 18 | 20 | 25 | 14.7 (1.5) | 0.1 | 0.17 |
| ZJK-60 *1 | 40 x 60 | ± 21 | 18 | 30 | 30 | 19.6 (2.0) | 0.1 | 0.29 |
| ZJK-90 *1 | 40 x 90 | ± 35 | 18 | 30 | 30 | 19.6 (2.0) | 0.1 | 0.40 |
* Material: stage body: aluminum alloy, surface treatment: matt black alumite
| Model | Stage surface(mm) | Degree of movement(mm) | Degree of movement per handle rotation(mm) | Movement precision (μm) | Load bearing N(kgf) | Minimum scale reading(mm) | Weight(kg) | |
| Straightness | Degree of parallelism during operation | |||||||
| ZJK-40 | 24.8 x 42 | ± 12 | 18 | 20 | 25 | 14.7 (1.5) | 0.1 | 0.17 |
| ZJK-60 | 40 x 60 | ± 21 | 18 | 30 | 30 | 19.6 (2.0) | 0.1 | 0.29 |
| ZJK-90 | 40 x 90 | ± 35 | 18 | 30 | 30 | 19.6 (2.0) | 0.1 | 0.40 |
* Material: stage body: aluminum alloy, surface treatment: matt black alumite
Drawings
| DXF | |
| ZJK-40 | ZJK-40 |
| ZJK-60 | ZJK-60 |
| ZJK-90 | ZJK-90 |
