BMU960 Metallurgical Microscope, with flexible system, excellent imaging performance and stable system architecture. It is professional used in industrial testing and metallographic analysis. The operating mechanism according to ergonomic design. That can maximum reduce fatigue during using. Modular component design can freely assemble.

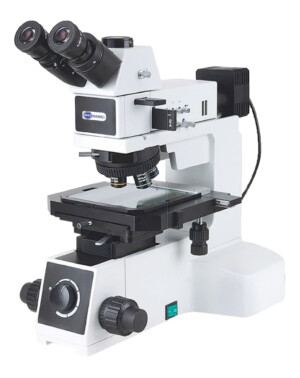

BMU900 Advanced Metallurgical Microscope
MT7500 Meiji Metallurgical Upright Reflected BF/DF Microscope

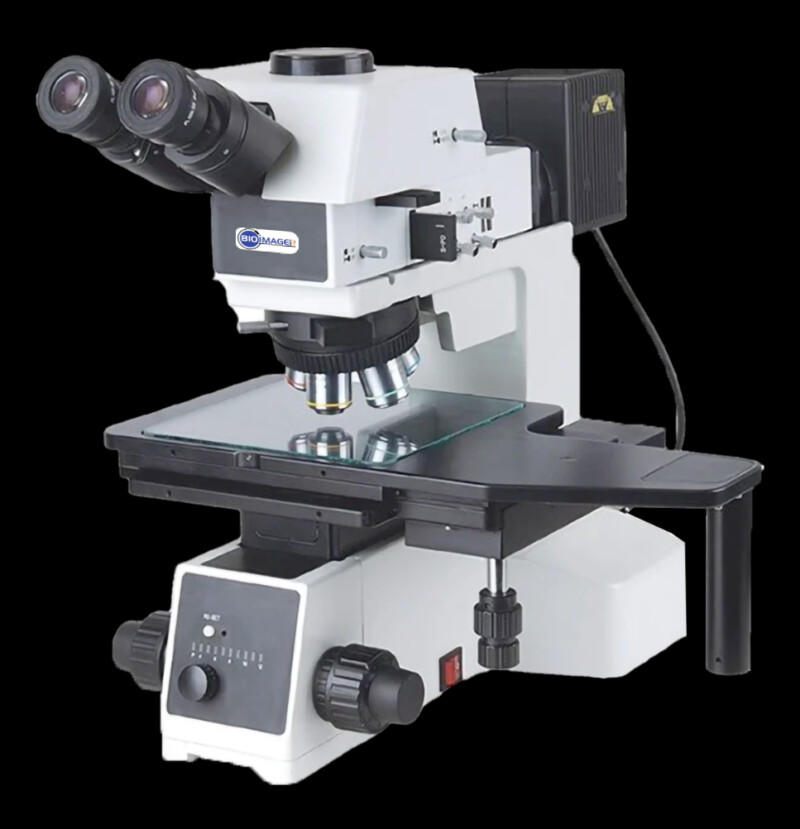

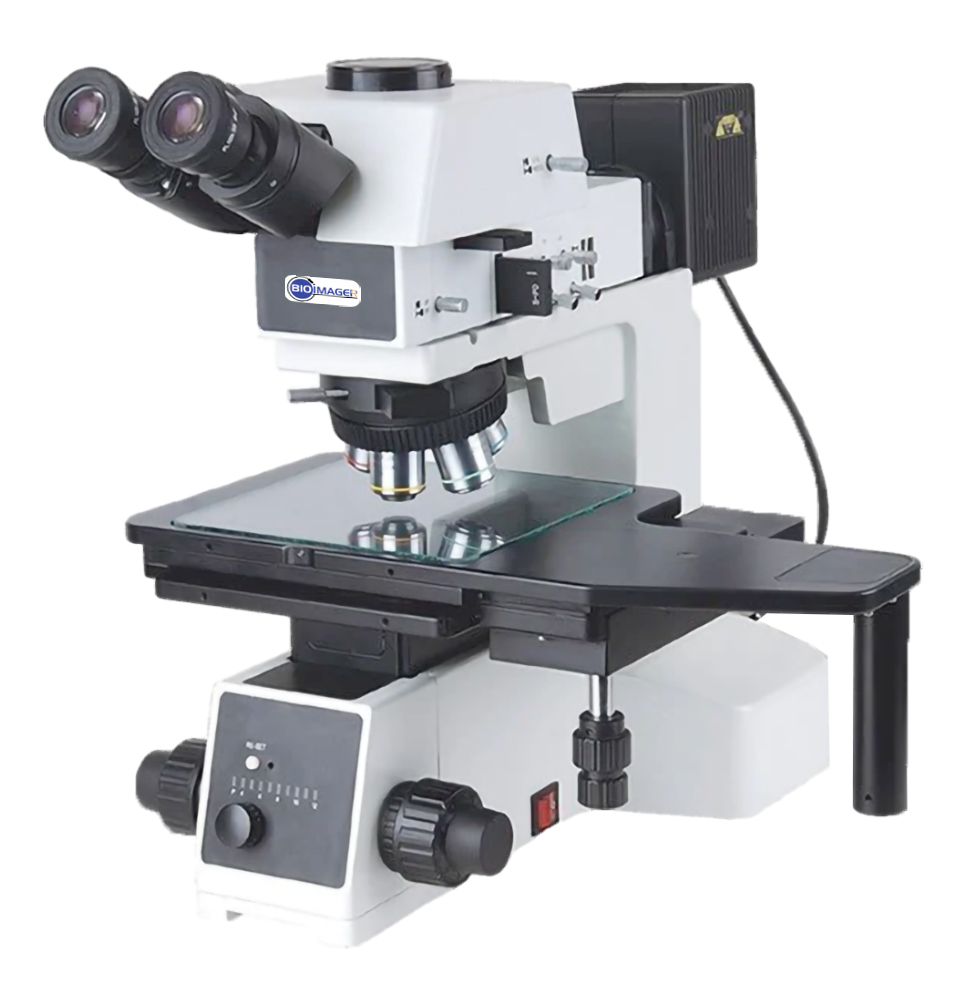

BMU960 Metallurgical Microscope
Original price was: $USD 13,000.00.$USD 7,820.00Current price is: $USD 7,820.00.
-40%BMU960 Metallurgical Microscope, with flexible system, excellent imaging performance and stable system architecture. It is professional used in industrial testing and metallographic analysis. The operating mechanism according to ergonomic design. That can maximum reduce fatigue during using. Modular component design can freely assemble.
BMU960 Metallurgical Microscope
- Intergrated Bright Field/Dark Field/ Oblique Illumination, Polaraizing, DIC Differential Interference
- 6″ Double Layer Mechanical Stage X/Y Moving Range Achieve 158*158mm
- New Deisgn Long Working Distance Professional Metallurgical Objetives
- High Power Semi-Apochromatic Techanlogy Objective
- Variety of Observation Methods To Have Sharp and High Contrast Microscopic Image
- Accessories Complete, Well Equipped, The System Can be Flexibly Combined
- Ergonomic Design, Reliable System Architecture
BMU960 DIC Metallurgical Microscope, with flexible system, excellent imaging performance and stable system architecture. It is professional used in industrial testing and metallographic analysis. The operating mechanism according to ergonomic design. That can maximum reduce fatigue during using. Modular component design can freely assemble.
–Integrated Bright Field/Dark Field/ Oblique Illumination, Polarizing, DIC Differential Interference
–6″ Double Layer Mechanical Stage X/Y Moving Range Achieve 158*158mm
–New Design Long Working Distance Professional Metallurgical Objectives
–High Power Semi-Apochromatic Technology Objective
Variety of Observation Methods To Have Sharp and High Contrast Microscopic Image
–Accessories Complete, Well Equipped, The System Can be Flexibly Combined
–Ergonomic Design, Reliable System Architecture
| BMU960 BD, DIC Metallurgical Microscope | RF | TRF | ||
|---|---|---|---|---|
| Optical System | Bright Field/Dark Field, Polarizing, DIC | o | ||
| Bright Field/Dark Field, Polarizing, DIC, Transmit Light | o | |||
| Head | 25° Inclinded Trinocular, Spiltting Ratio 100:0 or 50:50, Erect Image | |||
| Eyepiece |
High Eyepoint Plan PL10x/22mm |
|||
| Objective | Long Working Distance Infinity Plan Metallurgical BF/DF DIC Achromatic |
LMPL5X/0.15 WD10.8MM | ||
| LMPL10X/0.3 WD10MM | ||||
| LMPL20X/0.45 WD4MM | ||||
| Long Working Distance Infinity Plan Metallurgical BF/DF Semi-APO |
LMPL50X/0.55 WD7.8MM | |||
| Nosepiece | Intilted, Quintuple Bright/Dark Field, With DIC Slot | |||
| Stage | 6 ” Three Layer Mechanical Stage, Moving Range 158*158mm, withl Glass Stage, XY Moving Hand Wheel, with Clutch Hand, Right Hand Shank, Can Move Quickly | o | ||
| 6 ” Three Layer Mechanical Stage, Moving Range For Reflection 158*158mm, For Transmission 100*100mm, withl Glass Stage, XY Moving Hand Wheel, with Clutch Hand, Right Hand Shank, Can Move Quickly | o | |||
| Focusing | Coaxial Coarse & Fine Focusing, Coarse Focus Range 33mm, Fine Focusing Precision 0.001mm,With Coarse Adjustment Stop and Tightness Adjustment | |||
| Illumination | Reflect Illumination, With Iris Field Diaphragm and Aperture Diaphragm, Central Adjustable, with Filter SLot and Polarizing Slot, With Switch Device WIth Bright and Dark Field, 12V100W Halogen Bulb, Pre-Centering, Digital Dimming Can Be With Bright Intensity Settings And Reset Function | |||
| Transmitted Illumination, Single High Power 5W LED, White Brightness Adjustable, N.A.0.5 Condenser, with Iris Diaphragm | o | |||
| Polarizing | Fixed Polarizer Flashboard, Dia.30mm | |||
| 360° Rotatable Analyser Flashboard | ||||
| Power | 90-240V Wide Voltage, One Way Power Output | o | ||
| 90-240V Wide Voltage, Double Way Power Output | o | |||
| BMU960 BD, DIC Metallurgical Microscope Optional Accessories | ||||
| Eyepiece | High Eyepoint Plan PL15x/16mm PL15x16 | BMU9-E1516 | ||
| High Eyepoint Plan PL10x/22mm, with Cross PL10x22r, | BMU9-E1022R | |||
| High Eyepoint Plan PL10x/22mm, Diopter Adjustable, PL10x22T | BMU9-E1022T | |||
| Objective | Long Working Distance Infinity Plan Metallurgical BF/DF Semi-APO LMPL100X/0.8 WD2.1MM | BMU9-100x | ||
| DIC | DIC Attachment Set | BMU9-DIC | ||
| Filter | Interface Filter For Reflect illumination | Blue, <480nm | BMU9-FB | |
| Green, 520~570nm | BMU9-FG | |||
| Red, 630~750nm | BMU9-FR | |||
| Netural, for White Balance | BMU9-LBD | |||
| Other | Specimen Presser | BIA-SP | ||
| Adapter | 0.5x C-Mount, for 1/2″ CCD, Focus Adjustable | BMU9-0.5xCA | ||
| 1.0x C-Mount, Focus Adjustable | BMU9-1xCA | |||
| Digital Camera Adapter with Photo Eyepiece | BMU9-SLR-x | |||
A custom microscopy package of this model was provided to:
- University of Pennsylvania, Philadelphia, PA, USA, on April 2016.
- A private corporate in Chicago, IL, USA.
