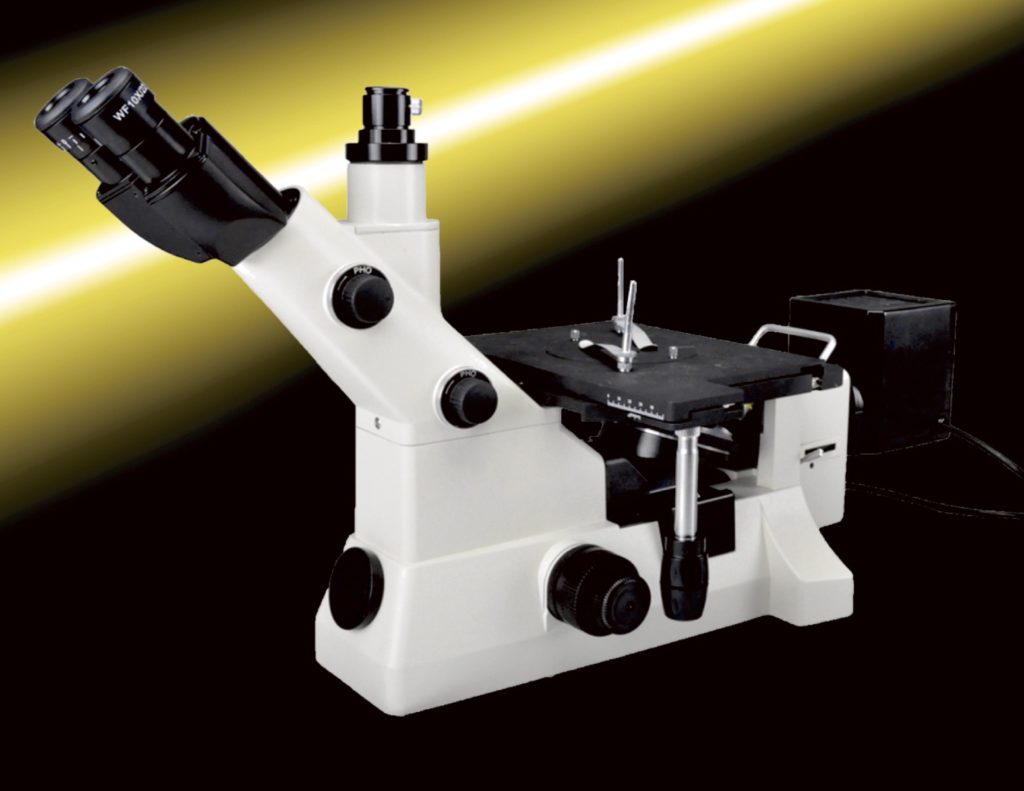

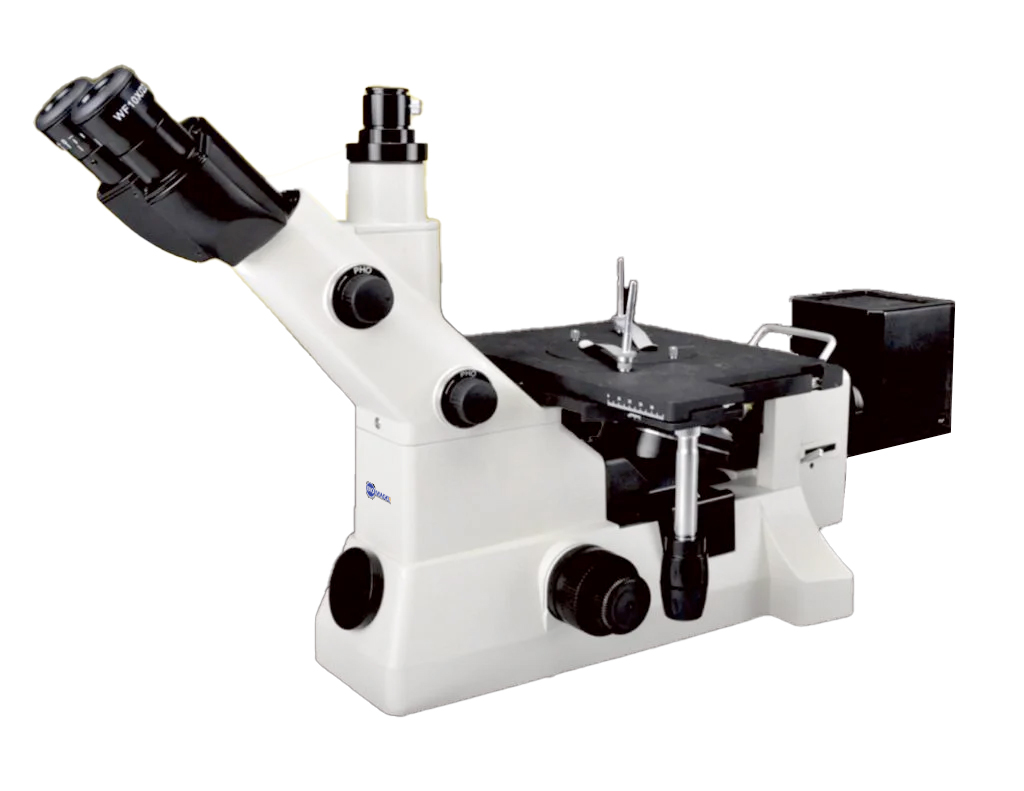

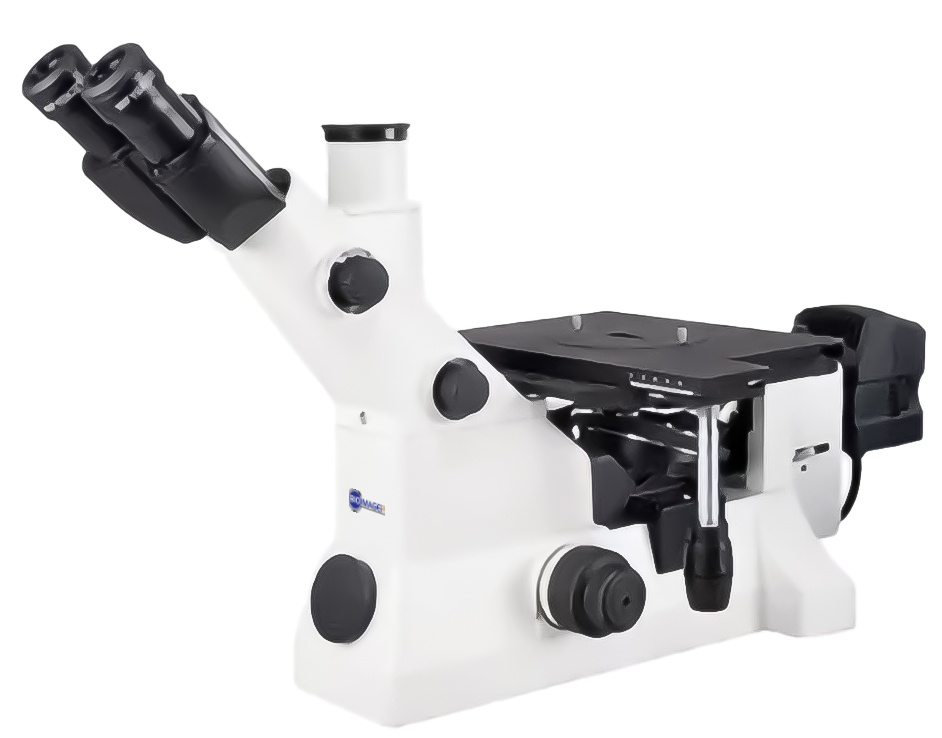

BMI600 Inverted Metallurgical BF/DF +DIC (Optional) Microscope

Availability:

In stock


Compare
  • Inverted Metallurgical Microscope
  • Infinite optical system provides excellent optical functions.
  • Brightfield, Darkfield and Polarized Imaging with optional DIC Nomarsky
  • Front video port and Siedentopf trinocular head, inclined at 30°, interpupillary distance 48-75mm
  • EW10×/ 20 Eyepiece with scale of cross hair with optional 15x and 20x eyepieces
  • Infinite LWD Plan Achromatic BF/DF Objective: 5x, 10x, 20x, 50x and 100x

In stock

$4,650.00 $6,000.00

BMI600 Inverted Metallurgical Microscope can identify and analyze not only a variety of metals, alloys, non-metallic material and the organizational structure and integrated circuits, but also micro-particles, wires, fibers, surface coating and so on. Digital cameras can be added to the trinocular tube to take images and make image analysis. DIC observation is optional.

Basics & Principles of a Metallurgical Microscope

Main Features

  • Infinite optical system provides excellent optical functions.
  • Brightfield, Darkfield and Polarized Imaging with optional DIC Nomarsky
  • Front video port and Siedentopf trinocular head, inclined at 30°, interpupillary distance 48-75mm
  • EW10×/ 20 Eyepiece with scale of cross hair with optional 15x and 20x eyepieces
  • Infinite LWD Plan Achromatic BF/DF Objective: 5x, 10x, 20x, 50x and 100x

Highlighted Features

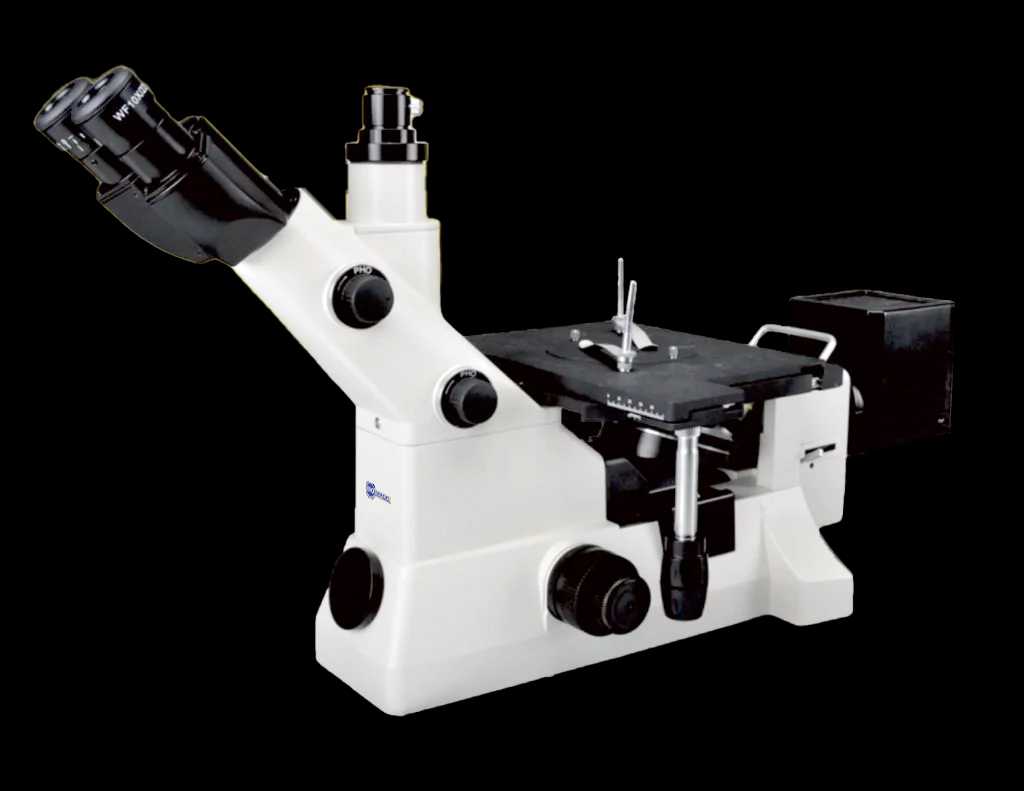

BMI600 Inverted Metallurgical BF/DF +DIC (Optional) Microscope

BMI600 Inverted Metallurgical Microscope with brightfield, Darkfield & DIC (Optional) Imaging Capability

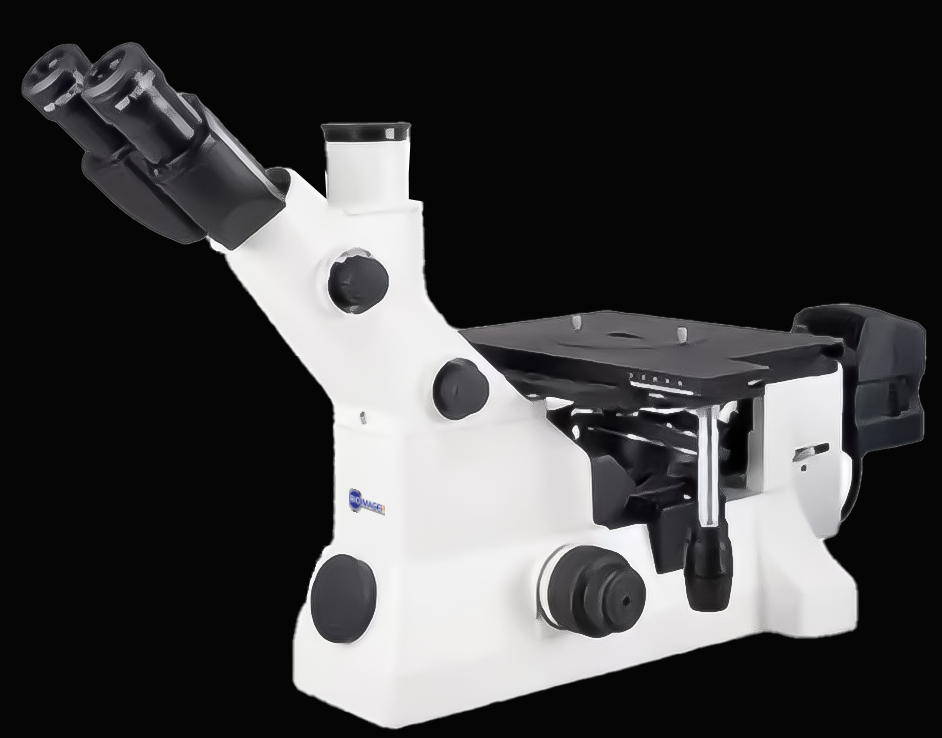

BMI600 Inverted Metallurgical BF/DF +DIC (Optional) Microscope

Quick Review

  • Inverted Metallurgical Microscope
  • Infinite optical system provides excellent optical functions.
  • Brightfield, Darkfield and Polarized Imaging with optional DIC Nomarsky
  • Front video port and Siedentopf trinocular head, inclined at 30°, interpupillary distance 48-75mm
  • EW10×/ 20 Eyepiece with scale of cross hair with optional 15x and 20x eyepieces
  • Infinite LWD Plan Achromatic BF/DF Objective: 5x, 10x, 20x, 50x and 100x

Highlighted Features

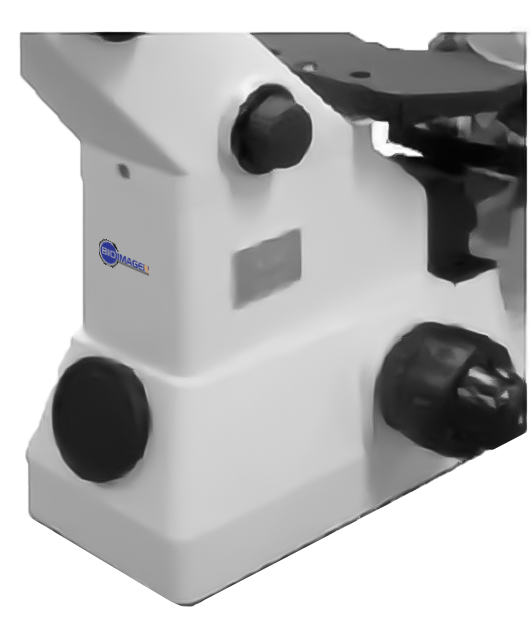

BMI600 Inverted Metallurgical BF/DF +DIC (Optional) MicroscopeTrinocular Head

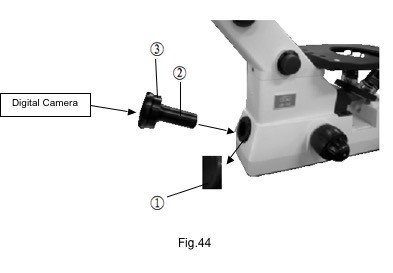

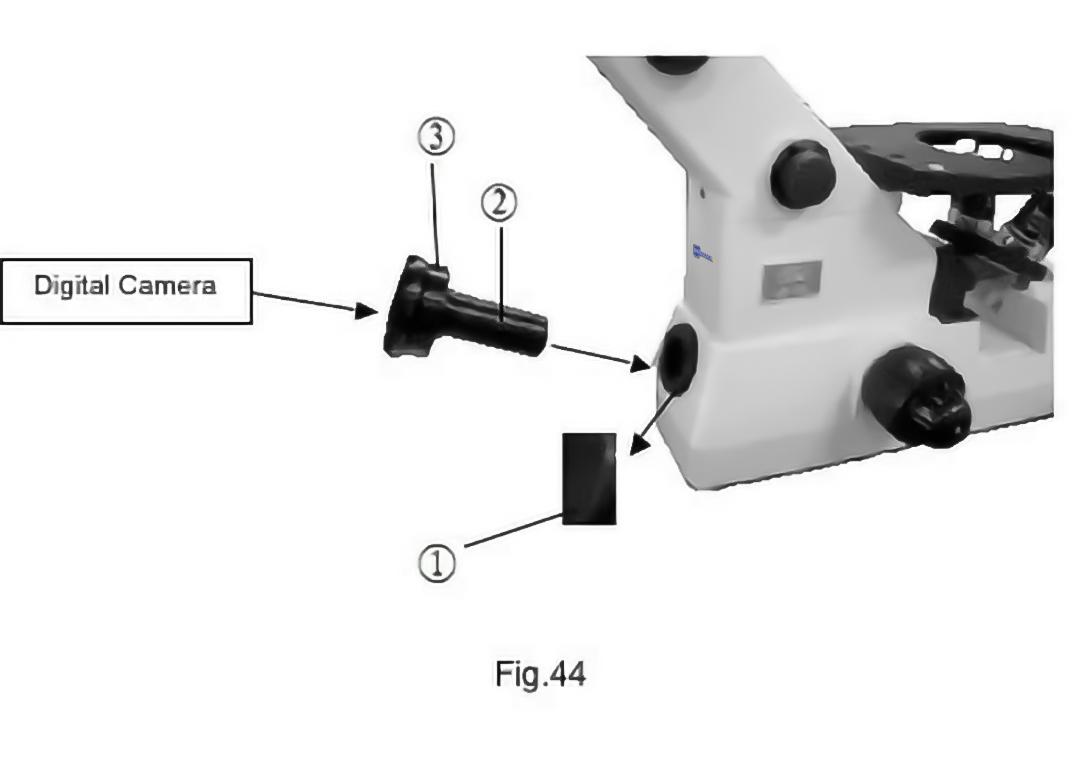

BMI600 Inverted Metallurgical BF/DF +DIC (Optional) MicroscopeFront Video Port

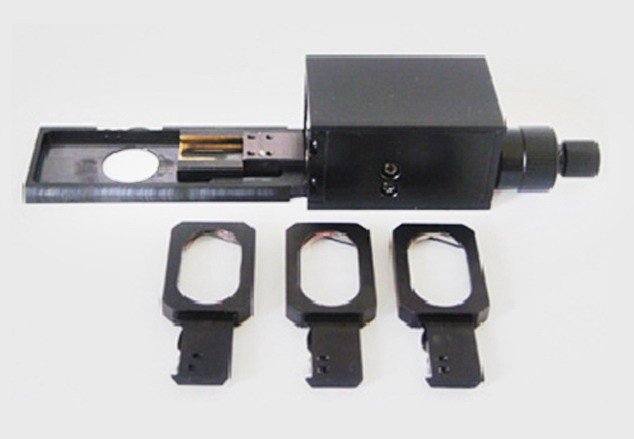

BMI600 Inverted Metallurgical BF/DF +DIC (Optional) MicroscopeDIC Nomarsky Imaging (Optional)

Specifications

ModelBMI600
Optical SystemInfinite optical system
Viewing HeadSiedentopf trinocular head, inclined at 30°, interpupillary distance 48-75mm
Extra Wide Field EyepieceEW10×/ 22
EW10×/ 20 Eyepiece with scale of cross hair
EW15×/ 16
EW20×/ 12
Infinite LWD Plan Achromatic Objective5×/0.12/∞/0 (BF/DF)    LWD 10.0mm
10×/0.25/∞/0 (BF/DF)   LWD 10.0mm
20×/0.40/∞/0 (BF/DF)   LWD 5.0mm
50×/0.75/∞/0 (BF/DF)   LWD 1.3mm
100×/0.90/∞/0 (BF/DF)  LWD 0.7mm
NosepieceBackward quintuple nosepiece
StageDouble layer mechanical stage 226×178mm, Moving range 40mm×40mm
Small stage plate, Φ20mm, Φ30mm,
FocusingCoaxial coarse & fine adjustment, fine division 2μm, move up 1mm, down 7mm
12V/50W Halogen lamp, center and brightness adjustable
Polarizer and analyzer
DIC
Built-in Green, Blue, Yellow, Gray and Frosted filters
Optional AccessoriesPhoto attachment
Video attachment with C mount
Micrometer scale 0.01mm

Note: ●Standard parts  ○ Optional parts

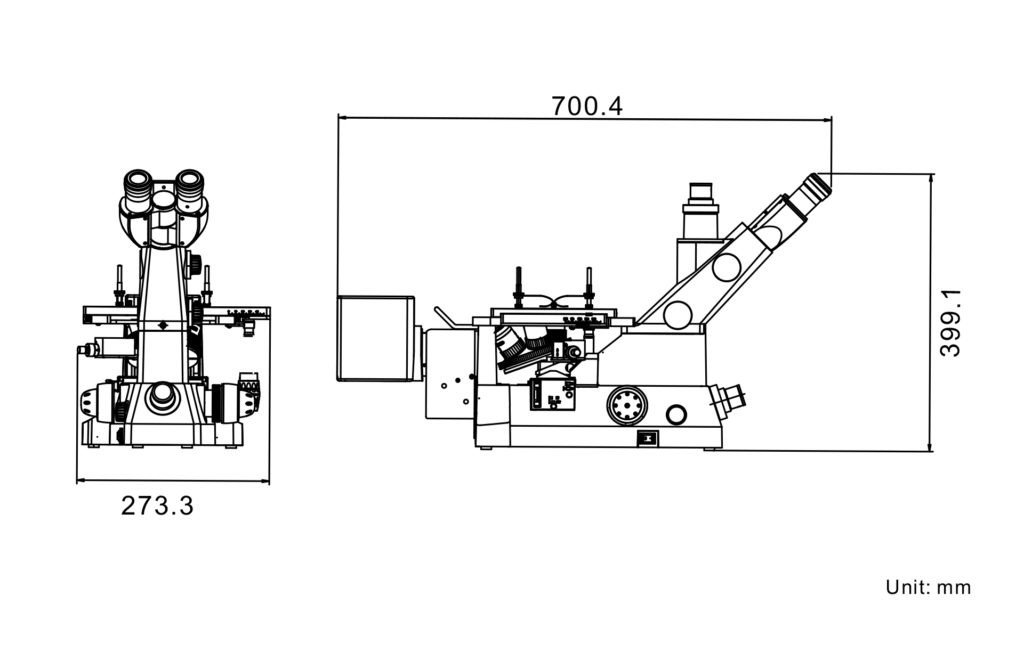

Dimensions
BMI600 Inverted Metallurgical BF/DF +DIC (Optional) Microscope

Application

BMI600 can be used in institutes and laboratories to observe and identify the structure of various metal and alloy, it also can be widely used in electronics, chemical and instrumentation industry, observe the opaque material and transparent material, such as metal, ceramics, integrated circuits, electronic chips, printed circuit boards, LCD panels, film, powder, toner, wire, fibers, plated coatings, and other non-metallic materials and so on.
