Stereo microscopes are also known as low magnification and dissecting microscopes. BSM340 Zoom Stereo Microscope on a post stand offers upright, un-reversed 3 D images that remain in focus throughout the zoom range. Optional eyepieces and auxiliary objectives expand magnification range and working distances.
BSM340 is a very popular zoom stereo microscope. Optional cold light and ring light can be chosen for this microscope. You can also choose trinocular head to add digital camera with the appropriate camera adapter. In summary, BS-3040 gives many range of magnifications, working distances, photo options, accessories and is very convenient to use – no wonder it is popular!
Features
With high quality optical components, providing sharp and striking contrast image and ensure flat image at large depth of field, Ease the tiredness with ergonomic design.
With LED light for both incident and transmitted illumination, Providing even illumination and life expectancy can reach 6000 hours.
With Complete eyepieces, objectives and accessories, it is an ideal instrument for industry assembling, inspection and teaching field.

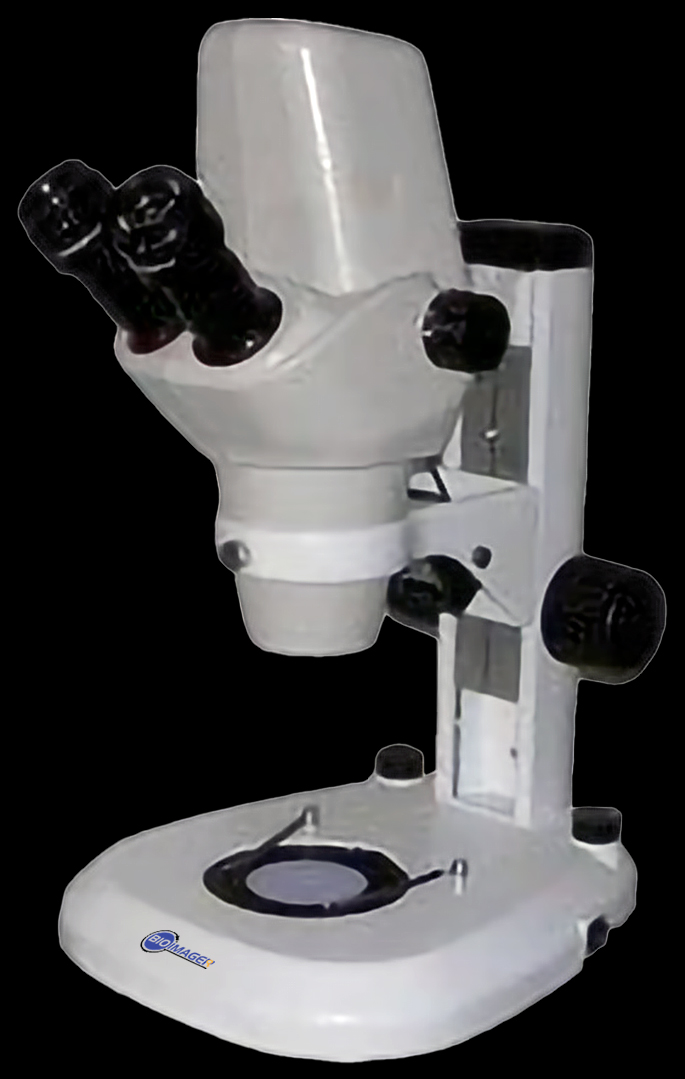

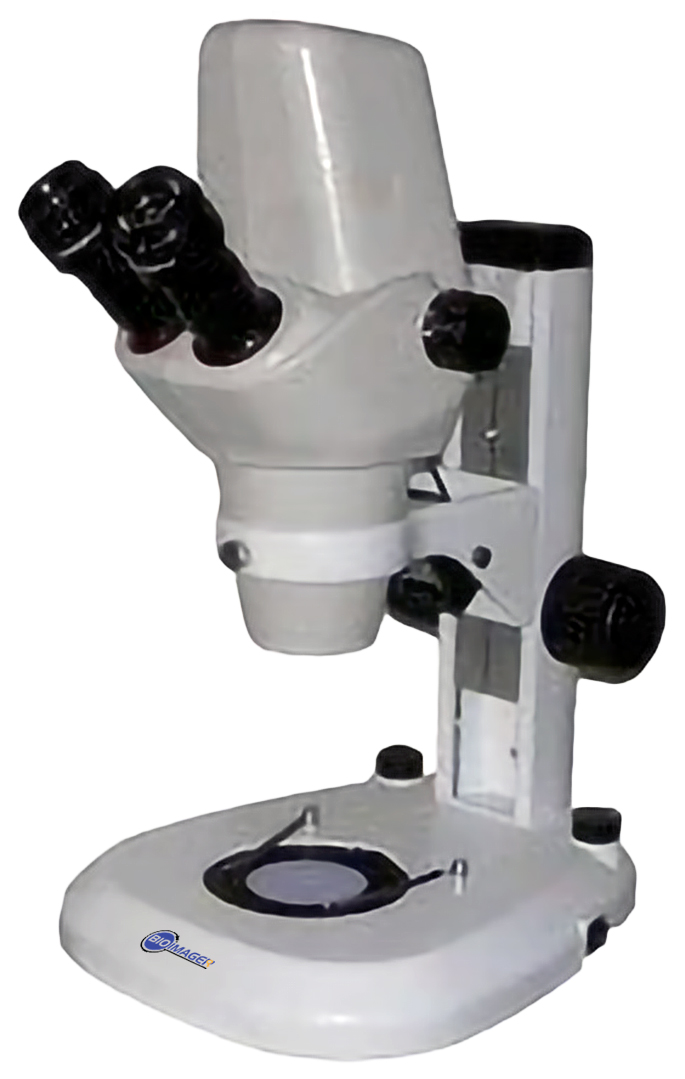

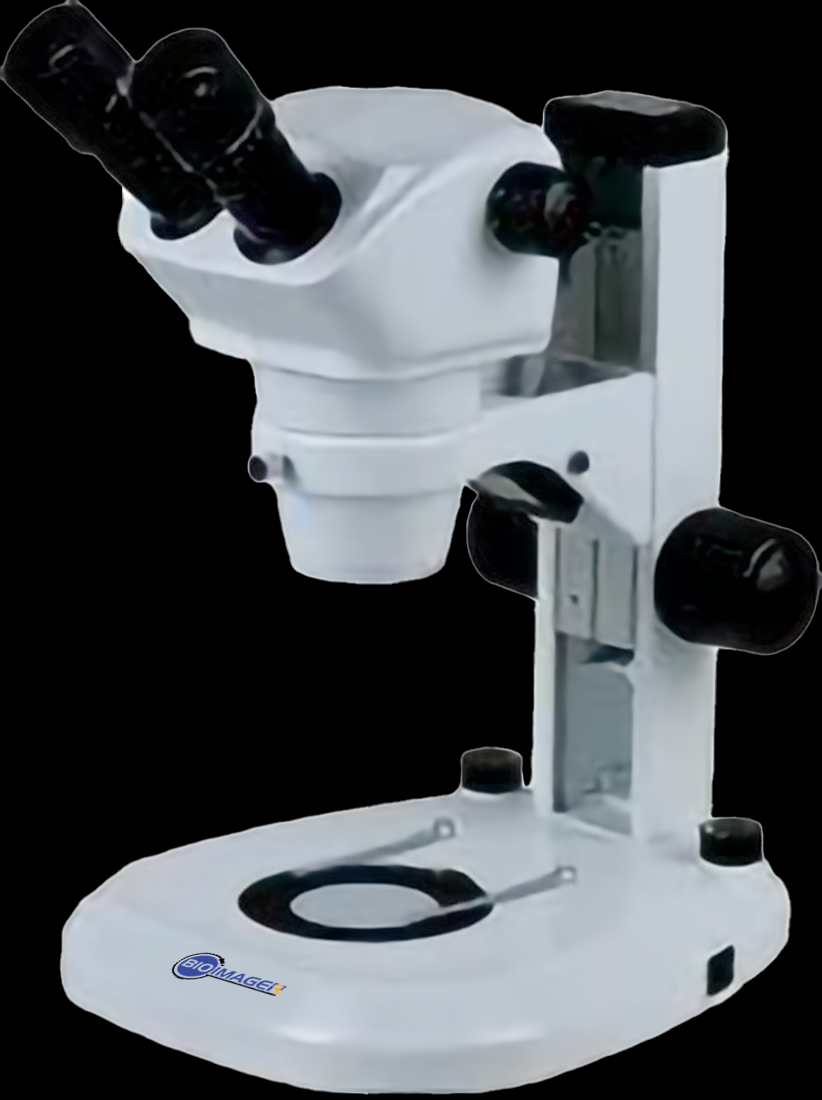

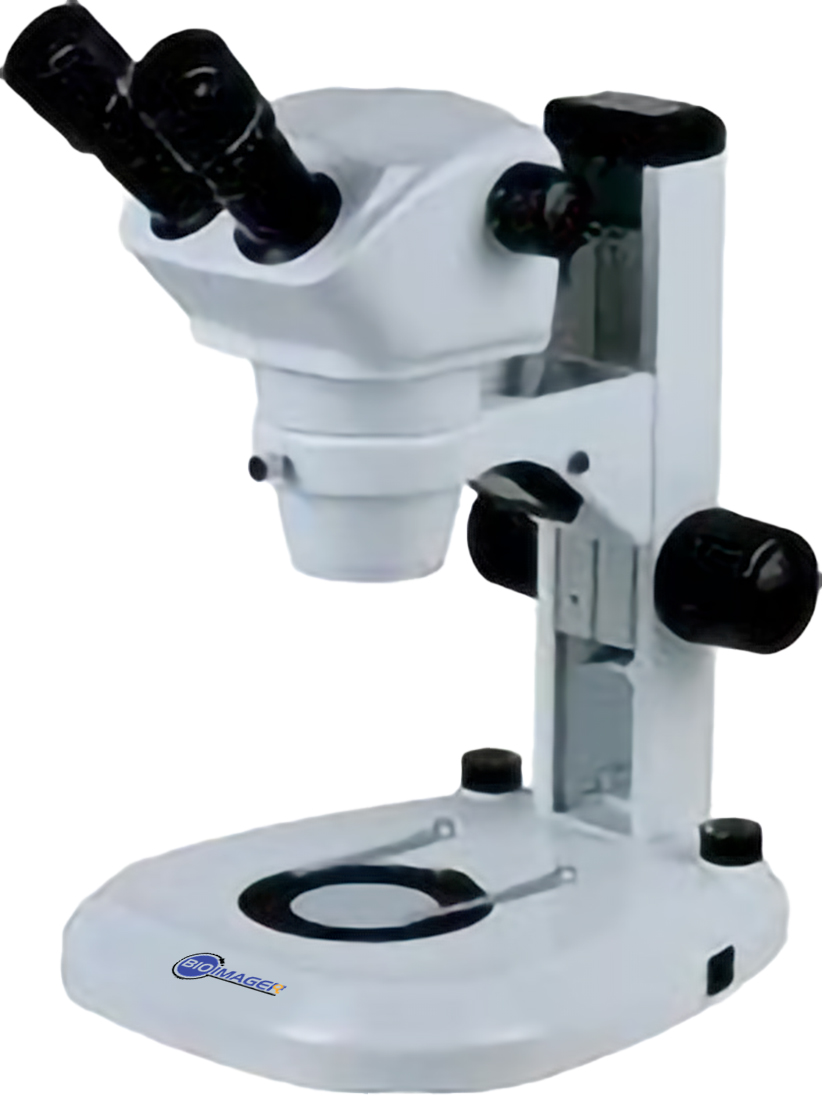

BSM340 Zoom Stereo Microscope
BSM340B with Binocular Head

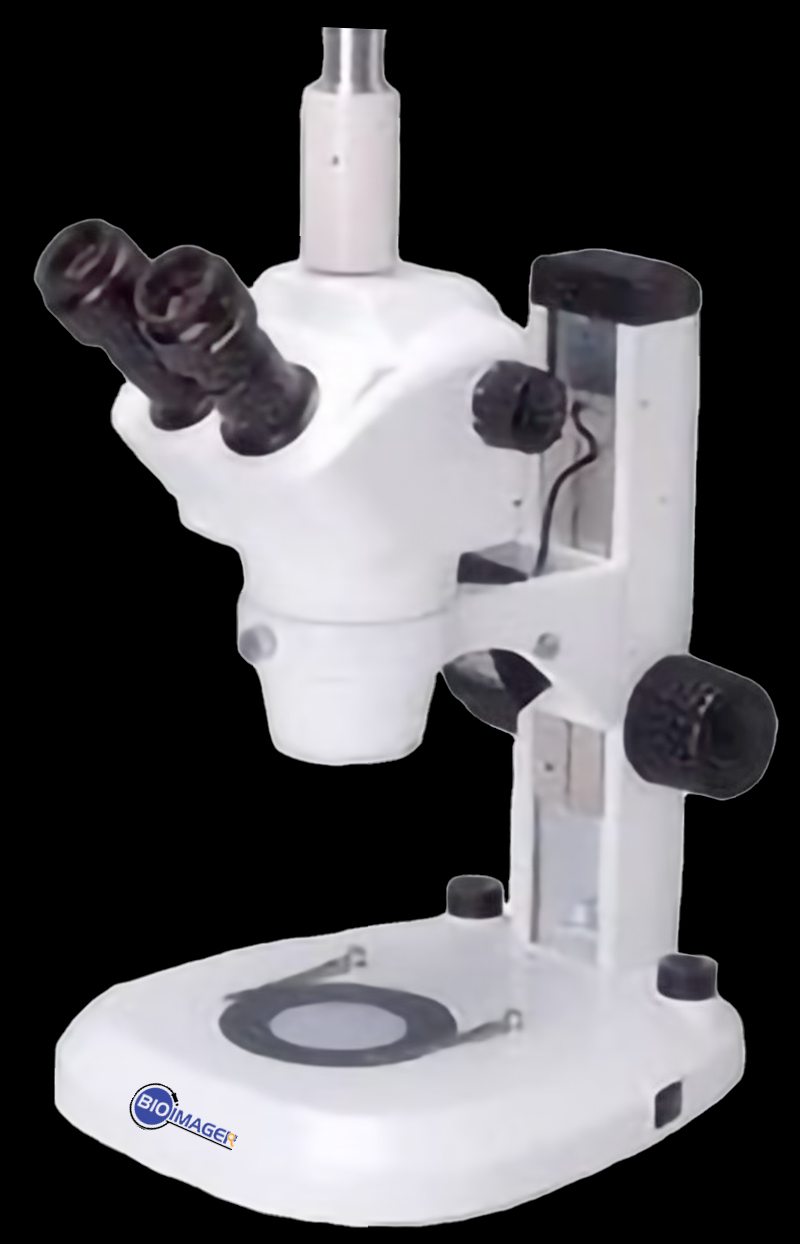

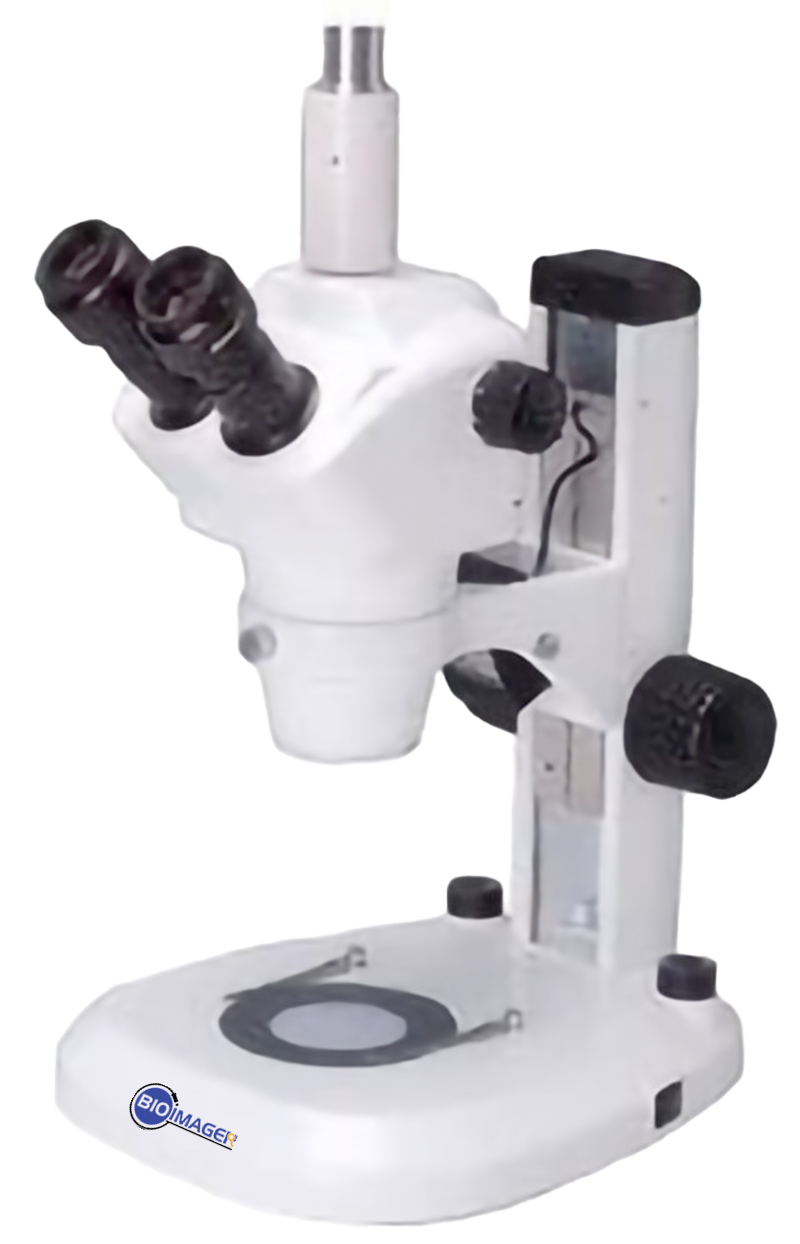

BSM340T with Trinocular Head(Camera not included)
BSM340D with digital head with built-in 3MP camera
Introduction
Stereo microscopes are also known as low magnification and dissecting microscopes. BSM340 Zoom Stereo Microscope on a post stand offers upright, un-reversed 3 D images that remain in focus throughout the zoom range. Optional eyepieces and auxiliary objectives expand magnification range and working distances.
BSM340 is a very popular zoom stereo microscope. Optional cold light and ring light can be chosen for this microscope. You can also choose trinocular head to add digital camera with the appropriate camera adapter. In summary, BS-3040 gives many range of magnifications, working distances, photo options, accessories and is very convenient to use – no wonder it is popular!
Features
1.With high quality optical components, providing sharp and striking contrast image and ensure flat image at large depth of field, Ease the tiredness with ergonomic design.
2.With LED light for both incident and transmitted illumination, Providing even illumination and life expectancy can reach 6000 hours.
3.With Complete eyepieces, objectives and accessories, it is an ideal instrument for industry assembling, inspection and teaching field.
Application area
The stereo zoom microscope is of great value in a variety of applications such as circuit board repair, circuit board inspection, surface mount technology work, electronics inspection, coin collecting, gemology and gemstone setting, engraving, and repair and inspection of small parts.
Model
Description
BSM340B
BSM340T
BSM340D
Viewing Head
Binocular Viewing Head, Inclined at 45°
●
○
○
Binocular Viewing Head, Inclined at 60°
○
○
○
Trinocular Viewing Head, Inclined at 45°
○
●
○
Digital Viewing Head, Inclined at 45°, 3.2MP(2048×1536)
○
○
●
Eyepiece
Extra wide field eyepiece EW10×/22
●
●
●
WF15×/Φ16
○
○
○
WF20×/Φ12
○
○
○
WF30×
○
○
○
Zoom Objective
0.8×-5×
●
●
●
Zoom Ratio
6.3:1
●
●
●
Working Distance
115mm
●
●
●
Interpupillary Distance
57-75mm
●
●
●
Auxiliary objective
0.5×
○
○
○
0.7×
○
○
○
2×
○
○
○
Stage Plate
Glass Insert Plate, Diameter 100mm
●
●
●
White&Black round plate
●
●
●
Illumination
Incident Illumination 100V-240V/ LED
●
●
●
Transmitted Illumination 100V-240V/ LED
●
●
●
Attachment
Photo Attachment
○
○
○
Video Attachment
○
○
○
Package & Dimension
36.5cm*31cm*52cm, 1pc/carton, 8.5kg
●
●
●
Note: ● Standard Outfit, ○ Optional

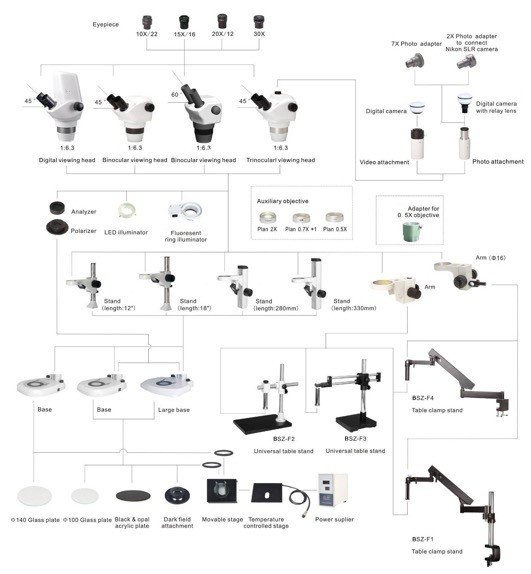

Parts name to review (a representative stereoscope):
