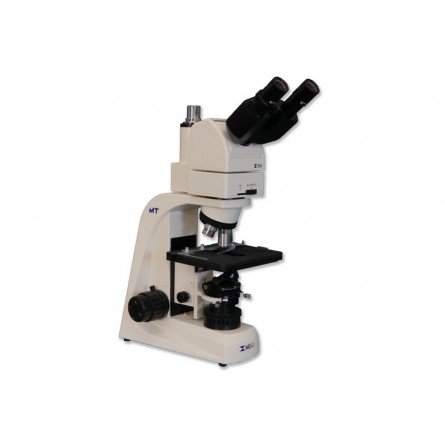

LED Ergonomic Binocular Dermatology Microscope, MT4200ED

$USD 3,865.00

-10%

Meiji Techno’s university grade upright microscope line isbiological research microscopes the new and cost-effective MT4000 Series Biological Microscopes.

Free worldwide shipping on all orders over $50

  • 30 days easy returns
  • Order yours before 2.30pm for same day dispatch
Guaranteed Safe Checkout

Meiji Techno’s university grade upright microscope line isbiological research microscopes the new and cost-effective MT4000 Series Biological Microscopes.

The MT4000 Series employs all new and improved Plan optics. Meiji Techno’s ICOS™ (Infinity Corrected Optical System) makes the study of mounted specimens fast and easy while delivering an excellent cost-to-performance ratio. The MT4200L Microscopes features include:

  • Computer Aided Design
  • All New Infinity Corrected Optics
  • Ergonomically positioned controls
  • Comfortable Siedentopf viewing heads
  • Ergonomic Binocular Head Available
  • 30W Halogen for Phase Contrast and Brightfield Models and LED Illumination for Brightfield Models
  • Brightfield, darkfield and phase contrast observation modes available

Includes:
MT4200ED: Ergonomic Binocular Brightfield Dematology Compound microscope with Bright LED Koehler illumination with quintuple nosepiece and auto voltage sensing power supply
MA957/05: Ergonomic binocular head, inclination adjustable from 10-50 degrees
MA407 (x 2): KHW10X compensating eyepiece, Field No. 20, Tube O.D. 23.2MM (each)
MA1022:Plan Apochromat Objective 1.25X, N.A. 0.04, W.D. 3.7 mm, F.N. 24
MA831: Plan Achromat Objective 10X, N.A. 0.25,W.D. 7.3mm
MA832: Plan Semi Apo Objective 10X, N.A. 0.25, W.D. 10.7 mm, F.N. 24
MA833: Plan Semi Apo Objective 20X, N.A. 0.40, W.D. 7.29 mm, F.N. 24
MA834: Plan Semi Apo Objective 40X, N.A. 0.65, W.D. 0.50 mm, F.N. 24
MA976: Abbe condenser, N.A. 0.90 with swing out top lens, iris diaphragm and dovetail mount
MA917R: Ceramic coated flat-top stage, 170mm x 140mm, 80mm x 52mm
MA598: Attachable finger assembly for MA917R and MA917L
LED/SP-1: 3W LED, 5500K color temperature
MA929: Spare fuse 0.5A for MT4000 LED Illuminator
MA809/10: Removable AC Electric cord with plug for 115V models
MA701: Dust Cover for MT4000
Manual: MT4000 Meiji Techno Instruction Manual
Warranty: Limited Lifetime Warranty Card

Product Information:
Manufactured: 100% MADE IN JAPAN
Warranty: LIMITED LIFETIME WARRANTY
Customer Support: 1-(800) 832-0060 (U.S.A Based)

Package Information:
Weight: 29 lbs (8.0kg)
Box Size: 16 x 14 x 21 inches
Footprint: 263mm (D) x 176mm (W)
Binocular head type: 390 mm(D) x 410mm (H) x 210mm(W) (8.0kg)( 29.0 lbs)
Trinocular head type: 390 mm(D) x 465mm(H) x 210mm(W) (8.7Kg)( 30.0 lbs)
Binocular Ergonomic head type: 390 mm(D) x 483mm (H) x 210mm(W) (8.4kg)(31 lbs)
Trinocular Ergonomic head type: 390 mm(D) x 533mm(H) x 210mm(W) (8.9Kg)(33 lbs)

Model Head Illumination Eyepieces Objectives Stage Condenser
MT4200D Binocular LED Illumination SWH10x FN20 Plan Apo 1.25x Plan Semi Apo 4x, 10x, 20x, 40x Ceramic Coated Fixed flat-top left or right-handed controls Abbe NA 0.90 with swing out top lens
MT4200ED Ergonomic Binocular
MT4300D Trinocular
MT4300ED Ergonomic Trinocular

VIEWING HEADS
Model MA815/05 is the Siedentopf-type binocular head and Model MA816/05 is the trinocular head for camera integration. Each head has the eyetubes inclined at 30° with the left eyetube having graduated diopter settings. The interpupillary distance is adjustable between 53mm – 75mm. An 80/20 beamsplitter for the trinocular tube can be engaged for photo work. The optional MA957/05, Ergonomic Binocular Viewing Head, has the inclination adjustable from 10 to 50 degrees to fit users of different heights. The Ergonomic Trinocular model comes with the MA958, photo/video attachment with sliding 80/20 beam-splitter (Included in MT4300ED).

EYEPIECES
10X Widefield High Eyepoint eyepieces F.N.20 are standard, and 15X and 20X eyepieces are available as an option. A Widefield High Eyepoint 10X focusable eyepiece that accepts 21mm reticules is also available.

OBJECTIVE CHANGER
Quintuple nosepiece provides effortless objective changes with smooth-operating, ball bearing mounted.

OBJECTIVES
Meiji Techno America offers an assortment of Planachromat Infinity Corrected (ICOS) objectives for Brightfield, Darkfield and Phase Contrast observation modes.

STAGE
Ceramic coated standard right-handed or optional left-handed controls, flat top stage 171mm x 115mm and travels 78mm(X) x 52mm(Y). Ergonomically positioned coaxial drop down controls. Available with motorized focus and stage controls.

CONDENSER
New design centerable Abbe 1.25 N.A. Condenser with built-in iris diaphragm in dovetail mount.

ILLUMINATION
Powerful white LED illumination provides enhanced image quality and brightness for the observation of specimens and photomicroscopy.

PHOTOMICROGRAPHY
Meiji Techno offers a broad range of digital video cameras which offers excellent sensitivity, high resolution and a wide dynamic range for the most demanding brightfield and darkfield microscopy applications including clinical pathology and cytology, life sciences and geology. Some models has included software, that can preview and capture still shots and live videos to a PC or Mac with USB port or HDMI connectivity.

LED Ergonomic Trinocular Dermatology Microscope MT4300ED

LED Ergonomic Binocular Dermatology Microscope, MT4200ED

LED Ergonomic Binocular Dermatology Microscope, MT4200ED

LED Ergonomic Binocular Dermatology Microscope, MT4200ED

LED Ergonomic Binocular Dermatology Microscope, MT4200ED

Included:
• MT4200ED: Ergonomic Binocular Brightfield Dematology Compound microscope with Bright LED Koehler illumination with quintuple nosepiece and auto voltage sensing power supply
• MA957/05: Ergonomic binocular head, inclination adjustable from 10-50 degrees
• MA407 (x 2): KHW10X compensating eyepiece, Field No. 20, Tube O.D. 23.2MM (each)
• MA1022:Plan Apochromat Objective 1.25X, N.A. 0.04, W.D. 3.7 mm, F.N. 24
• MA831: Plan Achromat Objective 10X, N.A. 0.25,W.D. 7.3mm
• MA832: Plan Semi Apo Objective 10X, N.A. 0.25, W.D. 10.7 mm, F.N. 24
• MA833: Plan Semi Apo Objective 20X, N.A. 0.40, W.D. 7.29 mm, F.N. 24
• MA834: Plan Semi Apo Objective 40X, N.A. 0.65, W.D. 0.50 mm, F.N. 24
• MA976: Abbe condenser, N.A. 0.90 with swing out top lens, iris diaphragm and dovetail mount
• MA917R: Ceramic coated flat-top stage, 170mm x 140mm, 80mm x 52mm
• MA598: Attachable finger assembly for MA917R and MA917L
• LED/SP-1: 3W LED, 5500K color temperature
• MA929: Spare fuse 0.5A for MT4000 LED Illuminator
MA809/10: Removable AC Electric cord with plug for 115V models
MA701: Dust Cover for MT4000

OPTIONAL COMPONENTS & ACCESSORIES BELOW

Viewing Heads:
MA816/05: Trinocular head – Siedentopf type, I.P. adjustment 53mm to 75mm, graduated diopter on left eyetube (23.2mm I.D. eyetube). Inclined at 30 degrees (Included in Model MT4300L, MT4300H, MT4310L and Model MT4310H) Inverted image
MA957/05: Ergonomic binocular head, inclination adjustable from 10-50 degrees (23.2mm I.D. eyetube) Erect image. (Included in all Ergonomic Bino. & Trino. models)

Photo/Video Attachment:
MA958: Photo / video attachment with sliding 80/20 beam-splitter. For use with video or digital cameras when MA957/05 ergonomic head is used (Included in all Ergonomic Trinocular models)

Eyepieces:
MA407/05: KHW10X-F Compensation Focusing eyepiece, Field No. 20, Tube O.D. 23.2mm (each)
MA200: Eyeshield for MA407 KHW10X eyepiece (each)
MA408:HWF15X Widefield eyepiece, Field No. 12.2, Tube O.D. 23.2mm (each) (no reticle mount)
MA409:HWF20X Widefield eyepiece, Field No. 9, Tube O.D. 23.2mm (each) (no reticle mount)

Objectives:
MA830: Plan Semi Apo Objective 2.5X, N.A. 0.07, W.D. 5.7mm, F.N. 24
MA835: Plan Semi Apo Objective 50X, N.A. 0.87 oil, W.D. 0.28 mm, F.N. 24
MA837: Plan Semi Apo Objective 100X oil, N.A. 1.25, W.D. 0.23mm, F.N. 24

Brightfield Condenser:
MA910: Abbe condenser, N.A. 1.25 with iris diaphragm and dove-tail mount (Optional for use with 100X objective)

Filters:
MA858/05: ND 25 Neutral density filter, 44.0mm diameter, unmounted
MA857/05: Green filter, clear, 44.0mm diameter, unmounted (Included in all phase models)
MA856/05: LB100 Blue Clear filter 44.0mm diameter, unmounted

Stages:
MA917L: Ceramic coated flat-top stage, 170mm x 140mm, 80mm x 52mm X-Y movement, with left hand drop-down coaxial controls
MA598: Attachable finger assembly for MA917R and MA917L (Included with MA917R & MA917L)
MA676: Attachable clinical finger assembly for MA917R and MA917L

Eyepiece Micrometers (21mm diameter for use with MA407 eyepiece)
MA255: 10mm line divided into 100 units, 21mm diameter
MA256: 5mm line divided into 100 units, 21mm diameter
MA283/05: 10mm square divided into 100 parts, each square 1.0mm, 21mm diameter
MA540: Cross-line reticle with 0.1mm graduations, 21mm diameter

Stage Micrometers
MA285: 1mm divided into 100 units, 0.01mm
MA286: 0.04” divided into 40 units, 0.001”

Replacement Blubs and Fuse
MA327: Spare 3A Fuse for Halogen illuminator 6.00
LED/SP-1: 3W LED, 5500K color temperature

Miscellaneous
MA977: Eye level riser for MT Series stands
