Stereo microscopes are also known as low magnification and dissecting microscopes. BSM500 Series Zoom Stereo Microscope with Infinity Parallel Optical System on a post stand offers upright, un-reversed 3-D images that remain in focus throughout the zoom range. Optional eyepieces and auxiliary objectives expand magnification range and working distances.
This is a high level stereo microscope. Optional cold light and ring light can be chosen for this microscope. You can also choose trinocular head to add digital camera with the appropriate camera adapter. In summary BSM500 series Parallel Stereo Microscopes give the greatest range of magnifications, working distances, photo options, accessories and are the most convenient to use – no wonder they are popular!
Features
BSM500 Stereo Zoom Microscope
|
|

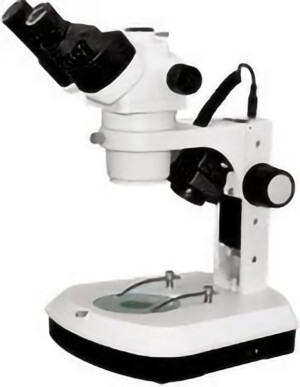

BSM500 with Binocular Head |
BSM500 with Trinocular Head |
BSM500 series stereo zoom microscopes with Infinity Parallel Optical System is of great value in a variety of applications such as Industrial, Medical and Scientific Research Areas, circuit board repair, circuit board inspection, surface mount technology work, electronics inspection, coin collecting, gemology and gemstone setting, engraving, and repair and inspection of small parts.
Specifications
Model |
BSM500
A |
BSM500
B |
BSM500
C |
Optical System |
Infinite Parallel Zoom Optical System |
● |
● |
● |
Viewing Head |
Binocular Head, 20°Inclination, Interpupilary Distance 55-75mm |
● |
● |
● |
Tilting Binocular Eyepiece Tube, 5°-35° Inclined, Interpupilary Distance 55-75mm |
○ |
○ |
○ |
Eyepiece |
EW10×/Φ22 |
● |
● |
● |
WF15×/Φ16 |
○ |
○ |
○ |
WF20×/Φ12 |
○ |
○ |
○ |
WF30× |
○ |
○ |
○ |
Zoom Objective |
0.8×-5× |
● |
|
|
0.8×-6.4× |
|
● |
|
0.8×-8× |
|
|
● |
Objective |
Plan Achromatic Objective 1× |
● |
● |
● |
Achromatic Objective 0.3× |
○ |
○ |
○ |
Plan Apochromatic Objective 0.5× |
○ |
○ |
○ |
Plan Achromatic Objective 2× |
○ |
○ |
○ |
Zoom Ratio |
1: 6 |
● |
|
|
1: 8 |
|
● |
|
1: 10 |
|
|
● |
Working Distance |
78mm |
● |
● |
● |
Focusing Range |
105mm |
● |
● |
● |
Illumination |
Transmission & Reflection LED Illumination, Brightness Adjustable |
● |
● |
● |
Optional Accessories |
Coaxial Illumination |
○ |
○ |
○ |
Epi-Fluorescent Attachment |
○ |
○ |
○ |
Dark Field Attachment |
○ |
○ |
○ |
Simple Polarization Set |
○ |
○ |
○ |
Iris Diaphragm |
○ |
○ |
○ |
Beam splitter (one port) |
○ |
○ |
○ |
Beam splitter (two ports) |
○ |
○ |
○ |
Photography & video attachment |
○ |
○ |
○ |
Moveable Stage |
○ |
○ |
○ |
Temperature controlled Stage |
○ |
○ |
○ |
Universal Table Stand/Table clamp stand |
○ |
○ |
○ |
Coaxial Coarse & Fine Focusing Unit |
○ |
○ |
○ |
Cold light illumination with dual light guide |
○ |
○ |
○ |
LCD Attachment |
○ |
○ |
○ |
Package & Dimension |
49cm*40cm*56cm, 1pc/carton, 9.5kg |
|
|
|
Note: ● Standard Outfit, ○ Optional
Optical Specifications
Obj. Lens |
Working Distance |
Zoom Ratio |
Eyepieces |
10X |
20X |
30X |
Mag |
FOV (mm) |
Mag |
FOV (mm) |
Mag |
FOV (mm) |
0.5X |
187mm |
A: 1:6 |
4X – 25X |
57.5 – 9.2 |
8X – 50X |
35 – 5.6 |
12X – 75X |
25 – 4 |
B: 1:8 |
4X – 32X |
57.5 – 7.2 |
8X – 64X |
35 – 4.4 |
12X – 96X |
25 – 3.1 |
C: 1:10 |
4X – 40X |
57.5 – 5.8 |
8X – 80X |
35 – 3.5 |
12X – 120X |
25 – 2.5 |
1X |
78mm |
A: 1:6 |
8X – 50X |
28.8 – 4.6 |
16X – 100X |
17.5 – 2.8 |
24X – 150X |
12.5 – 2 |
B: 1:8 |
8X – 64X |
28.8 – 3.6 |
16X – 128X |
17.5 – 2.2 |
24X – 192X |
12.5 – 1.6 |
C: 1:10 |
8X – 80X |
28.8 – 2.9 |
16X – 160X |
17.5 – 1.8 |
24X – 240X |
12.5 – 1.3 |
2X |
35mm |
A: 1:6 |
16X – 100X |
14.4 – 2.9 |
32X – 200X |
8.8 – 1.4 |
48X – 300X |
6.3 – 1 |
B: 1:8 |
16X – 128X |
14.4 – 2.3 |
32X – 256X |
8.8 – 1.1 |
48X – 384X |
6.3 – 0.8 |
C: 1:10 |
16X – 160X |
14.4 – 1.8 |
32X – 230X |
8.8 – 0.9 |
48X – 480X |
6.3 – 0.6 |
FOV=Field of View, Mag.=Magnification

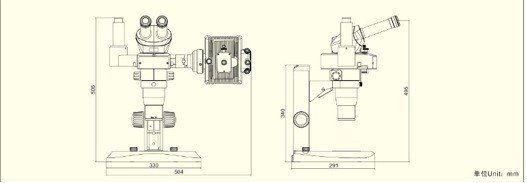

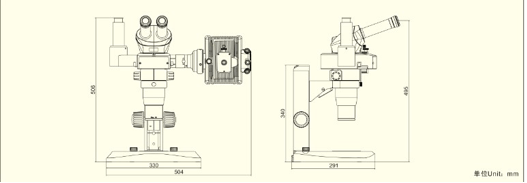

Dimensions
Application area
BSM500 series stereo zoom microscopes with Infinity Parallel Optical System is of great value in a variety of applications such as Industrial, Medical and Scientific Research Areas, circuit board repair, circuit board inspection, surface mount technology work, electronics inspection, coin collecting, gemology and gemstone setting, engraving, and repair and inspection of small parts.
Sample Images
Accessories to add on:
|
|
|
L-Shape Video Tube |
Two-Port Beam Splitter |

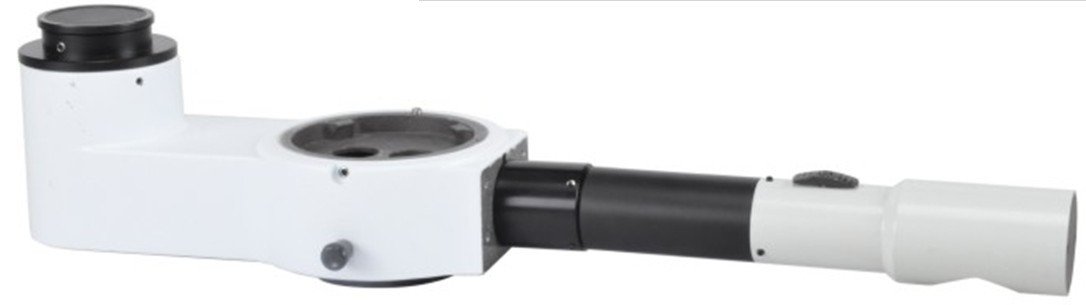

Drawing attachment |

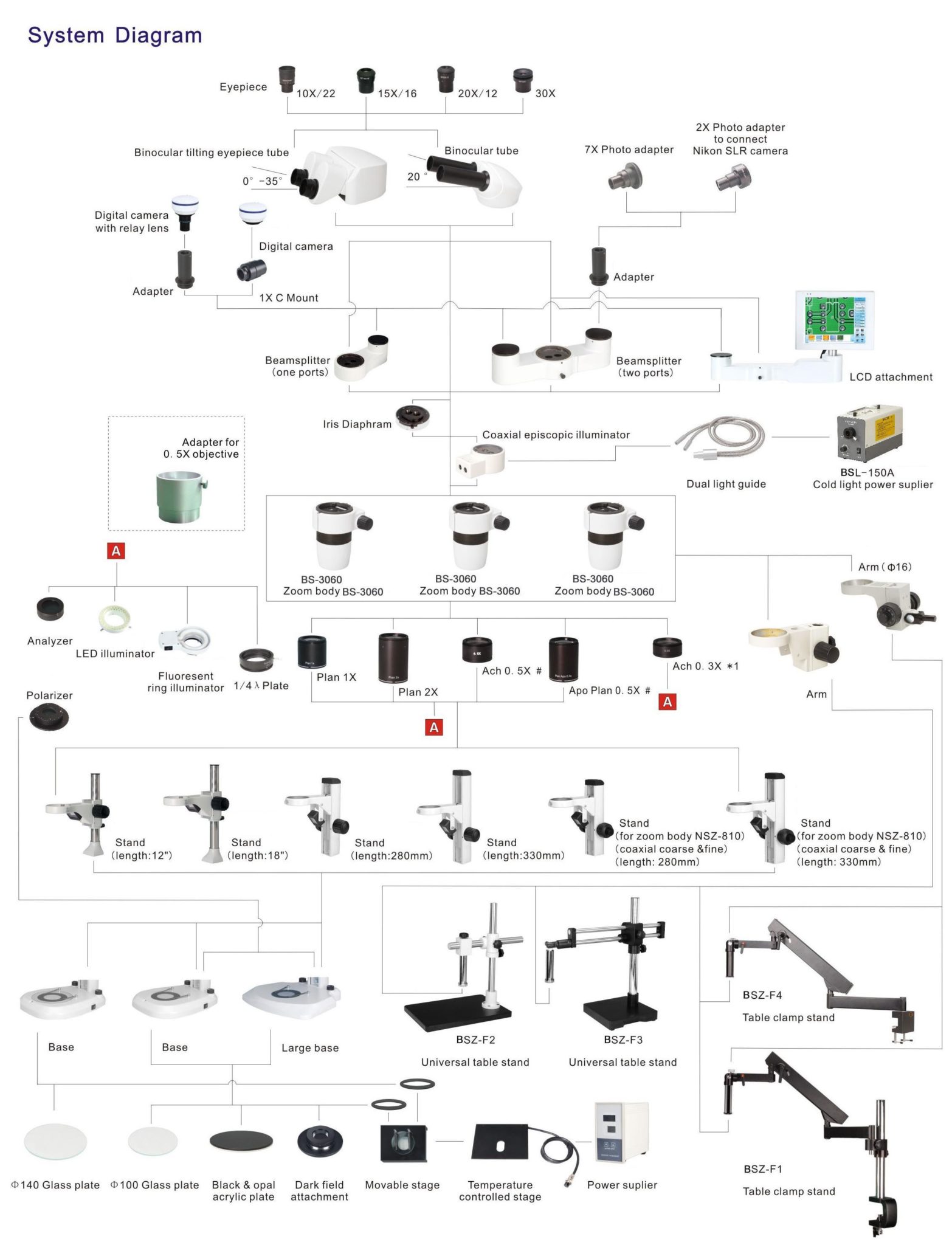

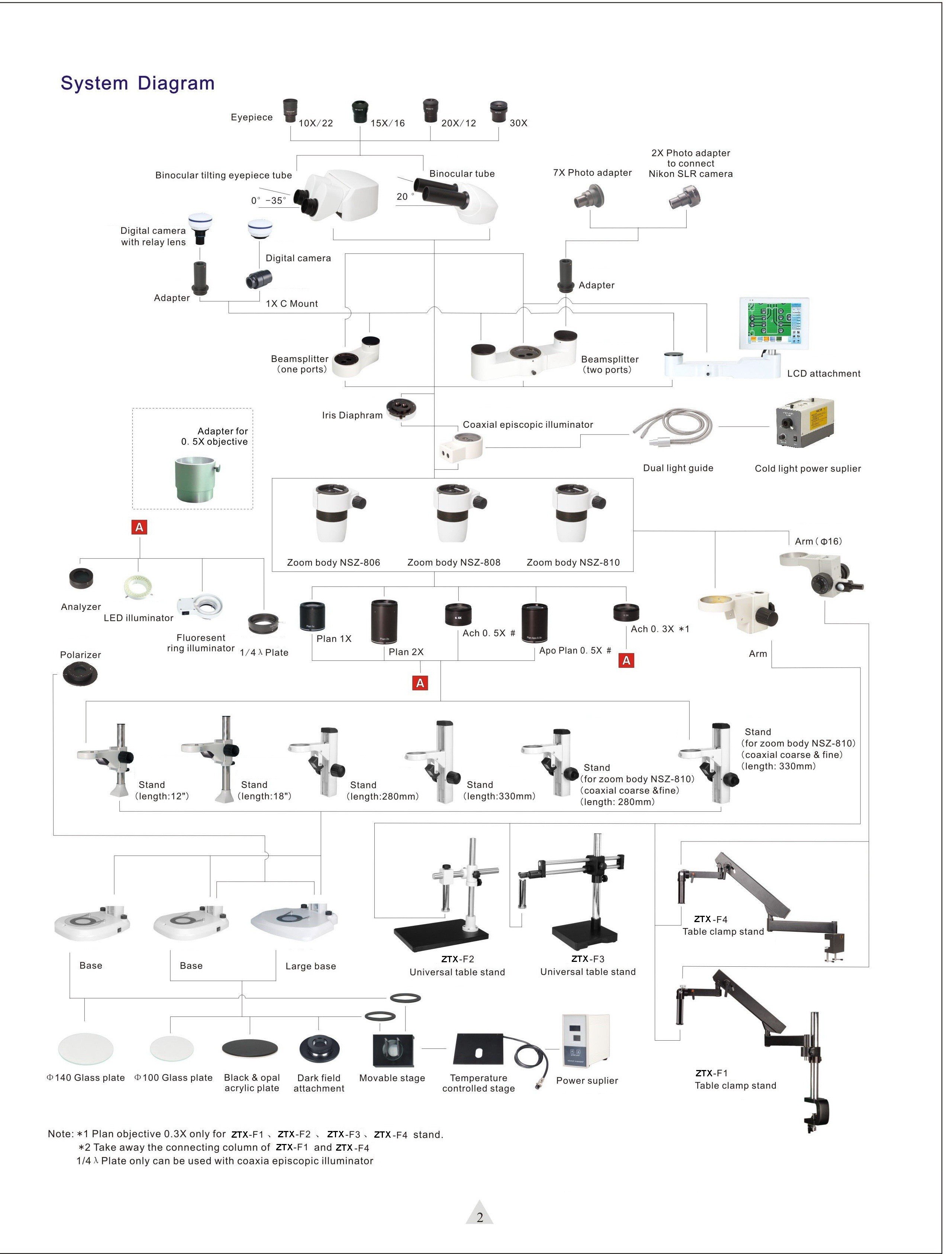

System Diagram:
Models to consider:
Binoculari |
Trinocular Head with fine focus |
BSM500P with coaxial episocopic illuminator |

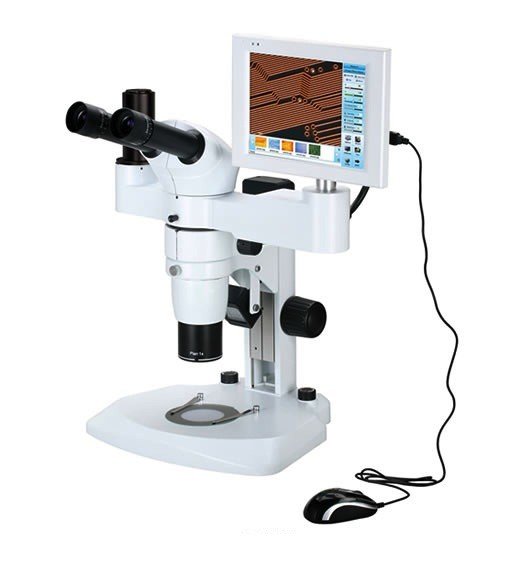

BSM500L with LCD |

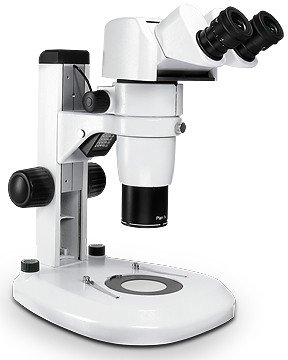

BSM500E with ergonomic vieiwing head |

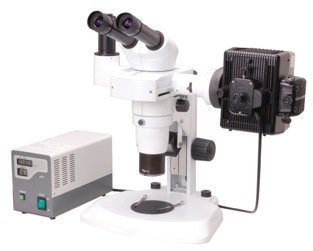

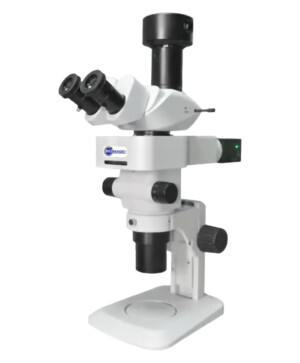

BSM500FL with Epi-fluor attachment |

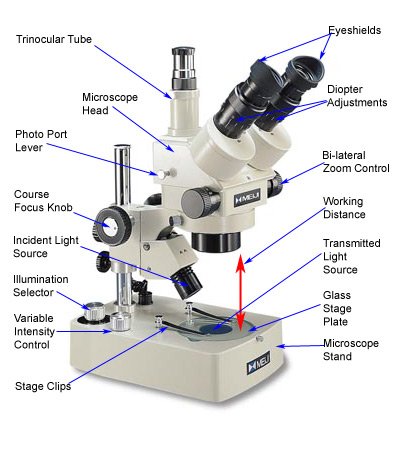

Parts name to review (a representative stereoscope):
