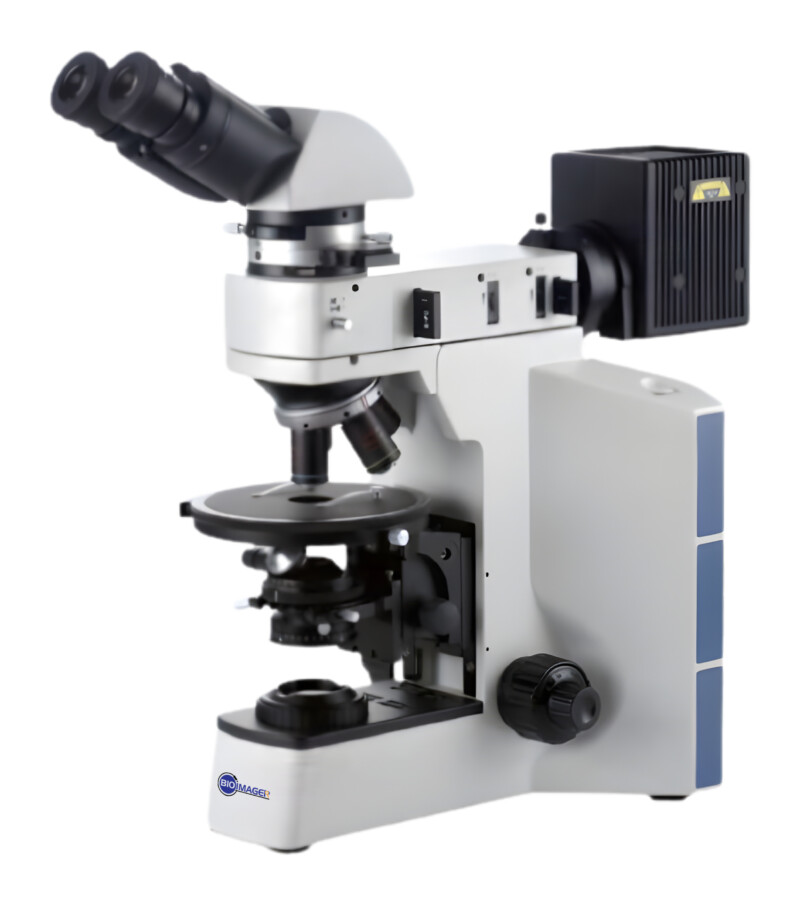

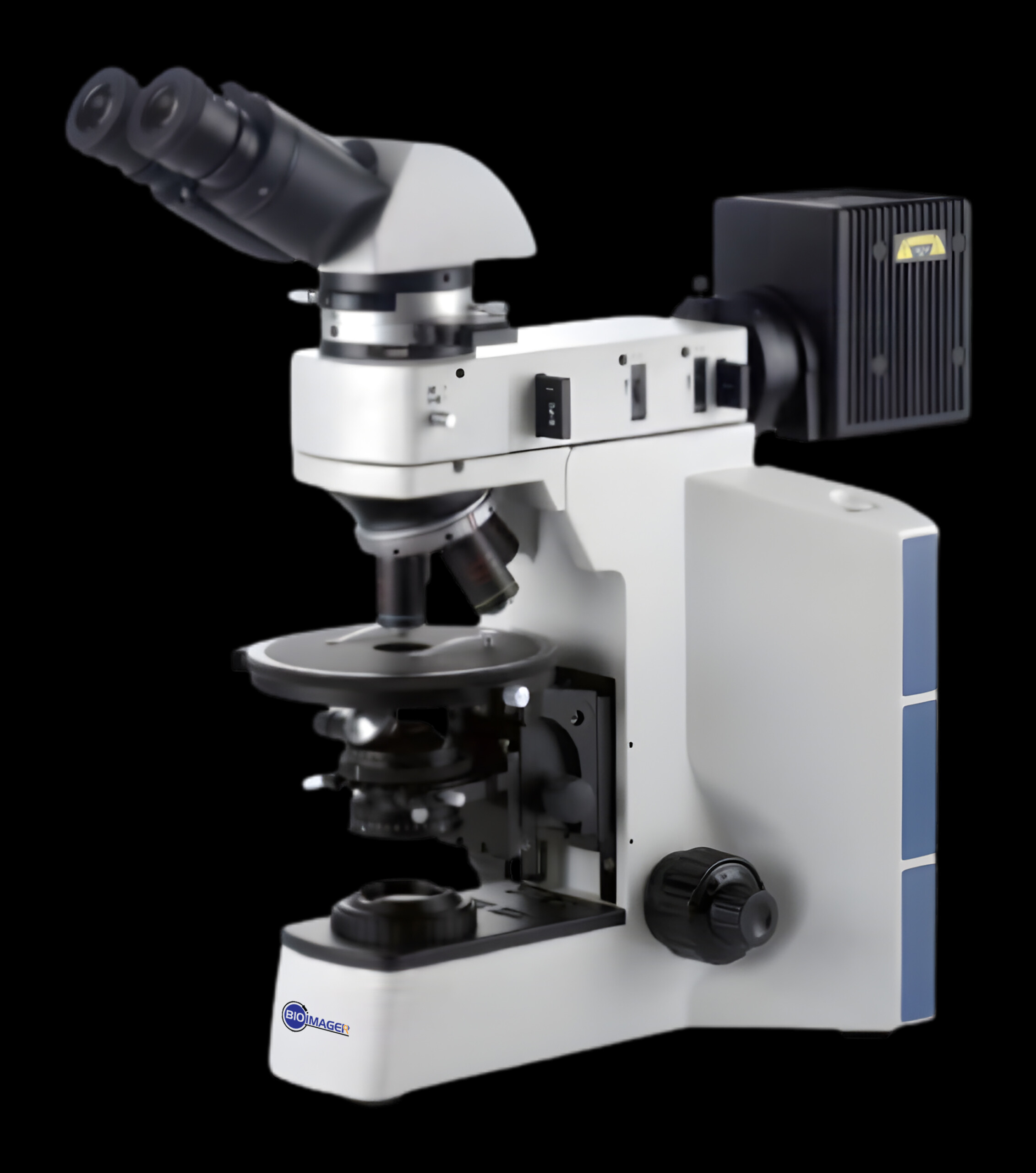

BPM800 Advanced Polarizing Microscope

Availability:

In stock


Compare
  • Illumination: Reflected, transmitted or both
  • Trinocular Head
  • Strain-Free Objective lenses
  • Excellent quality optics

In stock

$4,995.00 $8,000.00

BPM800 is an advanced Polarizing Microscope with Reflected (incident) and Transmitted lights, along with excellent quality strain-free optics (objective lenses and condenser). This is an excellent choice for Petrographic examination of aggregates and concrete samples. This microscope provides conoscopic illumination to allow for conoscopy studies. The objective turret can be selected quintuple to mount five lenses from 2.5x until 100x. It includes

It meets perfectly all petrography imaging requirements and the qualifications for ASTM C295, ASTM C457M and ASTM C856 standards.

Comparison:

This microscope has superior image quality than Olympus CX31-P but similar to Olympus BX53-P series. Meanwhile you will save at least 30% in the price.

In comparison to Meiji Techno MT9900, MT9000 or MT9400 and other series of Polarizing microscopes offered by Meiji Techno, this has some advantages such as saving in price, offering extra-wide field in eyepieces (F.N. 22 BPM800 vs F.N. 20 MT), capability to mount 5 objective lenses and stronger illumination (12V/50W BPM800 vs 6V/30W MT).

BPM800 Polarizing Microscope

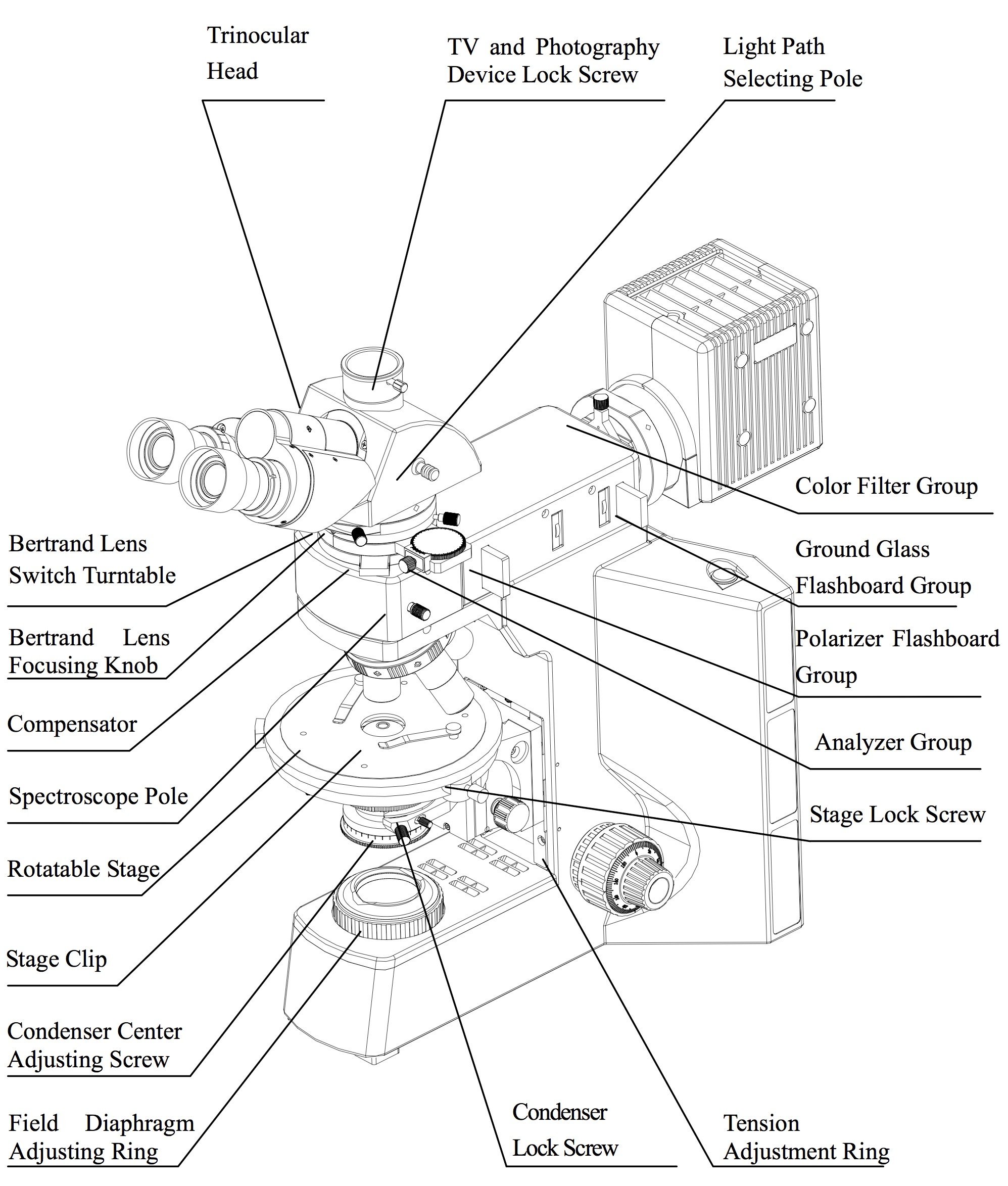

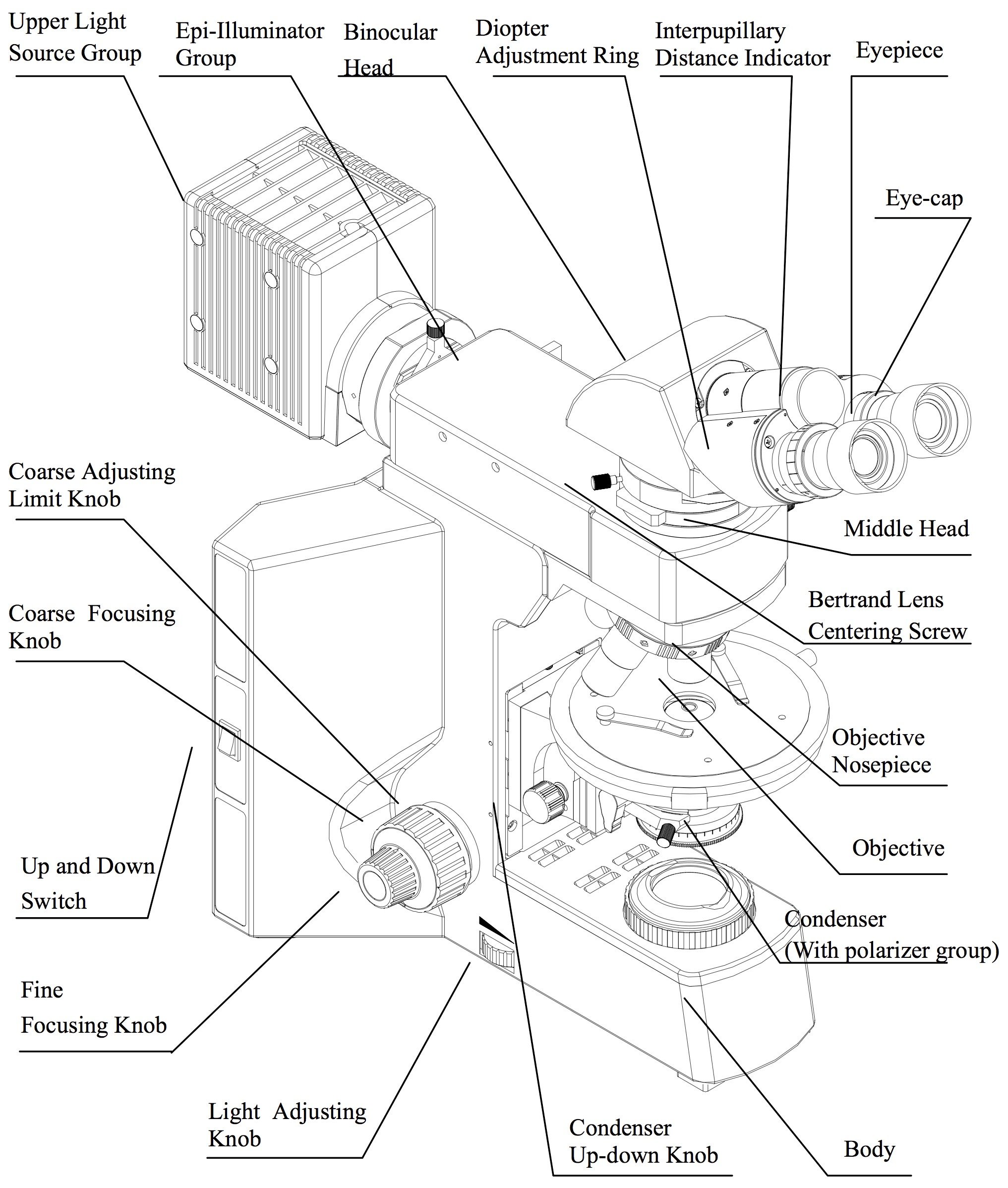

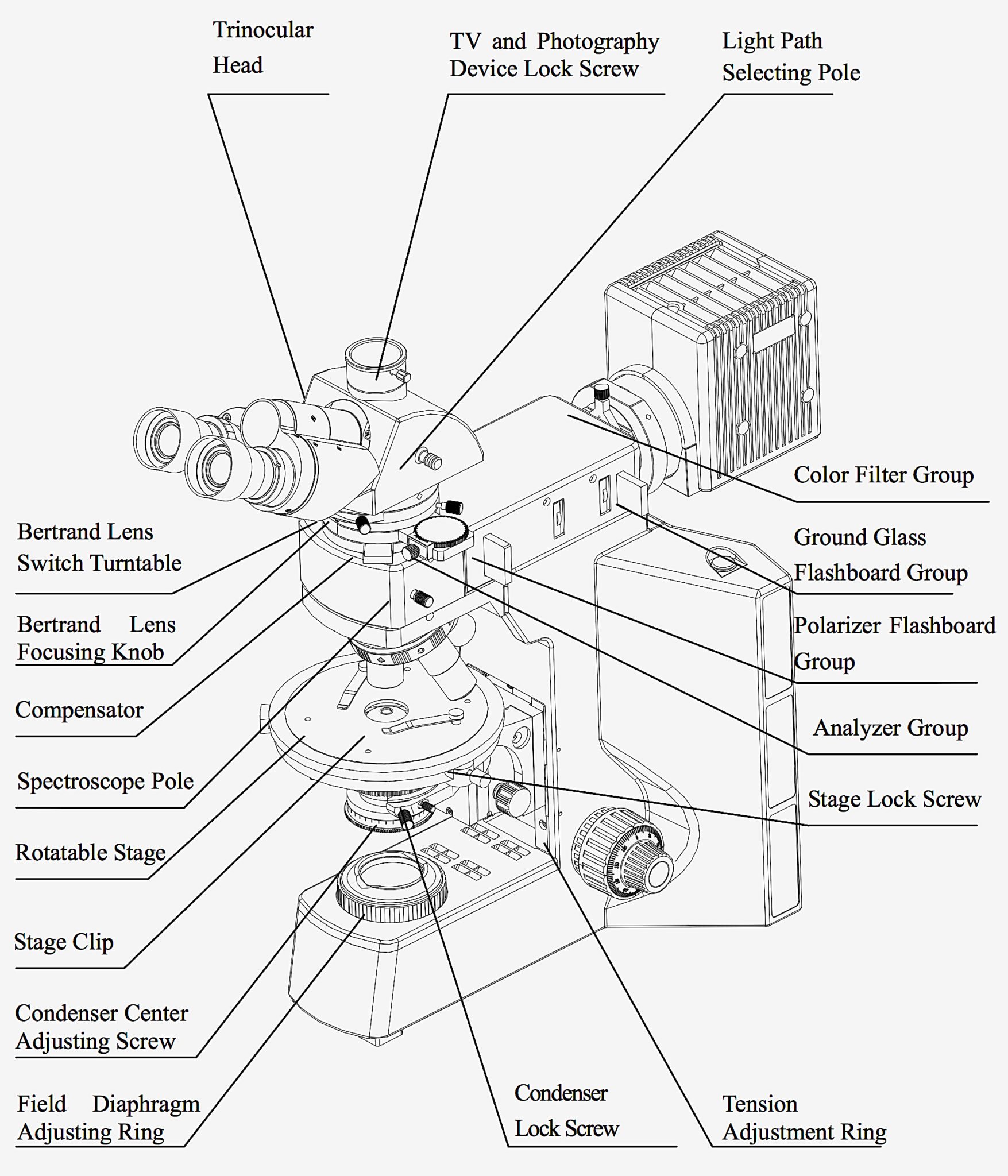

Components:

Reflected & TransmittedReflected OnlyTransmitted Only
BPM800 Polarizing microscope SpecificationBPM800RTBPM800RBPM800T
ItemSpecificationPart Quantity

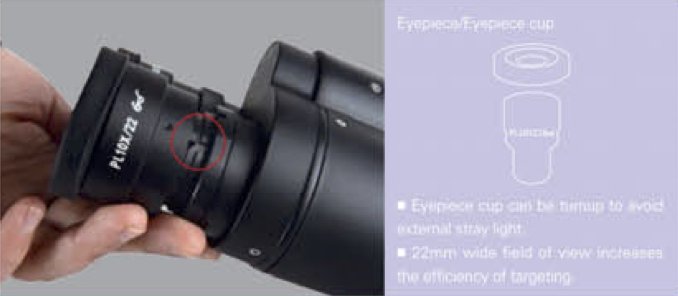

EyepieceHigh eye-point wide field plan eyepiece PL10X22mm111
High eye-point wide field plan eyepiece PL10X22mm, with reticle111
High eye-point wide field plan eyepiece PL15X16mm
Viewing head30° inclined gemel binocular head, interpupillary distance 54~75mm, left diopter ±5 adjustable
30° inclined gemel trinocular head, interpupillary distance 54~75mm, left diopter ±5 adjustable, splitting ratio R:T=100:0 or 50:50111
30°~60° tilting binocular head, interpupillary distance 54~75mm, left diopter ±5 adjustable

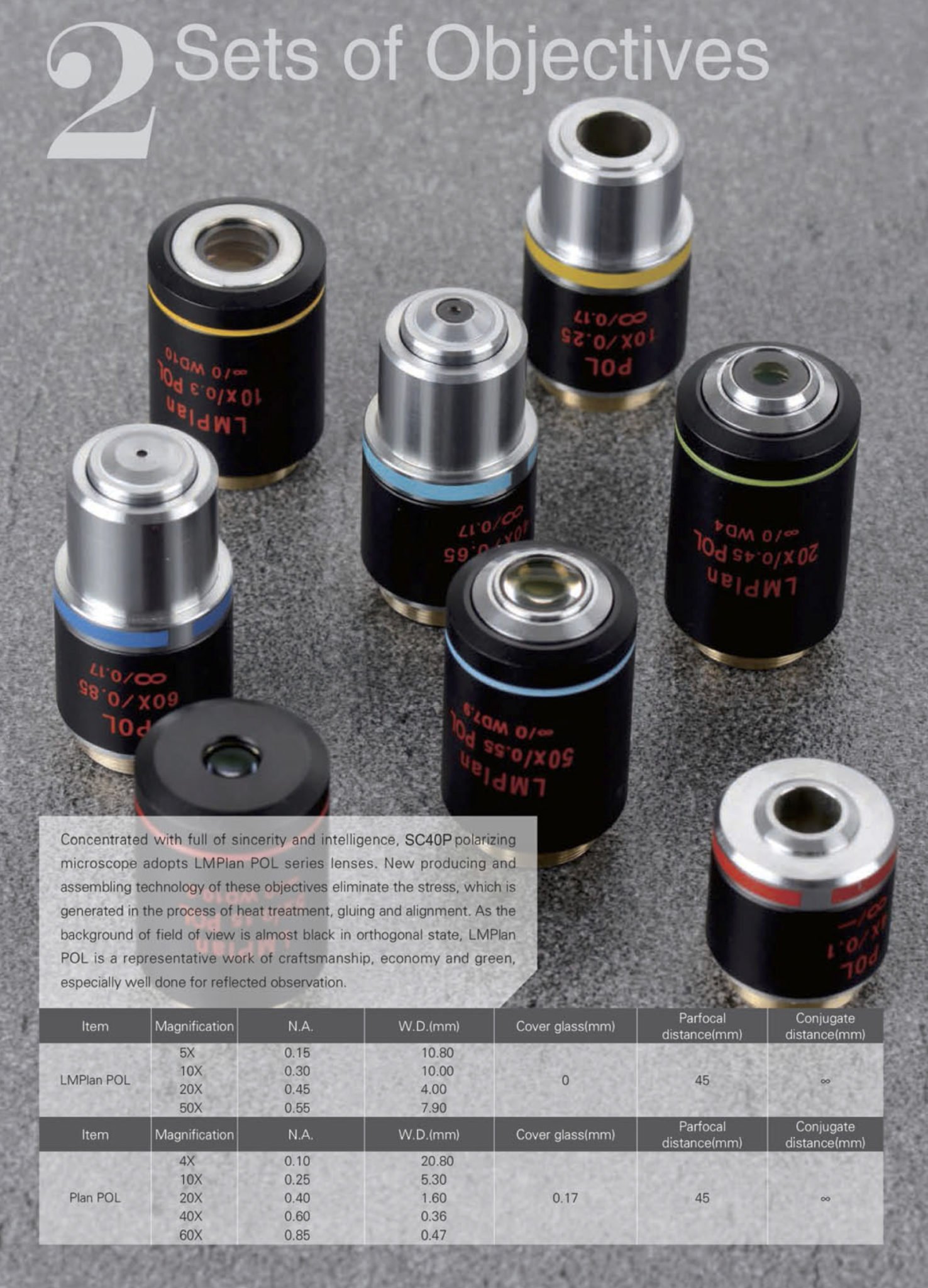

Objectiveinfinite LWD plan destressing objective 5X11
infinite LWD plan destressing objective 10X11
infinite LWD plan destressing objective 20X11
infinite LWD plan destressing objective (Semi-apochromatic) 50X11
Infinite Plan destressing objective 4X1
Infinite Plan destressing objective 10X1
Infinite Plan destressing objective 20X
Infinite Plan destressing objective 40XS1
Infinite Plan destressing objective 60XS1
Infinite Plan destressing objective 100XS
NosepieceRevolving centerable quadruple nosepiece111
Revolving centerable quintuple nosepiece
CondenserSwing-out achromatic condenser (N.A. 1.2), with 360° rotatable polarizer, four adjustable scale: 0/90/180/270111

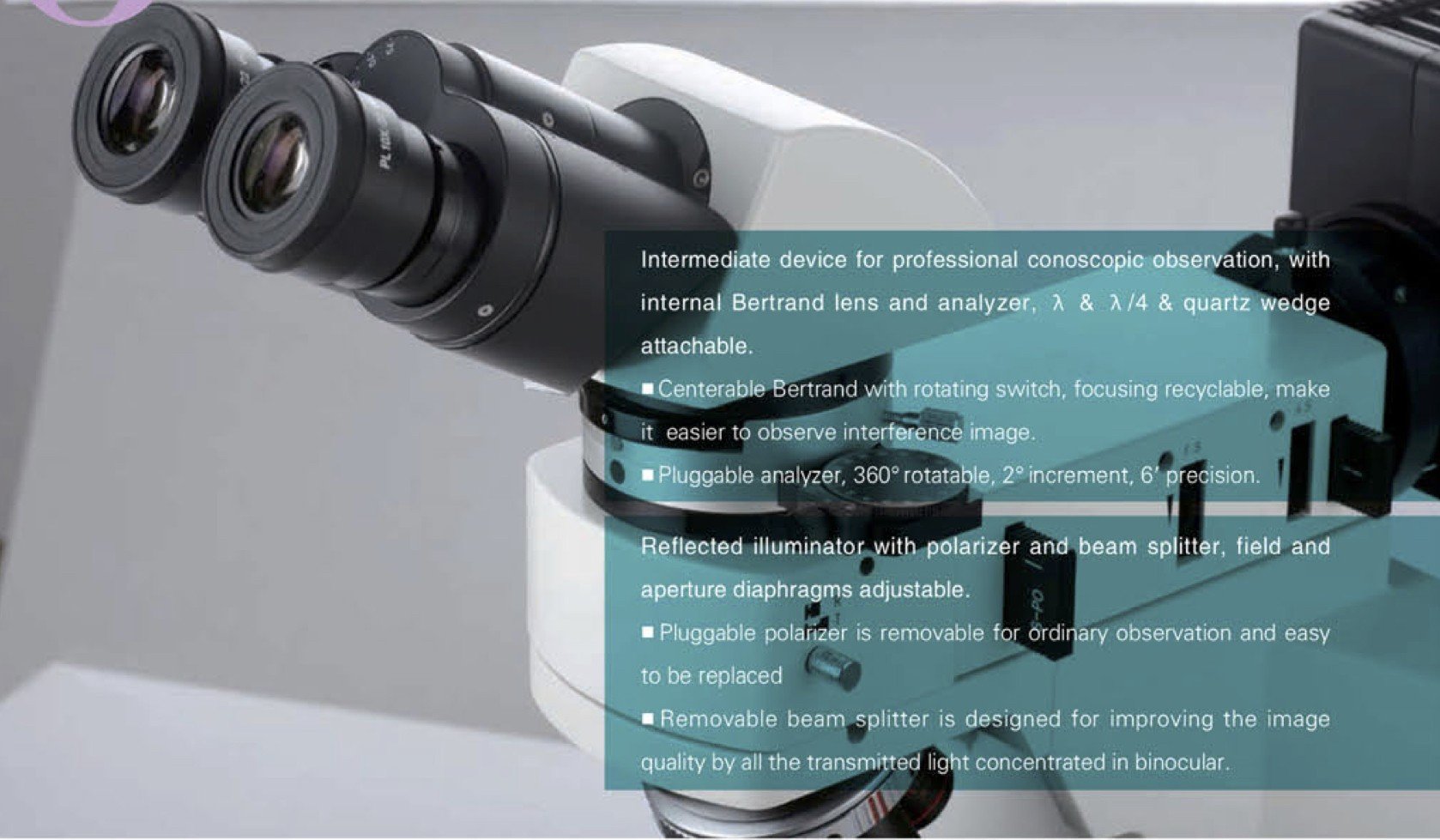

Intermediate tubeWith removable internal Bertrand lens, analyzer and compensators. Bertrand lens with rotating switch, centerable, focusing recyclable.111
AnalyzerPluggable analyzer, 360°rotatable, 2°increments, precision 6′, with locking device111
CompensatorGyps 1λ (Dia18mm, optical path difference 551nm)111
Mical 1/4λ (Dia18mm, optical path difference 147.3nm)111
Quartz Wedge (I-IV)111
Focus adjustmentTransmitted & Reflected frame; Coarse focus system with upper limited and tension adjustment, coarse range: 30mm, fine precision 0.002mm1
Transmitted frame; Coarse focus system with upper limited and tension adjustment, coarse range: 30mm, fine precision 0.002mm1
Reflected frame; Coarse focus system with upper limited and tension adjustment, coarse range: 30mm, fine precision 0.002mm1
Reflected illuminationWide-range voltage 100V-240V_AC50/60Hz, 12V/50W halogen lamp house, imported bulb, center presetting, reflected illuminator with LBD filter and pluggable polarizer, field diaphragm and aperture diaphragm adjustable11
Transmitted illuminationKoehler illumination, wide-range voltage 100V-240V_AC50/60Hz. 12V/50W halogen lamp house, imported bulb, center presetting, with iris diaphragm11
OthersYellow/neutral/IF550/LBD filter for transmitted light
Digital camera adapters: 1X, 2/3, 1/2 focusing C-mount; 3.2X photo eyepiece; photo tube with PK or MD mount; camera relay lens
Mechanical stage, moving range: 30mm*40mm
High precision micrometer, 0.01mm increment

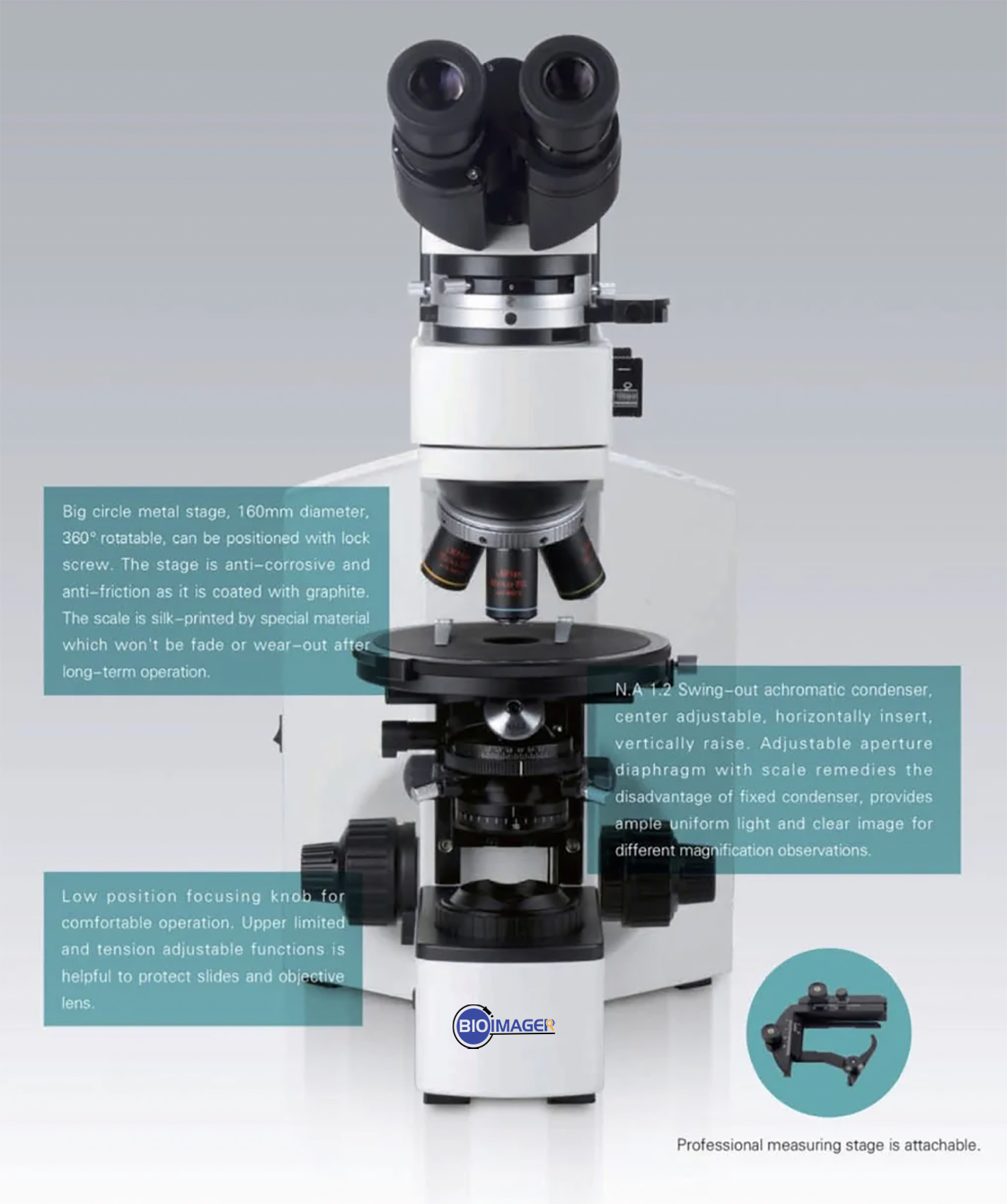

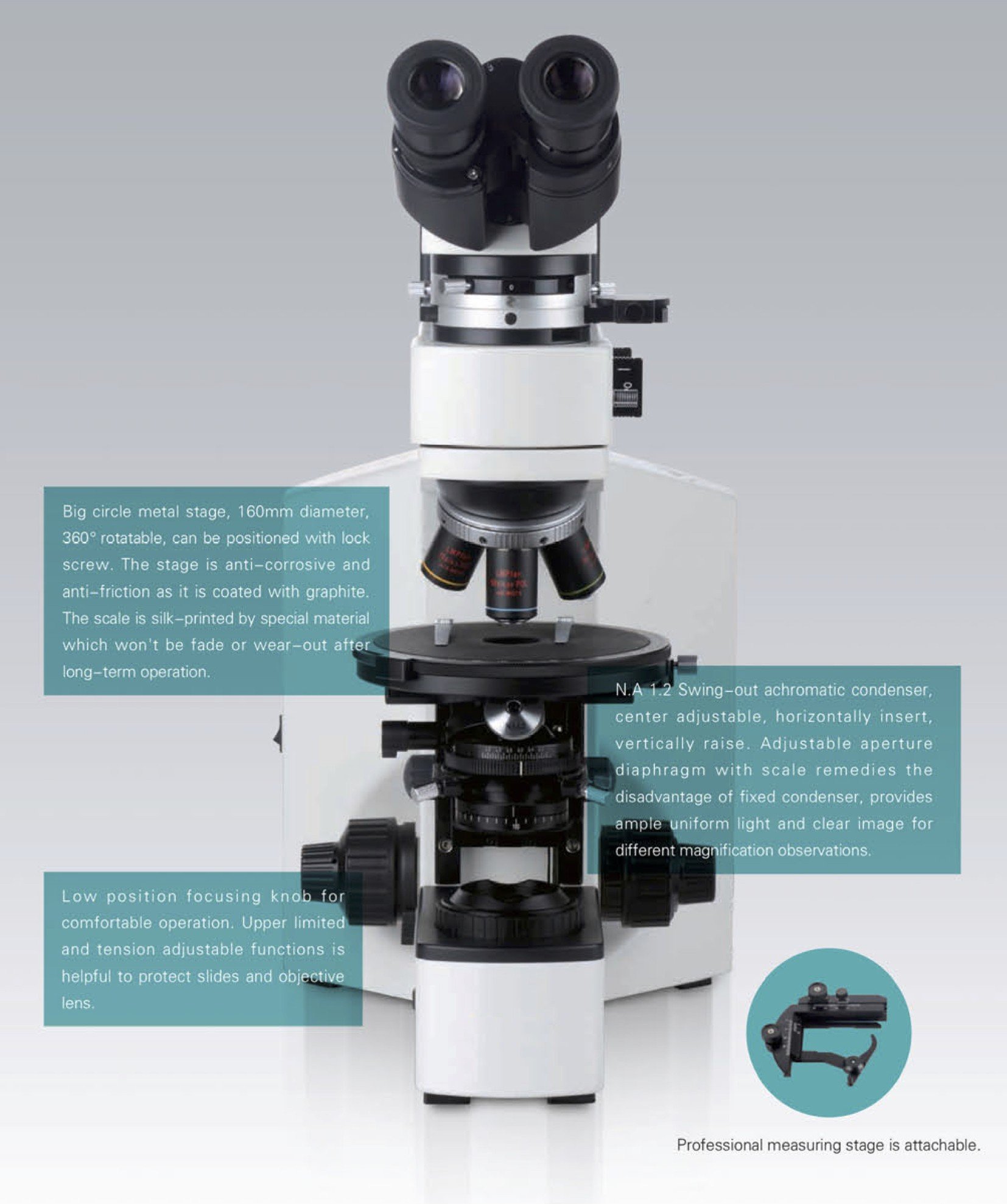

XY-P-PRSDia.160mm circular metal stage, graphite coating, anti-corrosive and anti-friction, 360° rotatable, 1° increment, precision 6′111

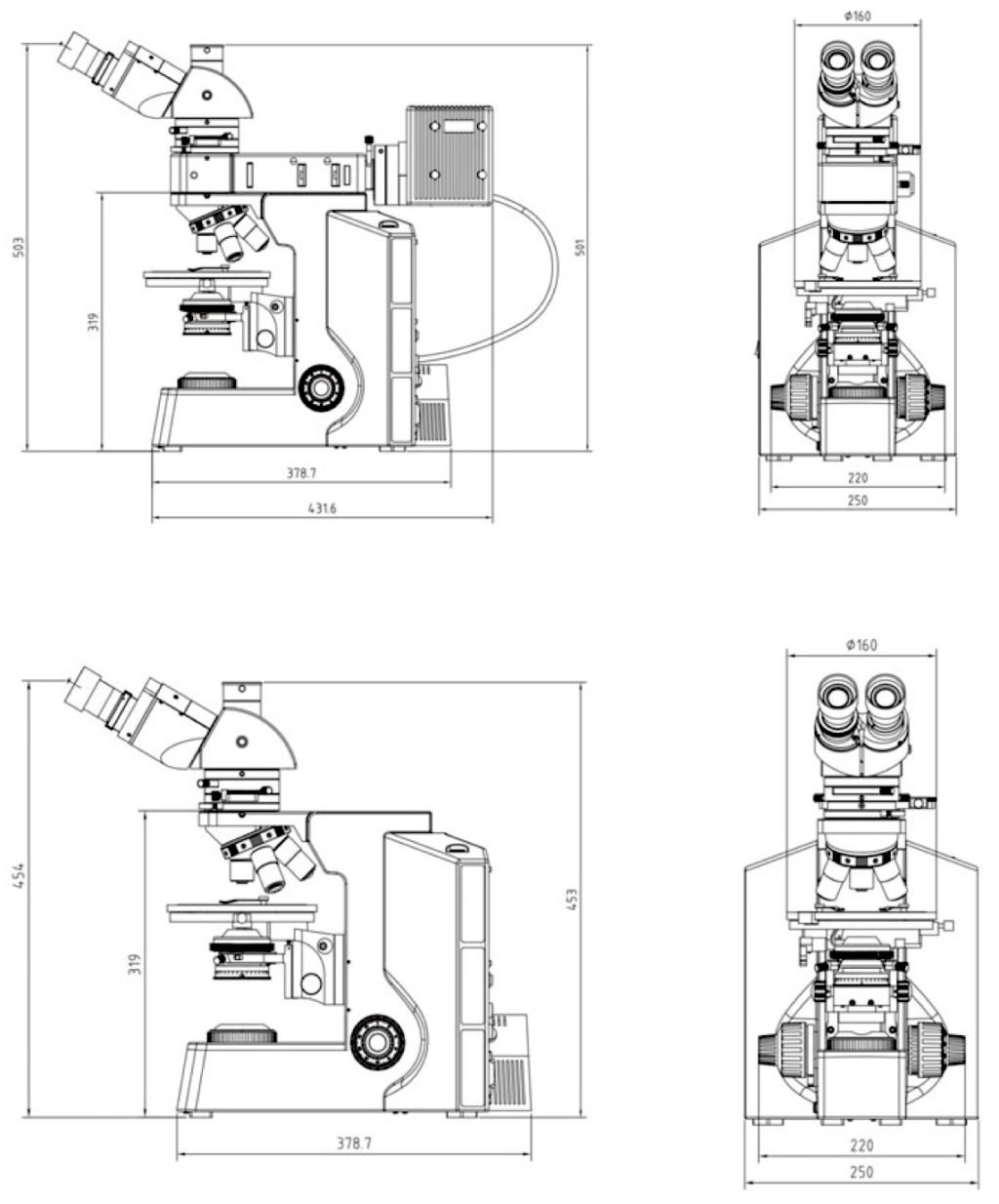

BPM800 Polarizing Microscope Dimension

System Diagram

This system can be upgraded to the following models or to be customized to have extra imaging capabilities:
Epi-Fluor Upright Microscope, BUM800FL
Metallurgical Upright Microscope, BMU800
Biological Microscope, BUM800

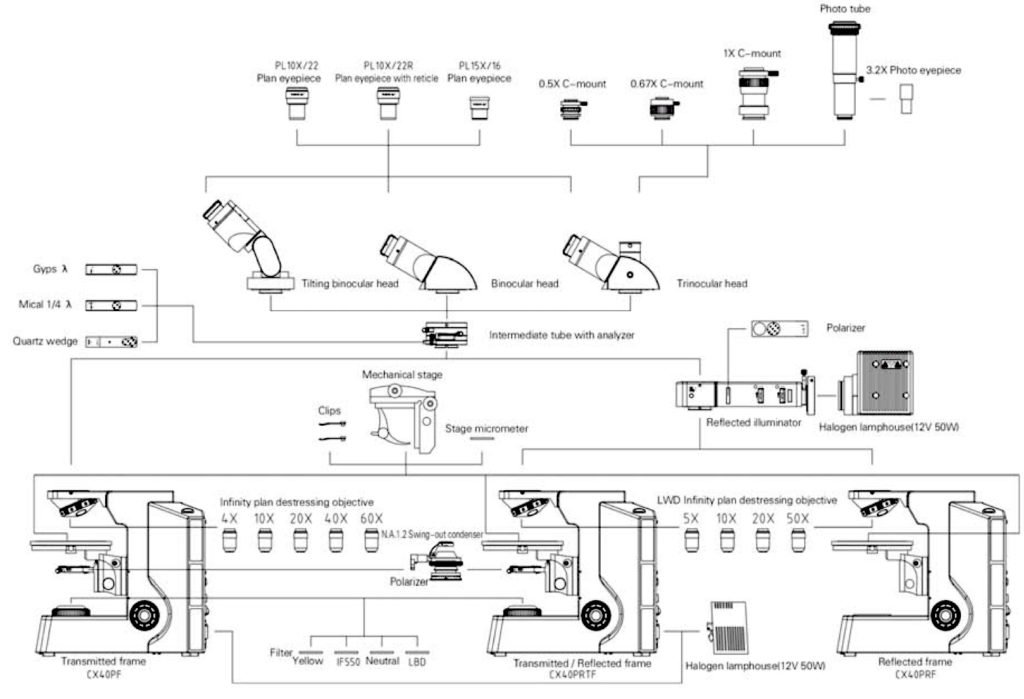

BPM800 Polarized Microscope System Diagram

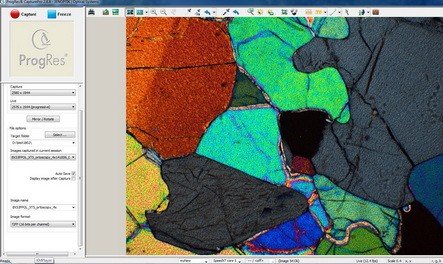

There are several options for the cameras and softwares.

BPM800 Sample Images

Polarizing Microscopy Basics & Applications
