Private Label Microscope with 1-, 3- or 6-LEDs

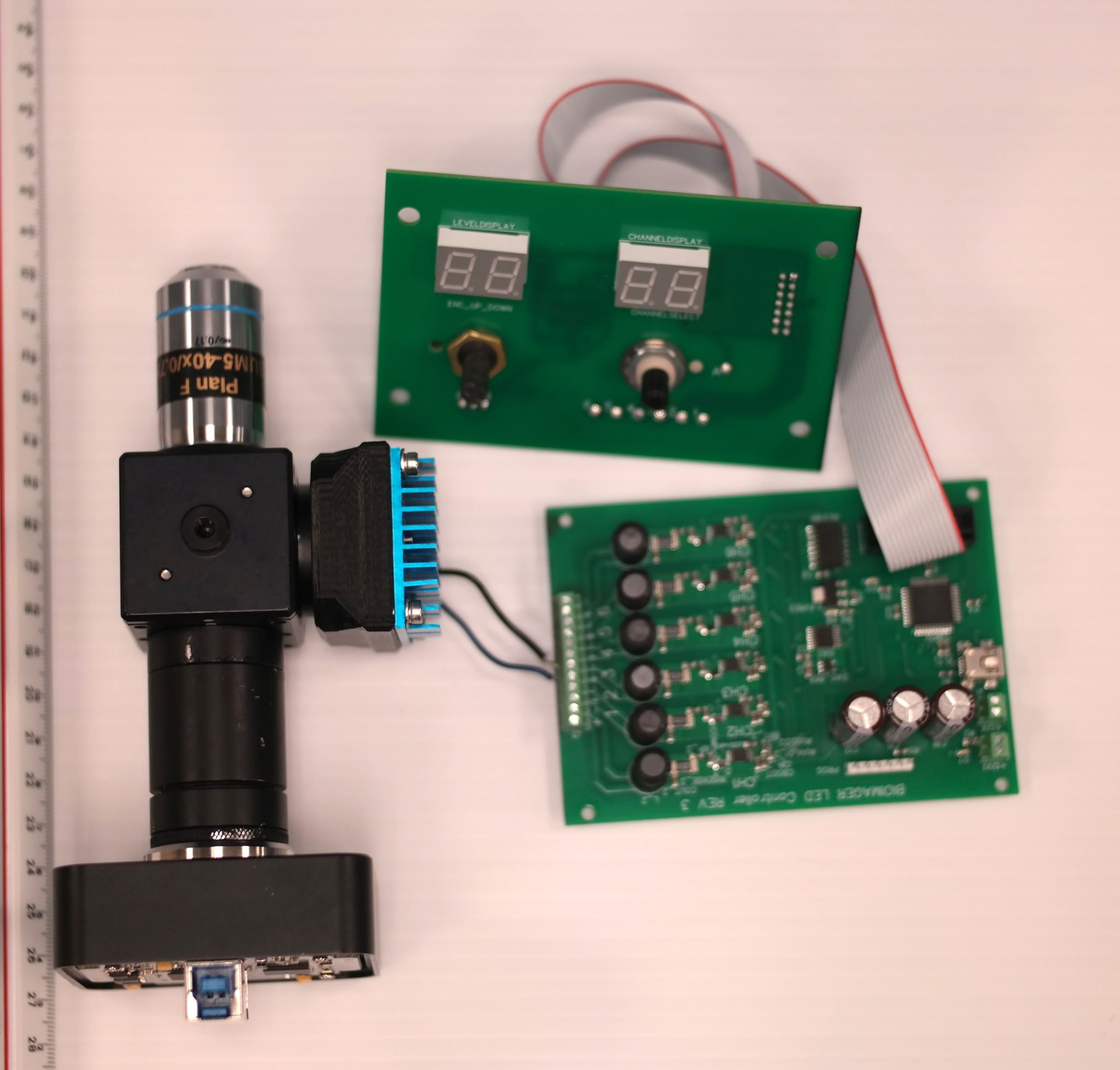

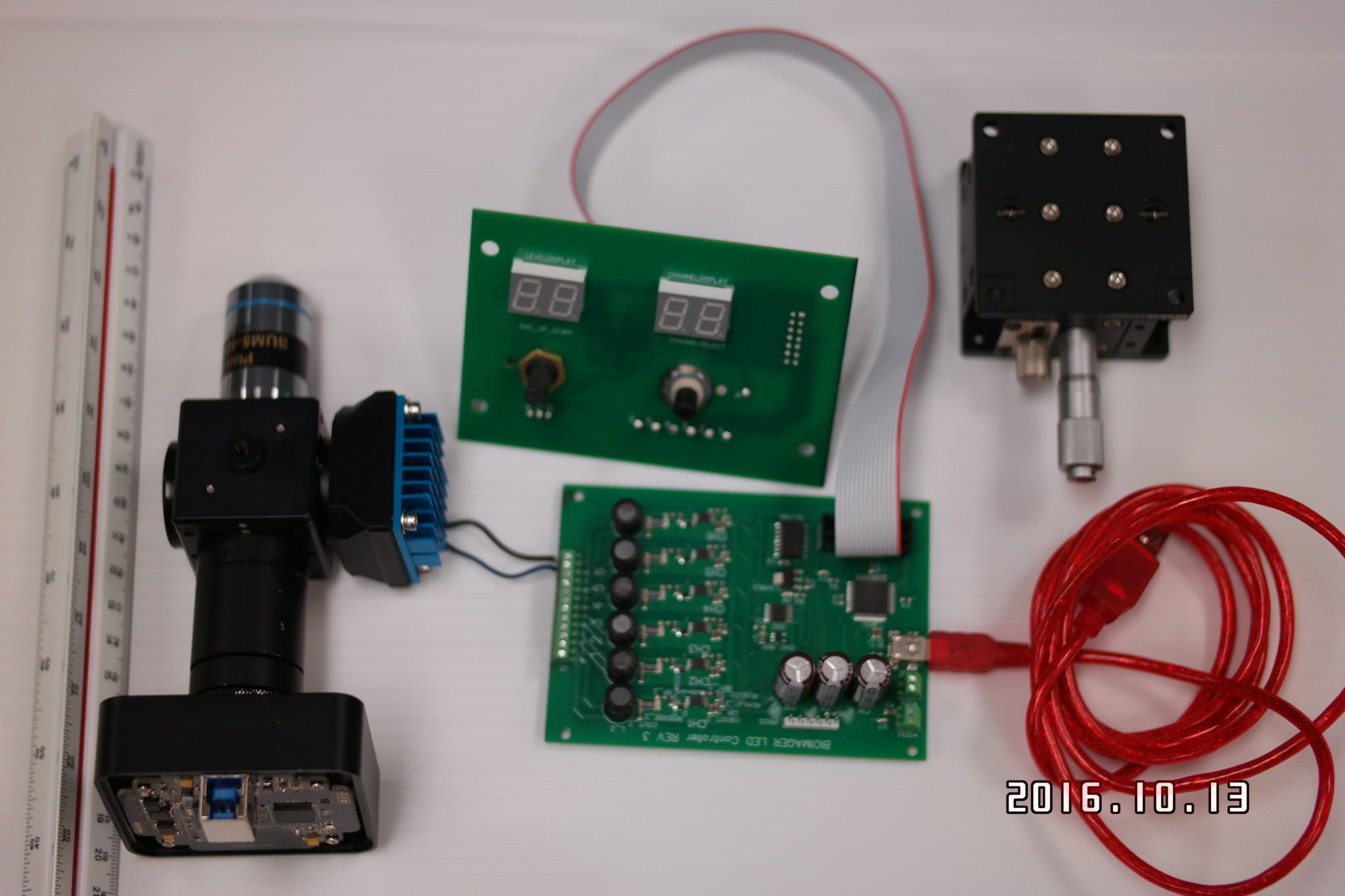

We have developed a robust and inexpensive USB-based imaging engine utilizing a camera sensor. This technology is the result of our development of the IncuScope inverted fluorescent microscope. We would like to offer it as a module for other instrument makers to use in a variety of imaging functions.
Microscope with Private Label

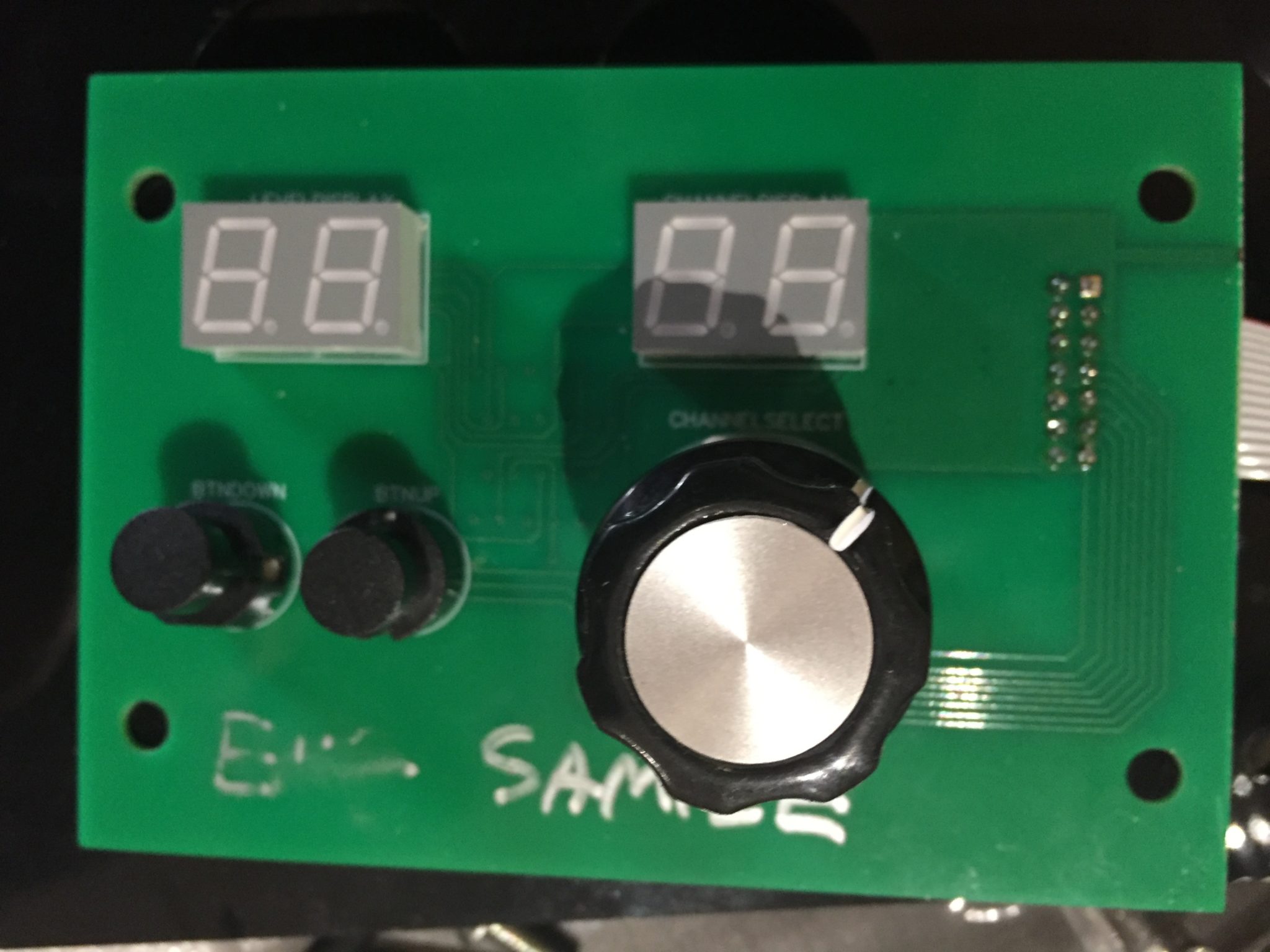

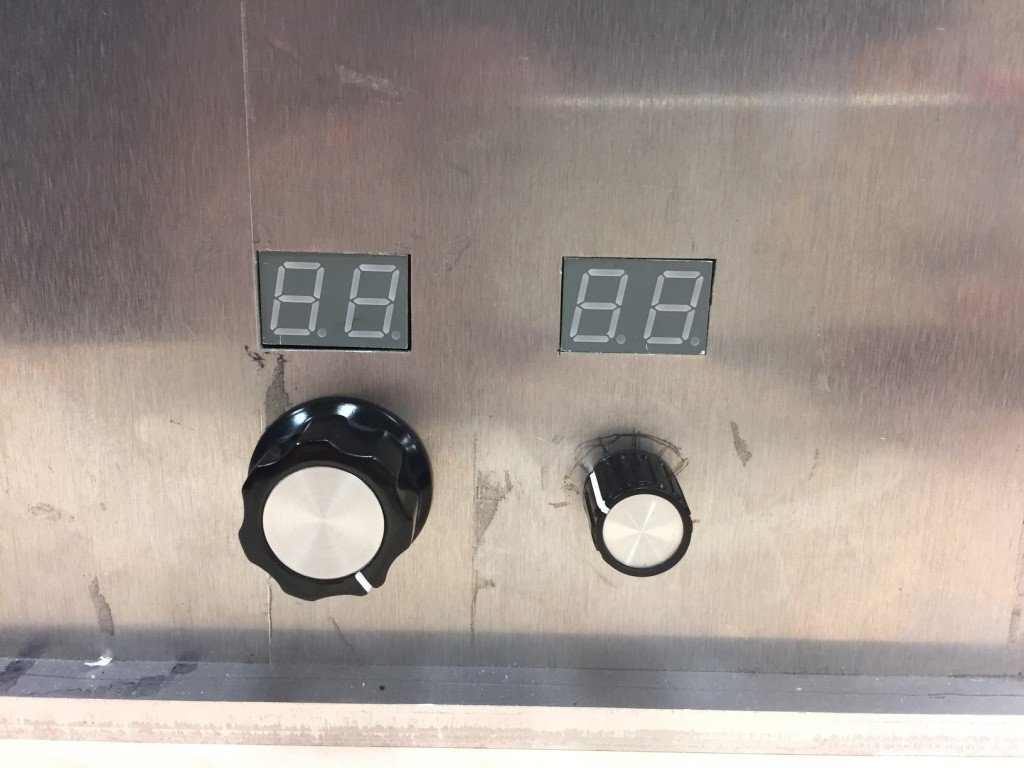

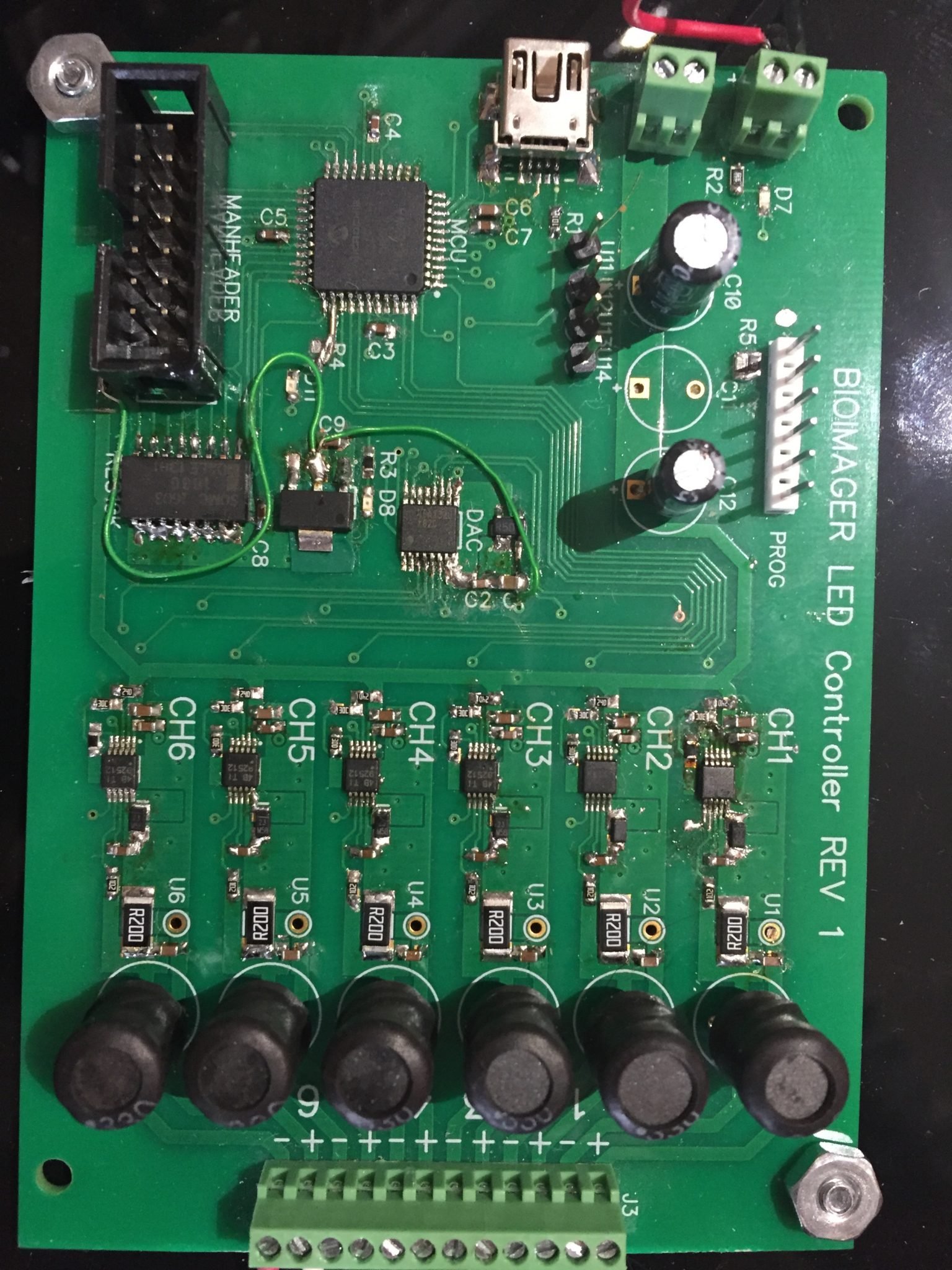

We can customize the microscope for your application, you will market your own microscope with your name labelled. Use two knobs to control the LED channels and light intensity and run the system with your own camera and software. We can offer custom lens tube to offer at required Field of Views. Custom software with your label can allow you to optimize your customer’s experience. We can handle the labeling or ship them to you for finishing. We can also arrange the shipment to your customers.
Winning Features:
- Super compact fluorescence microscope module

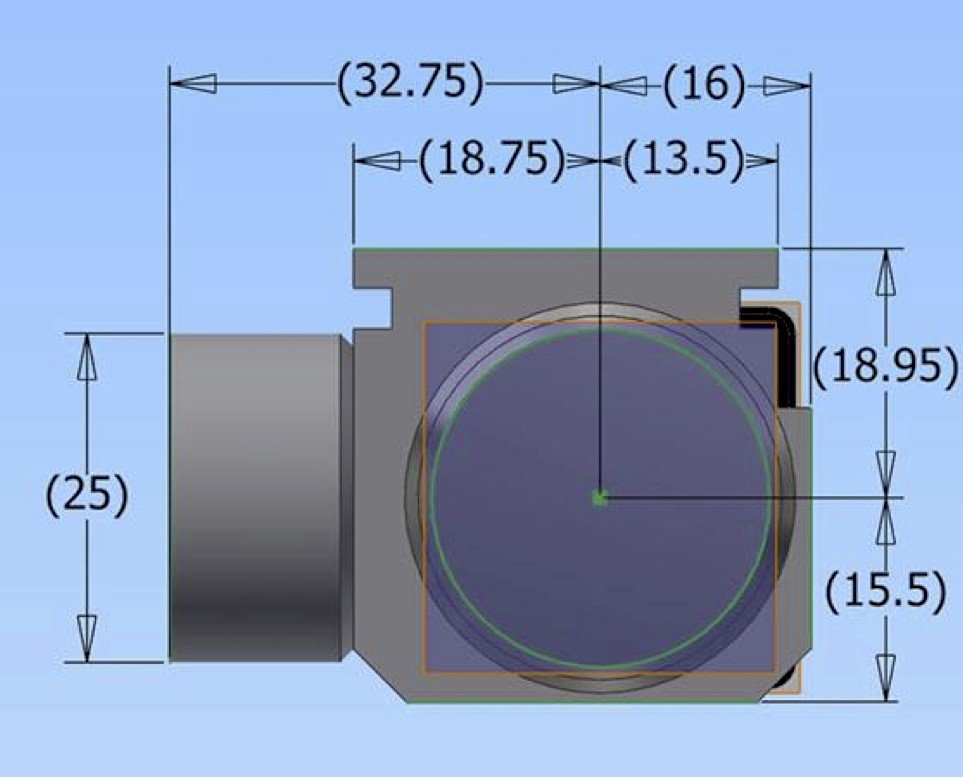

- Footprint dimensions: 53.75×34.45mm, Total optical path 70.75 mm
- Light source: LED (1A at any excitaion wavelength you like)
- Cheaper and 2.5x brighter than Lumascope module.
- Köhler illumination optics design for even and efficient illumination that supports full FOV (18mm for 1.25x/0.04 OL)

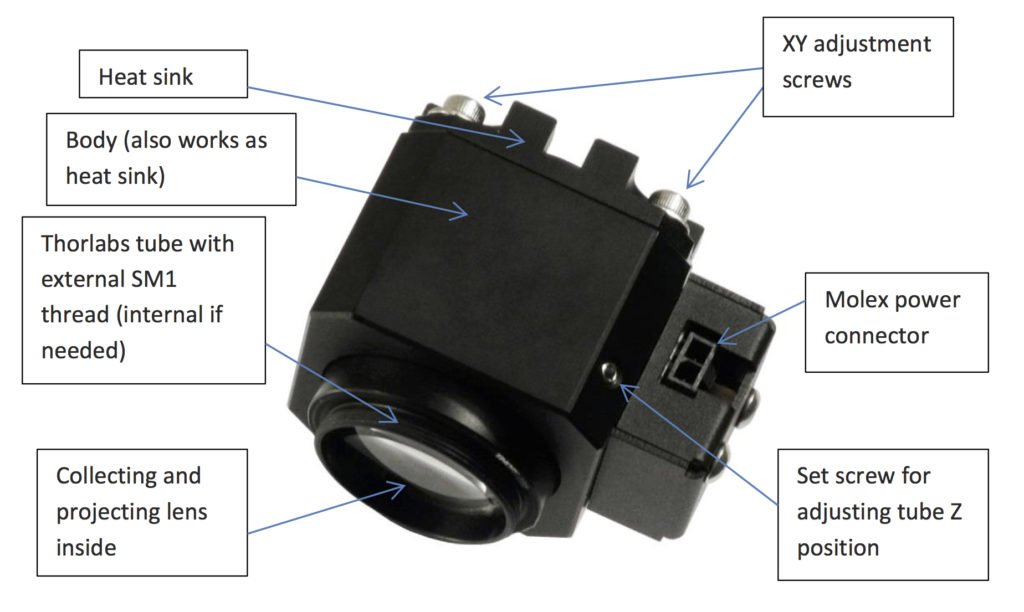

- Illuminator with Z adjustment (delivered properly aligned)
- Custom imaging optics optimized for emission spectrum of a fluorophore, tube lens magnification: 0.2x (18mm dia. object FOV fits in 1/2” camera chip height: 18×1.25×0.2 = 4.5mm)
- Tube lens designed to use full efficiency of objective lens (without limiting fluorescent light), which effectively provides over 75% more light than the best avilable in the market
- RMS thread for objective lens mount
- Male C-mount camera interface with Z axis adjustment (delivered in aligned position)
- Excitation filter, dichroic mirror and emission filter INCLUDED in this quotation; sizing required for EX and EM 18mm dia.; DM 25x18mm rectangular
- MOQ applies.

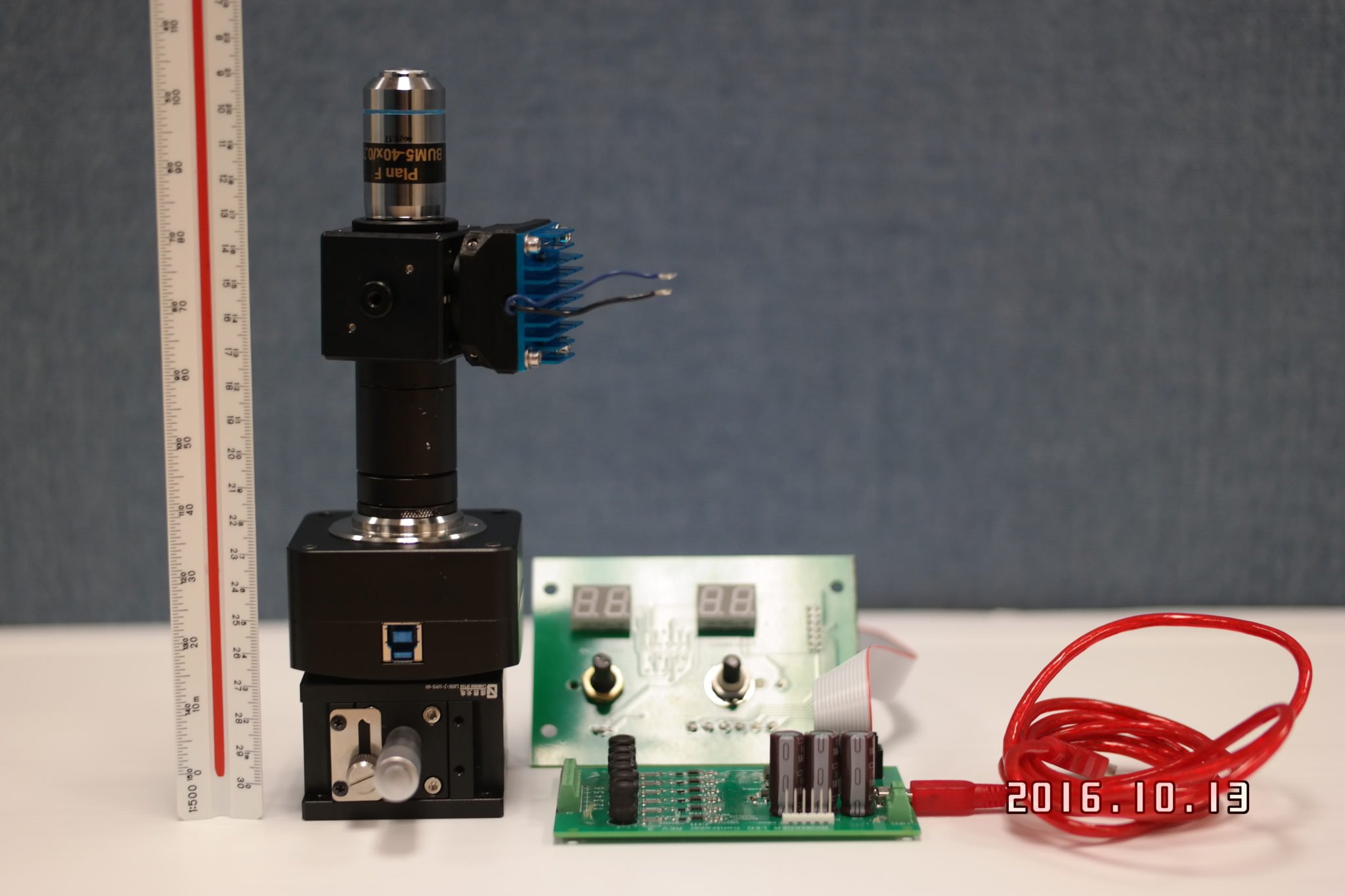

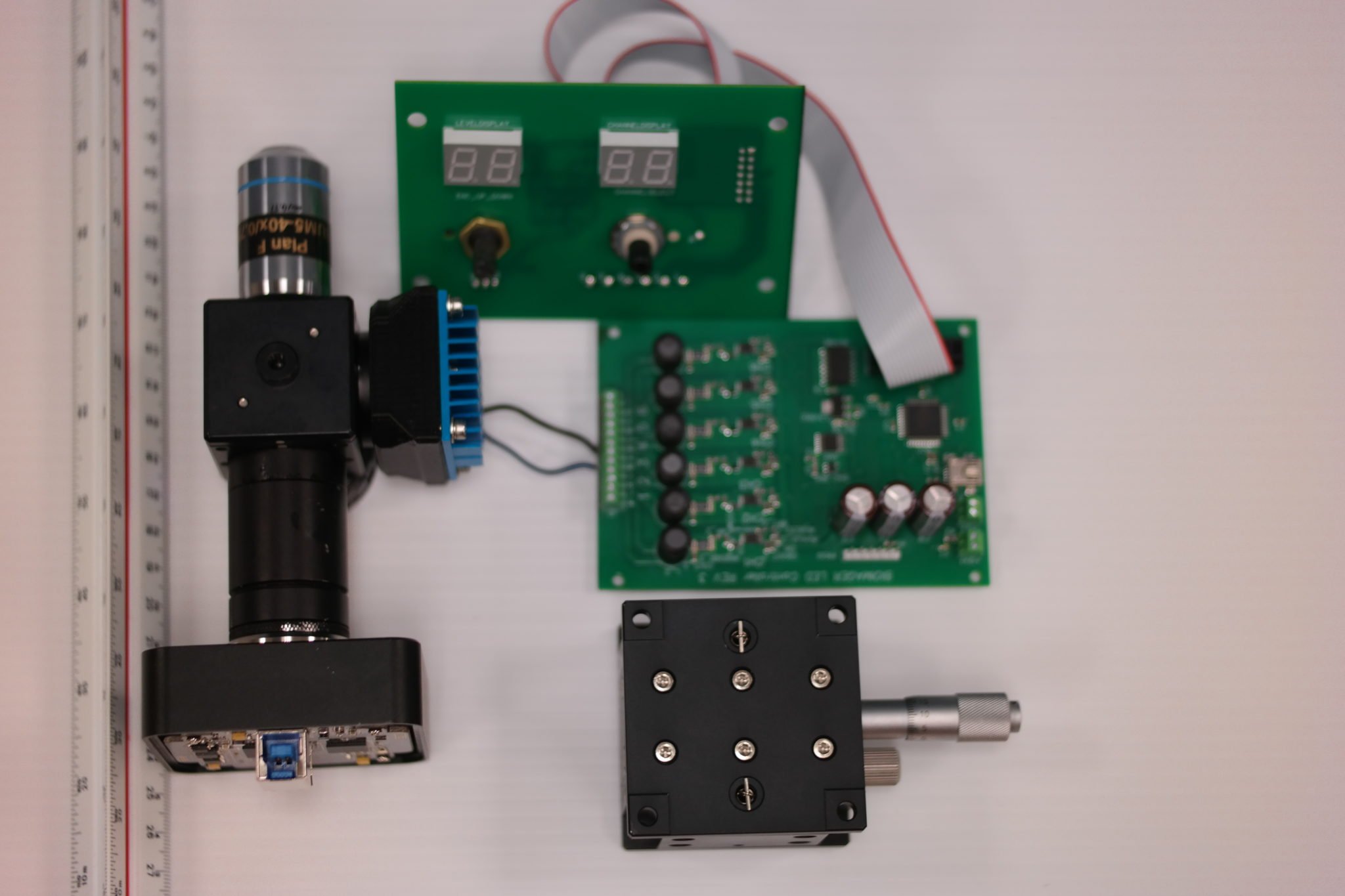

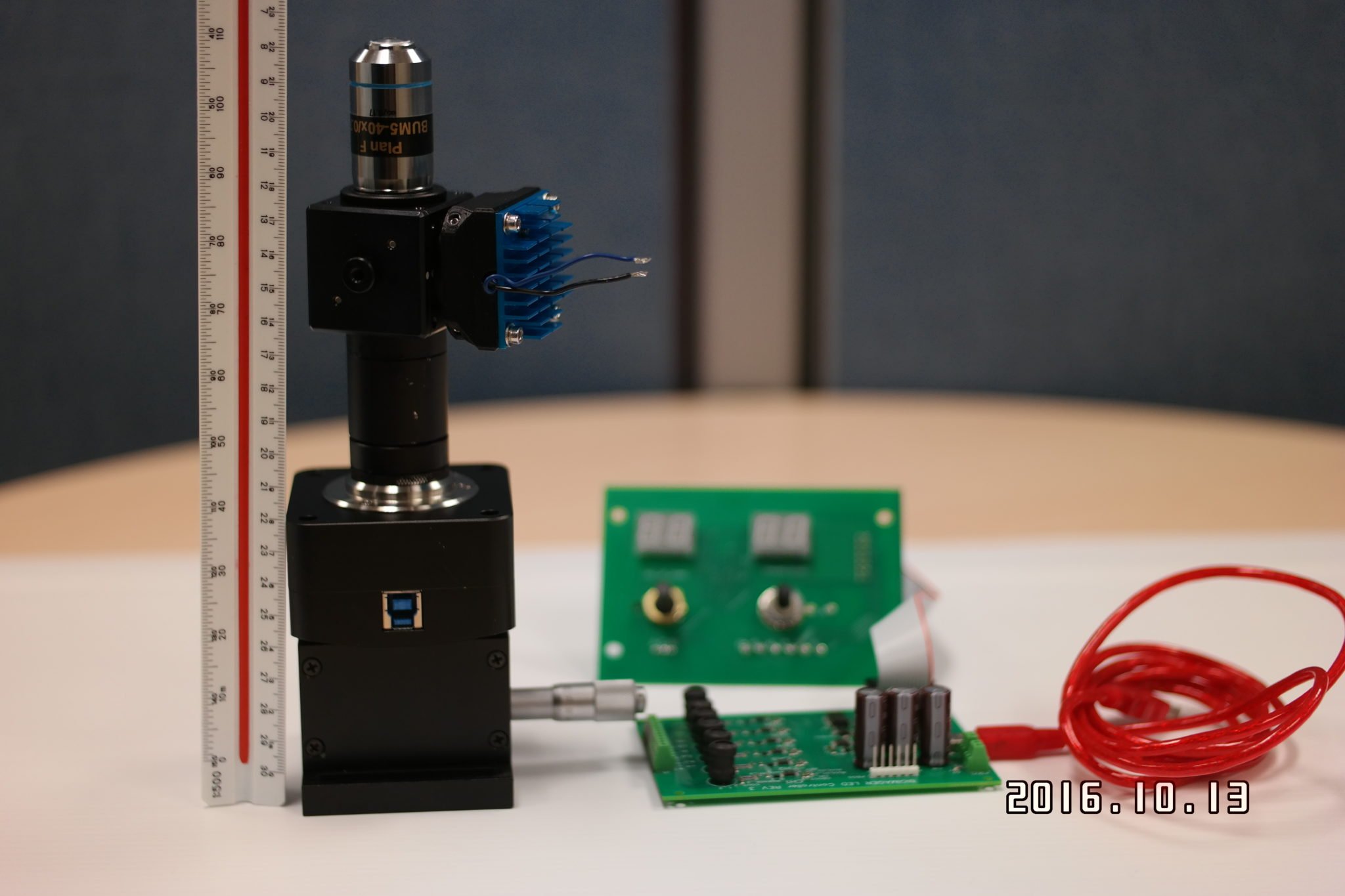

1. Super Compact Module, the smallest module in the world, inside yoru device:
 |
 |
Winning Features:
- Super compact fluorescence microscope module
- Footprint dimensions: 53.75×34.45mm, Total optical path 70.75 mm
- Light source: LED (1A at any excitaion wavelength you like)
- Cheaper and 2.5x brighter than Lumascope module.
- Köhler illumination optics design for even and efficient illumination that supports full FOV (18mm for 1.25x/0.04 OL)
- Illuminator with Z adjustment (delivered properly aligned)
- Custom imaging optics optimized for emission spectrum of a fluorophore, tube lens magnification: 0.2x (18mm dia. object FOV fits in 1/2” camera chip height: 18×1.25×0.2 = 4.5mm)
- Tube lens designed to use full efficiency of objective lens (without limiting fluorescent light), which effectively provides over 75% more light than the best avilable in the market
- RMS thread for objective lens mount
- Male C-mount camera interface with Z axis adjustment (delivered in aligned position)
- Excitation filter, dichroic mirror and emission filter INCLUDED in this quotation; sizing required for EX and EM 18mm dia.; DM 25x18mm rectangular
- MOQ applies.
 |
 |
This single LED application has unlimitted application. We offer up to 40 different LEDs and custom filters. Popular application is fluorescnce imaging like GFP for C. Elegans.
We also offer reflected Amber (590nm) or far-red LED for IVF (in vitro fertilization), embryo incubation system with Hoffman-like phase contrast module, way cheaper than Primo Vision microscope.

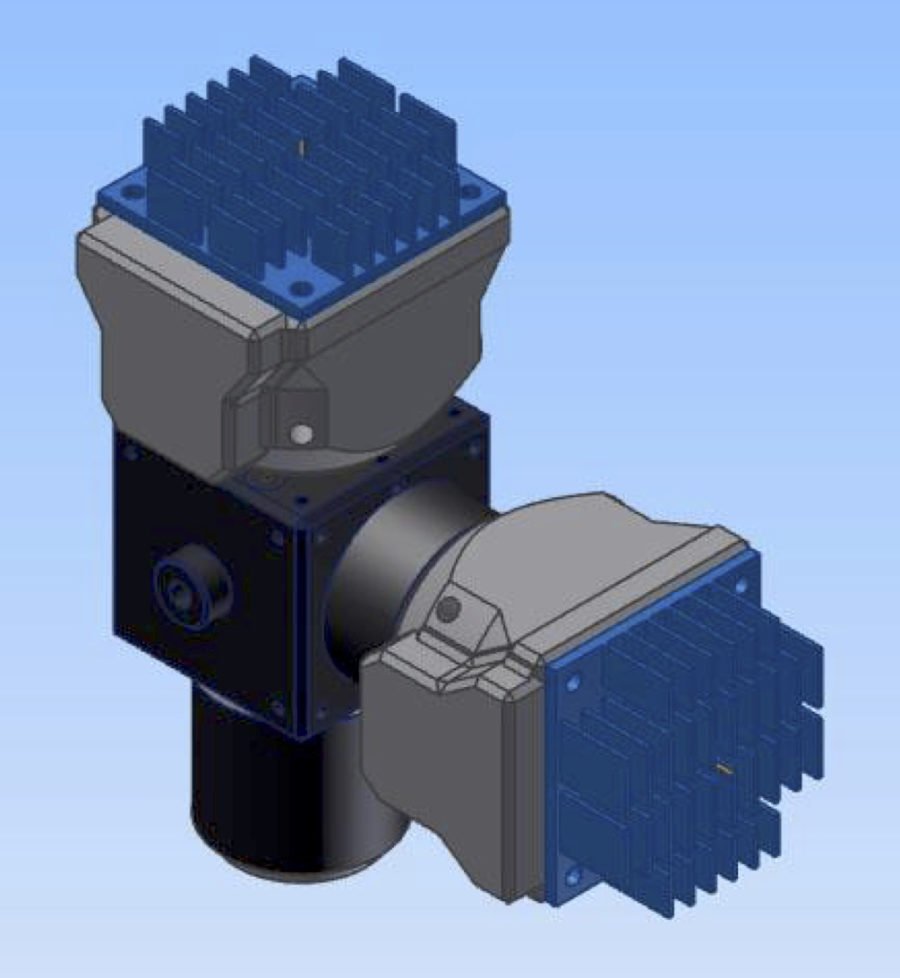

2. 2-LED module:

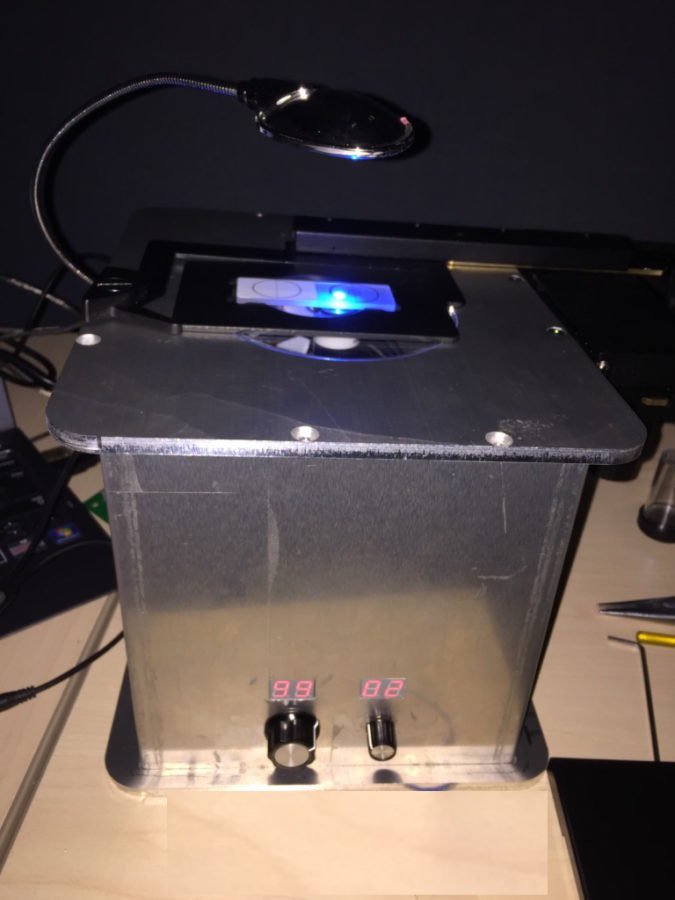

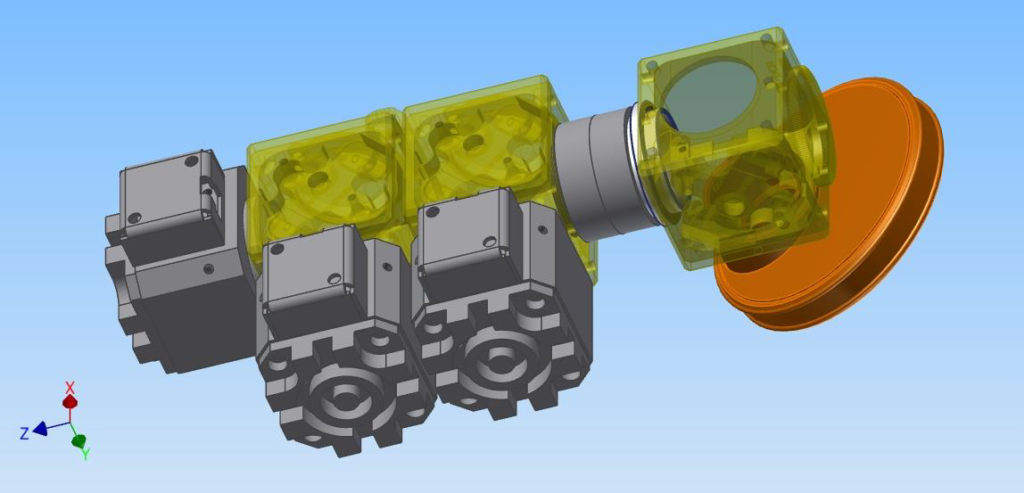

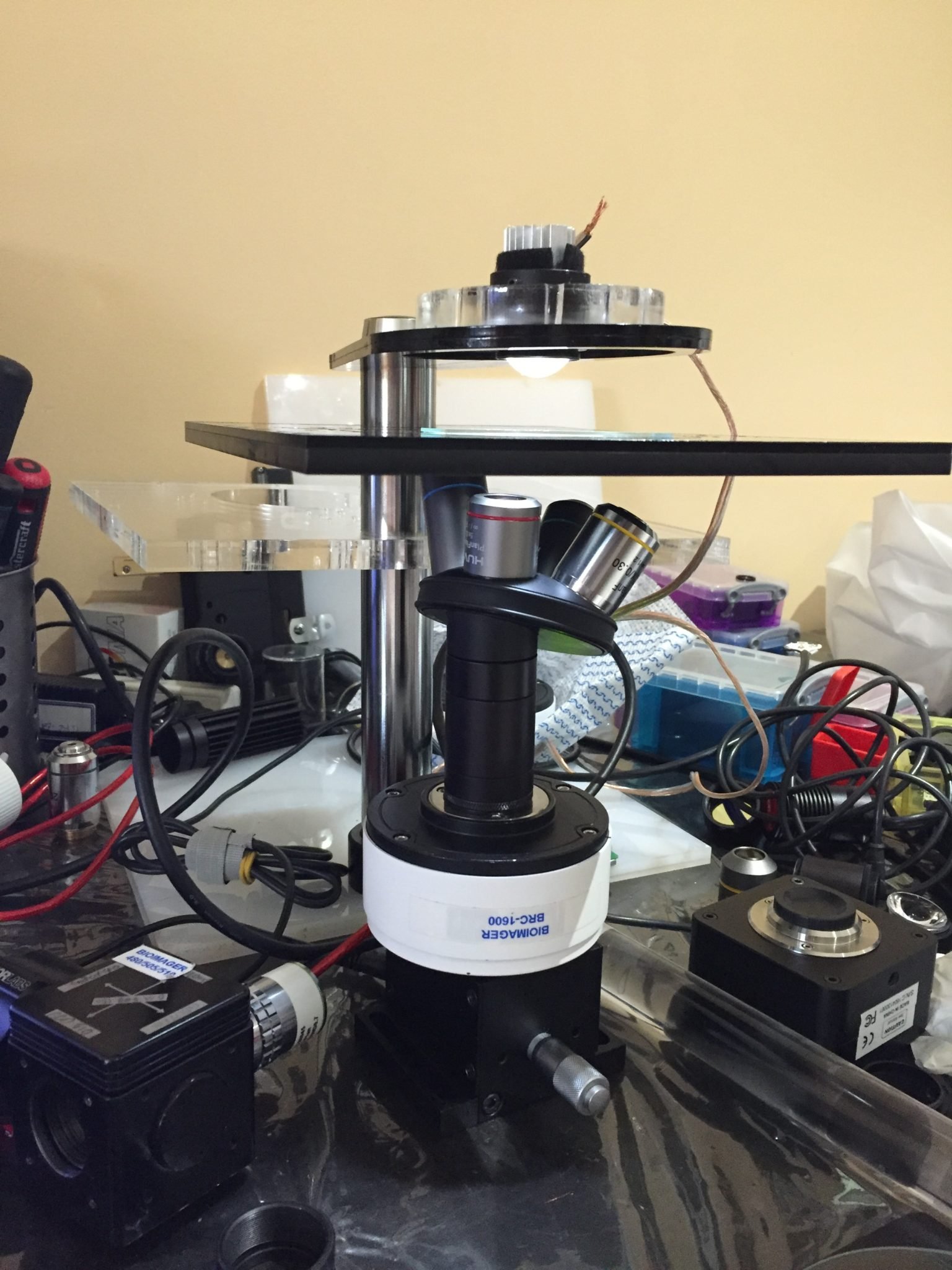

3. QScope-3N: 3-LED Imaging with nosepiece
Popular Fluorophores: green fluorescence protein (GFP), red fluorescence protein (RFP) or Texas Red, Dapi/Hoechst
Nosepiece: RMS thread with 3 or 4 ports

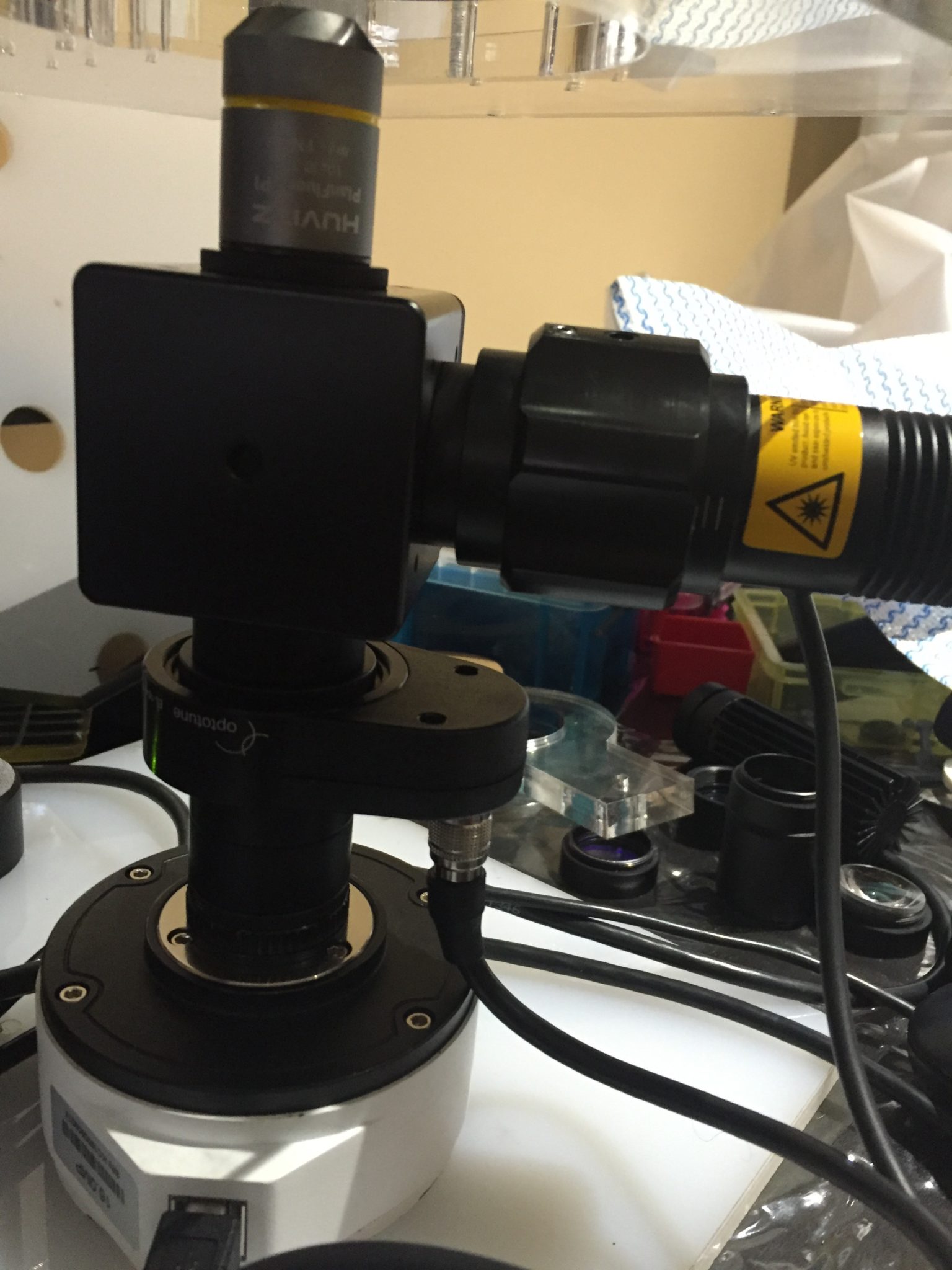

4. Single LED with a nosepice or an objective lens turret:
Specification
| IncuScope-500 | |
| Optics | Infinity-corrected objective with an RMS thread type |
| Image Resolution | 1920×1200 pixels = 2.3 MP; 1/1.9″(7.20×4.5)
CMOS Sensor (3.75×3.75 microns/pixels) |
| Image Formats | JPEG, TIF, BMP, GIF, PNG. |
| Optics | Chroma or Omega Optical Filters |
| Image Size | 100 kB-4MB |
| Objectives | 1.25x, 2x, 4x, 5x, 0x, 20x, 40x, 50x (oil), 60x (dry), 100x (water, or air/oil) (optional) |
| Fluorescence
(Default)
|
Excitation: 482/35 BrightLine Bandpass Emission: 536/40 BrightLine Bandpass Dichroic Mirror: 506 nm BrightLine Dichroic Beam Splitter |
| Fluorophores | GFP (EGFP), FITC (Fluorescein), Alexa Fluor488, SuperGlo GFP, wild type GFP (non-UV excitation), red-shifted GFP (S65T), BODIPY, Cy2, Calcein, MitoTracker Green, Oregon Green. |
| PC communication | USB 3.0 port |
| Power | DC adapter |
| LED Life Time | > 20,000 hours |
| Operating System | Microsoft Windows 7, 8, 10 |
| Operating Condition | 0°C- 42°C, 5%-99% RH non-condensing |
| Warranty | 1 year |
Field of Views
| Field of View | 1.25x: 19x19mm
2x: 9.31x7mm 4x: 7.8×5.85mm 5x: 6.8×5.11mm 10x: 3.4×2.55mm 20x: 1.52×1.14mm 40x: 7.8×5.85mm |
incuView Software Interface
The softwrae code allows for complete camera control including: Image acquisition and adjustment of camera exposure and gain for each channel separtely, Monochrome / color / pseadocolour imaging, LED brightness, turn on/off the light during the waiting time, pre-warm up time and time lapse acquisition.
Features:
- Time-lapse mode
- Controls each LED separtely
- Turn ON/OFF option for teh LEDs, i.e. digital shutter
- Live view and image capture
- label image color
- Merge images
- Color and monochrome images
- Manual and automatic exposure time and gain
- Captures BF and FL images separately
- Zoom in / Zoom out with a touch of mouse wheel
- Full screen of the live image, resizable tabs
Following images were collected using 3 LEDs of UV, Blue and Green excitations, 3MP sCMOS camera BIC-C30, and the below-mentioned objective lenses. merged images were generated using IncuView software.
FluoCells® Prepared Slide #2: bovine pulmonary artery endothelial cells (BPAE) cells with Mouse Anti-α-tubulin, BODIPY FL Goat Anti-Mouse IgG, Texas Red-X Phalloidin, and DAPI), (Molecular Probes)
BIHR-20xBF PlanFluor EPI20XBF Plan Semi Apochromat 20X/NA0.45/WD3 Lens:
BIMJ969-60x: 60x /NA0.80/WD0.23 Plan Objective Lens:
FluoCells® Prepared Slide #6 (Muntjac cells with Mouse Anti-OxPhos Complex V Inhibitor Protein, Alexa Fluor 555 Goat Anti-Mouse IgG, Alexa Fluor 488 Phalloidin, and TO-PRO-3) (Molecular Probes)
BIMJ969-60x: 60x /NA0.80/WD0.23 Plan Objective Lens:
