MT7000 Meiji Metallurgical Upright Reflected BF Microscope
Meiji Techno MT7000 Upright Reflected BF Metallurgical Microscope
Highlighted Features
- Upright Microscope
- Reflected light
- Brightfield imaging system
- Infinity Correcetd Optical Systems
- Plan Epi BF 5x
- Plan Epi BF 10x
- Plan Epi BF 20x
- Plan Epi BF 50x
- a pair of SWH 10x/FN22, OD30
- Stage: Ceramic Coated Flat-top
- Power Supply: Automatic Voltage Sensing
- Illumination: Vertical Koehler 6v/30W Haolgen Incident
- Ergonomic binocular viewing head (optional)
Models to select:
MT7000 Binocular Seidentopf, Halogen
MT7100 Trinocular Seidentopf, Halogen
MT7000L Binocular Seidentopf, LED
MT7100L Trinocular Seidentopf, LED

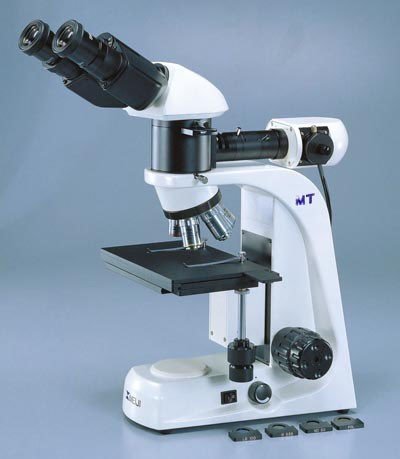

The new MT7000 Series is an incident light, brightfield compound microscope
It is ideal for examination of surface features at high magnification and for high resolution photomicroscopy. MT Series are an all new design with all new and improved infinity corrected optics, auto voltage sensing power supplies, ceramic coated stages, DIN standard 30mm FN22 eyepieces and comfortable Siedentopf viewing heads. The MT7000 Series come with full Koehler 30W halogen illumination and an attachable mechanical stage with drop down controls. |
|
VIEWING HEADS Model MA815 is the Siedentopf-type binocular head and Model MA816 is the trinocular head for camera integration. Each head has the eyetubes inclined at 30° with the left eyetube having graduated diopter settings. The interpupillary distance is adjustable between 53mm – 75mm. An 80/20 beamsplitter for the trinocular tube can be engaged for photo work. The optional Ergonomic Viewing Head has the inclination adjustable from 10 to 50 degrees to fit any size user. |
MA815 | Siedentopf type binocular head. 30 degree inclination, 30.0mm ø eyetubes. (MT7000) |
MA816 | Siedentopf type trinocular head. 30 degree inclination, 30.0mm ø eyetubes. (MT7100) |
MA957 | Siedentopf type Ergonomic binocular head. 10 – 50 degree adjustable inclination, 30.0mm ø eyetubes. (optional) |
EYEPIECES
10X Super Widefield High Eyepoint eyepieces F.N.22 are standard, and 15X and 20X eyepieces are available as an option. A Super Widefield High Eyepoint 10X focusable eyepiece that accepts 25mm reticules is also available.
MA817 | SWH10X Super Widefield High Eyepoint eyepiece, FN22 (standard) (accepts 25mm reticle) |
MA818 | SWH15X Super Widefield High Eyepoint eyepiece, FN16 (optional) (accepts 19mm reticle) |
MA819 | SWH20X Super Widefield High Eyepoint eyepiece, FN12 (optional) (accepts 19mm reticle) |
MA859 | SWH10X-F Super Widefield High Eyepoint focusing, FN22 (optional) (accepts 25mm reticle) |
OBJECTIVE CHANGER
The smooth-operating, ball bearing mounted, quintuple nosepiece provides effortless objective changes.
OBJECTIVES
Meiji Techno offers an assortment of Plan Epi Infinity Corrected objectives for Brightfield work.
Plan Epi Brightfield Objectives – Infinity Corrected – F = 200mm | |
MA870 | Plan Epi 5X objective, NA: 0.10, Working Distance = 20.0mm (included) |
MA871 | Plan Epi 10X, objective, NA: 0.25, Working Distance = 7.48mm (included) |
MA872 | Plan Epi 20X, objective, NA: 0.40, Working Distance = 5.2mm (included) |
MA873 | Plan Epi 50X, objective, NA: 0.75, Working Distance = 0.38mm (included) |
MA874 | Plan Epi 100X, objective, NA: 0.90, Working Distance = 0.37mm (optional) |
Long Working Distance Plan Epi Brightfield Objectives – Infinity Corrected – F = 200mm | |
MA920 | LWD Plan Epi 20X objective, NA: 0.40, Working Distance = 11.0mm (optional) |
MA921 | LWD Plan Epi 50X objective, NA: 0.55, Working Distance = 7.5mm (optional) |
STAGE
Ceramic coated left or right-handed, flat top stage measures 191mm x 126mm with x-y travel: 100mm(X) x 100mm(Y). Ergonomically positioned coaxial drop down controls.
ILLUMINATION
Powerful 30 watt halogen illumination provides enhanced image quality and brightness for the observation of metallurgical specimens.
Cross-line reticle, 25mm diameter | 10mm divided into 100 units, 25 mm diameter | 5mm divided into 100 parts, 1.0 mm square, 25mm diameter | for grain sizing in steel, 25mm diameter | metal stage micrometer, 0.01mm, for reflected light |
|
||||||||||||||||||||||
|
MT7000 Series Models
Model | Head | Illumination | Eyepieces | Objectives | Stage |
MT7000 | Bino. | 30W Vertical Koehler | SWH10x FN22 | Plan Epi 5x, 10x, 20x, 50x | Ceramic Coated Fixed flat-top left or right-handed controls |
MT7100 | Trino. |
