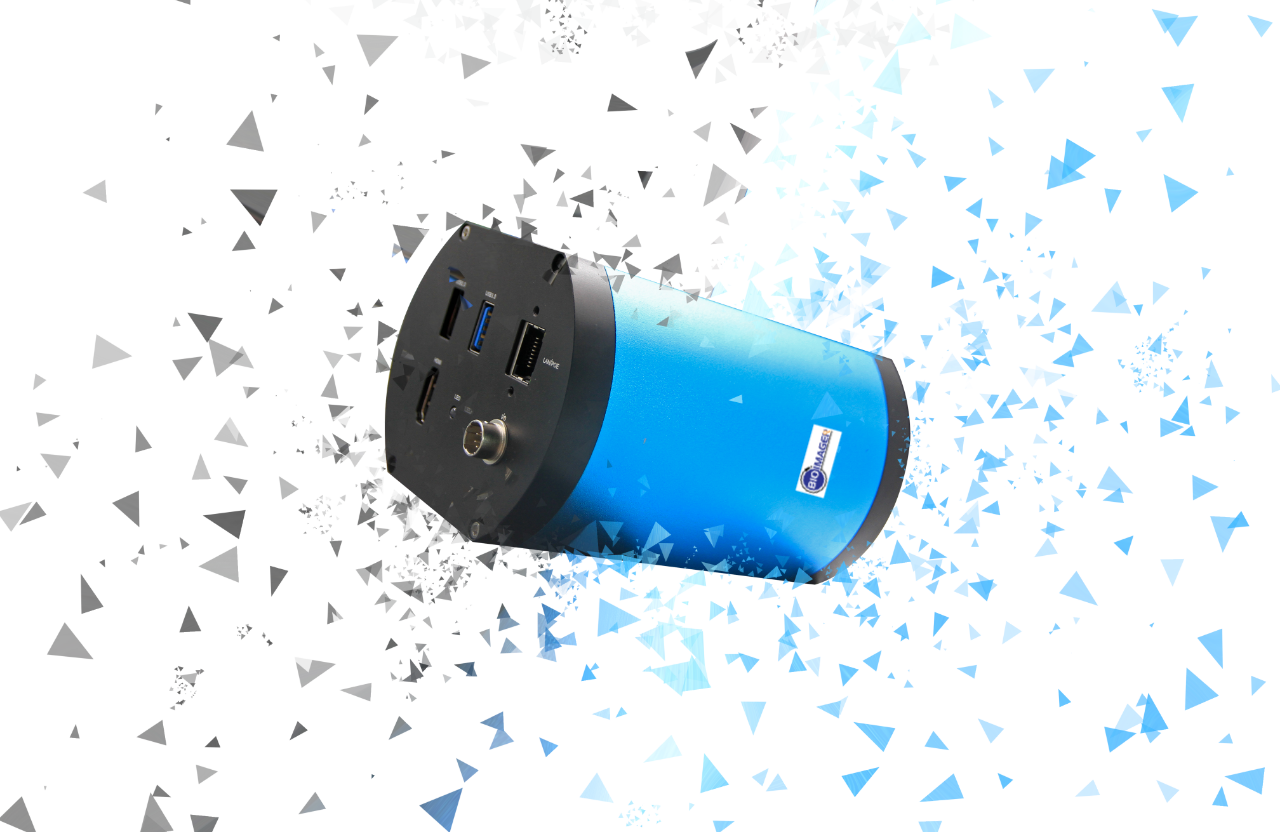

BioScan-AF28x Large Sample Inspection and Scanning 1X-28X Zoom

Original price was: $USD 7,500.00.Current price is: $USD 3,999.00.

-47%
  • Economic Choice of large sample scanning system
  • Applications: herbarium, botanic, minerals, rocks, papers, PCB.
  • Large field scanning as 420mm x230mm up to 12.15×6.75mm
  • Autofocus: Fully Automated Real-time Auto Focusing
  • Large optical magnification: from 1x to 28x
  • Digital zoom: 10
  • High frame rate 60fps
  • Support photo capture and video record, TF card storage
  • Long working distance: 10cm to infinity
  • Support I/O equipment
Add to Wishlist
Guaranteed Safe Checkout

Questions? Request a Call Back

Application: Microscope

  • Scientific research, education, teaching, demonstration and academic exchanges;
  • Digital laboratory, medical research;

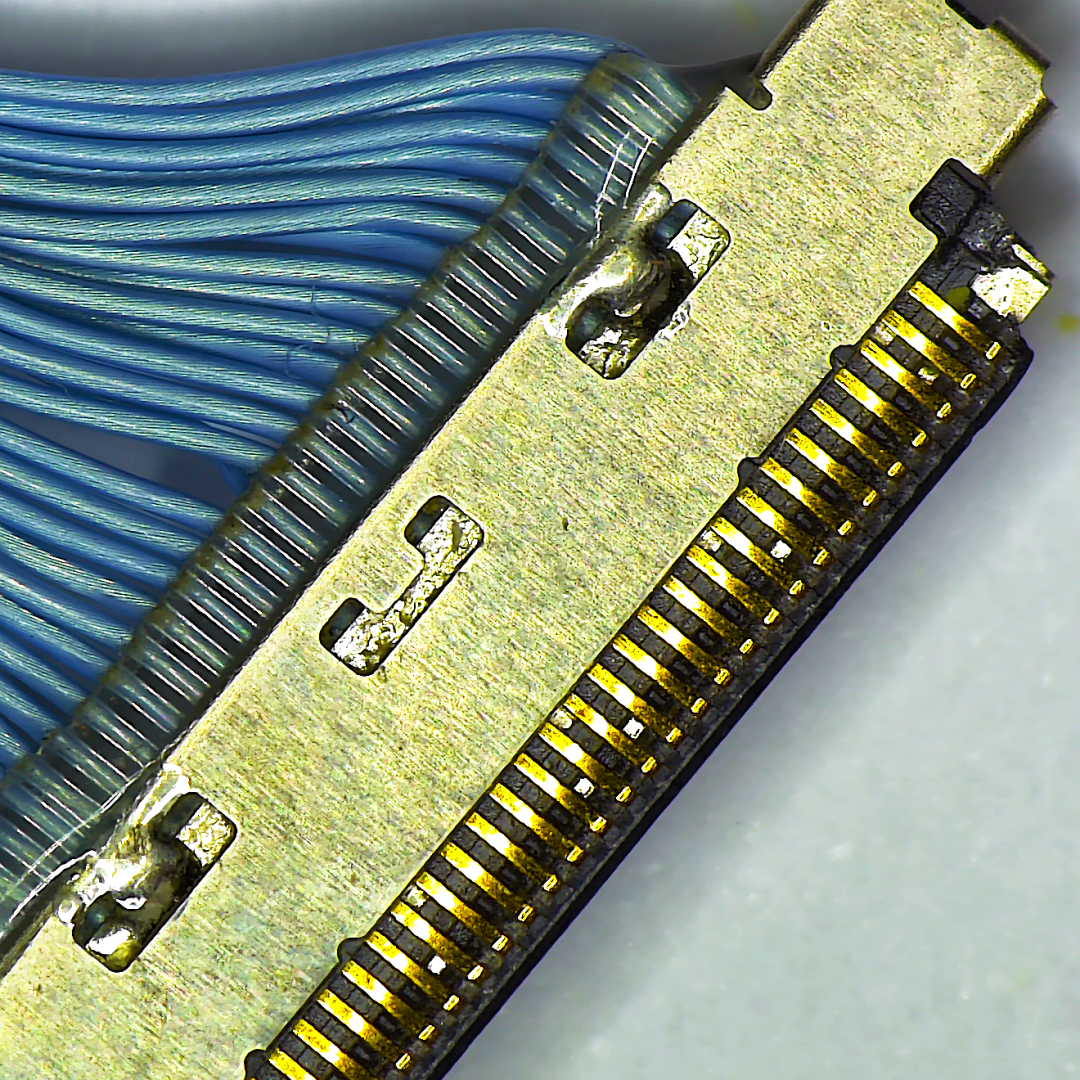

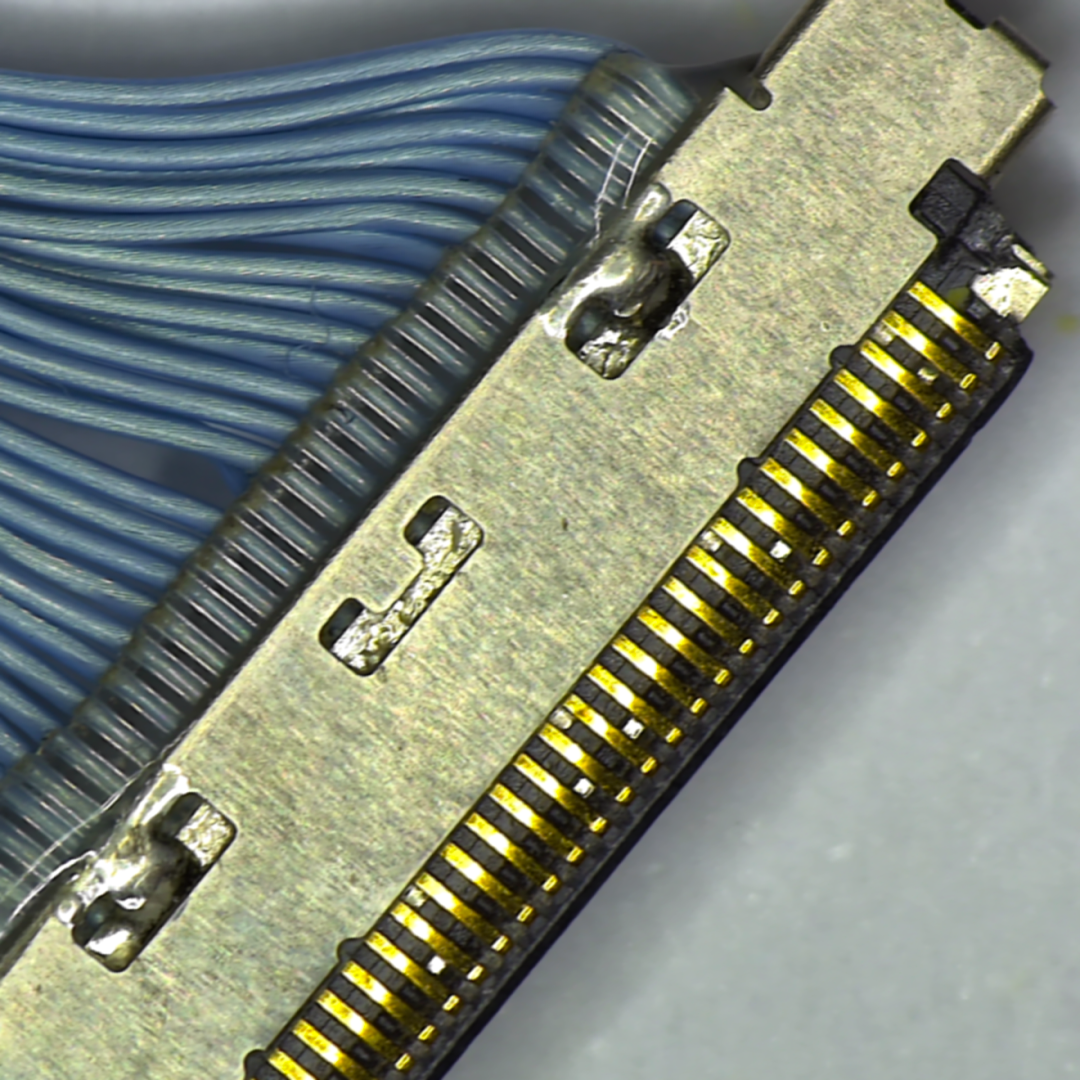

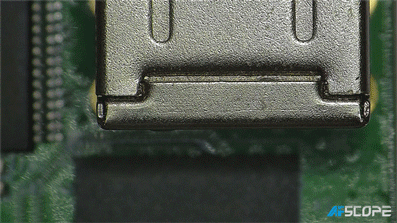

  • Industrial visual (PCB examination, IC quality control);
  • Medical treatment (pathological observation);
  • Food (microbial colony observation and counting);
  • Aerospace, military (high sophisticated weapons
  • Instant autofocusing:



  • Large Scanning Area: 420mmx230mm till 12.15×6.75mm
  • 4k HD Resolution
  • High Speed Acquisition
  • Fully automatic Real-time Auto Focus
  • Built-in optical lens, large zoom ratio: from 1x to 28x
  • Support photo capture and video record
  • Saves on a SD Card and PC
  • Instant image acquisition

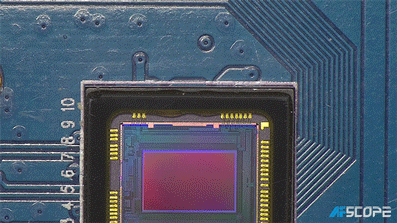

  • Easy zoom in and zoom out:



BioScan-AF28x Large Sample Inspection and Scanning 1X-28X Zoom

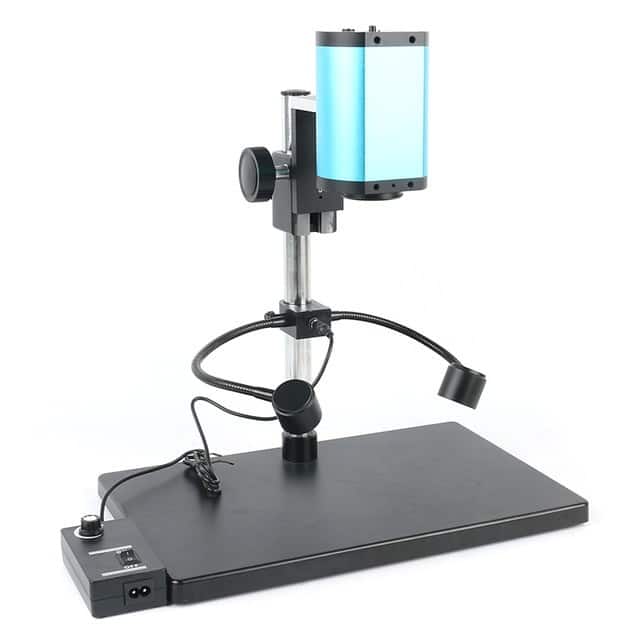

BIC AF14Z 12 autofocus camera stand light

Built-in optical lens, large zoom rate: 1:28
Optical magnification: 1X-28X
Digital magnification: 1X-6X

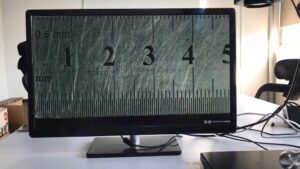

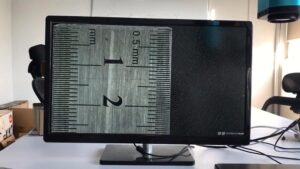

Field of View:

Magnification FOV

(10cm Working Distance)

 FOV

(30cm Working Distance)
1x 171mm x 92mm 420mm x 230mm
2x 89mm x 50mm 196mm x 110mm
3x 71mm x 40mm 150mm x 84mm
4x 60mm x 33mm 116mm x 65mm
5x 52mm x 29mm 101mm x 57mm
14x 24.3mm x 13.5mm 45.5mm x 25mm
28x
 12.15mm x 6.75mm 22.75mm x 13mm

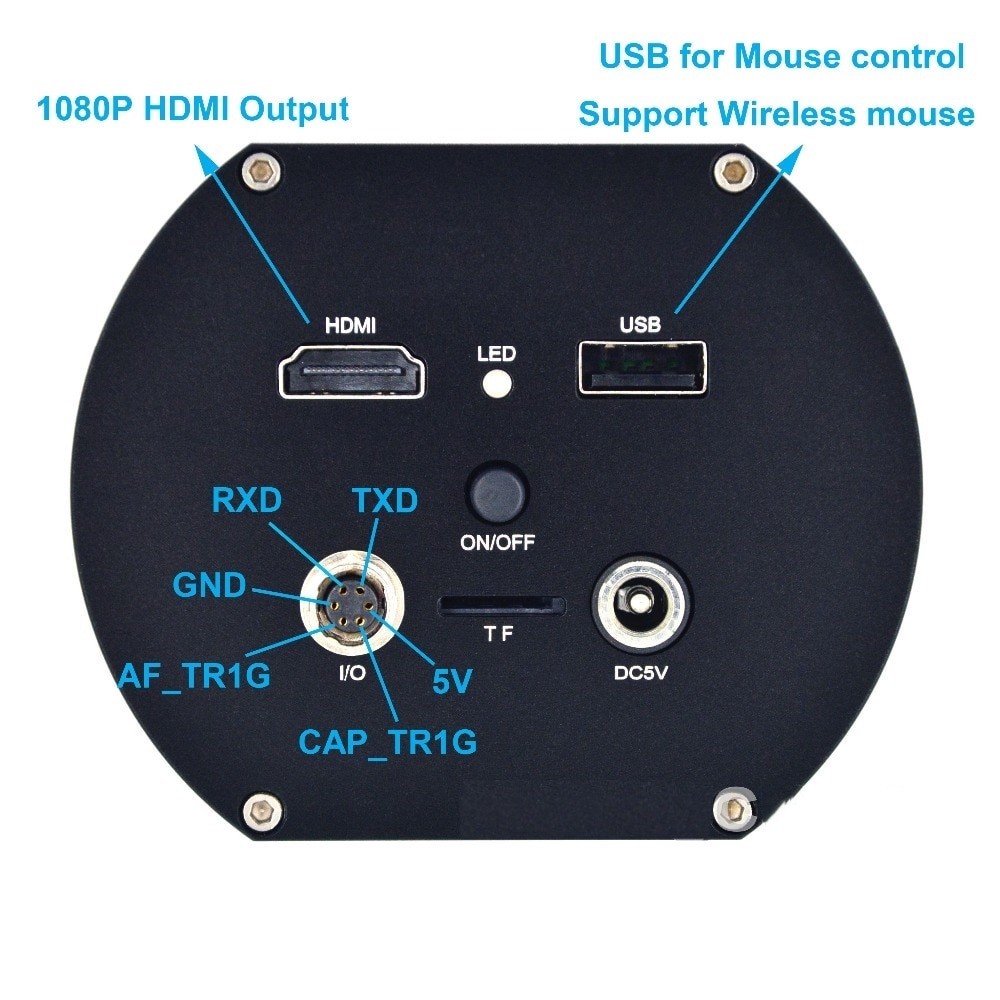

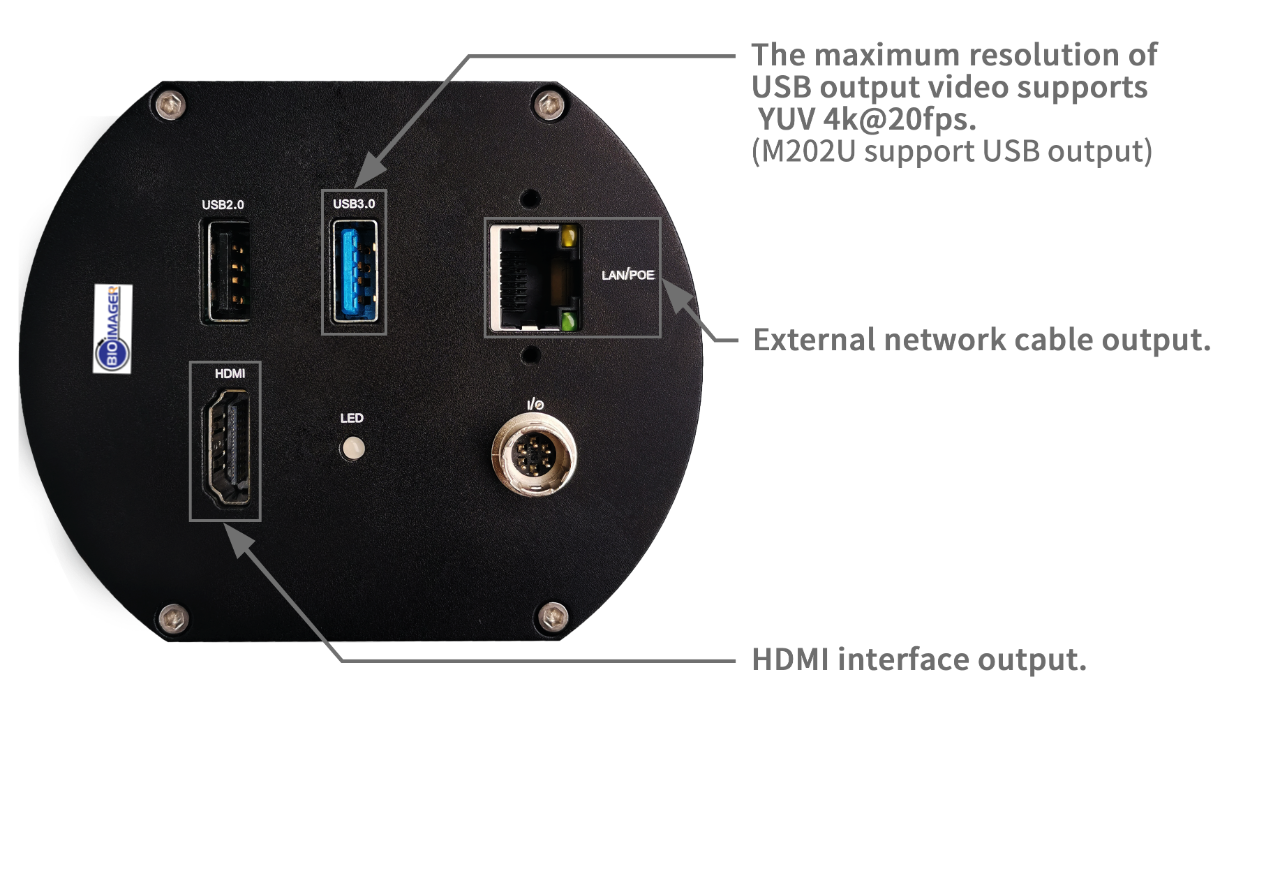

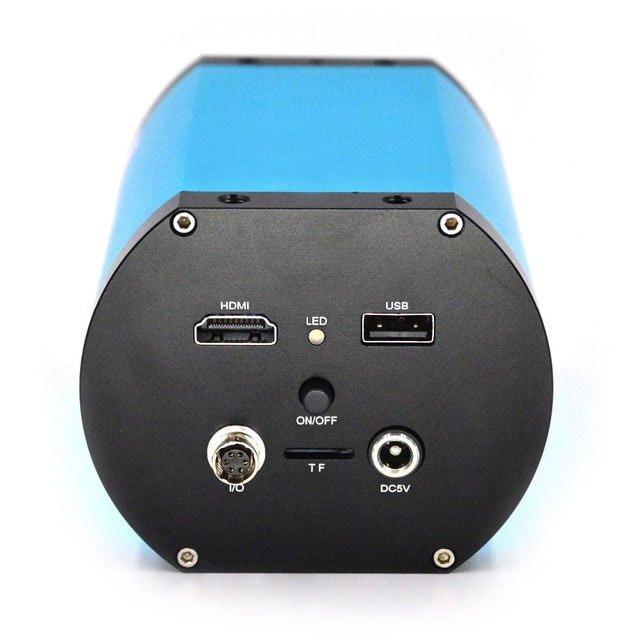

Interfaces

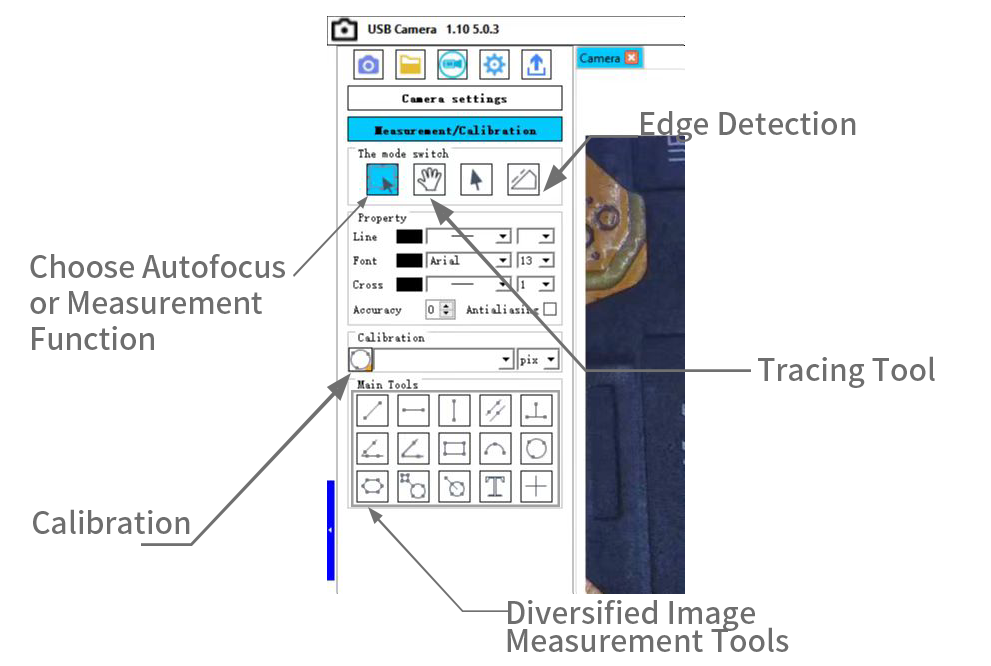

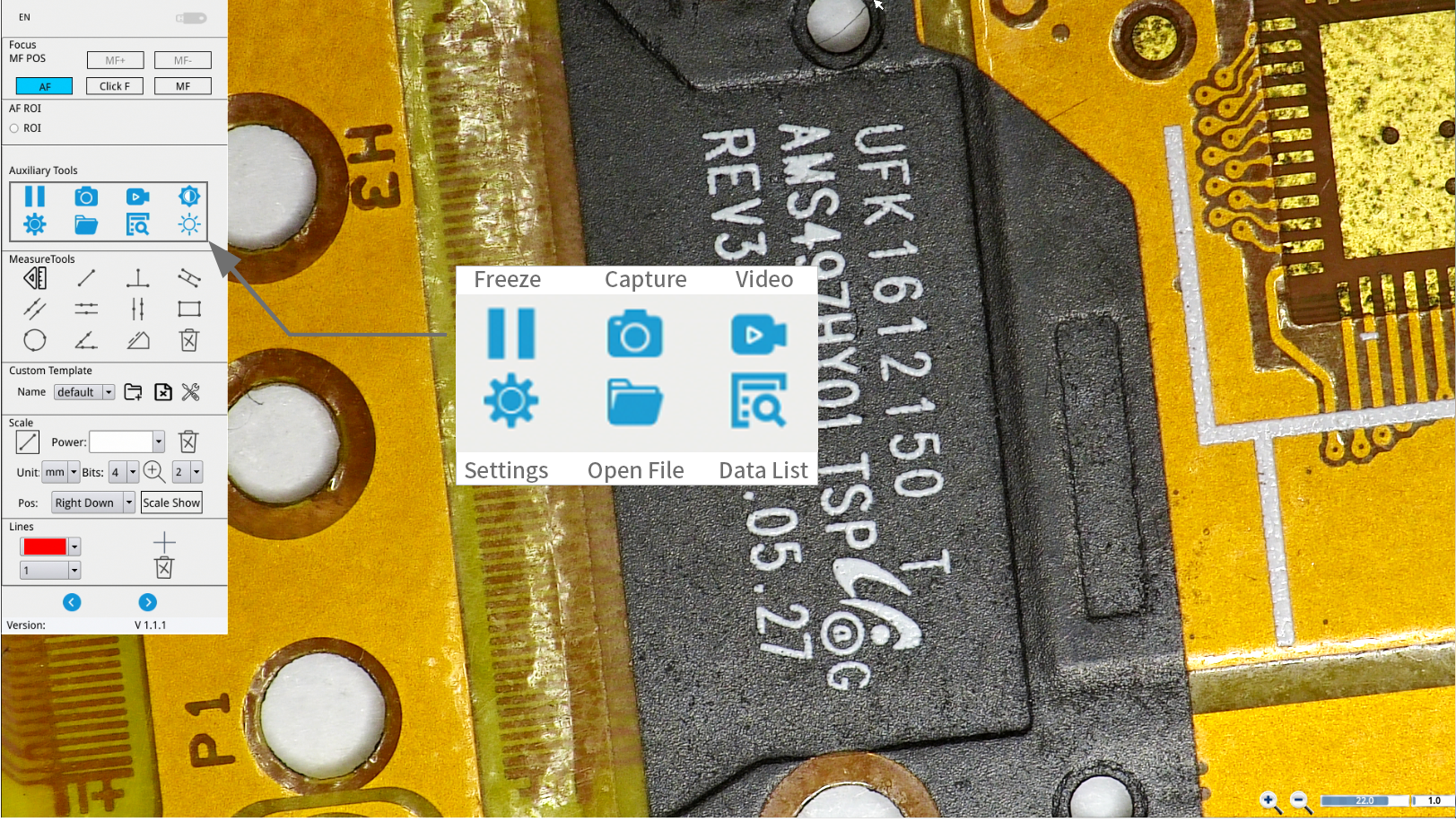

BioScanMicroscope built-in Graphical User Interface (GUI) controlled by Mouse



User could adjust focus, exposure, gain, white balance, Zoom, capture photo and recording video by mouse

Camera support add cross-hair



Built-in optical lens, large zoom rate: 1:28

Optical magnification: 1X-28X

Digital magnification: 1X-10X

Package Contents:

Embedded Software

GUI
