4K UHD Displays for HDMI Microscopy Cameras

Original price was: $USD 1,000.00.Current price is: $USD 399.00.

-60%
  • Display Monitor for HDMI Microscopy Camera
  • Retina or full HD resolution
  • 11.6″ or 13.3″
  • 1920×1080 or 3840×2160 resolution
Add to Wishlist
Guaranteed Safe Checkout

Guaranteed Safe Checkout

Questions? Request a Call Back

4K full HD / UHD Retina Display Monitor for HDMI Microscopy Cameras

Model BRC-1160B-1920 BRC-1330-B-1920 BKC-1330-B-3840
Monitor Size (active area) 11.6 in 13.3 in

295mm(W) × 165mm(H)

 13.3 in

295mm(W) × 165mm(H)
Native Resolution 1920×1080 1920×1080 3840 x 2160

4K full HD / UHD Retina Display Monitor for HDMI Microscopy Cameras

1. BRC-1330 or BKC-1330 13.3″ series

  • Genuine 4K HDMI Monitor
  • Display Size: 13.3 inches (active area)
  • Panel Type: IPS LCD with 178-degree wide viewing angle
  • Enhanced HDR for Dynamic Image Quality
  • Covers 100% of SRGB Color Gamut
  • Display Brightness: 400cd/m2, Contrast Ratio: Up to 1000:1
  • Sleek 4mm Narrow Bezel Design on Three Sides, Utilizing 90% Screen Space for an Immersive Visual Experience
  • Ultra-Responsive: 3ms Response Time, Optimized Dynamic Definition for Clarity and Stability, Free of Residual Shadow
  • Standard HDMI Interface for Easy Connectivity
  • Versatile Functionality: Screen Projection, Splitting, and Expansion when Connected to a Computer
  • Integrated Invisible Folding Stand for Effortless Viewing Angle Adjustments
  • Seamless Connectivity with HDMI Cameras
Basic Performance
LCD Panel IPS LCD Screen(Super TFT)
Input Video Format HDMI
Native Resolution 3840 x 2160
Display Type 16:9 Ratio 13.3 Inch Active Matrix Super TFT LCD
Typical Contrast Ratio 1000:1
Colors 16.7 Million
Viewing Angle(L/R/U/D) IPS Full View(178°)
Active Display Area 295mm(W) × 165mm(H)
Pixel Pitch 0.154(W) X 0.154(H) mm
Refresh Rate 60Hz
Brightness 400cd/m2
Backlight LED Backlight，50000 hours
Outline Parameter
Color Black
Dimension 306(L)*183(H)*8(T) mm
Weight 560g
Operating Environment
Operating Temperature -15 Degree~55 Degree
Humidity Non Condensing Operating:10%-90%, Storage:5%-90%
Synchronization Range 30-80 KHz Horizontal, 55-75 Hz Vertical
Power Supply AC110V-220V /DC5~12V(1A )(Type C)
Power Consumption Max 12W

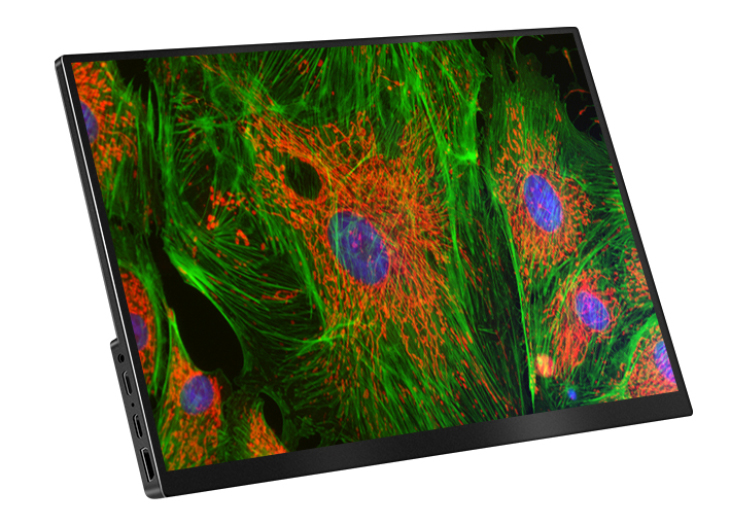

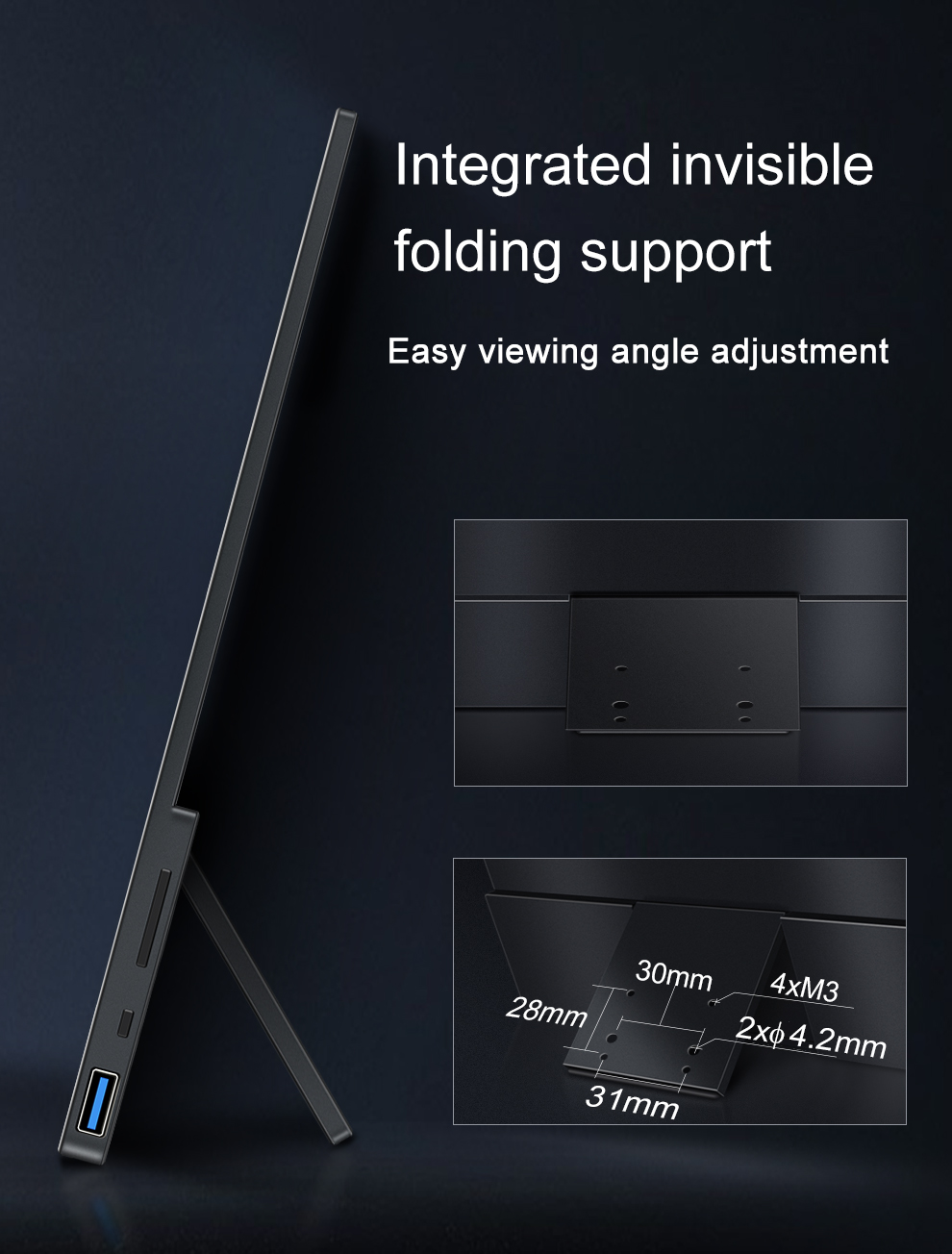

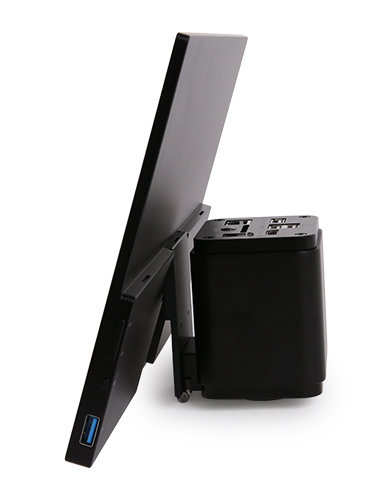

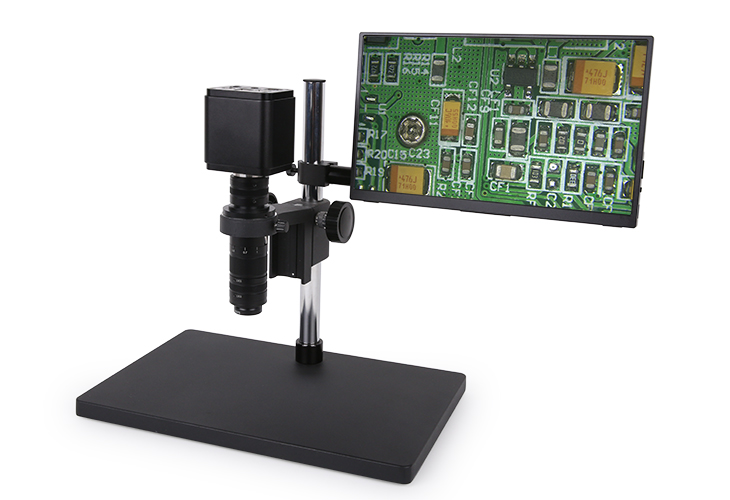

BKC 1330Bx3840 x 2160 2 BKC 1330Bx3840 x 2160 3 BKC 1330Bx3840 x 2160 4

BKC 1330Bx3840 x 2160 4 BKC 1330Bx3840 x 2160 5 BKC 1330Bx3840 x 2160 6
BKC 1330Bx3840 x 2160 6



2. BRC-1160 11.6″ series

  • HDMI monitor;
  • Panasonic IPS LCD panel;
  • True 1080P;
  • High contrast ratio up to 1000:1;
  • LED backlight with 50000 hours long life time;
  • 11.6 inch active area
Basic Performance
LCD Panel Panasonic IPS LCD Screen(Super TFT)
Input Video Format HDMI
Native Resolution 1920 x 1080
Display Type 16:9 Ratio 11.6 Inch Active Matrix Super TFT LCD
Typical Contrast Ratio 1000:1
Colors 16.7 Million
Viewing Angle(L/R/U/D) IPS Full Vew
Active Display Area 258mm(W) × 145mm(H)
Pixel Pitch 0.134(W) X 0.134(H) mm
Brightness 350 cd/ sq.m ;400cd sq.m / Optional
Backlight LED Backlight， 5000 hours
Outline Parameter
Color Black
Dimension 281(L)*179(H)*15.6(W) mm
Weight 400g
Operating Environment
Operating Temperature -15 Degree~55 Degree
Humidity Non Condensing Operating:10%-90%, Storage: 5%-90%
Synchronization Range 30-80 KHz Horizontal, 55-75 Hz Vertical
Power Supply AC110V-220V /DC12V(1A )
Power Consumption Max 12W

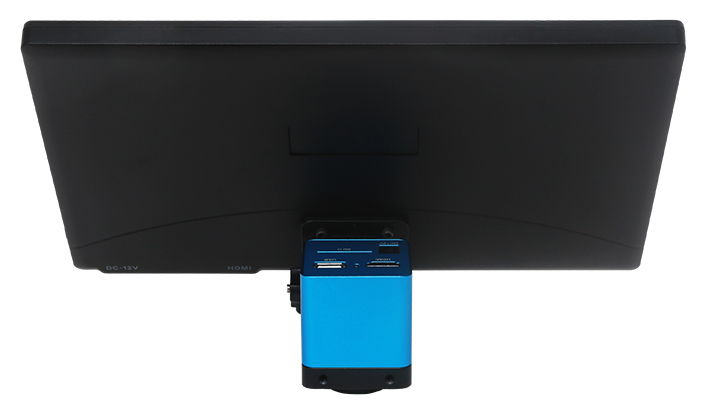

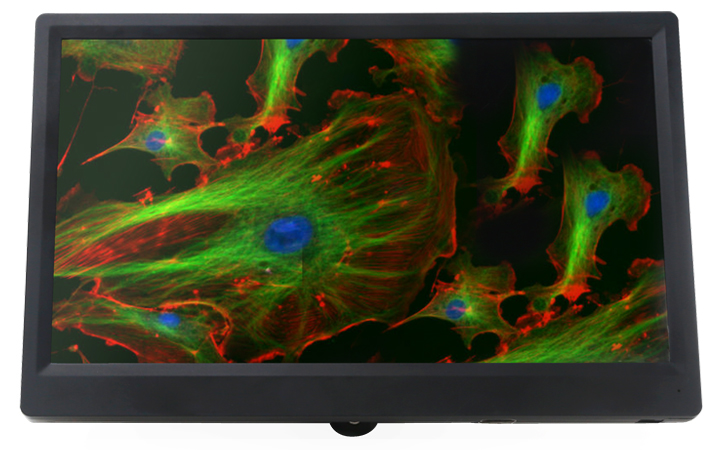

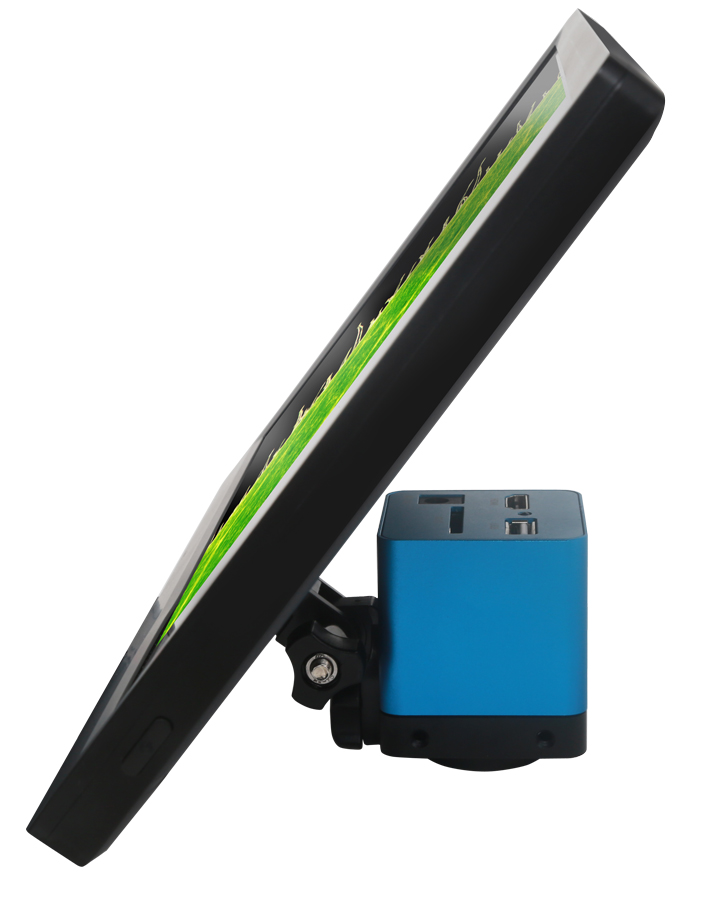

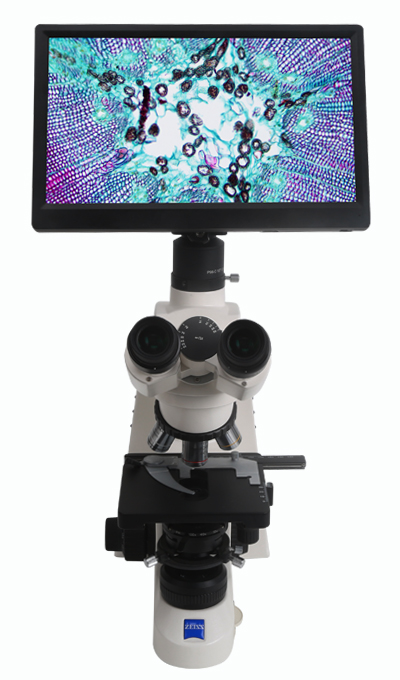

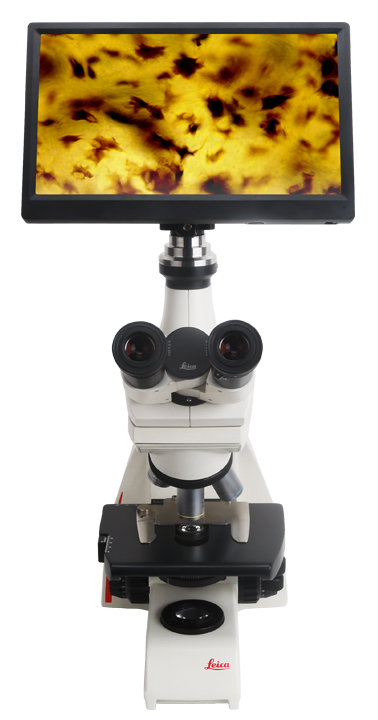

BRC 1160Bx1920x1080 2 BRC 1160Bx1920x1080 3 BRC 1160Bx1920x1080 4 BRC 1160Bx1920x1080 5 zeiss BRC 1160Bx1920x1080 5 Leica

BRC 1160Bx1920x1080 5 Leica

Model BRC-1160B-1920 BRC-1330-B-1920 BKC-1330-B-3840
Monitor Size (active area) 11.6 in 13.3 in

295mm(W) × 165mm(H)

 13.3 in

295mm(W) × 165mm(H)
LCD Panel IPS LCD Screen(Super TFT) IPS LCD Screen(Super TFT) IPS LCD Screen

(Super TFT)
Input Video Format HDMI HDMI HDMI
Native Resolution 1920×1080 1920×1080 3840 x 2160
Display Type 16:9 Ratio 13.3 Inch Active Matrix Super TFT LCD 16:9 Ratio 13.3 Inch Active Matrix Super TFT LCD 16:9 Ratio 13.3 Inch Active Matrix Super TFT LCD
Typical Contrast Ratio 1000:1 1000:1 1000:1
Colors 16.7 Million 16.7 Million 16.7 Million
Viewing Angle(L/R/U/D) IPS Full View(178°) IPS Full View(178°) IPS Full View(178°)
Active Display Area 295mm(W) × 165mm(H) 295mm(W) × 165mm(H) 295mm(W) × 165mm(H)
Pixel Pitch 0.154(W) X 0.154(H) mm 0.154(W) X 0.154(H) mm 0.154(W) X 0.154(H) mm
Refresh Rate 60Hz 60Hz 60Hz
Brightness 400cd/m2 400cd/m2 400cd/m2
Backlight LED Backlight，50000 hours LED Backlight，50000 hours LED Backlight，50000 hours

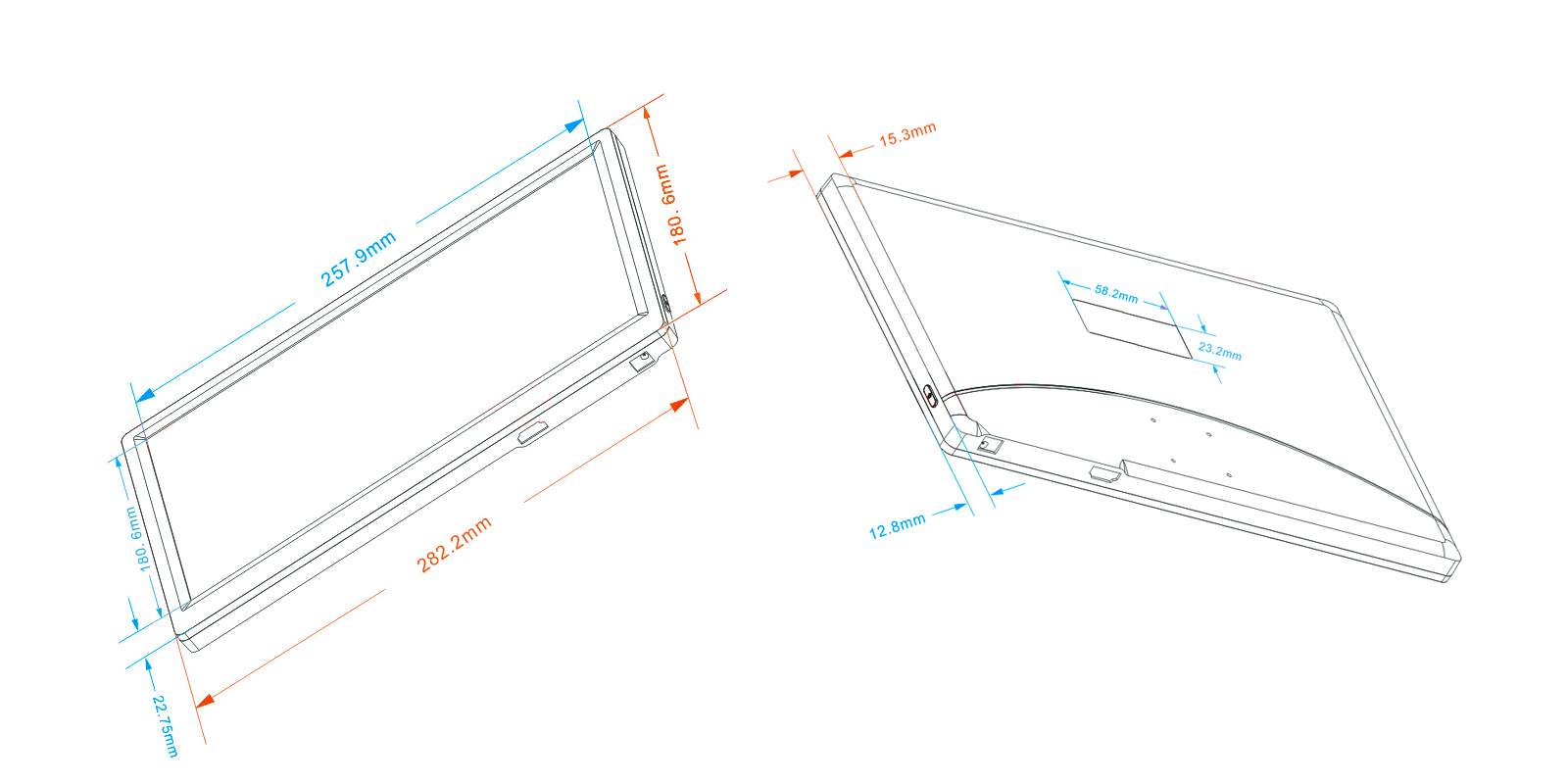

Dimension
