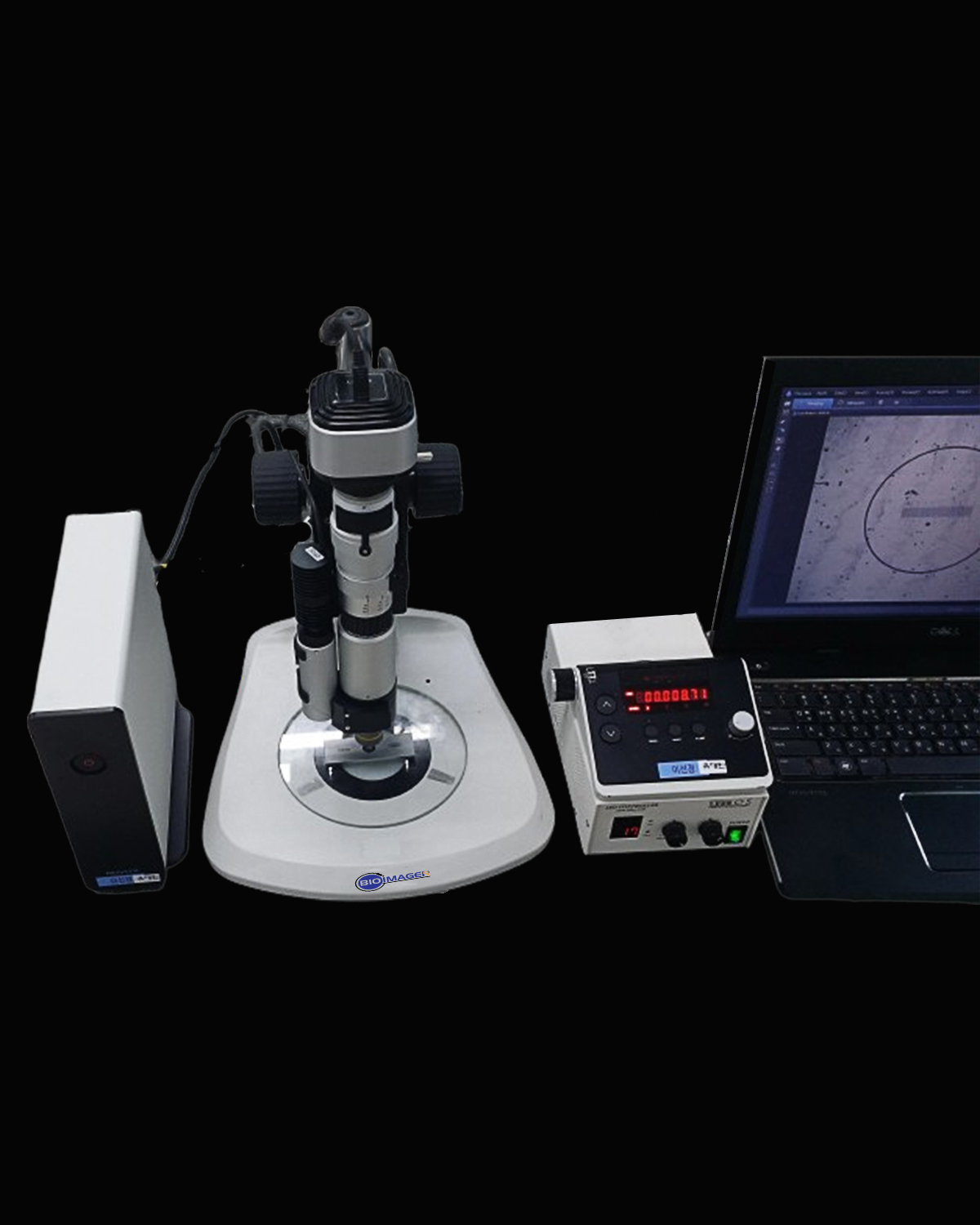

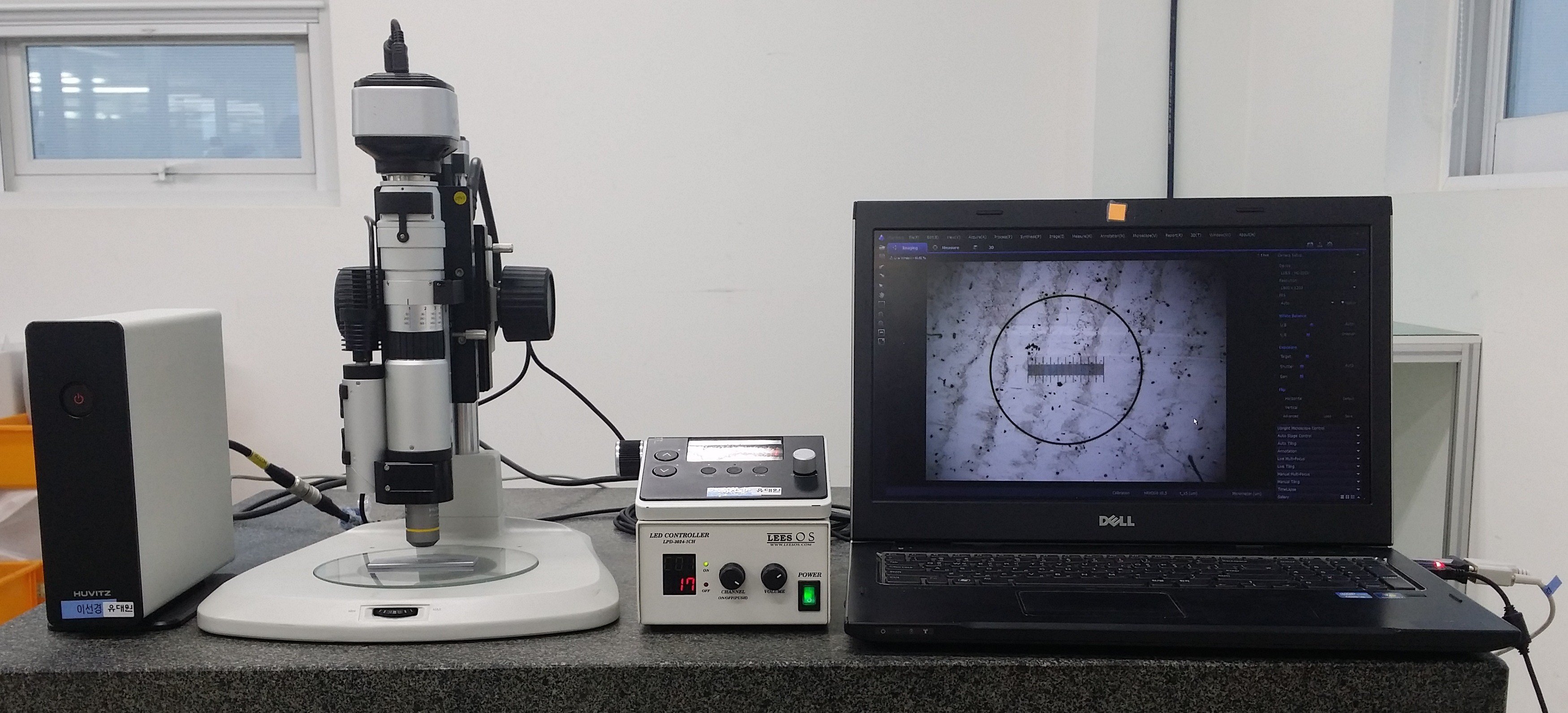

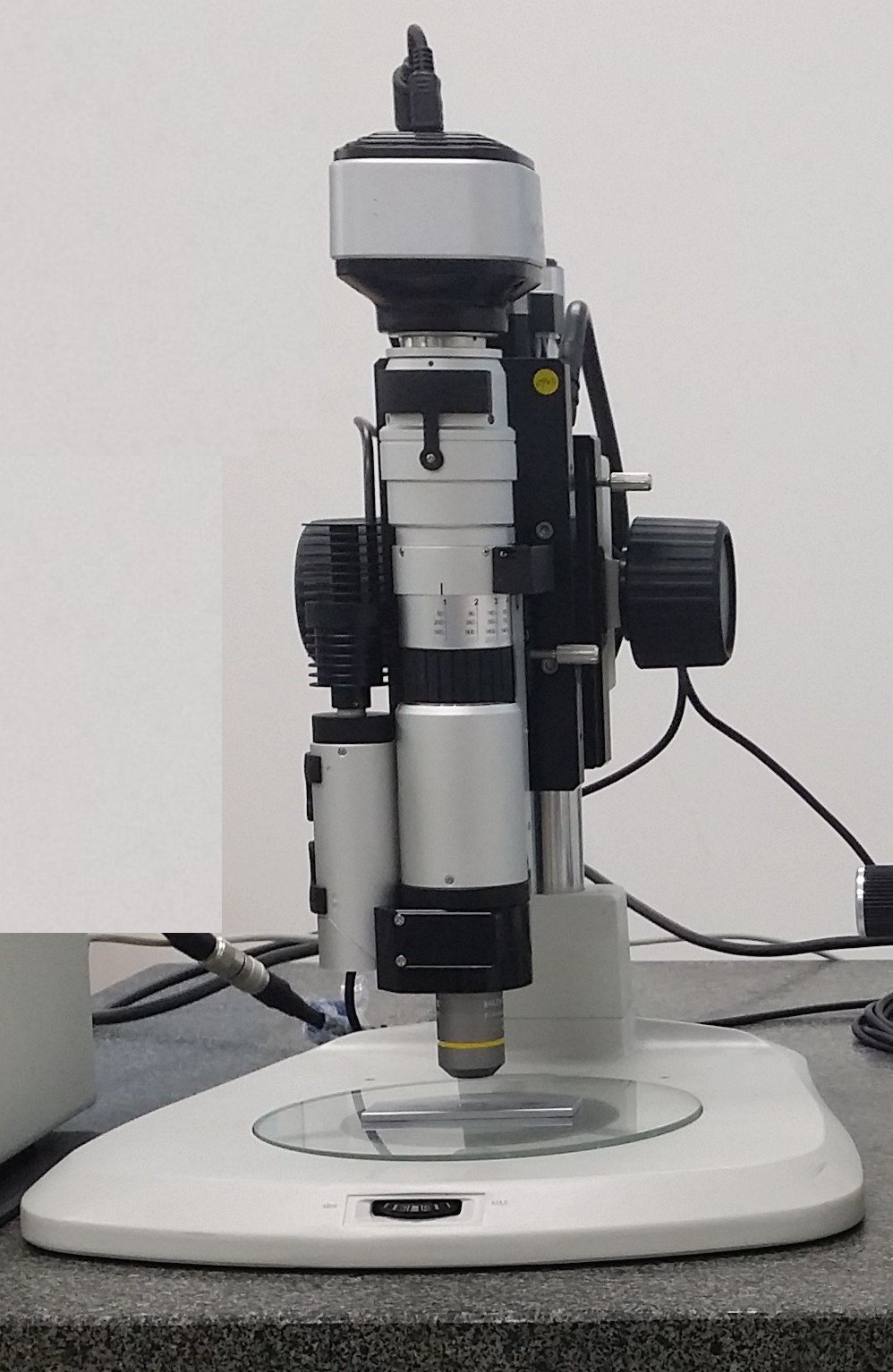

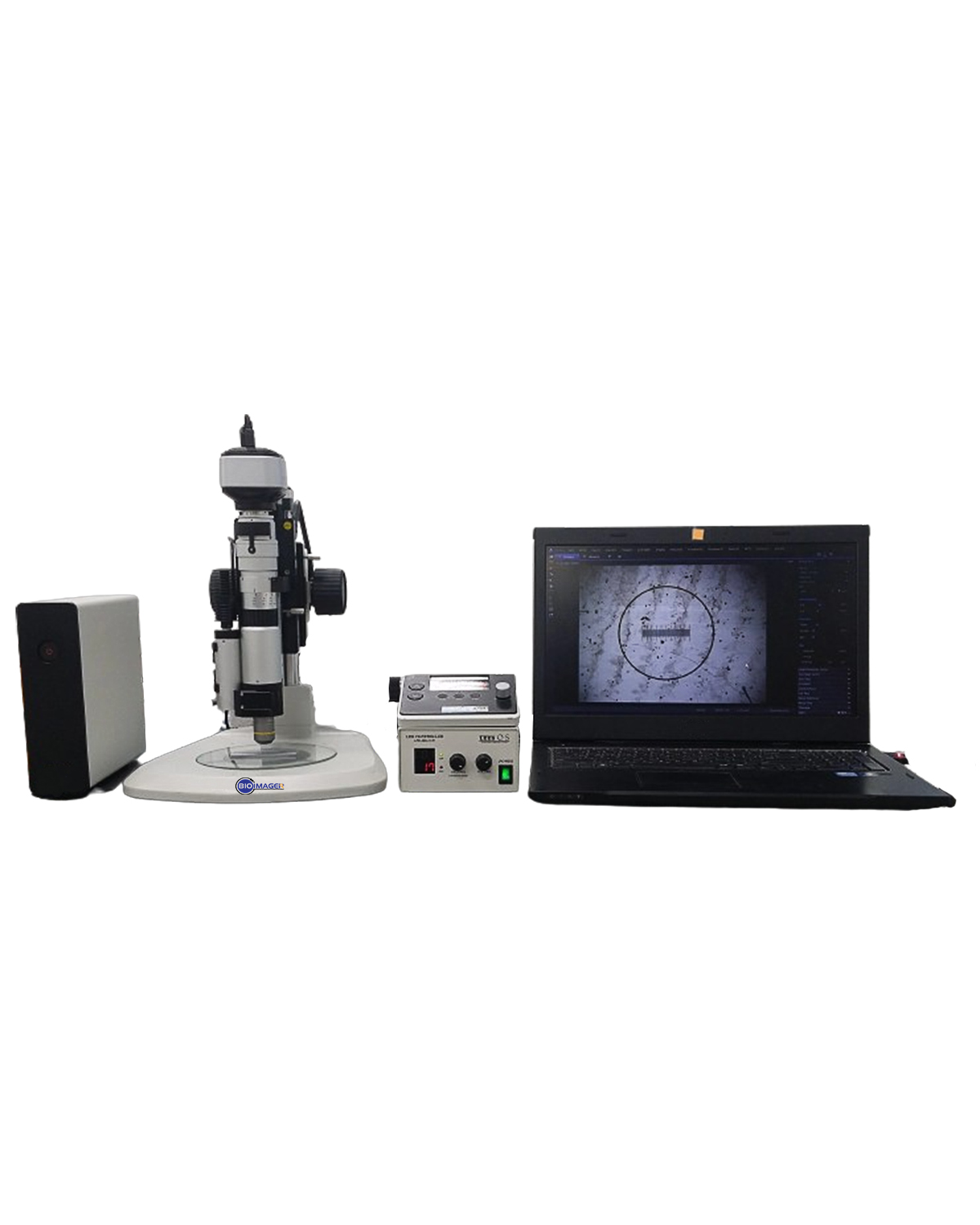

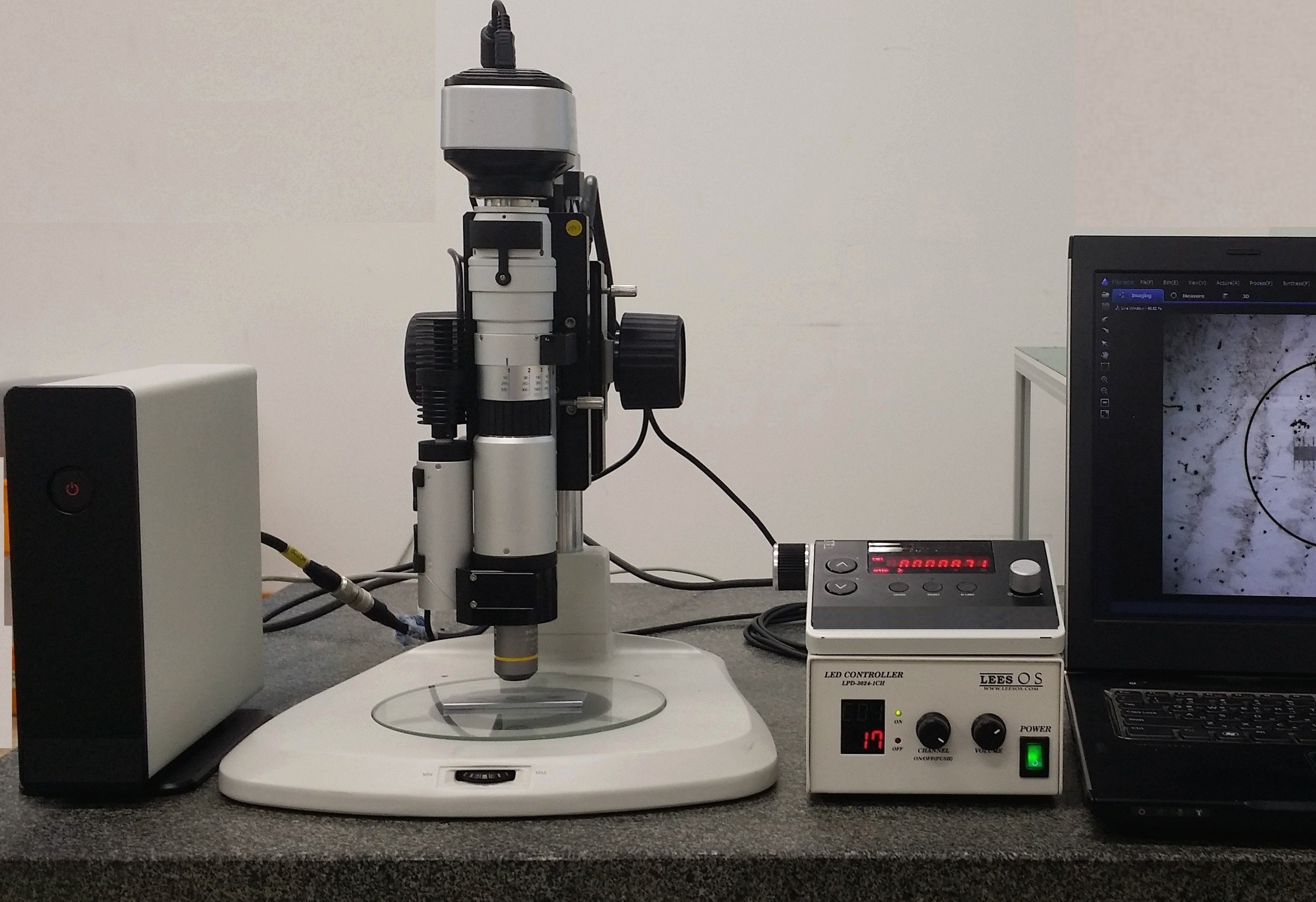

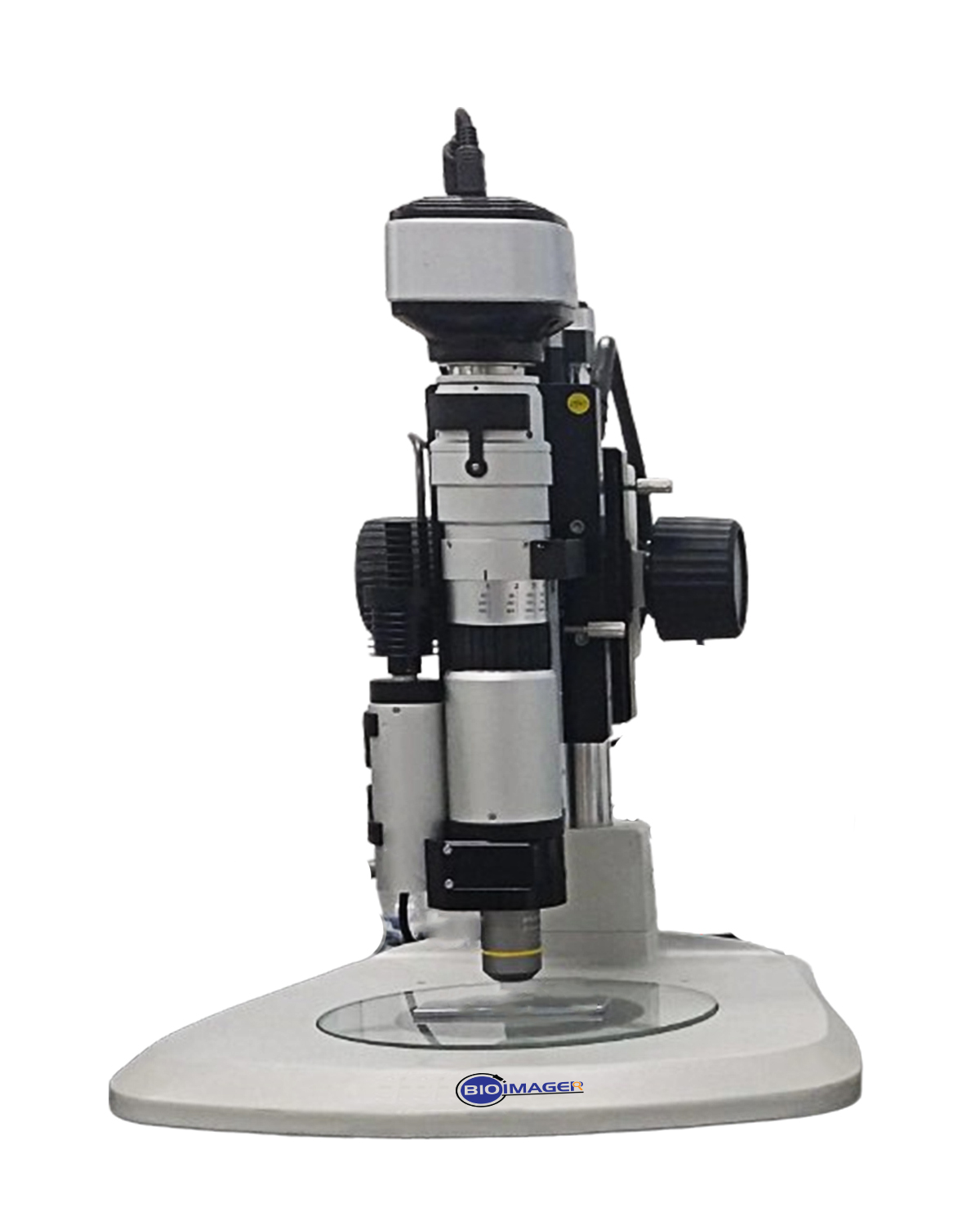

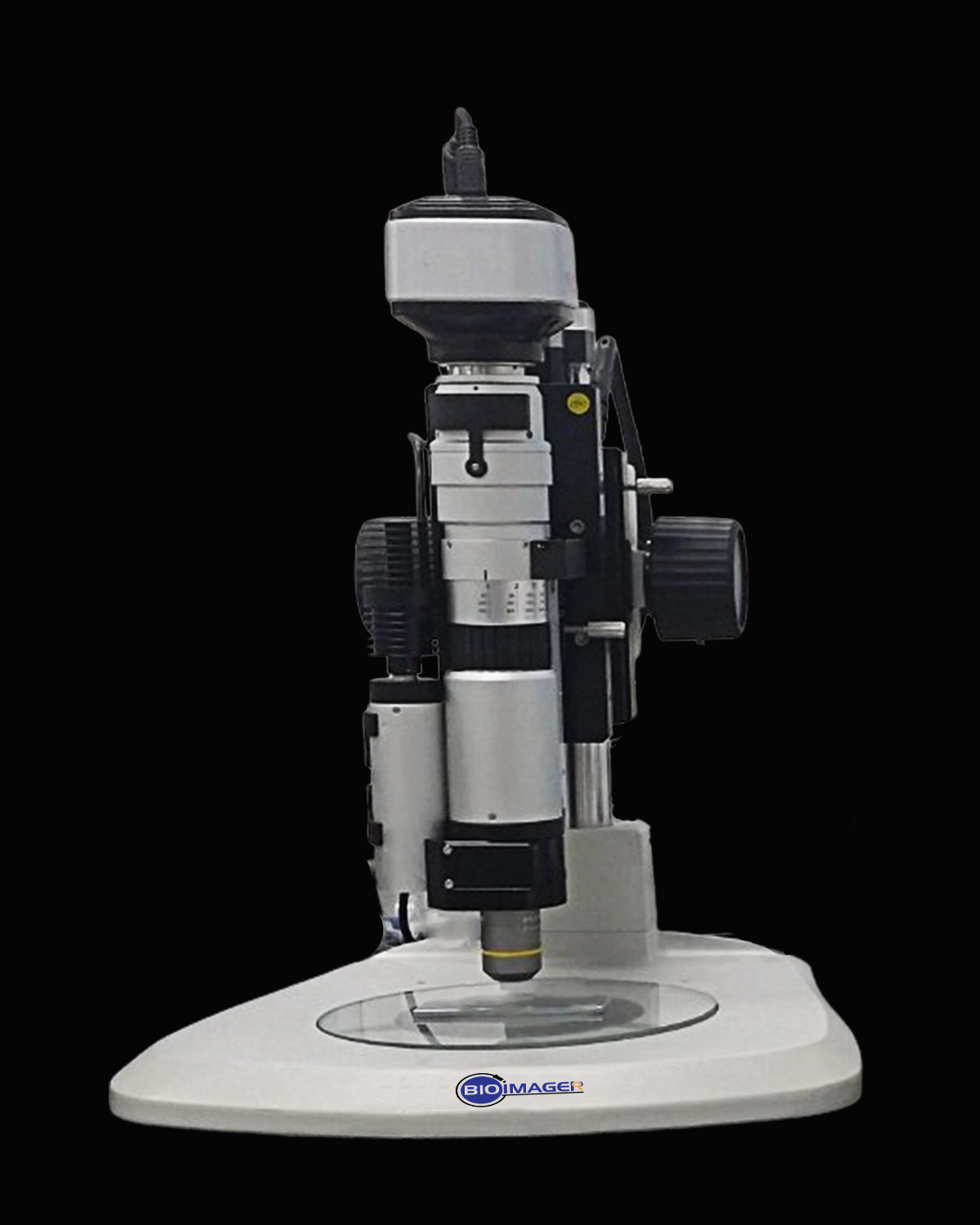

BDS-200L Large 3D Imaging System

Availability:

In stock


Compare
  • High Performance digital microscope
  • High Resolution (0.1um in 30mm travel) 3D Images of large samples
  • Optical magnifications from 0.45 to 20x and total magnification of 25x-1000x
  • Great tool for 3D imaging of large specimens (0.1-10mm) such as minerals, jewelries, industrial inspection of PCB, small animals such as zebrafish, chicken, fruits, seeds, etc.
  • Output image format for 3D printing
  • Epi-Fluorescence imaging of small animals (optional)

Request a Quote

Z-Axis Control Pad
To help check the height at a glance, a display window is positioned at the front.
8 speed settings for controlling z-axis movement allows for precise and quick focusing.
In addition, an emergency stop button helps protectsamples from unexpected situations.
Tilting Stand (Optional)
Easy rotating and tilting stand – up to 150 degree
The standard HDS stand provides flexibility for imaging from a wide range of angles to acquire images of the most difficult specimens. The stand can be tilted through 150º and objects can be easily rotated.
Variety of Video Camera
BioImager exclusive video port lenses assure better quality video images for any digital camera systems.
3-Way Solution
1. Automatic Alarm : Automatic plug&play detection
2. One Push Recovery : Setting data backup and system recovery
3. Remote service : Huvitz remote web based solution through athena
One-click Camera setting
It offers five kinds of camera setting options to setup a part of detailed image. (Gamma, Contrast, Chroma, Color, Edge) You can choose one of 8 preset images to apply needed effect and acquire customized image
A variety of 3D measurement tools
The HDS can easily acquire professional and customized profile data. In addition, various measurement tools are provided to aid collection, verification and accuracy of measurements.
Live Measuring
Measurements and analysis can be performed on live images.
Measurement Results/Statistics
Length, area, angle measurements and samples, such as minimum, maximum, mean, and statistical values can be calculated easily.
Live Multi-Focus
Combines different focal-depth images into one live multi-focused image.
Live Tiling
Real-time image synthesis can be created quickly and easily by combining multiple images into a large
composite image.
3D Profiler(Option)
The height data(Z-axis) and 3D image can be created by 3D profiler. (Z-axial motorizing module)

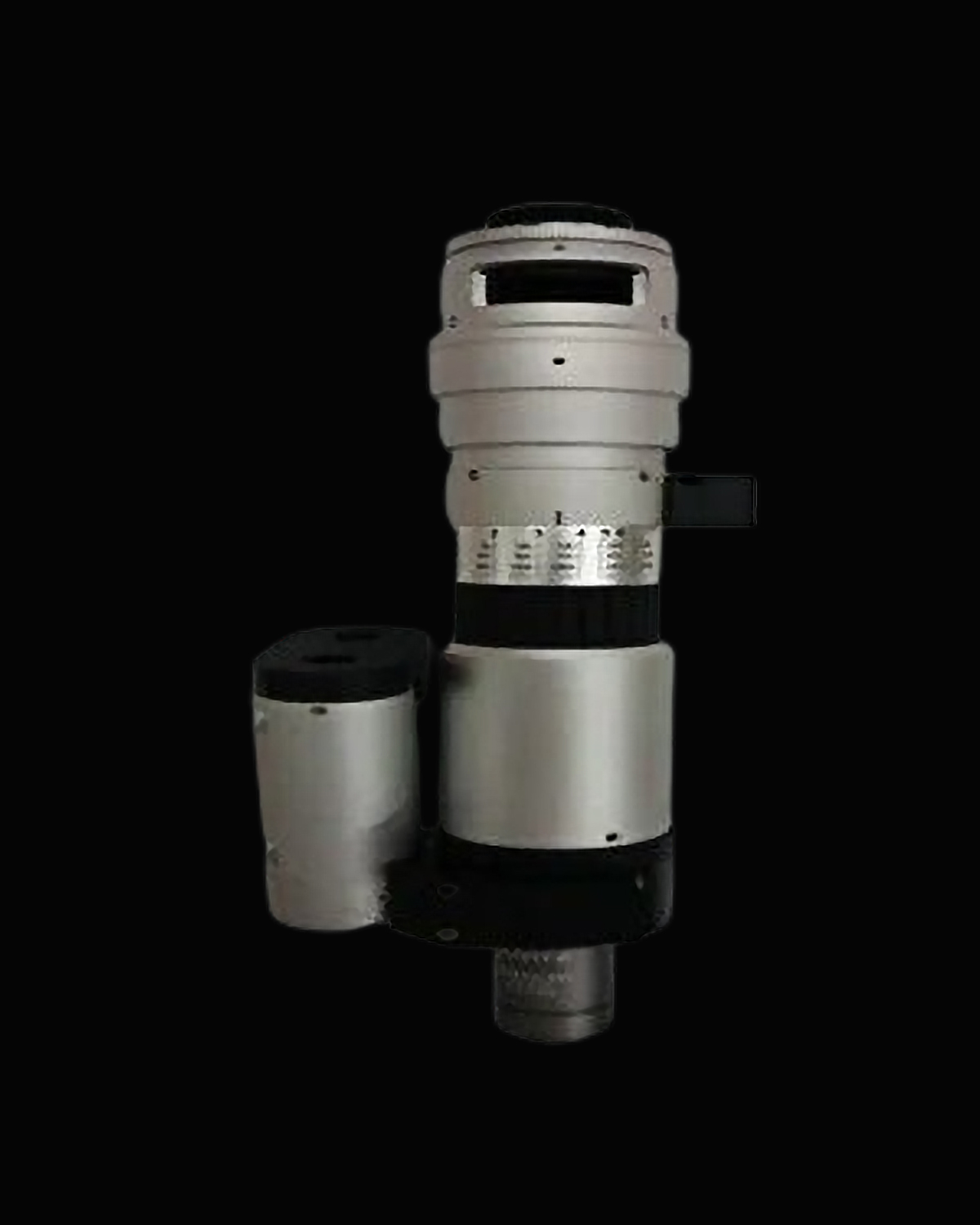

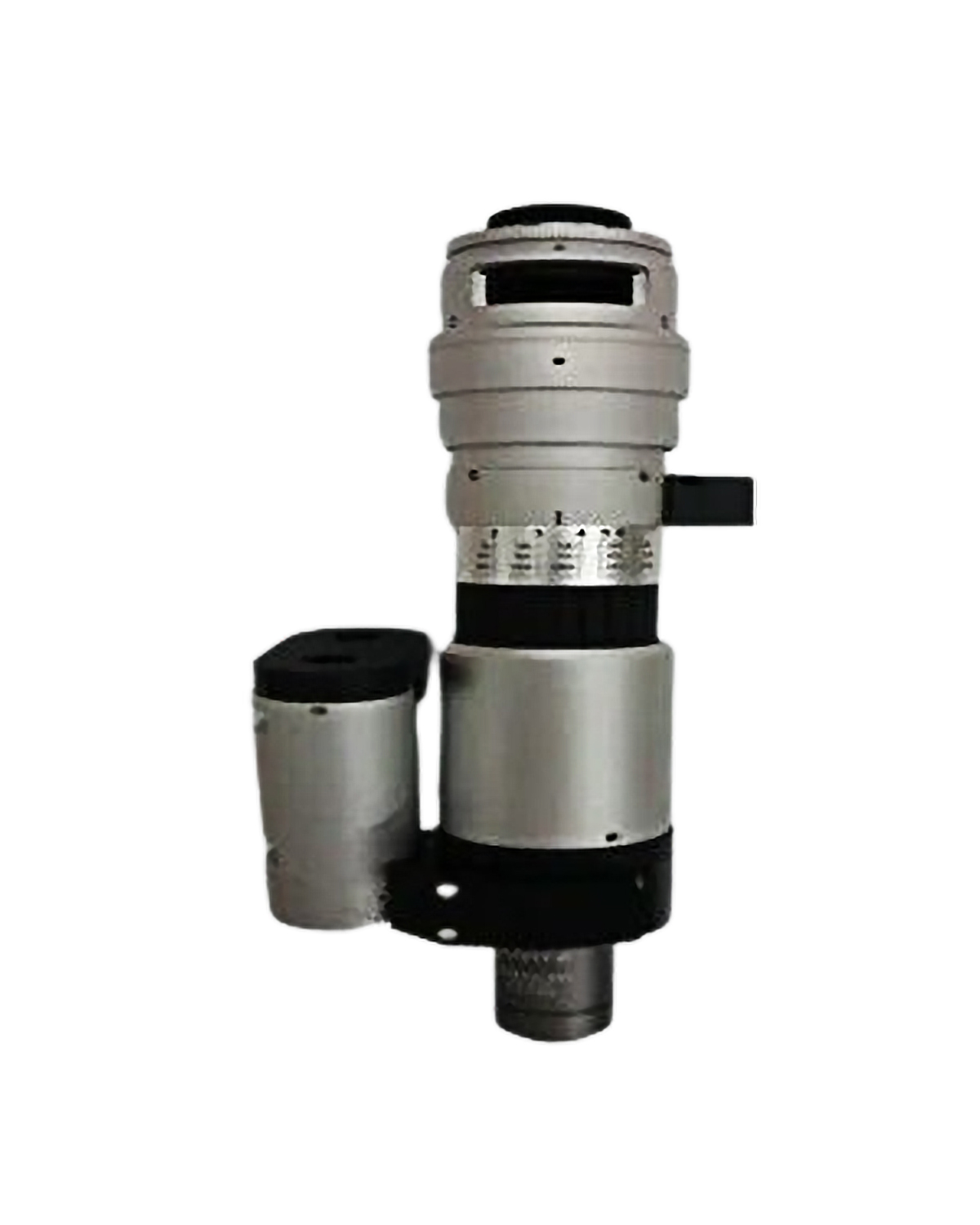

 Winning Feature– Powerful High Zoom Magnification

  • Optical Zoom 0.45x-20x magnifications
  • High-performance zoom lens of up to 25X -1000X all in one (Optional)
  • Transmitted and Reflected brightfield imaging
  • Polarized and Dark Field imaging (optional)
  • Various Optional Accessories:
    • Zoom Body + Objective Lenses (Essentially Required)
    • Filters, Apertures and Adapters (Optionally Required)

Applications

Great tool for 3D imaging of large specimens (0.1-10mm) such as minerals, jewelries, industrial inspection of PCB, small animals such zebrafish, chicken, fruits, seeds, etc.Epi-Fluorescence imaging of small animals (coming soon)
BDS/bds200l-03.jpg

 Winning Feature– Powerful High Zoom Magnification

  • Optical Zoom 0.45x-20x magnifications
  • High-performance zoom lens of up to 25X -1000X all in one (Optional)
  • Transmitted and Reflected brightfield imaging
  • Polarized and Dark Field imaging (optional)
  • Various Optional Accessories:
    • Zoom Body + Objective Lenses (Essentially Required)
    • Filters, Apertures and Adapters (Optionally Required)

Z-axis Module Specifications

  • Stroke Distance: 30mm;
  • Resolution: 0.1 μm;
  • Repeatability: 1 μm;
  • Max Speed: 1.4mm/s;
  • Weight: 0.5 kg

BDS/bds200l-00-banner.jpg

Z-axis Module Specifications

  • Stroke Distance: 30mm;
  • Resolution: 0.1 μm;
  • Repeatability: 1 μm;
  • Max Speed: 1.4mm/s;
  • Weight: 0.5 kg

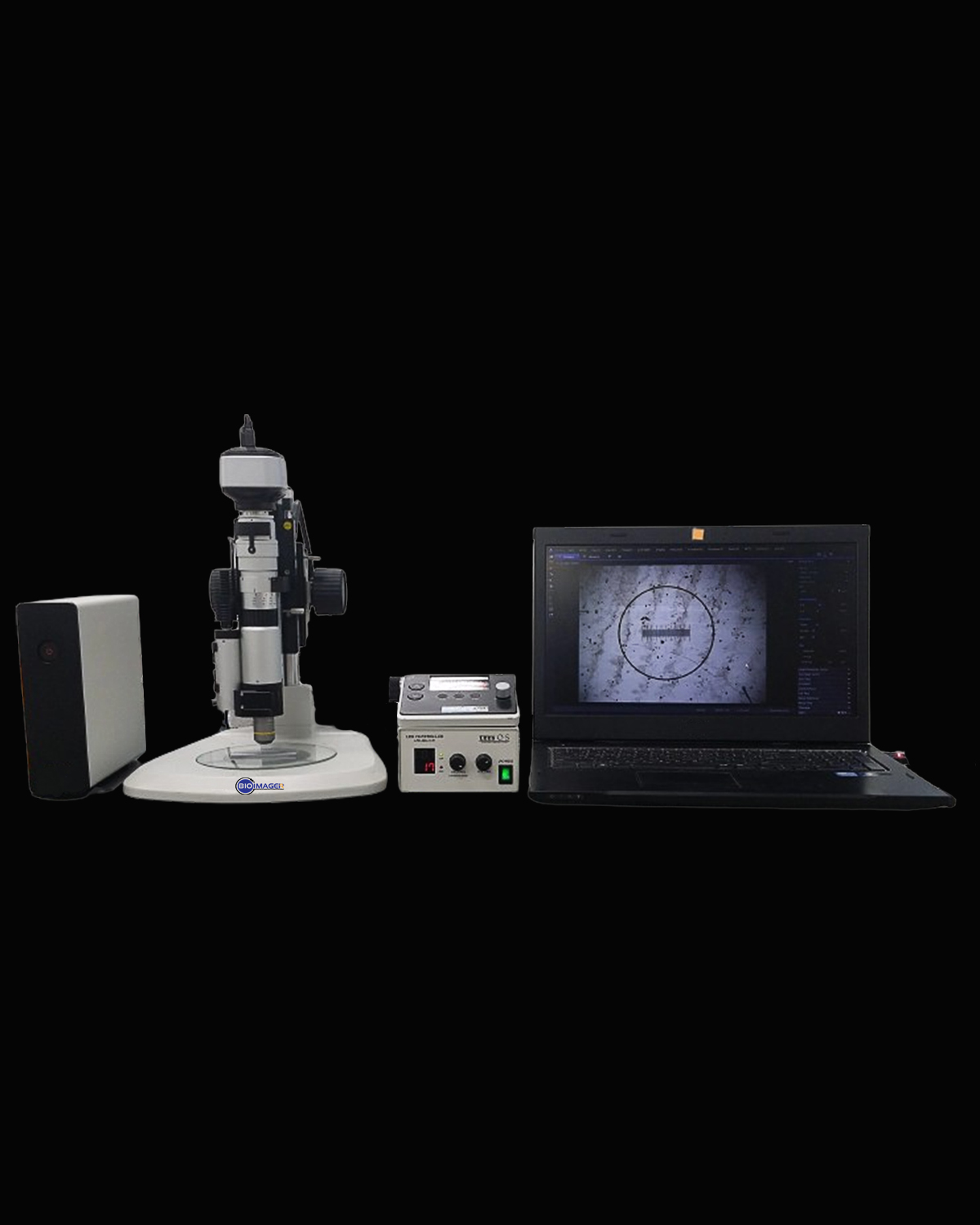

Configurations

ItemDescriptionIncluded
BDS-STPStand Yes
BDS-FM Focus Mount For Pole Type Stand, with added small bracket Yes
BSZ-XYS4 4-in automated XY Stage optional
BSZ-MZA Motorized Z-Axis unit for HSZ-STP Yes
BR3-SF HC-20 Lusis Camera & Panasis 3D Profiler Software Yes
Control SystemControl Box with Yes
 Pad Convenient Control Pad with speed controloptional
Tilting Stand Tilting Stand w/ coarse & fine adjustment knobs optional

2D/3D Measurments

"Huvitz/2D.jpg""Huvitz/3D.jpg"
"Huvitz/2D_1.jpg""Huvitz/3D_1.jpg"
2D with extended depth of fields (EDF)3D displays of the height/thickness

Click here to download 3D Software Manual
