Bio-5050 Gel Imaging

$USD 6,995.00

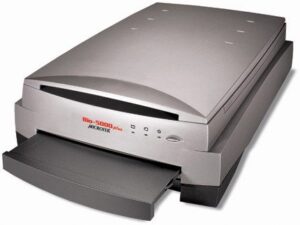

Bio-5000 Plus is a two-platform scanner specifically designed for the professionals who focus on scanning and studying of biological electrophoresis gels. It is equipped with an optical CCD whose resolution is up to 4800 dpi and the range, between 0.05 and 3.77D, of the optical density provides you a smarter way to capture differences among each layer of scanned electrophoresis gels.Bio-5000 Plus is the best choice of scanning electrophoresis gels.

Free worldwide shipping on all orders over $50

  • 30 days easy returns
  • Order yours before 2.30pm for same day dispatch
Guaranteed Safe Checkout


Bio-5050 with 48 bit color depth, 2400 dpi resolution, 0.0D ~ 3.4D absorbance range capacity, plus high-quality and stable performance with a CV value of 0.5%, it can accurately and stably capture electrophoretic gel, rapid test strip and film images. It is the best choice for digitization a biological laboratory electrophoretic gel related image.


•  Large format design for analysing large electrophoresis gels or high-throughput screening test

•  High stability(CV<1%), suitable for quantitative analysis

•  2400 dpi resolution for fine microbial images

•  Easy to customize as analytical instruments



Dual-scan beds:

8″x10″ / Gel & Transparent,

8.5″x14″ / Reflective

Auto-Focus Ensures the Best Scanning Quality

Auto Focus is able to change relative distances between the scanned gels and the CCD through the adjustment of the CCD, resulting in better and clearer image quality for a chosen area of the scan automatically.

The Design of Leak-Free Holders for Electrophoresis Gels

With the design of two platforms and leak-free holders, it is not only convenient to scan electrophoresis gels but also lowers the possibility of the happenings for mutual infection in labs.

Adopting Energy-Saving LEDs as the Light Source

Adopting energy-Saving LEDs as its light source, Bio-5000 Plus not only meets the trend of energy-saving in the world but also shortens the waiting time for the warm-up of the machine.

Convenient MiBio Software for Handling Images of Scanned Electrophoresis Gels

Bundled with convenient and easy-to-use software, you can scan, emphasize and table important information for your scanned electrophoresis gels quickly. Thus, you can proceed further analysis and handling for images of scanned electrophoresis gels.

Powerful software features

1 Product Name Bio-5050
2 Scanner Type Transmissive & Reflective mode
3 Image Sensor Type CCD
4 Resolution Optical: 2400 dpi

Default: 300 dpi

5 Light Source LED
6 Scanning Area Reflective : max. 8.5″ x 14″ ( 216 mm x 356 mm )
Transmissive : max. 8″ x 10″ ( 203 mm x 254 mm )
7 Scanning Speed 60 sec @300 dpi
8 Dynamic Range 0.0D – 3.4D
9 Bit Depth 48-bit color
10 CV 0.5% @ 1.0D,1% @ 2.0D
11 Range (R) 1% @ 1.0D,2% @ 1.5D
12 Warm up Time 10 min
13 Connectivity Hi-Speed USB (USB 2.0)
14 Drivers TWAIN
15 Supported File Types TIF, BMP, JPG, PSD, PDF, GIF
16 OS Support Windows 10/11
17 Dimensions (L x W x H) 22.3″ x 15.1″ x 6.3″
( 567 mm x 385 mm x 158 mm )
18 Weight 26.4 lbs (12 kg)
19 Certifications CE, FCC, BSMI, CB, CCC, ETL, VCCI, RoHS
20 Power Source AC 100V ~ 240V, 50 ~ 60 Hz

*Product specifications described herein are subject to change without notice.


When processing biology or medical researches, it is usually necessary to preserve the after-studied images. When capturing images, the most troublesome task is that the images to be preserved may not be dry during taking. The ongoing samples may come with biological mucus or tissue fluid. It then becomes critical about how to capture images of these wet samples fast and preserve them for the use later.

By the help of Bioimager professional Bio-5000 scanner and the ScanWizard Bio software, users can easily capture and preserve images of these important researches. The Bio-5050 is equipped with Bioimager’s patented Emulsion Direct Imaging Technology (E.D.I.T.) for delivering conveniences on cleaning and use. Also, the come-with Auto Focus function allows the scanner to capture the details in images exquisitely and then to generate distortion-free and clear results.

Designed Leak-Free Removable Glass Holder

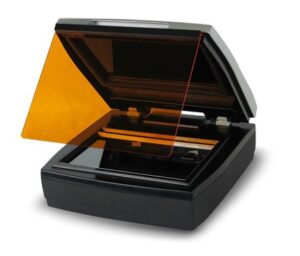

Bio-6000T is equipped with a specially designed leak-free glass holder that can be easily removed out for cleaning and washing under water tap. The available holders are sizes of 110 x 110 mm, 240 x 240 mm, and 12″ x 16″.

Designed Leak-Free Removable Glass Holder
Leak-free large scan bed & shield avoid liquid penetration Leak-free large scan bed & shield avoid liquid penetration

Bio-6000T is equipped with a specially designed leak-free scan bed and shield that prevent the machine from liquid penetration.

Deliver accurate images no matter the scanned target is dry or wet gel samples
Scientists can capture images directly from gel surface handily no matter the samples are dry or wet. It saves a lot of time, 1-2 days at least, to continue the lab projects without waiting sample being dried.
Deliver accurate images no matter the scanned target is dry or wet gel samples
No warm up time with energy-saving LED light source No warm up time with energy-saving LED light source
5 seconds per gel scanning (10x10cm) 5 seconds per gel scanning (10x10cm)
Smart-Touch button quick captures images Smart-Touch button quick captures images

Make batch scanning easily
With specially designed film holders, the Bio-6000T accommodates film holders. The film holders lock into place, assuring perfect alignment and precise scans, as well as offering convenient batch scanning.

Powerful software features
Along with MiBio, it implements many biological image analysis features with a user-friendly surface (Windows only). The utility provides added valuable turnkey solution. Bio-6000T is also compatible with all advanced image analysis software packages for 1D and 2D gel electrophoresis.
Powerful software features
Fields of application and application examples Fields of application and application examples
Electrophoresis gels stained with Coomassie blue staining, or autoradiography. i.e. silver-stained SDS PAGE, etc.

Here are examples of our clients for this scanner, either off the shelf or customized:

  1. United State Department of Agriculture (USDA), Wooster, Ohio, USA
  2. The National Institute of Standards and Technology (NIST), Gaithersburg, Maryland, USA
  3. San Diego Biomedical Research Institute, San Diego, California, USA
  4. Discovery Scientific, Hamburg, New Jersey, USA
  5. Los Alamos National Laboratory, Los Alamos, NM, USA
  6. Institut de recherche Robert-Sauvé en santé et en sécurité du travail (IRSST), Montréal, Québec, Canada
  7. Merck KGaA /  VWR International GmbH Deutschland, Darmstadt, Germany
  8. AKRON BIOTECH, Boca Raton, Florida, USA
