Bio-6000 A3 Size Gel Scanner for Electrophoresis Gel, SDS-PAGE, Western Blotting, and biological sample either dry or wet
Leak-free large scan bed & shield avoid liquid penetration
Deliver accurate images no matter the scanned target is dry or wet gel samples
No warm up time with energy-saving LED light source
6 seconds per gel scanning (10x10cm)
0.05 Dmin / 3.77 Dmax optical density 3200 dpi optical resolution ( 7.9 um spot size, 63 lp/mm )
Smart-Touch button quick captures images
Powerful software features
Fields of application and application examples
Bio-6000 Gel Imaging-10094
Bio-1000F Gel Imager for EtBr-alternative stain with High Sensitivity Bio-1000F Gel Imager for EtBr-alternative stain with High Sensitivity $USD 5,000.00 Original price was: $USD 5,000.00.$USD 3,696.00Current price is: $USD 3,696.00.
Sale!

Bio-6000 Gel Imaging

Original price was: $USD 6,500.00.Current price is: $USD 4,995.00.

-23%
  • Perfectly designed for large image capture of dry or wet sample of electrophoresis gel, SDS-PAGE, western blotting, etc.
  • Provides energy-saving LED light source without any warm-up time before carrying out the scan,
  • High image quality.
Add to Wishlist
Guaranteed Safe Checkout

Questions? Request a Call Back
Bio-6000 A3 Size Gel Scanner for Electrophoresis Gel, SDS-PAGE, Western Blotting, and biological sample either dry or wetBio-6000, performing advanced application in biological laboratory, is perfectly designed for large image capture of dry or wet sample of electrophoresis gel, SDS-PAGE, western blotting, etc. It provides energy-saving LED light source without any warm-up time before carrying out the scan, which boots your productivity and reduces energy costs amazingly.Bio-6000 provides high image quality with the technical characteristics: 3200-dpi optical resolution, 48-bit color & 0.05D ~ 3.77D, which delivers astonishing, sharpness, detailed, and near-original images. Not only with high image quality but also with large size scanning area. With the large leak-free scan bed, the Bio-6000 is the best choice to digitize big size gel images and offer a total solution including powerful software features for biological professionals and researchers. Furthermore, the designed leak-free scan bed and shield prevent the machine from liquid penetration. Scientists can capture images directly from gel surface handily no matter the samples are dry or wet. It saves a lot of time, 1-2 days at least, to continue the lab projects without waiting sample dry. Bio-6000 A3 Size Gel Scanner for Electrophoresis Gel, SDS-PAGE, Western Blotting, and biological sample either dry or wet
6 seconds per gel scanning (10x10cm) 6 seconds per gel scanning (10x10cm)



  • Leak-free large scan bed & shield avoid liquid penetration
  • Deliver accurate images no matter the scanned target is dry or wet gel samples
  • No warm up time with energy-saving LED light source
  • 6 seconds per gel scanning (10x10cm)
  • 0.05 Dmin / 3.77 Dmax optical density
  • 3200 dpi optical resolution (7.9 um spot size, 63 lp/mm)
  • Smart-Touch button quick captures images
  • Make batch scanning easily
  • Powerful software features
  • Fields of application and application examples

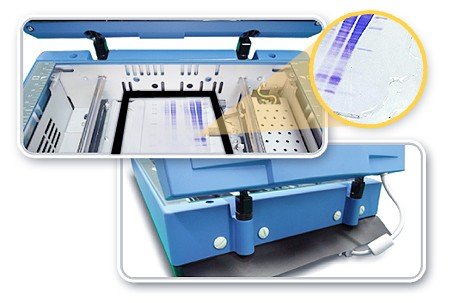

Leak-free large scan bed & shield avoid liquid penetration Leak-free large scan bed & shield avoid liquid penetration Bio-6000 is equipped with a specially designed leak-free scan bed and shield that prevent the machine from liquid penetration.
Deliver accurate images no matter the scanned target is dry or wet gel samples Scientists can capture images directly from gel surface handily no matter the samples are dry or wet. It saves a lot of time, 1-2 days at least, to continue the lab projects without waiting sample being dried. Deliver accurate images no matter the scanned target is dry or wet gel samples

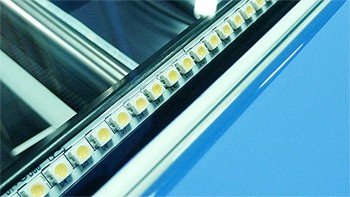

No warm up time with energy-saving LED light source No warm up time with energy-saving LED light source
6 seconds per gel scanning (10x10cm)

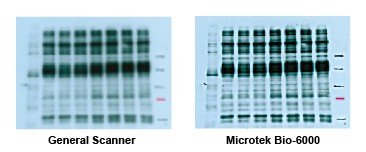

0.05 Dmin / 3.77 Dmax optical density 3200 dpi optical resolution ( 7.9 um spot size, 63 lp/mm )Bio-6000 provides high image quality with the technical characteristics: 3200 dpi resolution, 48-bit color, 0.05Dmin-3.77Dmax. The images are amazingly crystal-clear for the bright area. There is no need to worry about contrast or light reflection problems, the scanner presents the consistent image with the original sample.

 6 seconds per gel scanning (10x10cm)

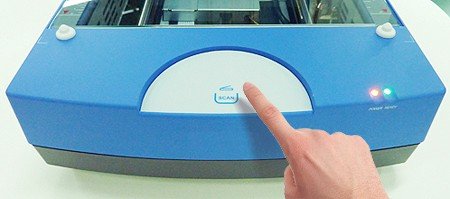

Smart-Touch button quick captures images Smart-Touch button quick captures images Make batch scanning easilyWith specially designed film holders, the Bio-6000T accommodates film holders. The film holders lock into place, assuring perfect alignment and precise scans, as well as offering convenient batch scanning.
Powerful software features Along with MiBio, it implements many biological image analysis features with a user-friendly surface (Windows only). The utility provides added valuable turnkey solution. Bio-6000 is also compatible with all advanced image analysis software packages for 1D and 2D gel electrophoresis.
Powerful software features
Fields of application and application examples Fields of application and application examplesElectrophoresis gels stained with Coomassie blue staining, or autoradiography. i.e. silver-stained SDS PAGE, etc.
# ITEM DETAILS
01 Product Name Bio-6000
02 Model Type MRS-6400A3PL
03 Scanner Type Flatbed Scanner for Gel Images & Films
04 Image Sensor Type CCD
05 Resolution Optical: 3200 dpi (7.9 um spot size, 63 lp/mm) Hardware: Up to 3200 x 6400 dpi Default: 300 dpi
06 Light Source LED
07 Scanning Area Reflective: 11.6″ x 16.9″ (294.6 x 429.3 mm / A3) Transparent: 11.6″ x 16″ (294.6 x 407.9 mm)
08 Scanning Speed 5.31sec./20.95sec.(Scanning Time/Including Calibration Time):10x10cm,300 dpi 11.75sec./27.73sec.(Scanning Time/Including Calibration Time):24x24cm,300 dpi 19.74sec./35.54sec.(Scanning Time/Including Calibration Time):11.6″x16″,300 dpi
09 Dynamic Range Transparency: 0.05D ~ 3.77D
10 Bit Depth Input: 48-bit color, 16-bit grayscale Output: 24-bit color, 8-bit grayscale
11 Paper Size A3
12 Connectivity Hi-Speed USB (USB 2.0)
13 Drivers TWAIN
14 Smart-Touch Buttons 1 button
15 Scanable Media Types Transparent (Wet/ Dry gel, Film), Reflective (Paper)
16 Supported File Types TIF, BMP, JPG, PSD, PDF, GIF
17 OS Support Windows 7/ 8 (compatible with XP/Vista)
18 Dimensions (L x W x H) 24.7″ x 14.8″ x 7.3″ / 627.4 x 375.9 x 185.4 mm
19 Weight 35.4 lbs (16.1 kg)
20 Certifications CE, FCC, BSMI, CB, CCC, ETL, VCCI, RoHS
21 Power Source AC 100V ~ 240 V, 47 ~ 63 Hz
22 Power Consumption 54.9 Watts
23 System Requirements PC CD-ROM drive (for installing software) Color display with 24-bit color output capability 512 MB RAM or more Pentium IV PC or higher with USB 2.0 port Microsoft Windows 7/ 8/10 (compatible with XP/Vista)
24 Inbox Contents Scanner unit Hi-Speed USB cable (USB 2.0) Power adapter Software CD(s) User’s manual(s)
25 Software Included ScanWizard Bio MiBio InterVideo MediaOne Gallery 2.0 Acrobat Reader 9(Free) ABBYY FineReader Sprint 9.0 Adobe Photoshop Elements 8

Powerful software Along with MiBio, it implements many biological image analysis features with a user-friendly surface (Windows only). The utility provides added valuable turnkey solution. Bio-6000 is also compatible with all advanced image analysis software packages for 1D and 2D gel electrophoresis.   Simple Software Brings Effective Results

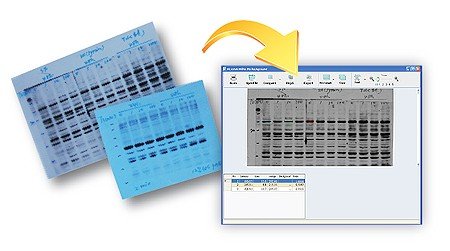

MiBio Software MiBio bundled with the bio-scanners, is an easy-to-use software for analyzing images specifically designed for the Bio-tech analysis and research. It can Instantly analyzes images after scanning without additional complicated connecting or data transactions.Then, the users can make quickly analysis and export table important information to Excel for the scanned image. With the fast results of band Intensity, Area, Average in Excel, the scientists can process further analysis and data management for the scanned images.

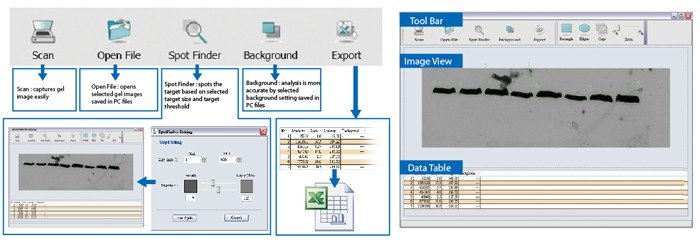

Features
  •  Capture and digitize
  •  Image background digitize fine tuning function
  •  Spot searching function
  •  Excel file export function
Capture and digitize Capture and digitize a gel image for further analysis.
Image background digitize fine tuning function It provide three approaches, no background, auto background and manual background, to fine-tune the gray level of bend found with the back ground level.

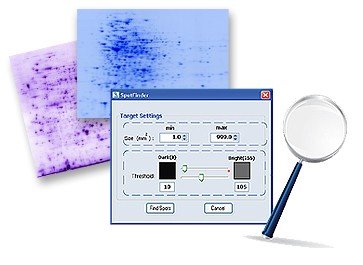

Spot searching function Allows users to define the searching criteria of spot in a 2D gel.

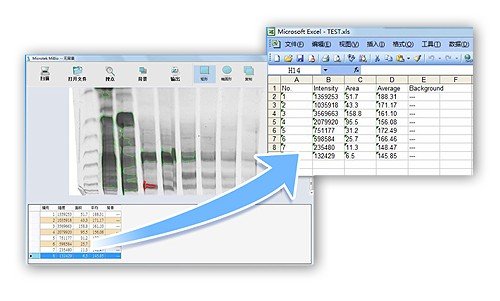

Excel file export function The selected bends or spots will be converted to digital information and listed in an Excel format file.

Here are examples of our clients for this scanner, either off the shelf or customized:

  1. Merck KGaA /  VWR International GmbH Deutschland, Darmstadt, Germany
  2. AKRON BIOTECH, Boca Raton, Florida, USA
  3. United State Department of Agriculture (USDA), Wooster, Ohio, USA
  4. The National Institute of Standards and Technology (NIST), Gaithersburg, Maryland, USA
  5. San Diego Biomedical Research Institute, San Diego, California, USA
  6. Discovery Scientific, Hamburg, New Jersey, USA
  7. Los Alamos National Laboratory, Los Alamos, NM, USA
  8. Institut de recherche Robert-Sauvé en santé et en sécurité du travail (IRSST), Montréal, Québec, Canada
