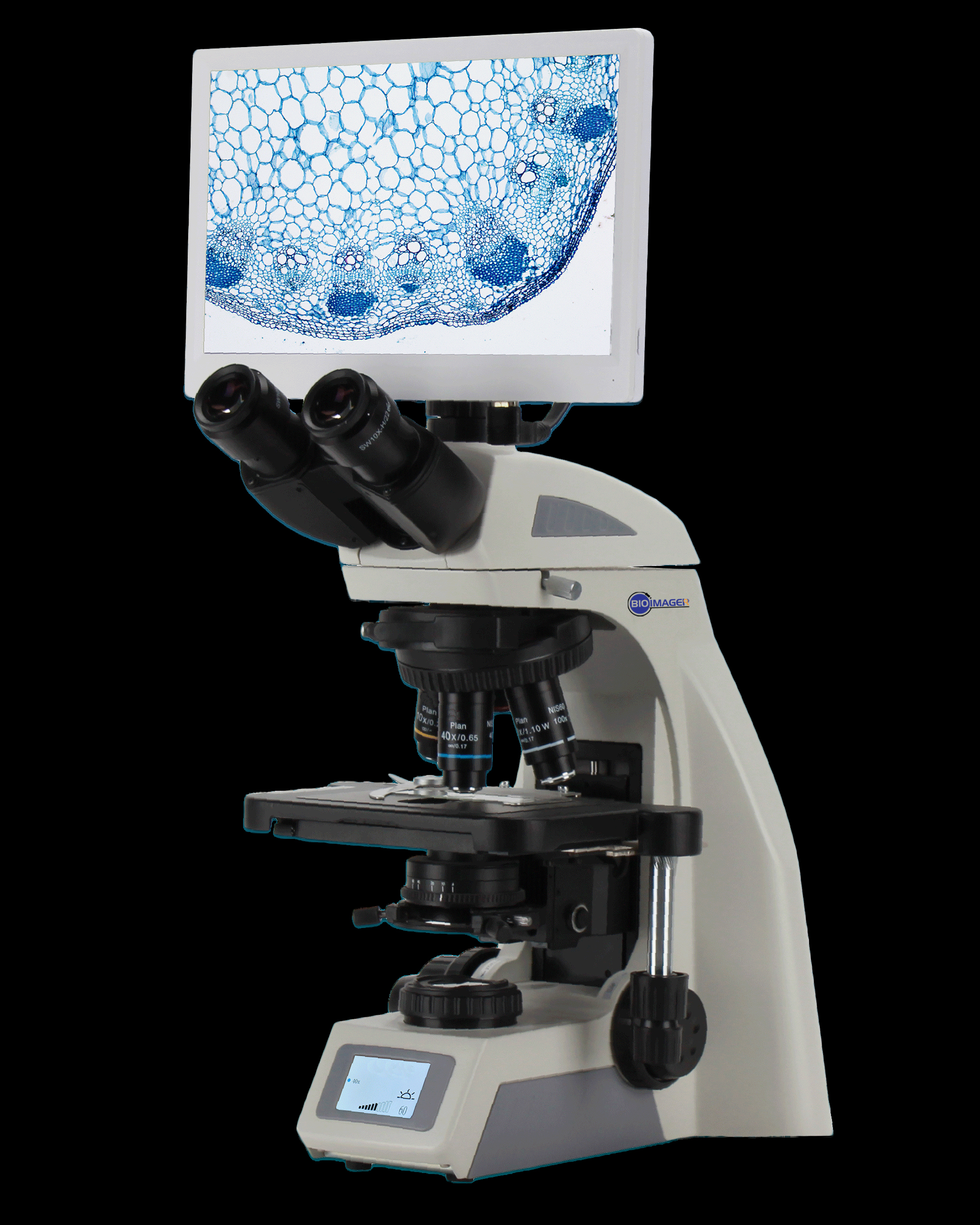

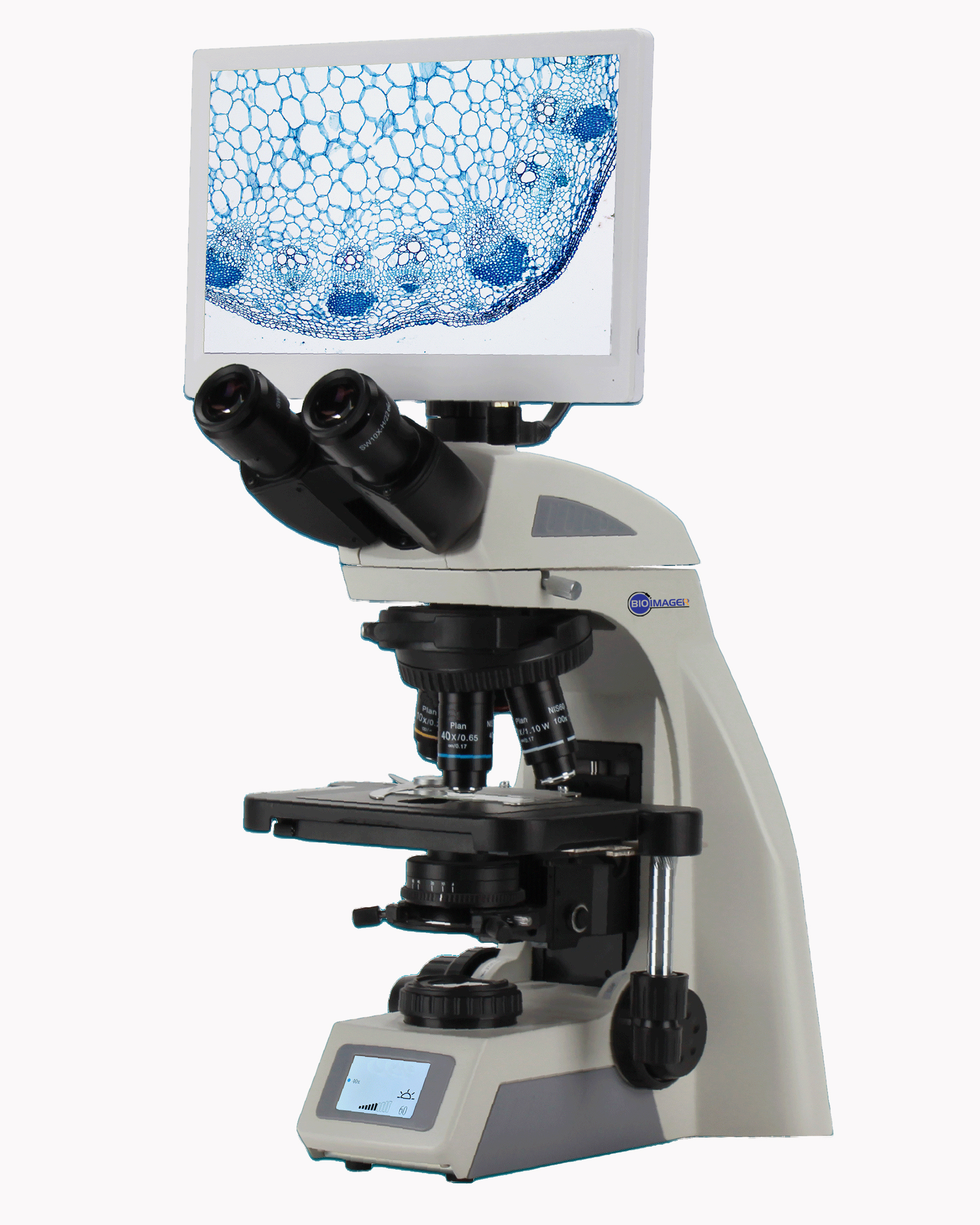

BRC-1060 LCD Digital Biological Microscope with 6.0 MP High Sensitive Camera & Full HD Retina LCD Screen

BRC-1060 LCD Digital Biological Microscope FEATURES:

Exceptional Optical Design:
1.) NIS60 Infinite Optical System:

The NIS60 infinite plan objectives offer high contrast and extremely flat images up to an FN22mm field number. This system consistently delivers sharp, high-resolution imaging with an excellent signal-to-noise ratio.

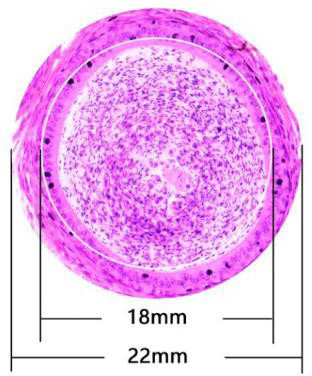

2.) 22mm Wide Field of View:

Equipped with 10× eyepieces, these microscopes provide an impressive 22mm wide field of view. The eyepieces feature a flat field, distortion-free design to eliminate edge blurriness and stray light, ensuring a clear and precise image.

3.) Multiple Observation Methods

In addition to bright field observation, optional methods include dark field, phase contrast, fluorescent, and simple polarizing observation techniques.

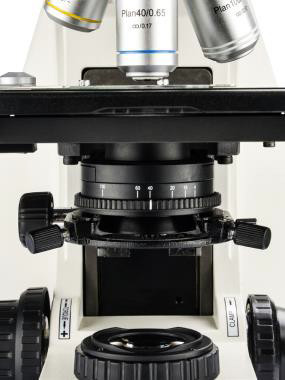

4.) Multifunctional Universal Condenser:

The BRC-1050 LCD Digital Biological Microscope features a universal condenser suitable for bright field, dark field, and phase contrast observations. Switching between observation methods is quick and easy by changing the dark field and phase contrast slider. The phase contrast and bright field slider is compatible with 4×-100× objectives, making it simple and efficient to use. Additionally, the condenser’s aperture diaphragm can be easily adjusted to match the exact value needed for different objectives.

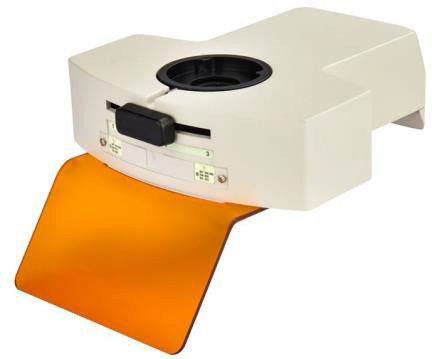

5.) LED EPI-Fluorescent Illumination:
The LED EPI-Fluorescent Illumination system is both safe and convenient, requiring no warm-up or cool-down period and no bulb alignment. With a lifespan of up to 5000 hours, the LED bulb ensures long-lasting performance. The system also features two filter positions for quick and easy switching.

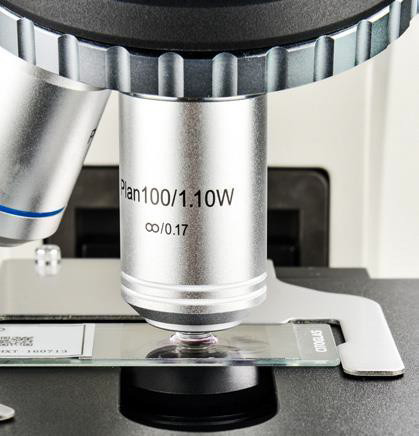

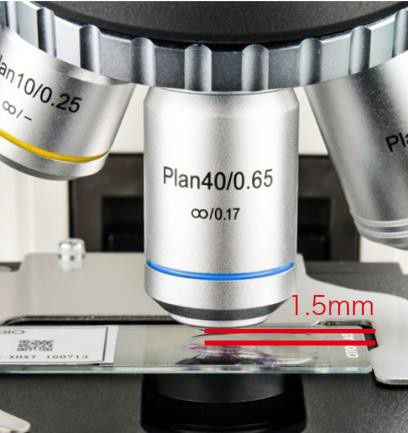

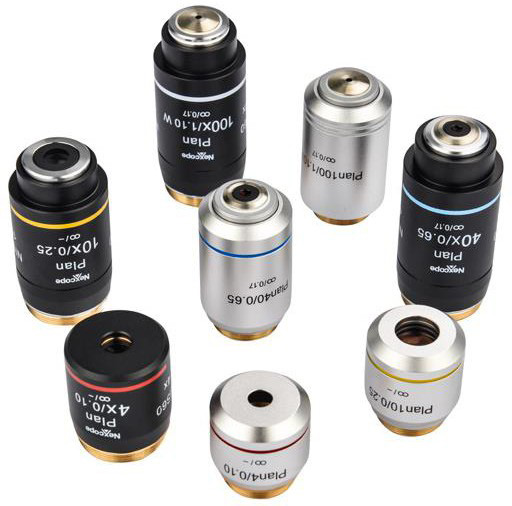

2. Infinite Plan Objectives.
The BRC-1050 LCD Digital Biological Microscope have been fully optimized for various of
microscopic applications, especially for beginners and the users with long time operation. The
objectives provide high quality images and are easy to use.

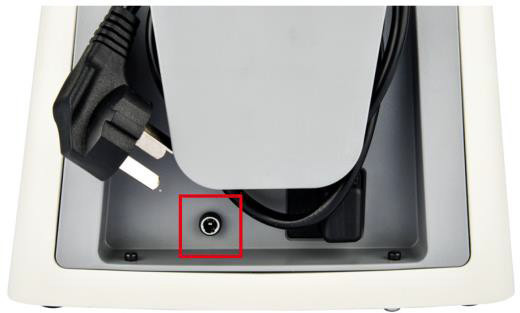

3. External rechargeable battery can be used as the power source.

A charging port is reserved on the back of the
microscope, external rechargeable portable battery can
be connected to this port and used as power source of
the microscope. So this microscope can be used outdoor or during power outages.

4. Intelligent operating system.

(1) Coded Nosepiece.
The BRC-1050 LCD Digital Biological Microscope can memorize the illumination brightness when using each objective. When the objective has been changed, the light intensity will be automatically adjusted to reduce visual fatigue and improve work efficiency.

(2)Use a dimming knob(on left of base) to
achieve multiple functions.
One Click: Enter standby status Double Clicks: Light
lock or unlock Rotation: Adjust brightness
Press + Up-spin: Switch to the upper light source Press +
Down-spin: Switch to the under light source
Press 3 seconds: Set the time of turning off the light after
leaving

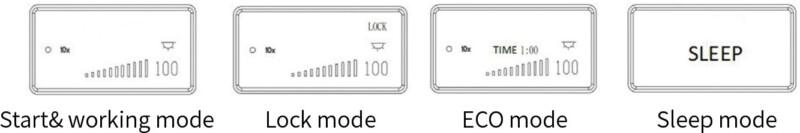

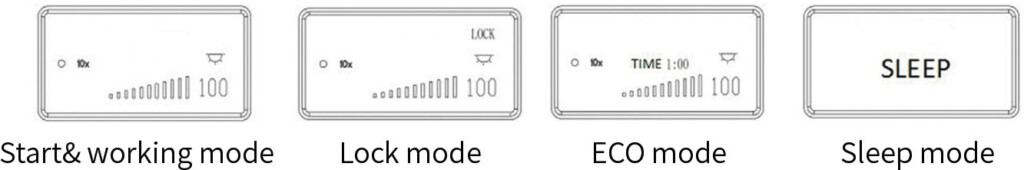

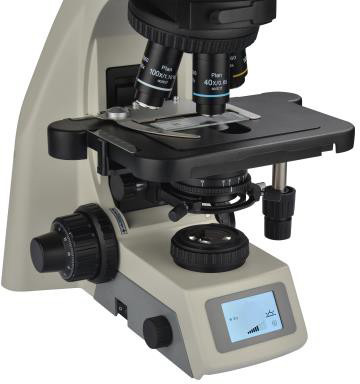

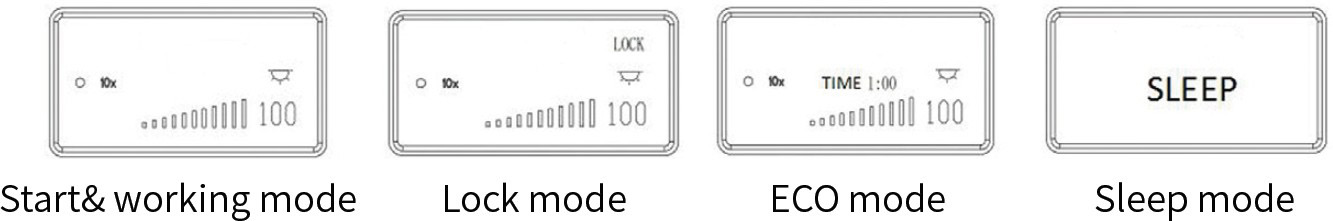

(3)The display of microscope working status. The LCD in the front of the microscope base can display the working status of the microscope, including magnification, light intensity, sleepy model and so on.

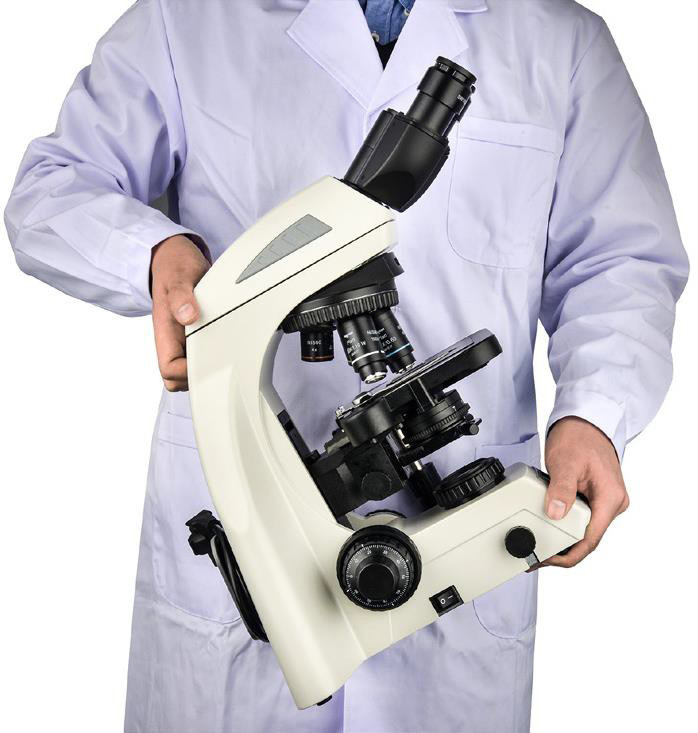

5.Easier to store and transport.
The BRC-1050 LCD Digital Biological Microscope is compact and can be placed in an ordinary classroom closet. It has a special carrying handle, it is also light weight and stable.

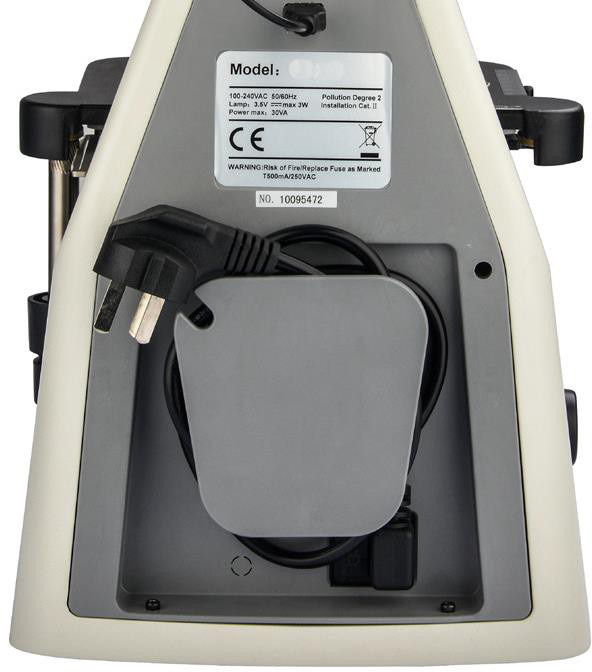

There is a cord rest on back of the microscope to store the long power cord, improve the
cleanliness of the laboratory and reduce the tripping accident which may be caused by the long
power cord during the carrying process. The wooden storage box is optional, it is very convenient for storage and carrying.

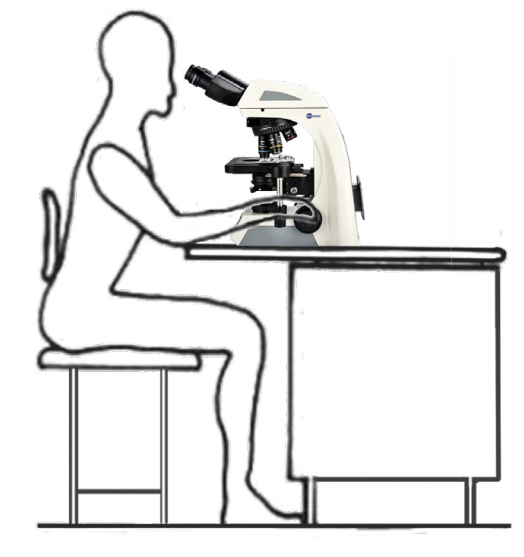

6.Ergonomic Design.
In daily scientific research teaching and pathological diagnosis, working in front of the
microscope for a long time has become normal, this always leads to fatigue and physical
discomfort, thereby reducing work efficiency.

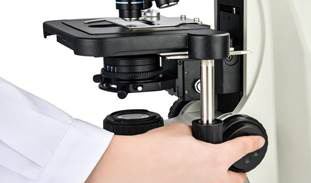

BRC-1050 LCD Digital Biological Microscope have adopted high eye-point, low-hand
focus mechanism, low-hand stage and other ergonomic designs to ensure the user can
perform microscope operation in the most comfortable situation. The focus knob,
illumination control knob and stage handle are all proximal. The user can put both
hands on the table while working, and can operate the microscope with minimal
movement.
