It is an excellent choice for any of the following fields:
BioCam SWIR camera series is a TE-Cooling USB3.0 InGaAs for short-wavelength infrared (SWIR) imaging application. This SWIR camera is uitable to capture images in both visible and infrared wavelengths, at a wide range of 400nm to 1700nm. It is an excellent choice for high precise and quantitative researches. The camera has a smaller pixel size of 5μm.
The BIC-SWIR-1.3 series SWIR cameras can be used in NIR-II (1000~1700nm) in vivo microscopic imaging, hyperspectral imaging, laser spot observation, machine vision and general infrared detection, near-infrared spot detection, spot shooting and analysis, near-infrared target recognition, fluorescence imaging, fluorescent material imaging, Image contrast enhancement, night vision imaging, flame monitoring, material defect inspection, chip inspection, solar cell inspection, pharmaceutical and cosmetic inspection, food, fruit and vegetable defect inspection, grain sorting, plastic sorting, perspective inspection.
| Parameter | Specification | |
| Sensor model | Sony IMX 990-AABA-C | |
| Sensor Type | InGaAs | |
| Spectral Range | 400 – 1700nm | |
| Pixel Size | 5.0 mm´ 5.0 mm | |
| Sensor Size | 1/2″ | |
| Frame Rate & Resolution | 1 2 bits | 8bit |
| 70fps @ 1280 *1024
135fps @640* 512 |
13 2 fps@1280*1024
253fps @ 640 *512 |
|
| DDR3 Memory | 512MB (4Gb) | |
| Conversion Gain | 4 4.3e/ADU | |
| Dynamic Range | 58.7dB | |
| Readout Noise | 211e- | |
| Full Well | 181.6ke- | |
| SNRmax | 52.6dB | |
| Sensitivity | 121mV | |
| Dark Current | 383e – /s(0 °C ) 510e – /s(10 °C ) 638e – /s(20 °C ) | |
| Exposure Time | 50us – 60s | |
| Gain Range | 1x – 15x | |
| Shutter | Global shutter | |
| Binning | Software 2×2 , 3×3, 4×4 | |
| Data interface | USB3.0 | |
| Digital I/O | One optical-coupling isolated input, one optical-coupling isolated output, tow non-isolated input and output | |
| Data Format | Mono8 / Mono12 | |
| Cooling Performance | -30 °C below ambient temperature | |
| General Parameters | ||
| Power Supply | by USB3.0 interface
12V power adapter |
|
| Power Consumption | < 2.1 W ( uncooled )
<25 W ( cooled ) |
|
| Temperature | Working temperature -2 0 ~ 60 ℃ ,
storage temperature – 40 ~ 85 ℃ |
|
| Humidity | 20%-80% , no condensation | |
| Filter | 400-1800nm (standard);
1030-1800nm (optional) |
|
| Camera Size | 80*80*45.5mm | |
| Camera Weight | 380g | |
| Lens Mount | C-mount | |
| Software | Complete SDK (software development kit)
BioView |
|
| Operating System | Win32 / WinRT / Linux / Mac OS/Android | |
| Certification | CE, FCC | |
| Order Code | Sensor & Size(mm) | Pixel
(μm) |
G Sensitivity Dark Signal |
FPS/Resolution | Binning | Exposure |
|---|---|---|---|---|---|---|
| BIC-SWIR-1.3A | 1.3M/IMX990(M) 1/2”(6.40×5.12) Buit-in TEC |
5 x5 | 121mV with 1/30s 1.0mV with 1/30s |
132@1280×1024 253@640×512 |
1×1 1×1 |
50us~60s |
| BIC-SWIR-1.3B | 1.3M/IMX990(M) 1/2”(6.40×5.12) External TEC |
5×5 | 121mV with 1/30s 1.0mV with 1/30s |
132@1280×1024 253@640×512 |
1×1 1×1 | 50us~60s |
| BIC-SWIR-0.33A | 0.33M/IMX991(M) 1/4”(3.20×2.56) Buit-in TEC |
5 x5 | 121mV with 1/30s 1.0mV with 1/30s |
258.8@640×512 486.1@320×256 |
1×1 1×1 |
50us~60s |
| BIC-SWIR-0.33B | 0.33M/IMX991(M) 1/4”(3.20×2.56) External TEC |
5 x5 | 121mV with 1/30s 1.0mV with 1/30s |
258.8@640×512 486.1@320×256 |
1×1 1×1 |
50us~60s |
M: Monochrome sensor

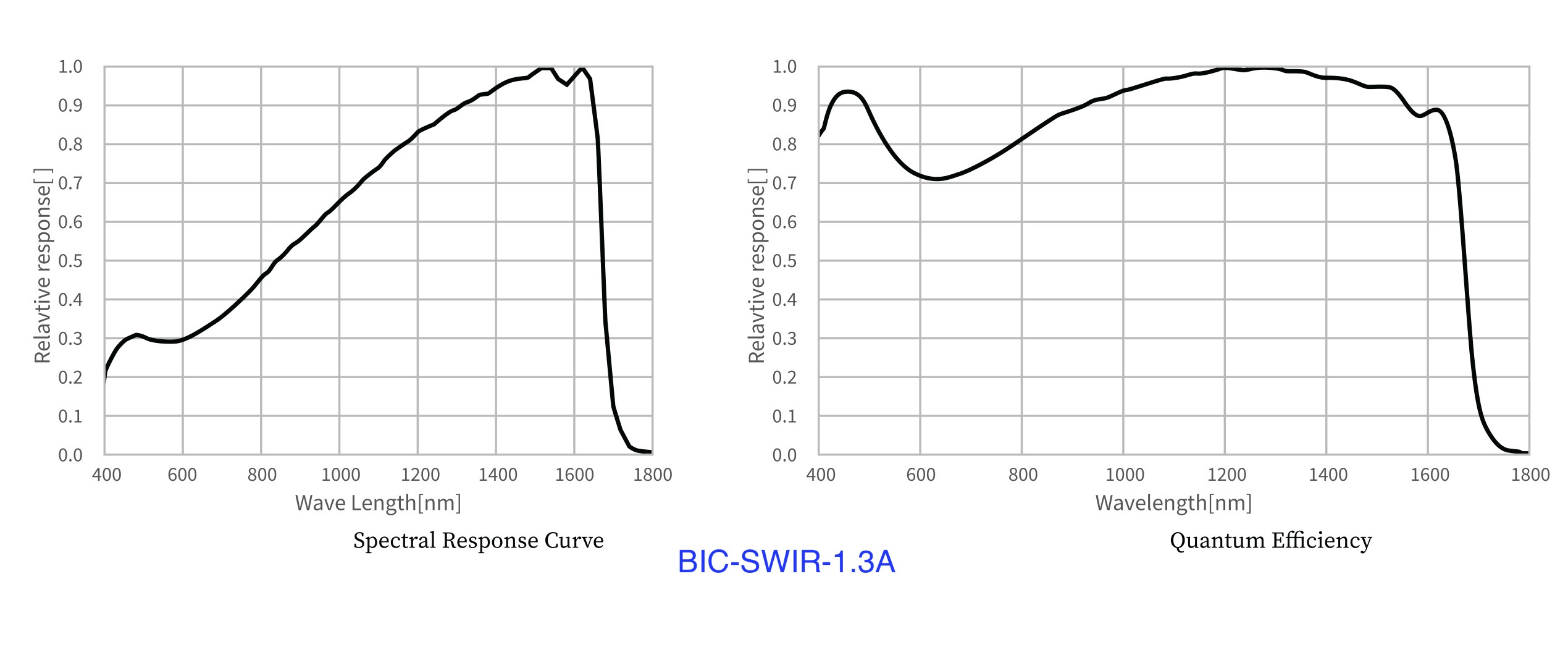

The sensitivity of BIC-SWIR-1.3 series camera with Sony IMX 990-AABA-C sensor is 121mV. Spectral response curve of the sensor and the quantum efficiency are shown below.

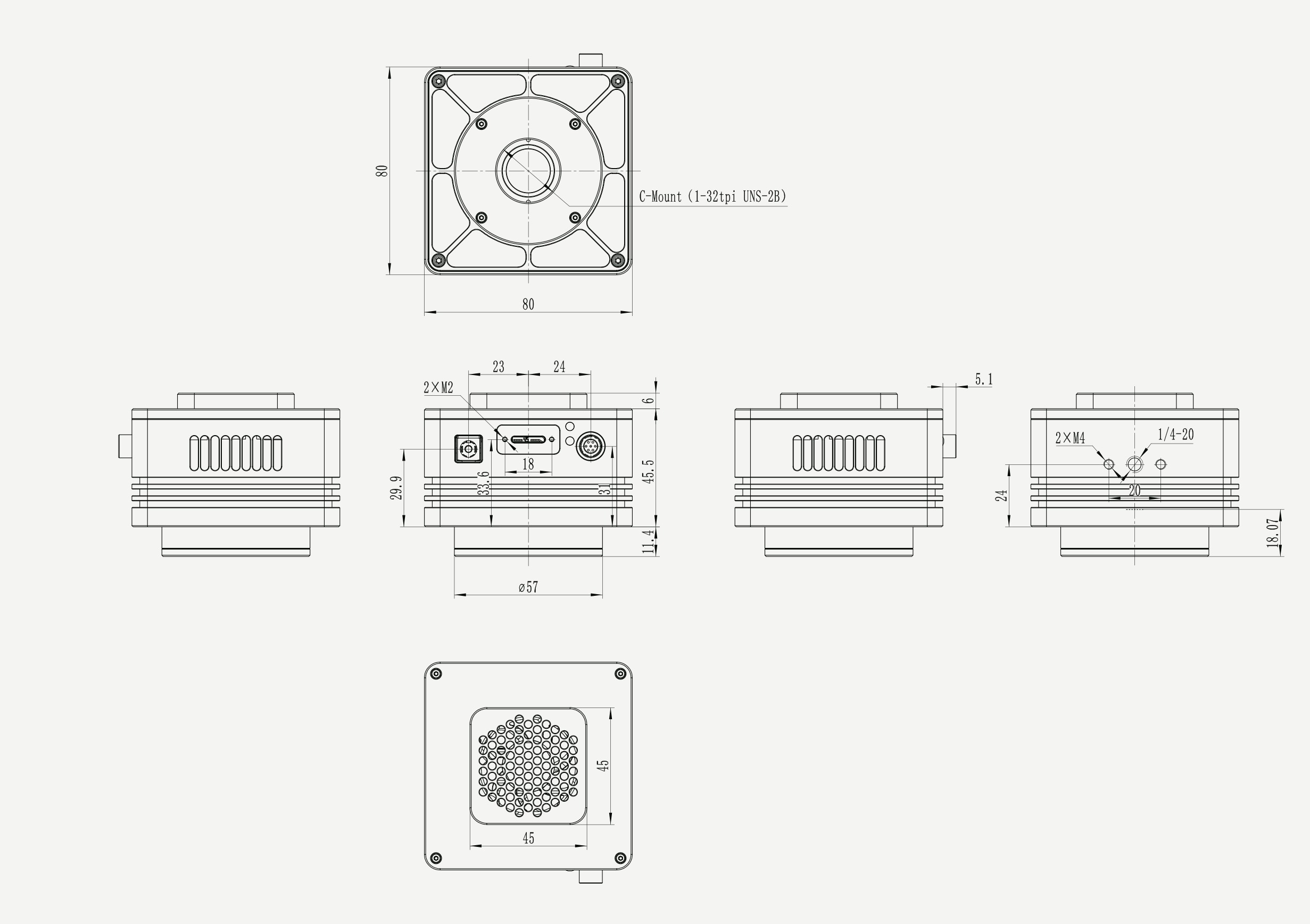

Dimensions
