Olympus U-TV0.5XC-3 0.50x C-Mount Adapter

Olympus C-Mount Adapter

Olympus Microscope C-Mount Adapter

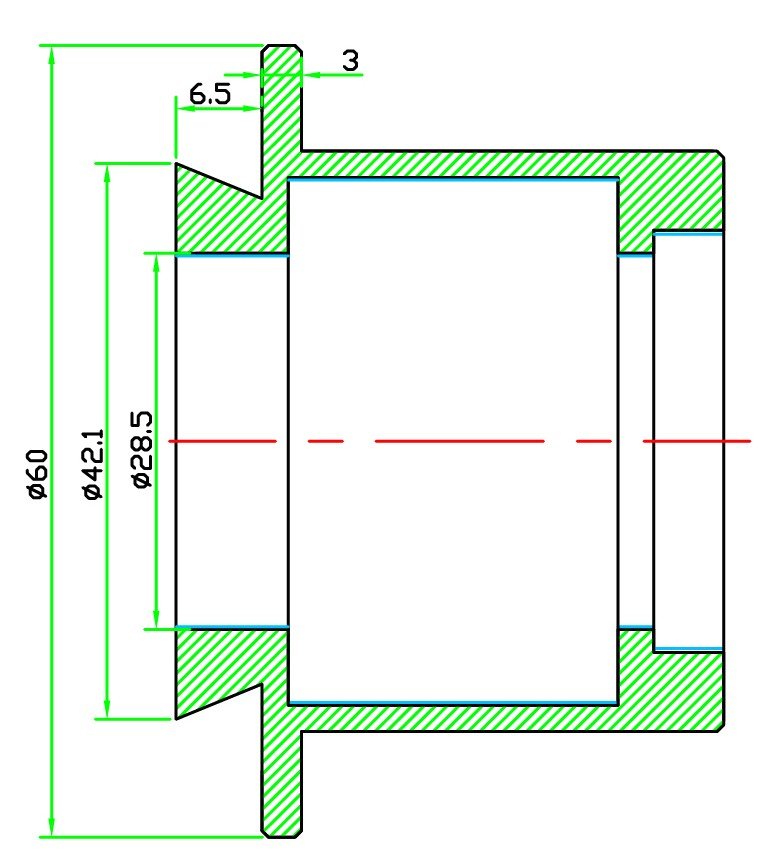

• Convert the Olympus trinocular microscope phototube/head/port (have standard 42 mm outer diameter for the insertion end to phototube) to traditional C-Mount type (25.4 mm or 1 inch diameter with 32 threads per inch);
• With different built-in reduction lens (1X, 0.63X, 0.5X, 0.35X) for achieving better field of view from microscope trinocular head
• suitable for 1”, 2/3”, 1/1.8”, 1/2”, 1/2.5”, 1/3” or 1/4” inch CCD or CMOS sensor chips);
• Can be installed in UIS trinocular tube such as : BX series, BX2 series, CX series, CX2 series, MX series;
• Build of material: anodized aluminum; Telecentric optics with low light deficiency;
• Parfocal with different microscope objective lenses; Diffraction limited MTF;
• Aperture totally coupled with UIS microscope objective’s exit pupil;

Olympus  Phototube to C-Mount Adapter (Olympus TV Adapter)

Olympus Model Our Catalogue #	U-TV1X-2/U-CAMD3 BCA-O-1x	U-TV0.63XC BCA-O-0.63x	U-TV0.5XC-3 BCA-O-0.5x	U-TV0.35XC-2 BCA-O-0.35x
Product Picture
Magnification	1X	0.63X	0.5X	0.35X
Sensor Size	1”, 2/3”	2/3”,1/1.8”,1/2”	1/1.8”,1/2”,1/2.5”	> 1/2.5”,1/3”,1/4”
Microscope	Specially designed for Olympus CX, BX，MX，STM，SZX，IX，GX (GX41) series microscopes

If you need help, please contact us and specify your microscope brand and model and your camera brand, model and chip size (if you know), Bioimager engineers will help you choose the right adapter magnification;
