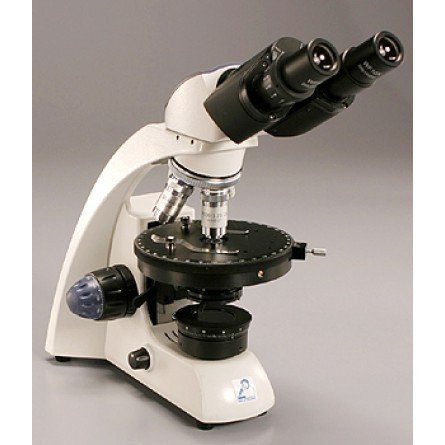

MT-93 Binocular Entry-Level Advance Polarizing Microscope


The MT-90 Series Compound Microscopes have crisp, erect images over a wide field of view. These student microscopes are built to last, year after year. Just perfect for grade schools and high schools!

Request a Quote

The MT-90 Series Compound Microscopes have crisp, erect images over a wide field of view. These student microscopes are built to last, year after year. Just perfect for grade schools and high schools!

The MT-90 Series features include:

  • Ergonomic Hand Grip for portability and ease of storage
  • Low positioned Ergonomic Coaxial Focus Control
  • Abbe condenser, N.A. 1.25 with iris diaphragm and lever for height adjustability
  • Revolving Quadruple reverse nosepiece on ball bearings
  • Swing in Analyzer, built-in rotatable polarizer
  • Achromatic DIN Semi Plan Standard 4x, 10X, 40x, 100x objectives
  • Anti-Fungus treated optical parts for mold prevention
  • Round 135mm stage with 2 object clamps
  • Variable intensity LED illumination generating even illumination
  • 2 year Warranty
SKU: MT-93 Categories: ,
ModelHeadMagnification
MT-93BinocularS Plan
4X, 10X, 40X, 100X

VIEWING HEADS
Binocular 30° inclined tube

EYEPIECES
Paired DIN WF 10x/18mm

OBJECTIVES
All models are equipped with achromatic corrected 4x/0.13, 10x/0.25, S40x/0.65 andS100x/1.25 objectives.

All optical parts are anti-fungus treated.

NOSEPIECE
Revolving quadruple reversed nosepiece on ball-bearings.

STAGE
135mm diameter rotatable stage.

CONDENSER
Abbe condenser, N.A. 1.25 with iris diaphragm and lever for height adjustability.

FOCUSING ADJUSTMENT
Coaxial coarse and 200 µm fine adjustments, 2 µm precision. Friction adjustment.

ILLUMINATION
LED, variable intensity halogen illumination
