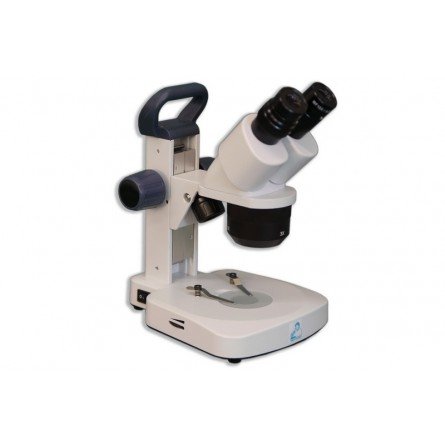

EM-22 Binocular Entry-Level Turret Stereo Microscope


The EM-20 Series Stereo Microscopes have crisp, erect images over a wide field of view. Featuring incident and transmitted illumination, these student microscopes are built to last, year after year. Just perfect for grade schools and high schools!

Request a Quote

The EM-20 Series Stereo Microscopes have crisp, erect images over a wide field of view. Featuring incident and transmitted illumination, these student microscopes are built to last, year after year. Just perfect for grade schools and high schools!

EM-22 Binocular Entry-Level Turret Stereo Microscope

The EM-20 Series features include:

  • Turret Style Objective Changer with Triple Magnifications
  • Robust metal body with smooth rack & pinion
  • Fresh design, Ergonomic focus knobs
  • Light weight, compact body, easy to carry with hand grip
  • LED illuminators feature a long life with low power consumption
  • Transmitted and incident LED illumination equipped with variable intensity
  • Rechargeable batteries, cordlessfeature enables use of the instrument without an outlet.
  • All optical parts are anti-fungus treated
  • 2 year warranty
SKU: EM-22 Categories: ,
ModelHeadBodyMagnificationRechargable
EM-22BinocularTurret
1X, 2X, 3X
10X, 20X, 30X
EM-23Turret
1X, 2X, 4X
10X, 20X, 40X

VIEWING HEADS
Binocular 45° inclined tubes, One ± 5 diopter adjustment, Interpupillary distance adjustable between 55 mm and 75 mm

EYEPIECES
Paired WF 10x/20mm eyepieces

OBJECTIVES
Revolving nosepiece with Triple 1x/2x/3x and 1x/2x/4x magnification objective with field of views of 20/10/6.7 mm and 20/10/5 mm.
Magnifications from 10x up to 20x, 30x and 40x with working distance 60 mm.

All optical parts are anti-fungus treated.

STAND
Rack and pinion design. Ergonomically designed base with 2 object clamps. Alloy metal cast, hardened off-white coated. Built-in rechargeable 1.800 mAh battery and external power supply.

FOCUSING ADJUSTMENT
Coarse adjustment with tension control.

ILLUMINATION
The 1 W transmitted and incident LED illuminators can be used simultaneously.
Both light intensities can be adjusted separately. Rechargeable batteries enable portability.
