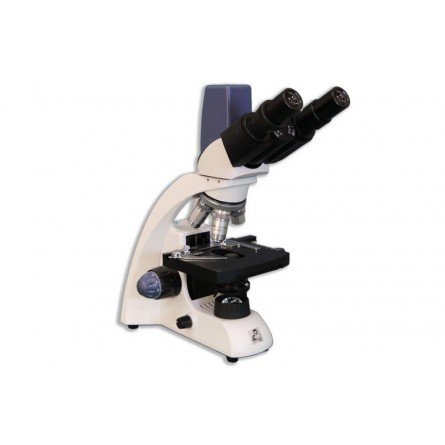

MT-31 Binocular Entry-Level Advance Compound Microscope
The MT-30 Series Compound Microscopes have crisp, erect images over a wide field of view. These student microscopes are built to last, year after year. Just perfect for grade schools and high schools!
The MT-30 Series Compound Microscopes have crisp, erect images over a wide field of view. These student microscopes are built to last, year after year. Just perfect for grade schools and high schools!
The MT-30 Series features include:
- Ergonomic Hand Grip for portability and ease of storage
- Low positioned Ergonomic Coaxial Focus Control
- Abbe condenser, N.A. 1.25 with iris diaphragm and lever for height adjustability
- Revolving Quadruple reverse nosepiece on ball bearings
- Achromatic DIN Semi Plan Standard 4x, 10X, 40X, 100x objectives
- Anti-Fungus treated optical parts for mold prevention
- Mechanical stage with lock safety stop to prevent slide glass breakage
- Digital models available with built in 1.3MP 1/2 chip CMOS USB2 Camera
- LED variable intensity illumination generating even illumination and low electrical consumption
- Rechargeable batteries, cordlessfeature enables use of the instrument without an outlet.
- 2 year Warranty
| Model | Head | Magnification | Rechargable | Mechanical Stage |
| MT-30 | Binocular | S Plan 4X, 10X, 40X, 100X |
✔ | ✔ |
| MT-31 | Binocular with Camera | ✔ | ✔ |
VIEWING HEADS
Binocular 30° inclined tube The digital versions are equipped with a 1.3 Mpixel 1/3 inch CMOS Color USB2 camera @ 1280 x 1024 pixels
EYEPIECES
Paired DIN WF 10x/18mm
OBJECTIVES
All models are equipped with achromatic corrected 4x/0.13, 10x/0.25, S40x/0.65 andS100x/1.25 objectives.
All optical parts are anti-fungus treated.
NOSEPIECE
Revolving quadruple reversed nosepiece on ball-bearings.
STAGE
130 mm x 130 mm stage with integrated mechanical stage.
CONDENSER
Abbe condenser, N.A. 1.25 with iris diaphragm and lever for height adjustability.
FOCUSING ADJUSTMENT
Coaxial coarse and 200 µm fine adjustments, 2 µm precision. Friction adjustment.
ILLUMINATION
1 W intensity adjustable LED illumination with internal power supply / charger and rechargeable 3 NiMH AA batteries.
SOFTWARE
ImageFocus 4 capture & analysis software is supplied with each digital microscope model.
The software is compatible with Windows XP, Vista, Windows 7 & 8, both 32 and 64 bit platforms.
C” Mount Camera Adapter:
• MA151/EM33: C-mount adapter with 0.33x lens for 1/3” cameras
• MA151/EM50: C-mount adapter with 0.5x lens for 1/2” cameras
