ML9400 Halogen Polarizing Microscope with Incident & Transmitted lights (ML9410, ML9420, ML430)

Availability:

In stock


Compare

Polarizing Microscope with large stable microscope base and limb with graduated coaxial coarse and fine focusing (with safety stop), rack and pinion focusing condenser mount, Equipped with strain free condenser and strain free 4x, 10x, 40X objectives with pre-centered transmitted and incident 6V 30W light intensity Halogen lamp with variable intensity control.

In stock

$6,143.00 $6,825.00

Polarizing Microscope with large stable microscope base and limb with graduated coaxial coarse and fine focusing (with safety stop), rack and pinion focusing condenser mount, Equipped with strain free condenser and strain free 4x, 10x, 40X objectives with pre-centered transmitted and incident 6V 30W light intensity Halogen lamp with variable intensity control.

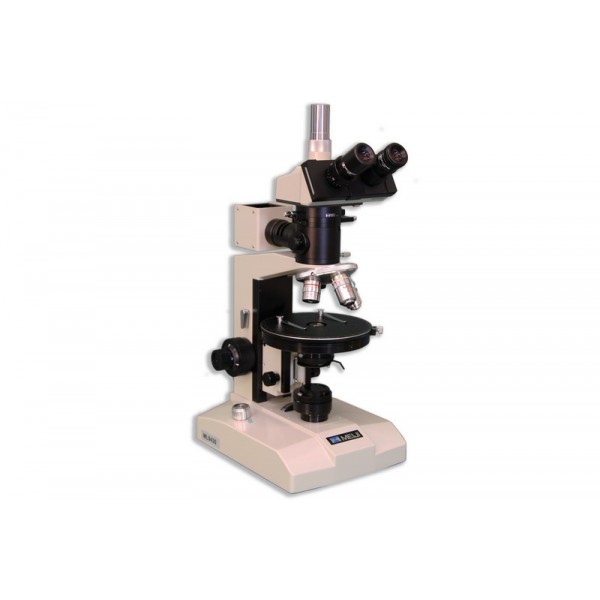

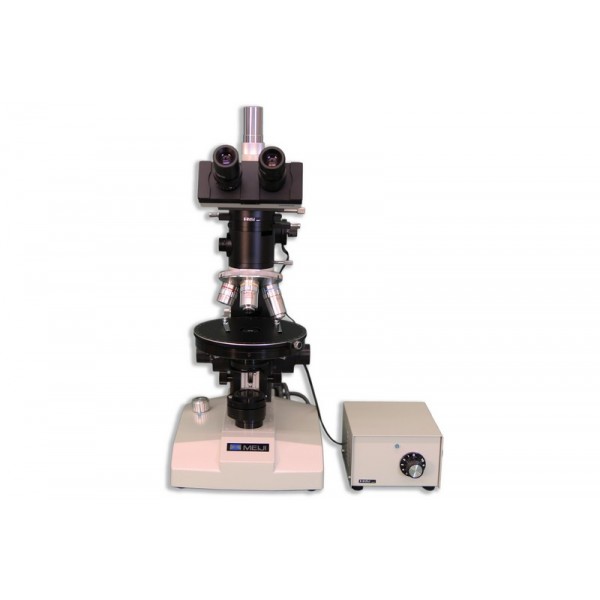

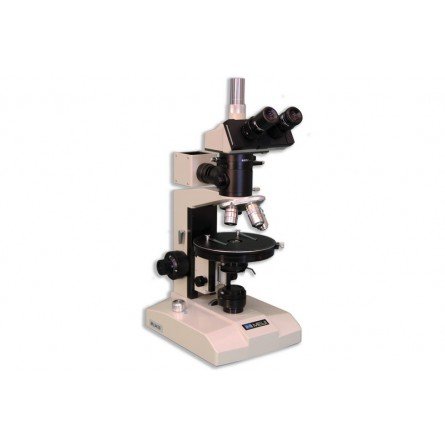

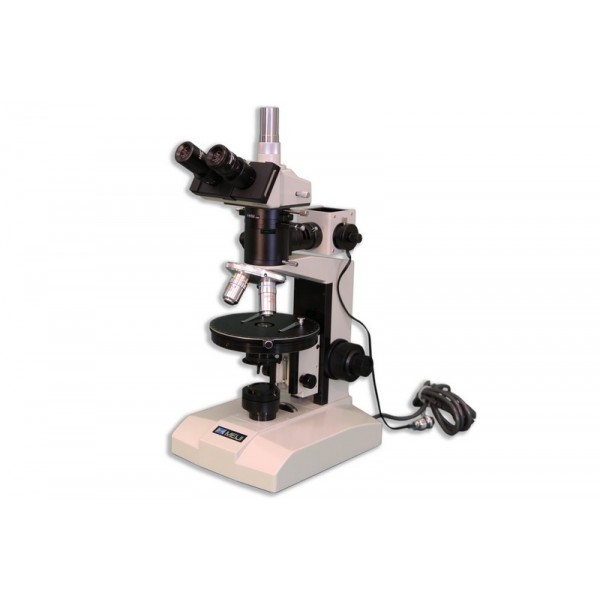

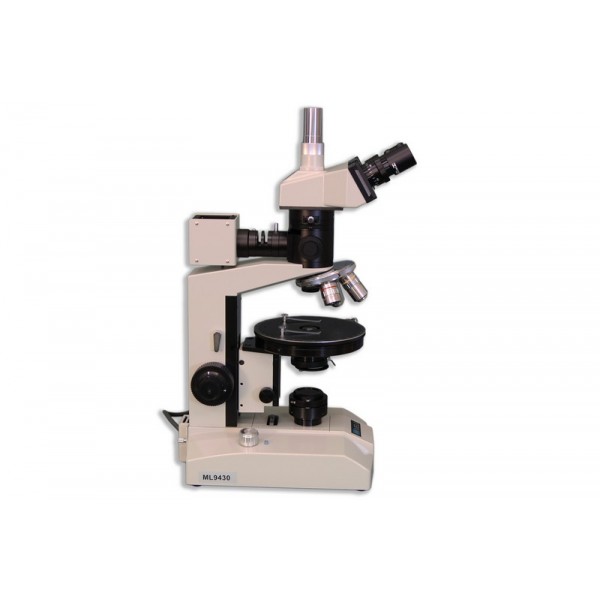

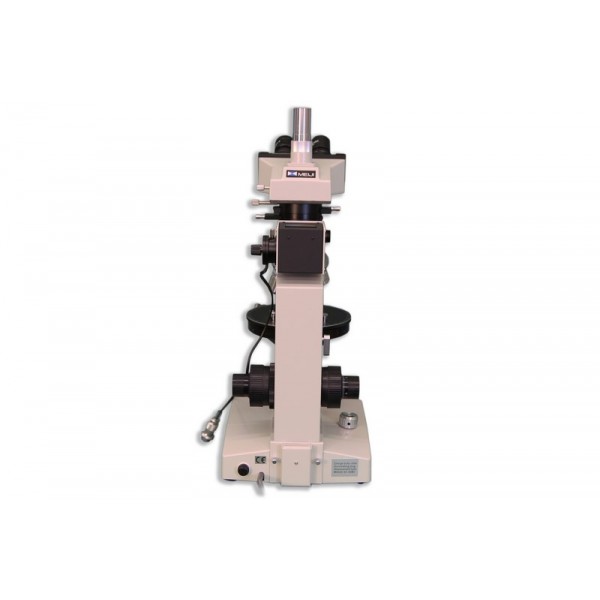

ML9430 Halogen Trinocular Polarizing Microscope

The ML9400 Series features include:

  • Polarizing microscope, with DIN standard eyepiece HWF10X and DIN focusing HWF10XF eyepiece with cross-line reticle.
  • Centerable quadruple nosepiece with SM Plan strain free objectives 4X, 10X,40X(S) (Magnification factor 1.5X)
  • Rotatable stage with vernier graduations 360°,  Strain Free Abbe condenser NA 1.25 with Iris, filter holder and blue filter.
  • Rotatable polarizer in swing-out mount, analyzer and Bertrand lens in sliding mount
  • Coaxial coarse and fine adjustment with graduation,
  • Built-in pre-centered transmitted and incident 6V 30W light intensity Halogen lamp with variable intensity control
  • Includes Mica 1/4 Wave test plate and First order red compensating plate.
  • Supplied with dust cover and instruction manual in styrofoam case.

Includes:
ML9420: Trinocular Polarizing Microscope 80%/20% beam-splitter with a large stable microscope base and limb with graduated coaxial coarse and fine focusing( with safety stop), rack and pinion focusing condenser mount, Equipped with strain free condenser and  4X, 10X, 40XS strain free objectives with pre-centered transmitted and incident 6V 30W light intensity Halogen lamp with  variable intensity control
• MA648: Trinocular head, 30° inclination. One eyetube slotted for orientation of cross-line eyepiece, but with 80%/20% beam-splitter and vertical phototube fit our Digital, CCD, CMOS, Analog camera adapters
MA406: DIN HWF10X eyepiece, FN 18mm (each)
MA413CP: DIN focusing HWF10X eyepiece with cross-line and guide pin (each)
MA641: SM Plan strain free objective 4X/N.A.0.10
MA642: SM Plan strain free objective 10X/N.A.0.25
MA644: SM Plan strain free objective 40XS/N.A.0.65
ML9400/PT#1: Vertical Koehler illuminator attachment with 6V 30W halogen light
MA651/05: Table top transformer in case for ML9420 & ML9430 (110V) or
MA651/15: Table top transformer in case for ML9420 & ML9430 (220V)
MA475/05: Blue clear filter, 15mm diameter in mount
MA476: Green clear filter, 15mm diameter in mount
MA198: ND8 Neutral Density filter, 15mm diameter in mount
MA679: Polarizer in mount (for use with incident illuminator)
MA479: Rotatable stage with Vernier graduation 360° with Vernier, reading to 1°, 150mm diameter with stainless steel stage clips (Factory Installed)
Focusing Adjustment: Ergonomic low-position coaxial coarse and fine focusing controls with graduation reading 2 microns per division.  Incorporates tension adjustment and safety Auto-focus stage stop lever Series
MA469: 1/4 wave-length test plate in sliding mount (20mm X 6mm X 80mm)
MA470: First order red compensating plate in sliding mount (20mm X 6mm X 60mm)
MA477: Replacement Bertrand lens in sliding mount for ML9000,ML9400 and ML9700 Series (20mm X 6mm X 80mm)
MA665: Strain free achromatic polarizing condenser N.A. 1.25 with iris diaphragm and filter tray for ML9400 Series polarizing microscopes
MA275/05: Bulb Halogen, 12V 50W
MA327: Fuse 3 Amp
MA494/PT#1 (x 2): Nosepieces centering screws (each)
Polarizer: Swing in-out click/clamp mount, fully rotatable 360° with detent click stop at 0°and 90°
MA712: Dust cover for ML9000, ML9700 and ML9400 Series
Manual: Meiji Techno America ML6100 Manual
Warranty: Limited Lifetime Warranty Card

Product Information:
Manufactured: 100% MADE IN JAPAN
Warranty: LIMITED LIFETIME WARRANTY
Customer Support: 1-(800) 832-0060 (U.S.A Based)

Package Information:
Weight: 31.0 lbs (8.5 kg)
Box Size: 22 x 16 x 14 inches
Footprint: 254mm (D) x 203mm (W)
Monocular head type: 270 mm(D) x 435 mm (H) x 200mm(W) 30.0 lbs. (8.2 kg)
Binocular head type: 270 mm(D) x 435 mm (H) x 200mm(W) 31.0 lbs. (8.4 kg)
Trinocular head type: 270 mm(D) x 480 mm (H) x 200mm(W) 32.0 lbs. (8.7 kg)

ModelHeadIlluminationEyepiecesObjectivesCondenserStage
ML9410MonocularBoth 6V 30W halogen vertical Koehler and 6V 30W halogen transmitted KoehlerHWF10x and HWF10x w/crosslineStrain-free SM. Plan 4x, 10x, S40xStrain-free NA 1.25 achromatic w/ iris diaphragm and rack and pinion focusingRotatable, centerable, circular stage w/clips
ML9420Binocular
ML9430Trinocular

VIEWING HEADS
Model MA952 is the Siedentopf-type binocular head and Model MA953 is the trinocular head for camera integration. Each head has the 23.2mm eyetubes inclined at 30 degrees with the left eyetube having graduated diopter settings.

The interpupillary distance is adjustable between 53mm – 75mm. An 80/20 beamsplitter for the trinocular tube can be engaged for photo work.

Each head has the new integrated reticle angle compensation system. When the IP distance or number is changed, the crossline reticle remains perpendicular in the FOV.
EYEPIECES
10X Widefield High Eyepoint eyepieces F.N.20 are standard. A Widefield High Eyepoint 10X focusable eyepiece that has a 21mm crossline reticule and guide pin is also available.

OBJECTIVE CHANGER
The smooth-operating, ball bearing mounted, quintuple nosepiece provides effortless objective changes.

OBJECTIVES
Meiji Techno offers an assortment of S.Planachromat Infinity Corrected objectives for Transmitted Light or Incident Light .

STAGE
Ceramic coated 360 degree rotatable fully indexed stage with vernier and stage clips.

CONDENSER
All new Strain Free Abbe N.A. 1.25 condenser with iris in dovetail mount.

ILLUMINATION
Powerful 30 watt Koehler halogen illumination in either transmitted and/or vertical incident, provides enhanced image quality and brightness for the observation of specimens.

POLARIZING ACESSORIES
All MT9000 Series come standard with 1/4 wave plate, Bertrand lens and first order red plate. Optional Senarmont compensator and quartz wedges are available along with attachable point counting stage.

PHOTOMICROGRAPHY
Meiji Techno offers a broad range of digital video cameras which offers excellent sensitivity, high resolution and a wide dynamic range for the most demanding brightfield and darkfield microscopy applications including clinical pathology and cytology, life sciences and geology. Some models has included software, that can preview and capture still shots and live videos to a PC or Mac with USB port or HDMI connectivity.

Included:
• ML9420: Trinocular Polarizing Microscope 80%/20% beam-splitter with a large stable microscope base and limb with graduated coaxial coarse and fine focusing( with safety stop), rack and pinion focusing condenser mount, Equipped with strain free condenser and  4X, 10X, 40XS strain free objectives with pre-centered transmitted and incident 6V 30W light intensity Halogen lamp with  variable intensity control
• MA648: Trinocular head, 30° inclination. One eyetube slotted for orientation of cross-line eyepiece, but with 80%/20% beam-splitter and vertical phototube fit our Digital, CCD, CMOS, Analog camera adapters
• MA406: DIN HWF10X eyepiece, FN 18mm (each)
MA413CP: DIN focusing HWF10X eyepiece with cross-line and guide pin (each)
MA641: SM Plan strain free objective 4X/N.A.0.10
MA642: SM Plan strain free objective 10X/N.A.0.25
MA644: SM Plan strain free objective 40XS/N.A.0.65
ML9400/PT#1: Vertical Koehler illuminator attachment with 6V 30W halogen light
MA651/05: Table top transformer in case for ML9420 & ML9430 (110V) or
MA651/15: Table top transformer in case for ML9420 & ML9430 (220V)
MA475/05: Blue clear filter, 15mm diameter in mount
MA476: Green clear filter, 15mm diameter in mount
MA198: ND8 Neutral Density filter, 15mm diameter in mount
MA679: Polarizer in mount (for use with incident illuminator)
MA479: Rotatable stage with Vernier graduation 360° with Vernier, reading to 1°, 150mm diameter with stainless steel stage clips (Factory Installed)
Focusing Adjustment: Ergonomic low-position coaxial coarse and fine focusing controls with graduation reading 2 microns per division.  Incorporates tension adjustment and safety Auto-focus stage stop lever Series
MA469: 1/4 wave-length test plate in sliding mount (20mm X 6mm X 80mm)
MA470: First order red compensating plate in sliding mount (20mm X 6mm X 60mm)
MA477: Replacement Bertrand lens in sliding mount for ML9000,ML9400 and ML9700 Series (20mm X 6mm X 80mm)
MA665: Strain free achromatic polarizing condenser N.A. 1.25 with iris diaphragm and filter tray for ML9400 Series polarizing microscopes
MA275/05: Bulb Halogen, 12V 50W
MA327: Fuse 3 Amp
MA494/PT#1 (x 2): Nosepieces centering screws (each)
Polarizer: Swing in-out click/clamp mount, fully rotatable 360° with detent click stop at 0°and 90°
MA712: Dust cover for ML9000, ML9700 and ML9400 Series
Manual: Meiji Techno America ML6100 Manual

OPTIONAL COMPONENTS & ACCESSORIES BELOW

Viewing Heads:
• MA649: Monocular head, 30° inclination. Eye tube slotted for orientation of cross-line eyepiece
• MA647: Binocular head, 30° inclination. One eyetube slotted for orientation of cross-line eyepiece.
MA656: Binocular head, erect image
MA666: Trinocular head, erect image (100% cutoff of left eyetube occurs when the beam splitter is moved into position)

POL Objectives:
MA643: SM Plan strain free objective 20XS/N.A.0.40
MA645: SM Plan strain free objective 60XS/N.A.0.85
MA646: SM Plan strain free objective 100XS/N.A.1.25 oil

POL Objectives for Incident Light Work:
MA724: SM Plan M20X objective NA 0.40, 160/0
MA725: SM Plan M40X objective NA 0.65, 160/0

Filters:
MA475/05: Blue clear filter, 15mm diameter in mount
MA476: Green clear filter, 15mm diameter in mount
MA198: ND8 neutral density filter, 15mm diameter in mount
MA679: Polarizer in mount (for use with incident illuminator)

Stage:
MA299: Attachable mechanical stage for MT9000 or MT9900 Series

Wave Plate and Condensers:
MA654: Quartz wedge 6 order (20mm X 6mm X 130mm)
MA654N: Quartz wedge 6 order graduated (20mm X6mm X 80mm)
MA901: Graduated rotatable analyzer for ML9700 Series (26MM x 6MM, 0-360 degrees)

Bulbs and Fuses:
MA275/05: Spare halogen bulb, 12V 50W
MA327: Fuse 3A (Included in 50W models), replacement

Miscellaneous:
MA470: First order red compensating plate in sliding mount
MA673: 19mm depolarizer in mount to fit MA647, MA648 and MA603/05
MA689: Analyzer in sliding mount for ML9400
MA717: Bertrand lens in sliding mount for ML9400
