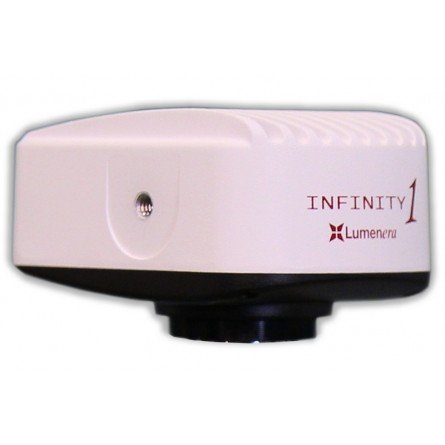

DK3000C Color Digital CMOS (3.1MP) USB 2.0 Camera


The DK3000C scientific CMOS camera provides extremely fine detail that was previously invisible to lower megapixel imaging systems with 2048×1536 resolution. Benefit from fast, smooth previews during sample manipulation with high frame rates of up to 80 frames per second.

$2,400.00

The DK3000C scientific CMOS camera provides extremely fine detail that was previously invisible to lower megapixel imaging systems with 2048×1536 resolution. Benefit from fast, smooth previews during sample manipulation with high frame rates of up to 80 frames per second.

DK3000C Color Digital CMOS (3.1MP) USB 2.0 Camera

The DK3000C features include:

  • Low noise progressive scan ½” 3.1 megapixel CMOS sensor
  • Full color sub-windowing allows for rapid focus and scanning of samples; up to 80 fps at 640×480 resolution
  • 8 or 10-bit pixel data modes
  • Software compatible with Windows XP, Windows Vista, Windows 7, and Mac OSX, 32 and 64-bits
  • Includes TWAIN and DirectX/Direct Show support
SKU: DK3000C Categories: ,

Recommended Applications:
• Brightfield
• Darkfield
• Live Cell Imaging
• Histology
• Pathology
• Cytology
• Defect Analysis
• Semiconductor Inspection
• Metrology

 Camera Sensor
Image Sensor Micron MT9T001, CMOS, color, progressive scan
Optical Format 1/2″
Active Area 6.5 x 4.9mm
Pixel Size 3.2µm x 3.2µm
Resolution 2048 x 1536 pixels
Region of Interest Control Any multiple of 8 x 8 pixels, 32 x 32 pixels minimum
 Camera Specifications
Frame Rate 12 fps
Bit Depth 8 or 10-bit
Binning / Subsampling Modes 2x subsampling mode
Exposure Control Manual and automatic control
Exposure Range 128μs to 500ms (video) 128μs to 4s (snapshot)
Gain Control Manual and automatic control
Gain Range 1 to 3.88x
White Balance Automatic and manual control
 Camera Characteristics
Sensitivity 0.92DN/(nJ/cm2) [at 8-bit, 1x gains]
Dynamic Range 66dB
Full Well Capacity 20,000 e-
Quantum Efficiency 36% (red-peak)
Read Noise 12 e- rms
Dark Current Noise <8 e-/s

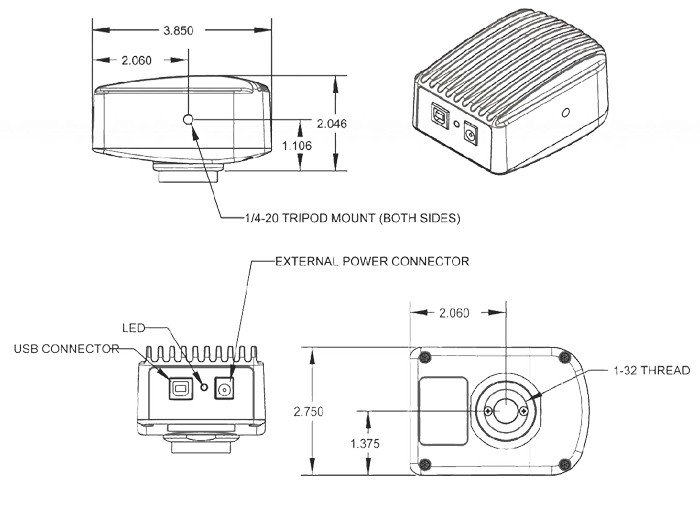

 Mechanical Specifications
Data Interface USB 2.0
Lens Mount Adjustable C-Mount standard
Dimensions (L x W x H) 3.85 x 2.25 x 2.75 inches
Mass 300g
Operating Temperature 0° C to +50° C
Storage Temperature -30° C to +70° C
Operating Humidity 5%-95%, Non-condensing
Shock / Vibration
 Camera Software
Operating Systems Windows XP, Windows Vista, Windows 7, Mac OSX, 32 and 64-bit
 Power and Emissions
Power Consumption ~2.5 watts
Power Requirement USB bus power (optional 6VDC to 500 mA)
Emissions Compliances FCC Class BE, CE Certified
Hazardous Materials RoHS, WEEE Compliant
Warranty One (1) year
 System Requirements
Recommended PC Specs• Pentium 4, 1.3 GHz or higher
• 512 MB RAM
• 500 MB hard drive free space or more
• USB 2.0 Port
• Windows 7
Minimum PC Specs• 600 MHz Processor
• 256 MB of SDRAM
• 200 MB hard drive free space
• USB 2.0 Port
• Window XP
 Included in the Box
Infinity 1-3C 3.1 MP Digital Camera for USB 2.0
LulNFSW-DVD DVD with INFINITY user application software (including INFINITY ANALYZE), TWAIN driver and documentation
Lu802 2 m USB 2.0 cable
 Ordering Information
DK3000C 3.1 MP CMOS Color Camera with Infinity Analyze and Infinity Capture Software
 Ordering Options
Infinity Analyze Module INFINITY ANALYZE Advanced Features Module (Multi-Focus Composition and Spherical Aberration Correction Features)

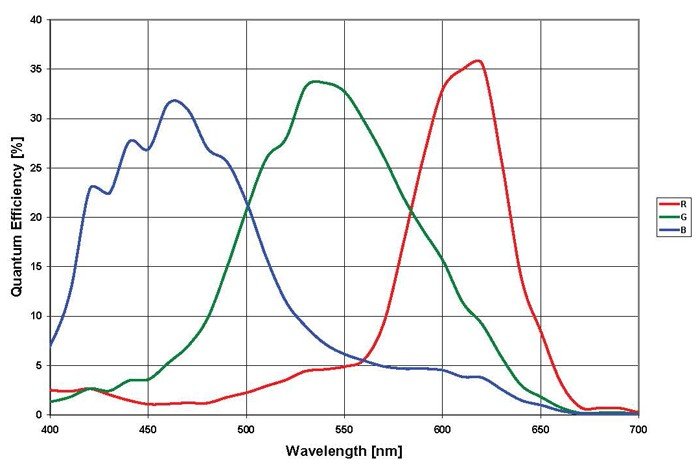

Quantum Efficiency Curve

ModelVersionImage SensorMax. ResolutionVideo Frame Rate
HD1500TColor1/2.8″ format
5.7mm x 4.28mm
2MP
1980 x 1080
30 fps @ 1440 x 1080
60fps @ 640 x 480
HD1500TMColor1/2.8″ format
5.7mm x 4.28mm
with 11.8in Monitor
2MP
1980 x 1080
30 fps @ 1440 x 1080
60fps @ 640 x 480
DK-LITE-BColor1/2.5″ format
5.7mm x 4.28mm
1.5MP
1440 x 1080
15 fps @ 1440 x 1080
60fps @ 640 x 480
DK1000CBColor1/2″ format
6.5mm x 5.3mm
2.0MP
1600 x 1200
15 fps @ 1600 x 1200
DK1000MMonochrome1/2″ format
6.5mm x 5.3mm
1.3MP
1280 X 1024
30 fps @ 1280 X 1024
DK3000CColor1/2″ format
6.5mm x 4.9mm
3.1MP
2048 x 1536
12 fps @ 2048 x 1536
120fps @ 640 x 480
DK5000CColor1/2.5″ format
5.7mm x 4.28mm
5.0MP
2592 x 1944
5 fps @ 2592 x 1944
60fps @ 640 x 480
HD2000CColor1/3″ format
5.2mm x 2.7mm
2.0MP
1920 x 1080
60fps @ 1920 x 1080
ST1000CColor1/2.5” format5.0MP
2592 x 1944
60fps @ 2592 x 1944
