ML9100 / ML9200 / ML9300 Polarizing Microscope with Transmitted light

Availability:

In stock


Compare

Polarizing Microscope with large stable microscope base and limb with graduated coaxial coarse and fine focusing( with safety stop), rack and pinion focusing condenser mount, Equipped with strain free condenser and strain free objectives with pre-centered transmitted Koehler illuminator with 6V 30W Halogen lamp with variable intensity control.

In stock

$5,013.00 $5,570.00

Polarizing Microscope with large stable microscope base and limb with graduated coaxial coarse and fine focusing( with safety stop), rack and pinion focusing condenser mount, Equipped with strain free condenser and strain free objectives with pre-centered transmitted Koehler illuminator with 6V 30W Halogen lamp with variable intensity control.

Polarizing Microscope with large stable microscope base and limb with graduated coaxial coarse and fine focusing( with safety stop), rack and pinion focusing condenser mount, Equipped with strain free condenser and strain free objectives with pre-centered transmitted Koehler illuminator with 6V 30W Halogen lamp with variable intensity control.

Meiji manufactures these microscopes for most applications in Geology, Petrology, Mineralogy, Toxicology, Chemistry, Pharmaceutical, Medicine, Pulp/Paper, Atmospheric pollution, Ceramics Technology, Forensic Medicine, etc.

The ML9000 Series features include:

  • Polarizing microscope, binocular head with DIN standard eyepiece HWF10X and DIN focusing HWF10XF eyepiece with cross-line reticle.
  • Centerable quadruple nosepiece with SM Plan strain free objectives 4X, 10X,40X(S) (Magnification factor 1.5X)
  • Rotatable stage with graduation 360°, with vernier, Abbe condenser NA 1.25 with Iris, filter holder and blue filter.
  • Rotatable polarizer in swing-out mount, analyzer and Bertrand lens in sliding mount
  • Coaxial coarse and fine adjustment with graduation, built-in Koehler illuminator with halogen lamp 6V 30W light intensity control.
  • Includes Mica 1/4 wave plate and first order red plate.
  • Supplied with dust cover in styrofoam case.

Includes:
ML9300: Trinocular Polarizing Microscope with beam-splitter with large stable microscope base and limb with graduated coaxial coarse and fine focusing( with safety stop), rack and pinion focusing condenser mount, Equipped with strain free condenser and  strain free objectives with pre-centered transmitted Koehler illuminator with 6V 30W Halogen lamp with variable intensity control
MA648: Trinocular head, 30° inclination. One eyetube slotted for orientation of cross-line eyepiece, but with 80%/20% beam-splitter and vertical phototube
MA406 (x 2): DIN HWF10X eyepiece, FN 18mm (ea)
MA413CP: DIN focusing HWF10X eyepiece with cross-line and guide pin (ea)
Nosepiece: Quadruple ball-bearing with one fixed and three centerable objective apertures
MA641: SM Plan strain free objective 4X/N.A.0.10
MA642: SM Plan strain free objective 10X/N.A.0.25
MA644: SM Plan strain free objective 40XS/N.A.0.65
MA479: Rotatable stage with Vernier graduation 360° with Vernier, reading to 1°, 150mm diameter with stainless steel stage clips (Factory Installed)
Focusing Adjustment: Coaxial coarse and fine focusing controls with graduation reading 2 microns power division.  Incorporates tension adjustment and safety Auto-focus stage stop lever
MA469: 1/4 wave-length test plate in sliding mount (20mm X 6mm X 80mm)
MA470: First order red compensating plate in sliding mount (20mm X 6mm X 60mm)
MA471: Analyzer in sliding mount (26m X 6mm X 80mm) (Included)
MA477: Replacement Bertrand lens in sliding mount for ML9000 and ML9700 Series (20mm X 6mm X 80mm)
MA665: Strain free achromatic polarizing condenser N.A. 1.25 with iris diaphragm and filter tray for ML9000 Series polarizing microscopes
MA326: Halogen bulb 6V 30W, replacement (Factory Installed)
MA327: Fuse 3Amp, replacement (Factory Installed)
MA905: Interference color chart
Polarizer: Swing in-out click/clamp mount, fully rotatable 360° with click stop at 0°and 90°
MA712: Dust cover for ML9000, ML9700 and ML9400 Series
Manual: Meiji Techno America ML6100 Manual
Warranty: Limited Lifetime Warranty Card

Product Information:
Manufactured: 100% MADE IN JAPAN
Warranty: LIMITED LIFETIME WARRANTY
Customer Support: 1-(800) 832-0060 (U.S.A Based)

Package Information:
Weight:31.0 lbs (8.5 kg)
Box Size: 22 x 16 x 14 inches
Footprint:254mm (D) x 203mm (W)
Monocular head type: 270 mm(D) x 435 mm (H) x 200mm(W) 31.0 lbs. (8.5 kg)
Binocular head type: 270 mm(D) x 435 mm (H) x 200mm(W) 31.0 lbs. (8.5 kg)
Trinocular head type: 270 mm(D) x 480 mm (H) x 200mm(W) 32.0 lbs. (8.7 kg)

ModelHeadEyepiecesObjectivesStageCondenserIllumination
ML9100 Monocular HWF10x and HWF10x w/crossline Strain-free SM.Plan 4x, 10x, S40x Rotatable, centerable, circular stage w/clips Strain-free NA 1.25 achromatic w/ iris diaphragm and rack and pinion focusing Koehler Illuminator 6V 30W halogen transmitted

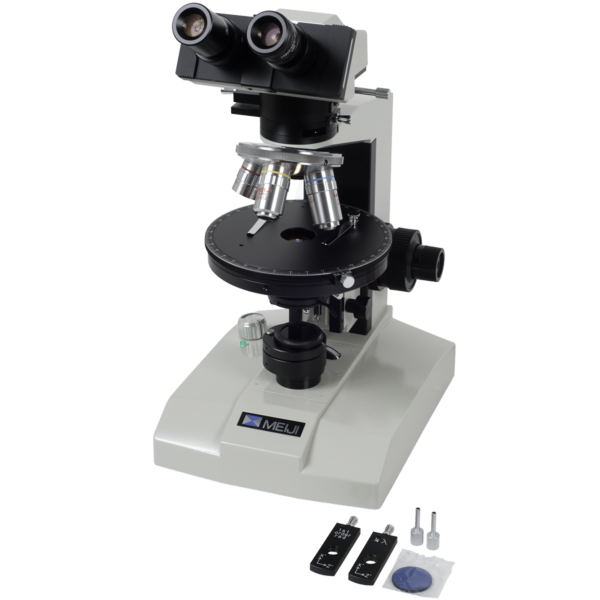

ML9200 Binocular
ML9300 Trinocular

Included:
• ML9300: Trinocular Polarizing Microscope with beam-splitter with large stable microscope base and limb with graduated coaxial coarse and fine focusing( with safety stop), rack and pinion focusing condenser mount, Equipped with strain free condenser and  strain free objectives with pre-centered transmitted Koehler illuminator with 6V 30W Halogen lamp with variable intensity control
• MA648: Trinocular head, 30° inclination. One eyetube slotted for orientation of cross-line eyepiece, but with 80%/20% beam-splitter and vertical phototube
• MA406 (x 2): DIN HWF10X eyepiece, FN 18mm (ea)
MA413CP: DIN focusing HWF10X eyepiece with cross-line and guide pin (ea)
Nosepiece: Quadruple ball-bearing with one fixed and three centerable objective apertures
MA641: SM Plan strain free objective 4X/N.A.0.10
MA642: SM Plan strain free objective 10X/N.A.0.25
MA644: SM Plan strain free objective 40XS/N.A.0.65
MA479: Rotatable stage with Vernier graduation 360° with Vernier, reading to 1°, 150mm diameter with stainless steel stage clips (Factory Installed)
Focusing Adjustment: Coaxial coarse and fine focusing controls with graduation reading 2 microns power division.  Incorporates tension adjustment and safety Auto-focus stage stop lever
MA469: 1/4 wave-length test plate in sliding mount (20mm X 6mm X 80mm)
MA470: First order red compensating plate in sliding mount (20mm X 6mm X 60mm)
MA471: Analyzer in sliding mount (26m X 6mm X 80mm) (Included)
MA477: Replacement Bertrand lens in sliding mount for ML9000 and ML9700 Series (20mm X 6mm X 80mm)
MA665: Strain free achromatic polarizing condenser N.A. 1.25 with iris diaphragm and filter tray for ML9000 Series polarizing microscopes
MA326: Halogen bulb 6V 30W, replacement (Factory Installed)
MA327: Fuse 3Amp, replacement (Factory Installed)
MA905: Interference color chart
Polarizer: Swing in-out click/clamp mount, fully rotatable 360° with click stop at 0°and 90°
MA712: Dust cover for ML9000, ML9700 and ML9400 Series
Manual: Meiji Techno America ML6100 Manual

OPTIONAL COMPONENTS & ACCESSORIES BELOW

Viewing Heads:
• MA647: Binocular head, 30° inclination. One eye tube slotted for orientation of cross-line focusing eyepiece dual graduated diopter eyetubes with interpupillary adjustments of 52mm to 72mm. One eyetube slotted for 90° and 45°orientation of cross-line eyepiece
MA649: Monocular head, 30° inclination. Eyetube slotted for orientation of cross-line eyepiece (Included in ML9100)
MA656: Binocular head, erect image
MA666: Trinocular head, erect image (100% cutoff of left eyetube occurs when the beam splitter is moved into position)

POL Objectives:
MA643: SM Plan strain free objective 20XS/N.A.0.40
MA645: SM Plan strain free objective 60XS/N.A.0.85
MA646: SM Plan strain free objective 100XS/N.A.1.25 oil

Stages:
MA299: Attachable mechanical stage for ML9000 Series

Waveplates and Compensators:
MA654: Quartz wedge 6 order (20mm X 6mm X 130mm)
MA654N: Quartz wedge 6 order graduated (20mm X6mm X 80mm)
MA901: Graduated rotatable analyzer for ML9700 Series (26MM x 6MM, 0-360 degrees)
MA904: Senarmont Compensator (20mm X 6mm X 99mm)

Bulbs and Fuses:
MA326: Spare bulb 6V 30W halogen lamp (Transmitted light)
MA327: pare Fuse 3A for transmitted light halogen Illuminator

Miscellaneous:
MA494/PT#1: Nosepiece centering screws (each) (Included qty#2)
MA673: 19mm depolarizer in mount to fit MA647, MA648 and MA603/05
MA905: Interference color chart

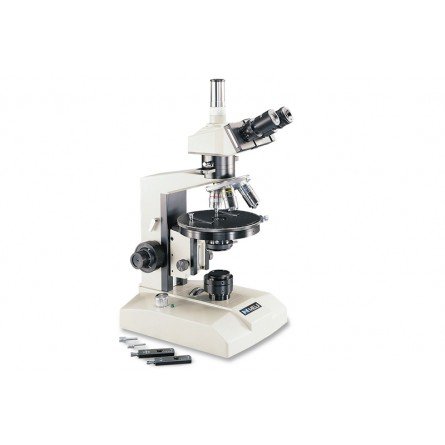

ML9300 Trinocular Polarizing Microscope
