Sample Holders for an Inverted Microscope

$USD 49.00

  • Sample holder
  • For inverted biological, fluorescence, confocal or metallurgical microscopes

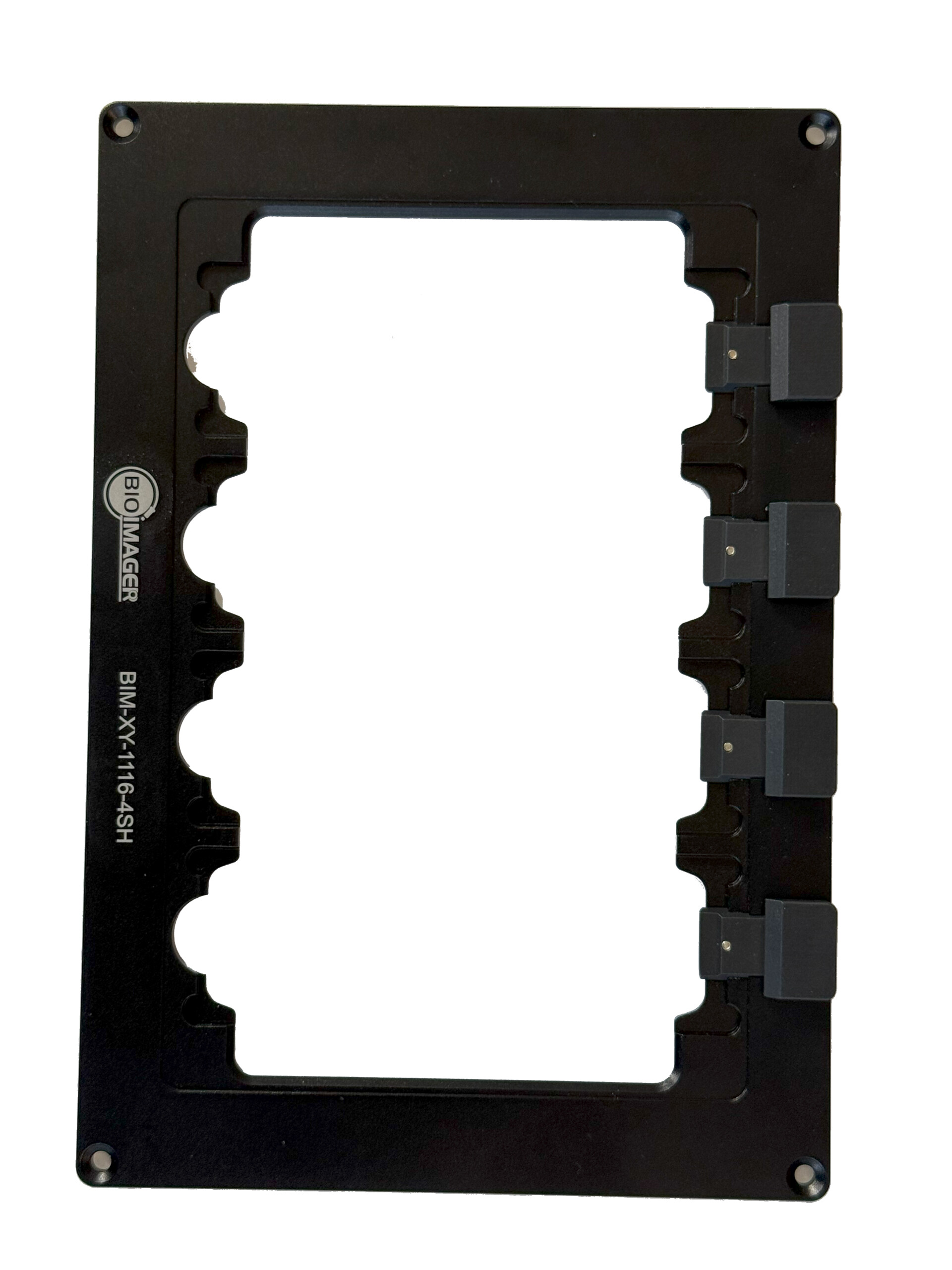

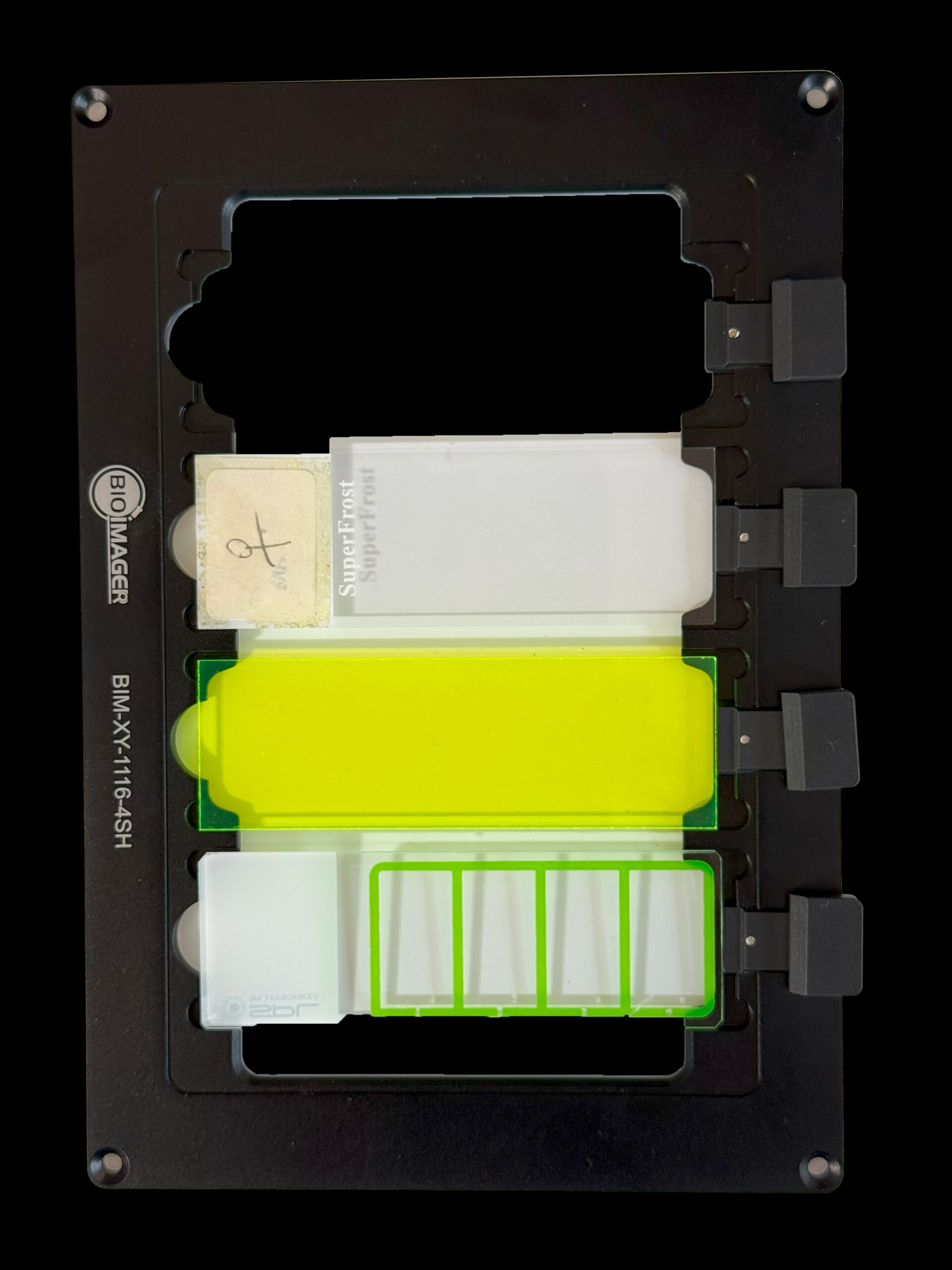

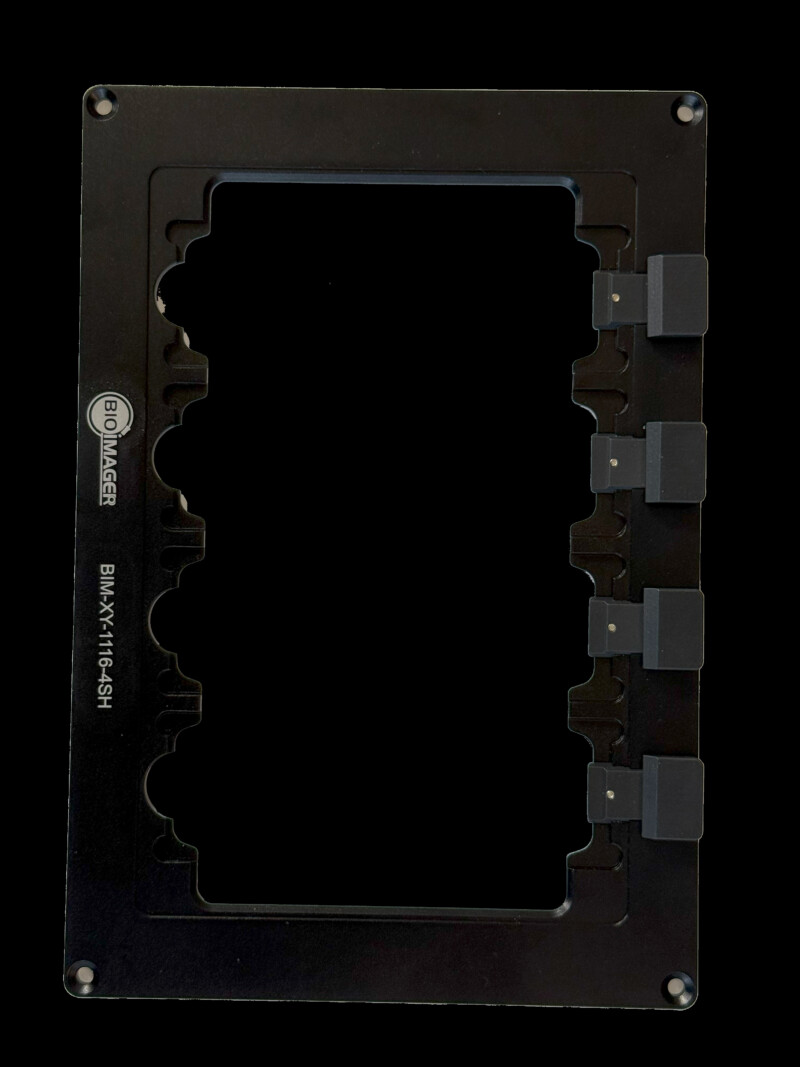

  • Holders for glass slide, single or double size
  • Petridishes: 35mm, 50mm, 60mm, 90mm, 100mm
  • T-flasks: T-25, T-75, T-175
  • Well-plates
  • Custom sample holders are available

Free worldwide shipping on all orders over $50

  • 30 days easy returns
  • Order yours before 2.30pm for same day dispatch
Guaranteed Safe Checkout

Introduction to Sample Holders

Sample holders are an important component of an inverted microscope, as they provide a stable platform for the specimen being observed. There are a variety of sample holders available for inverted microscopes, depending on the size and type of specimen being examined. Here are some examples:

  1. Petri dish holder: This holder is used for observing samples that are placed in Petri dishes, which are commonly used for cell culture.

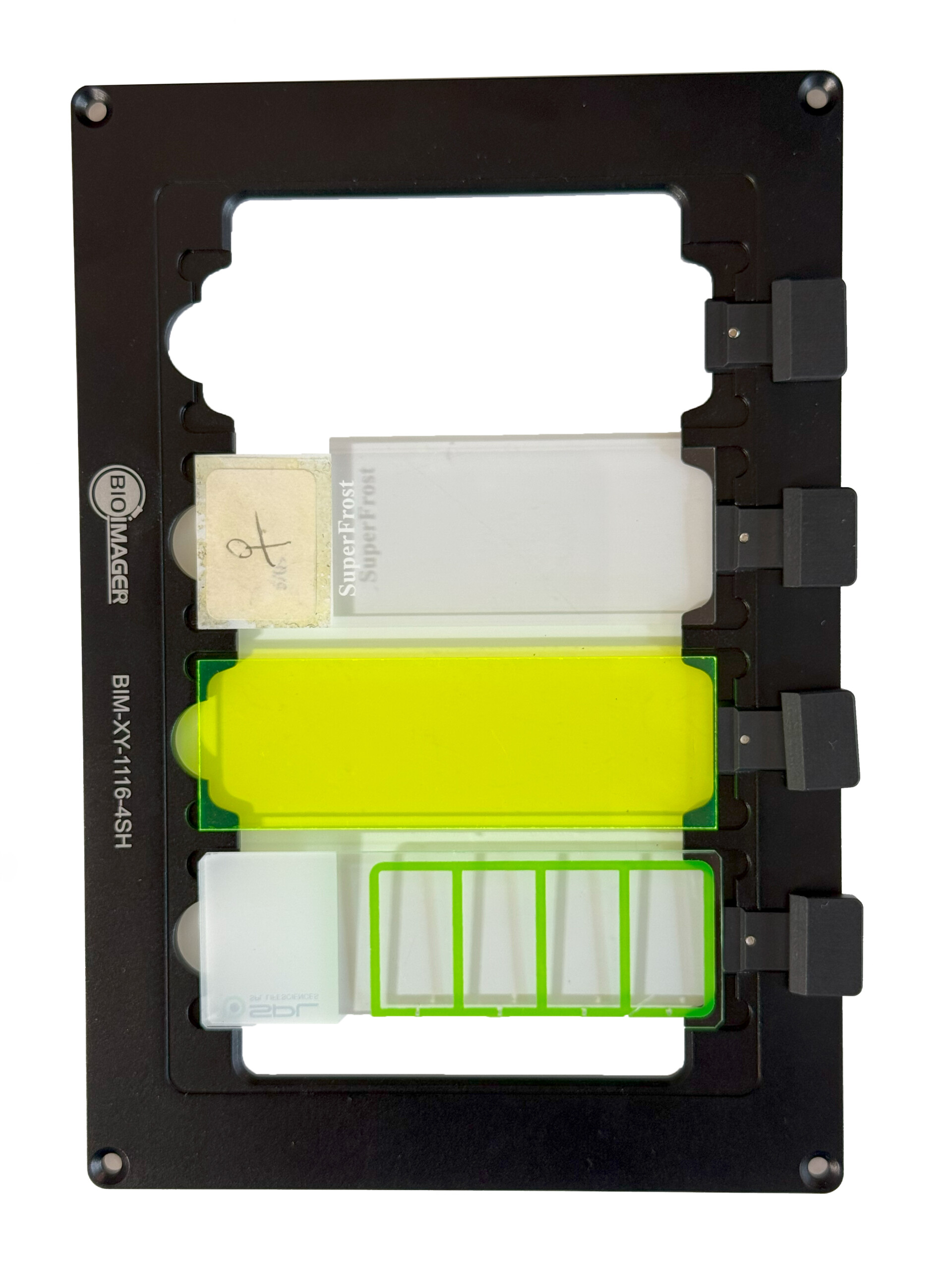

  2. Glass slide holder: This holder is used for observing samples that are mounted on glass slides, which are often used for histological or cytological preparations.
  3. Chambered slide holder: This holder is used for observing samples that are cultured in specialized chambers, which allow for precise control of environmental conditions such as temperature, humidity, and gas composition.
  4. Multi-well plate holder: This holder is used for observing samples that are cultured in multi-well plates, which are commonly used for high-throughput screening experiments.
  5. Live cell imaging chamber: This holder is used for observing live cells, allowing for long-term imaging of cells in their native environment.

Overall, the selection of a sample holder for an inverted microscope depends on the type of specimen being studied, as well as the experimental conditions required for the study. It is important to choose a holder that provides the necessary stability and support for the specimen, while also allowing for clear and accurate imaging.

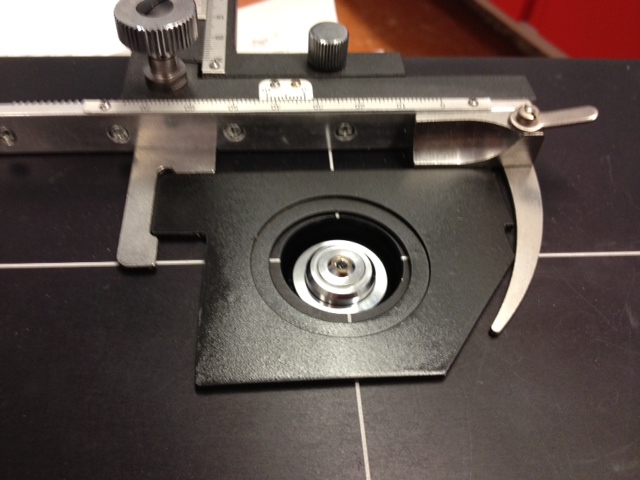

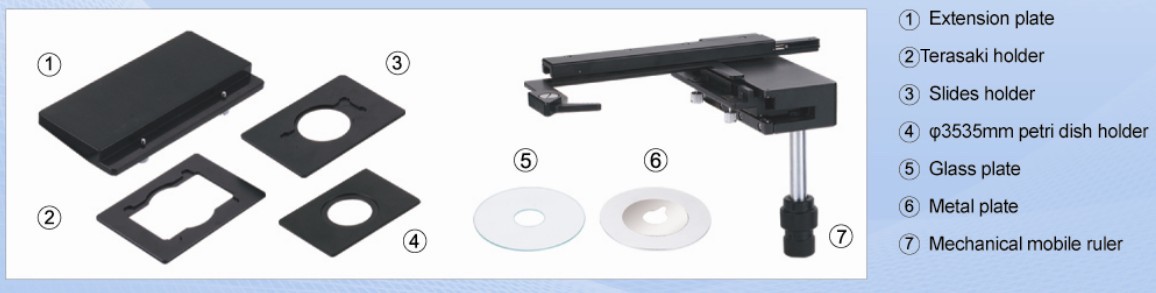

Cell Culture holders for Inverted Microscopes with mechanical XY stage

Universal sample holders for universal inverted microscopes

Bioimager offers several types of sample holders for cell culture application to be used with upright, inverted, stereoscope or custom microscopes. This page includes the items for all inverted microscopes, regardless its brand is Zeiss, Leica, Nikon, Olympus, Huvitz, Meiji Techno, Bioimager or custom made. As long as your inverted microscope has a mechanical XY stage, automated or manual, you should be able to use one or some of these sample holders. Here are the list of  parts that we can supply. If you do not see the items here, please simply contact us for customization.

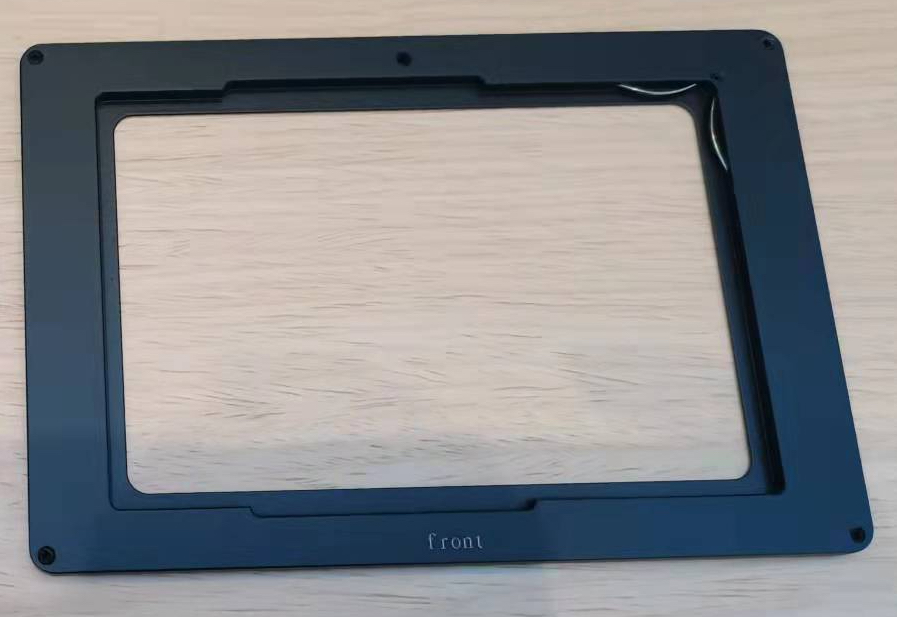

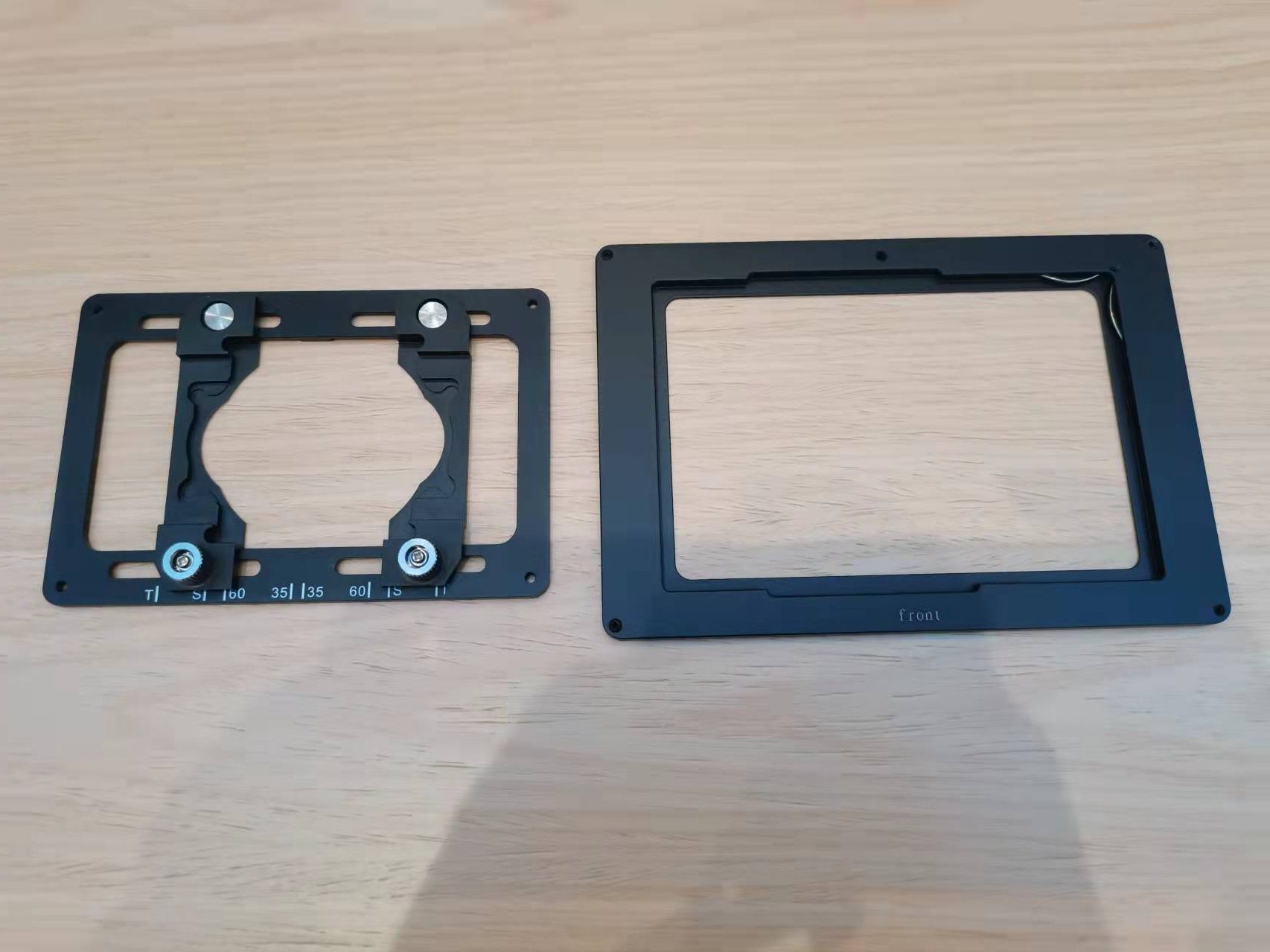

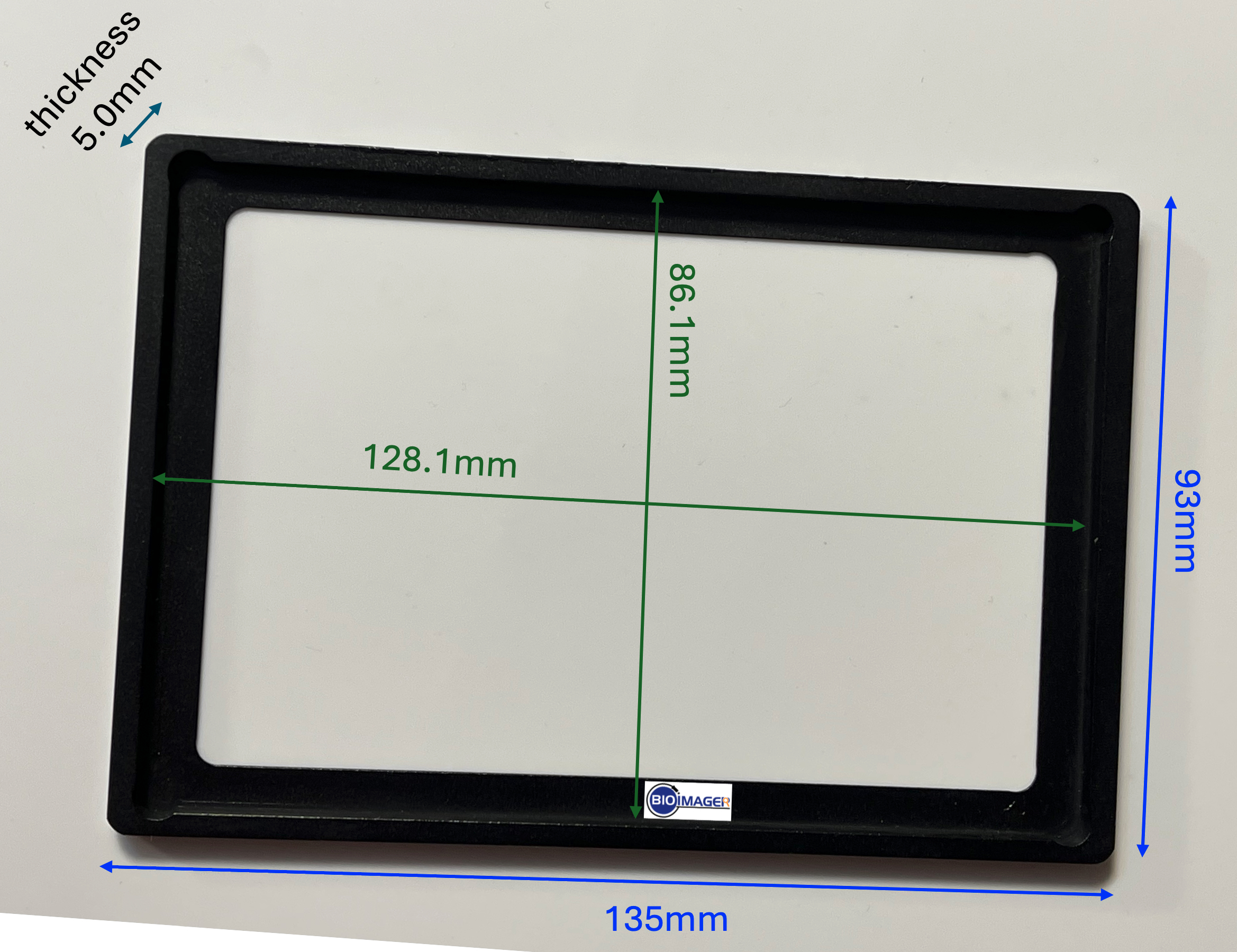

Well-plate Holder

External: 160x110mm,

Internal: 128x86mm

Application: all types of microwell plate, such 6-well, 12-well, 24-well, 48-well, 96-well, 384-well plate, plastic-bottom or glass-bottom.

Part#: BIM-XYWP1611

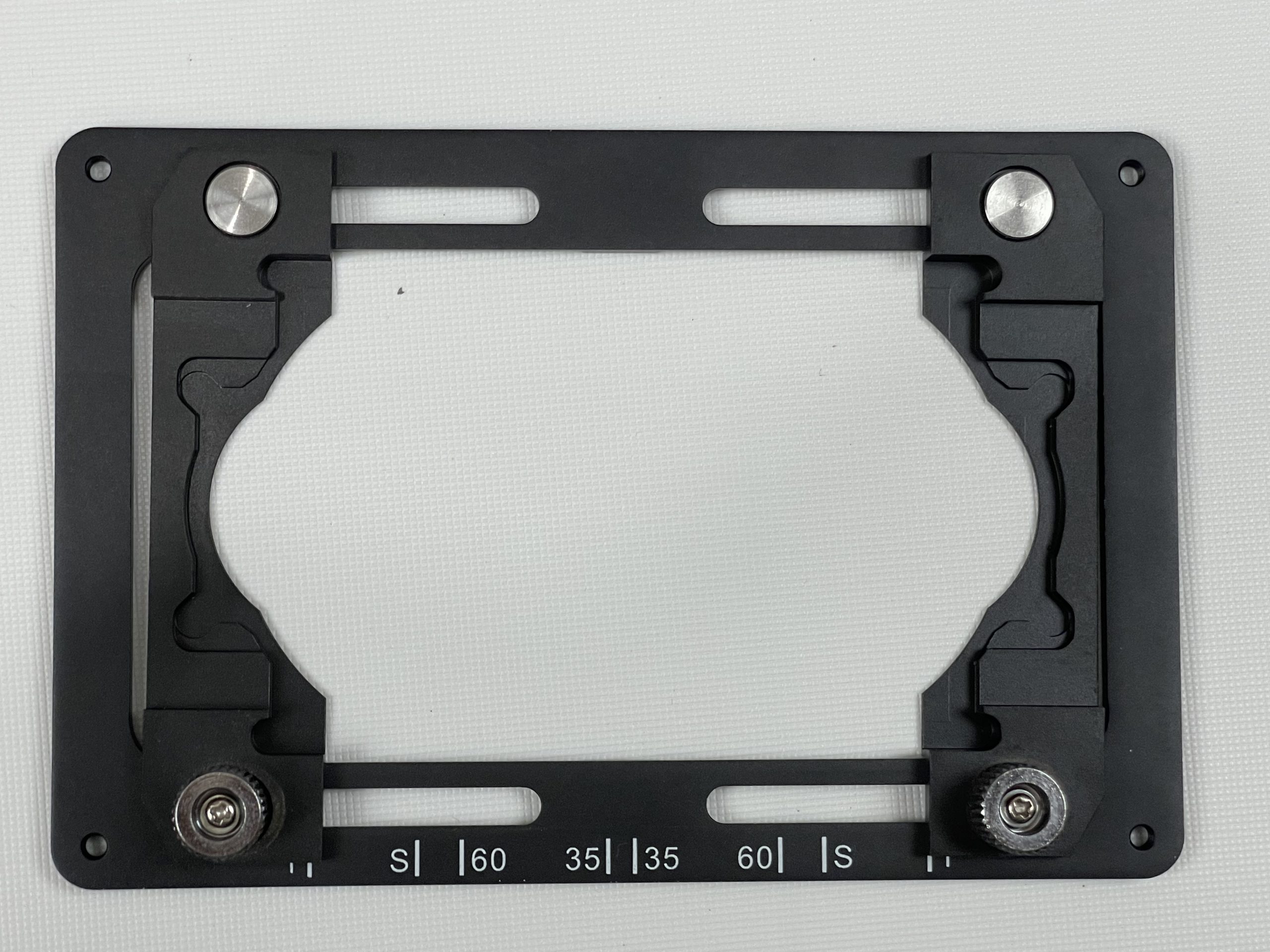

Universal Sample Holder

External: 128x86mm

Application: 35mm Pteridish, 60mm petr-dish, 25x75mm glass slide, T-25 Flasks.

It has marks of S, 35, 60, S and T accordingly for the above mentioned samples.


T-25 Flask Holder

Application: T-25 flasks of cell culture.

Part#: BIM-XYT25


T-75 Flask Holder

Application: T-75 flasks for cell culture.

Part#: BIM-XYT75

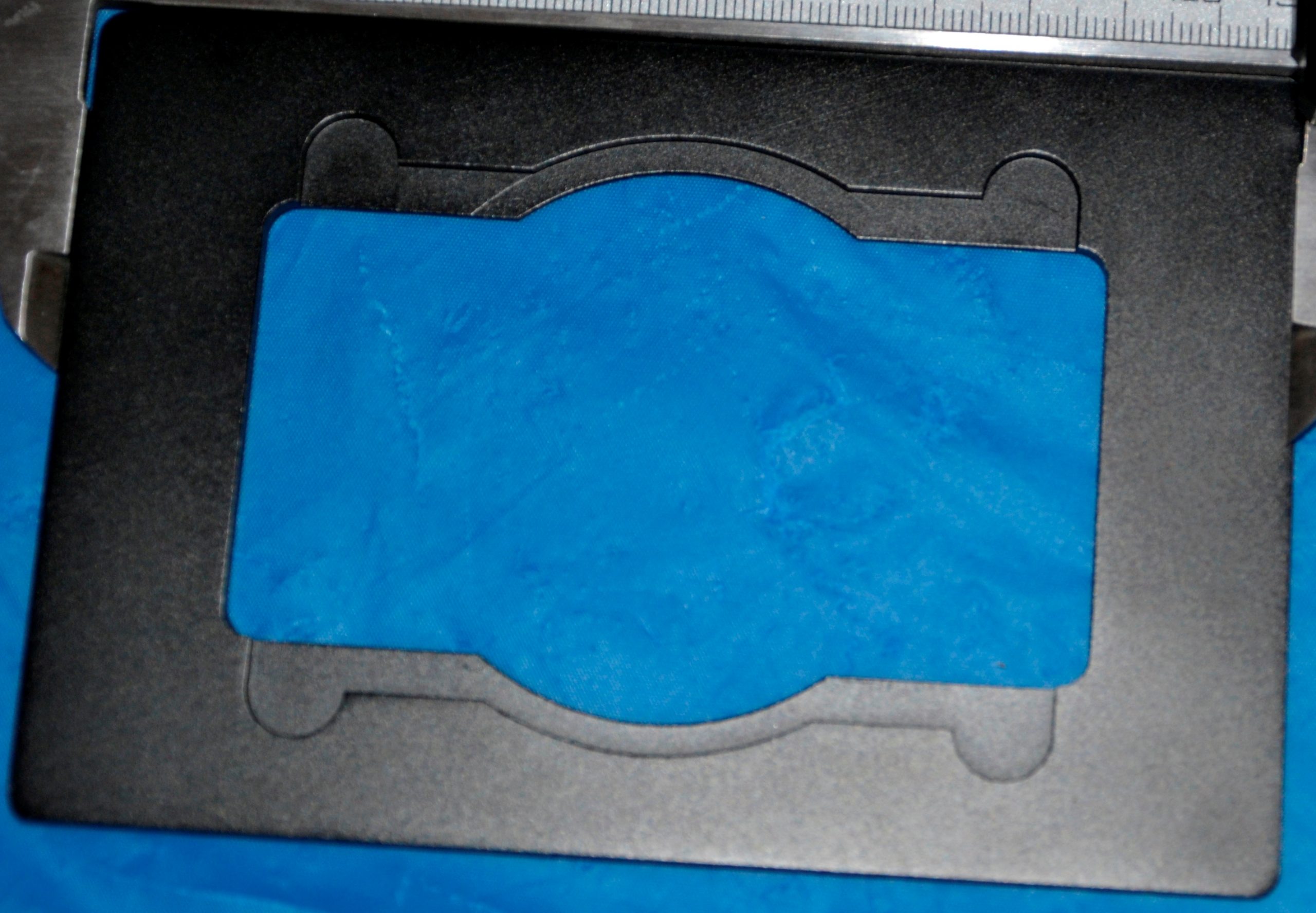

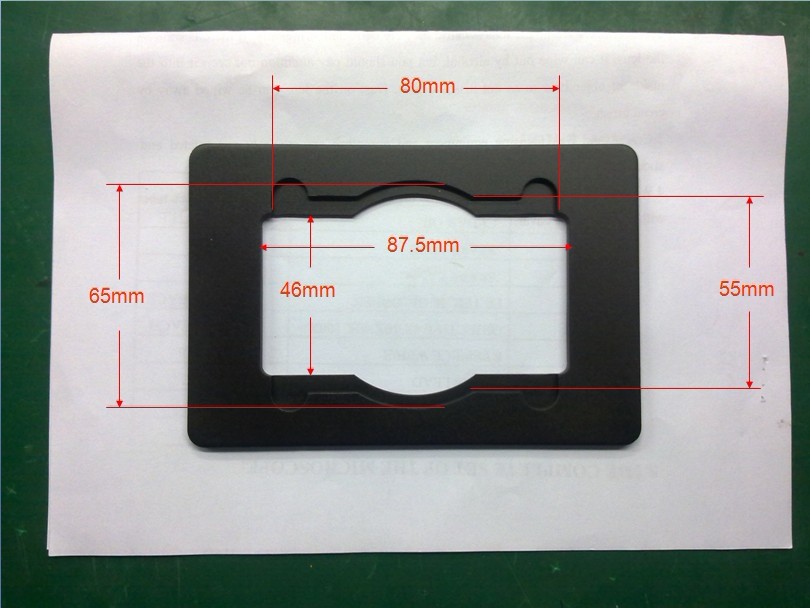

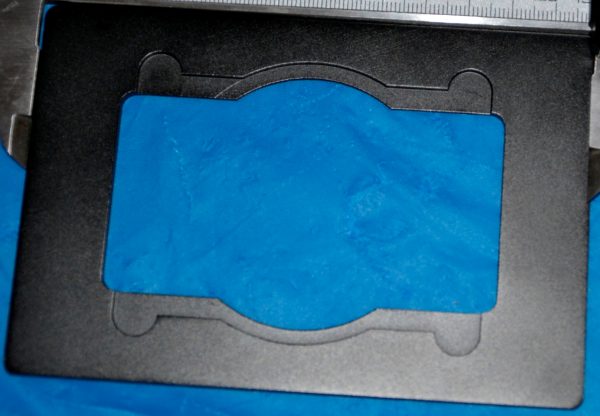

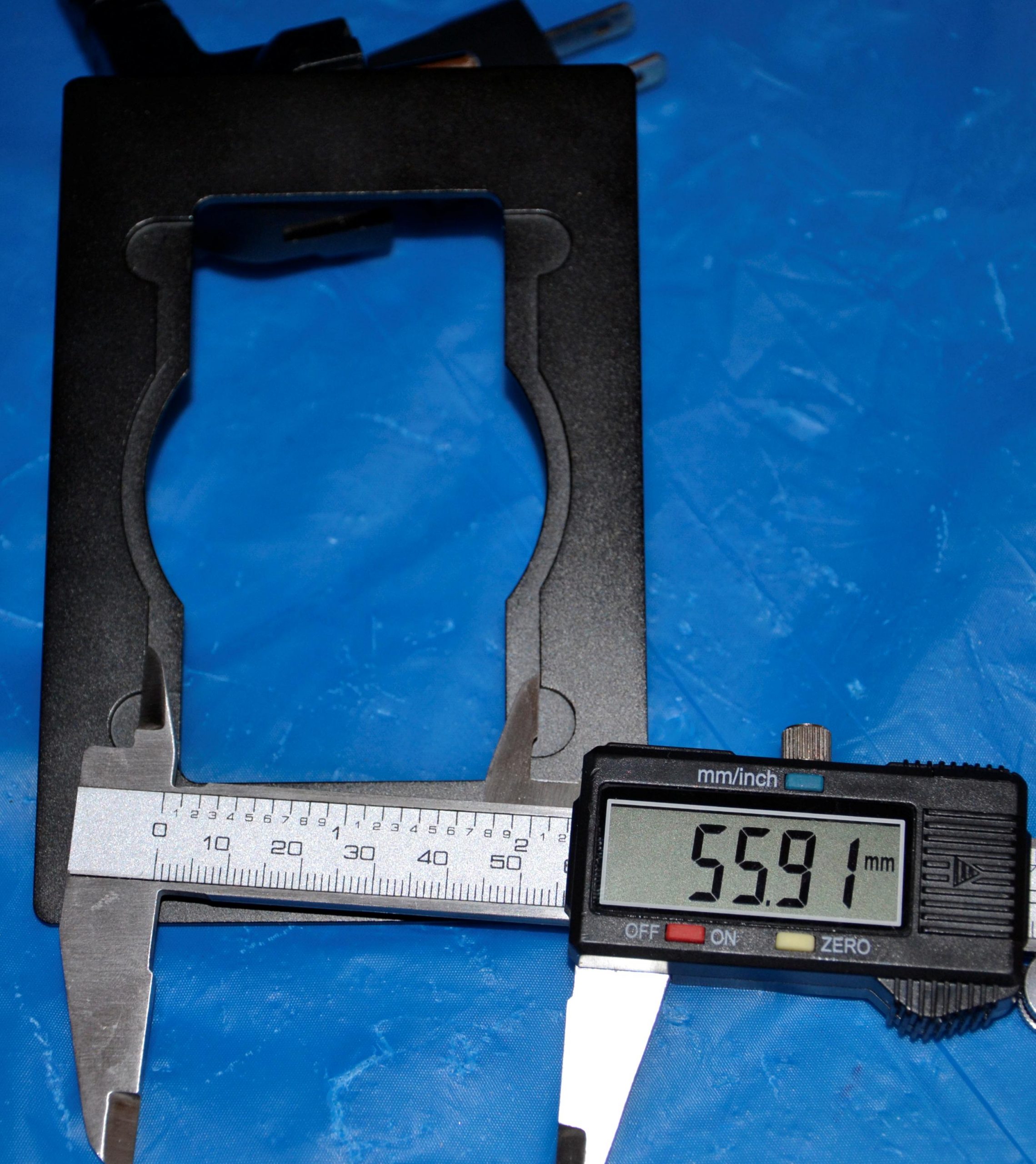

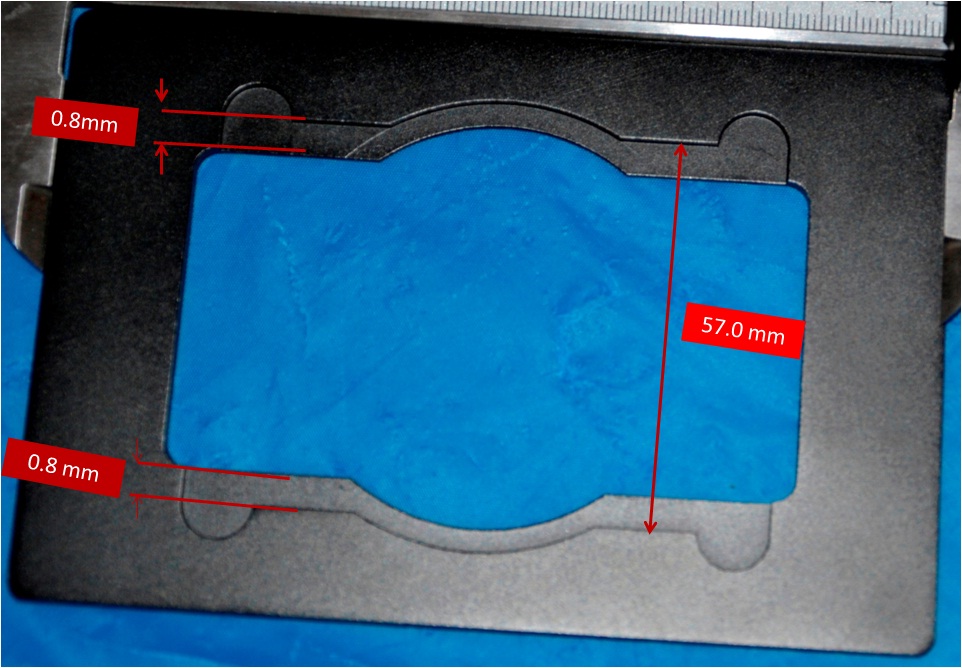

Terasakai Holder

Application: 60mm and 65mm Pteridish, 50×75 till 55mmx 80mm PDMS or custom samples, possibly T-25 flasks.


35mm Plate Holder

Application: 35mm glass or plastic plates or dishes.

Part#: BIM-XY35

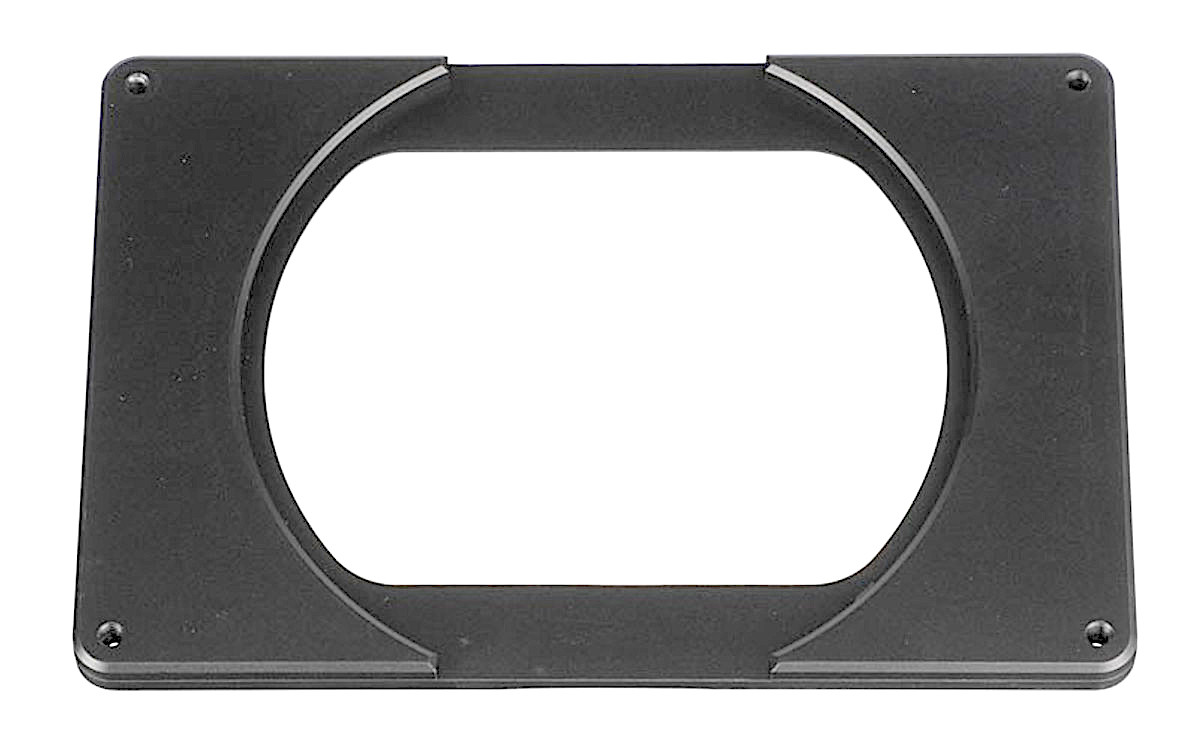

90mm Plate Holder

Application: 90mm glass or plastic plates or dishes.

Part#: BIM-XY90

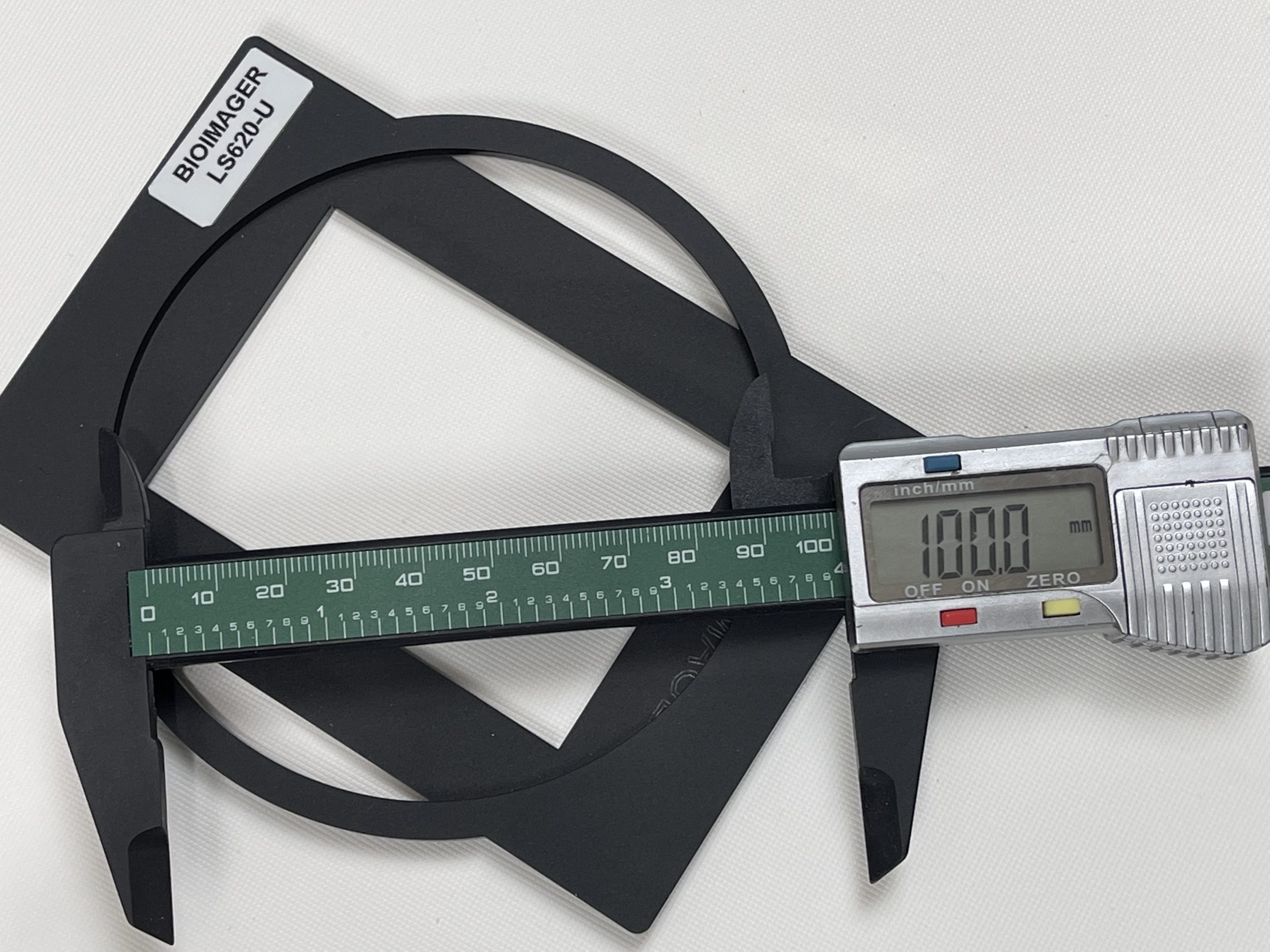

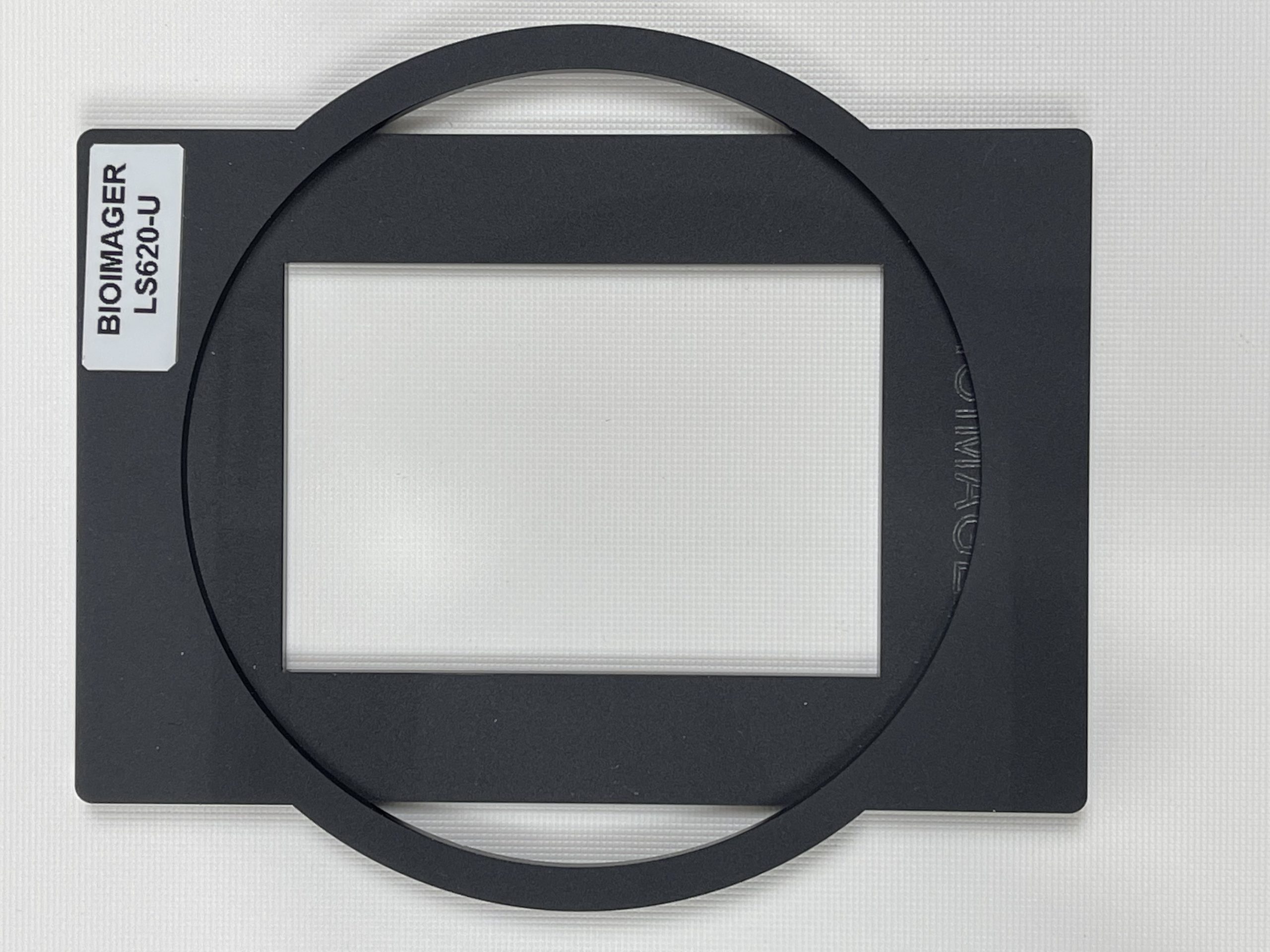

100mm Petridish Holder

Application: 100mm glass or plastic plates or dishes.

Part#: BIM-XY100

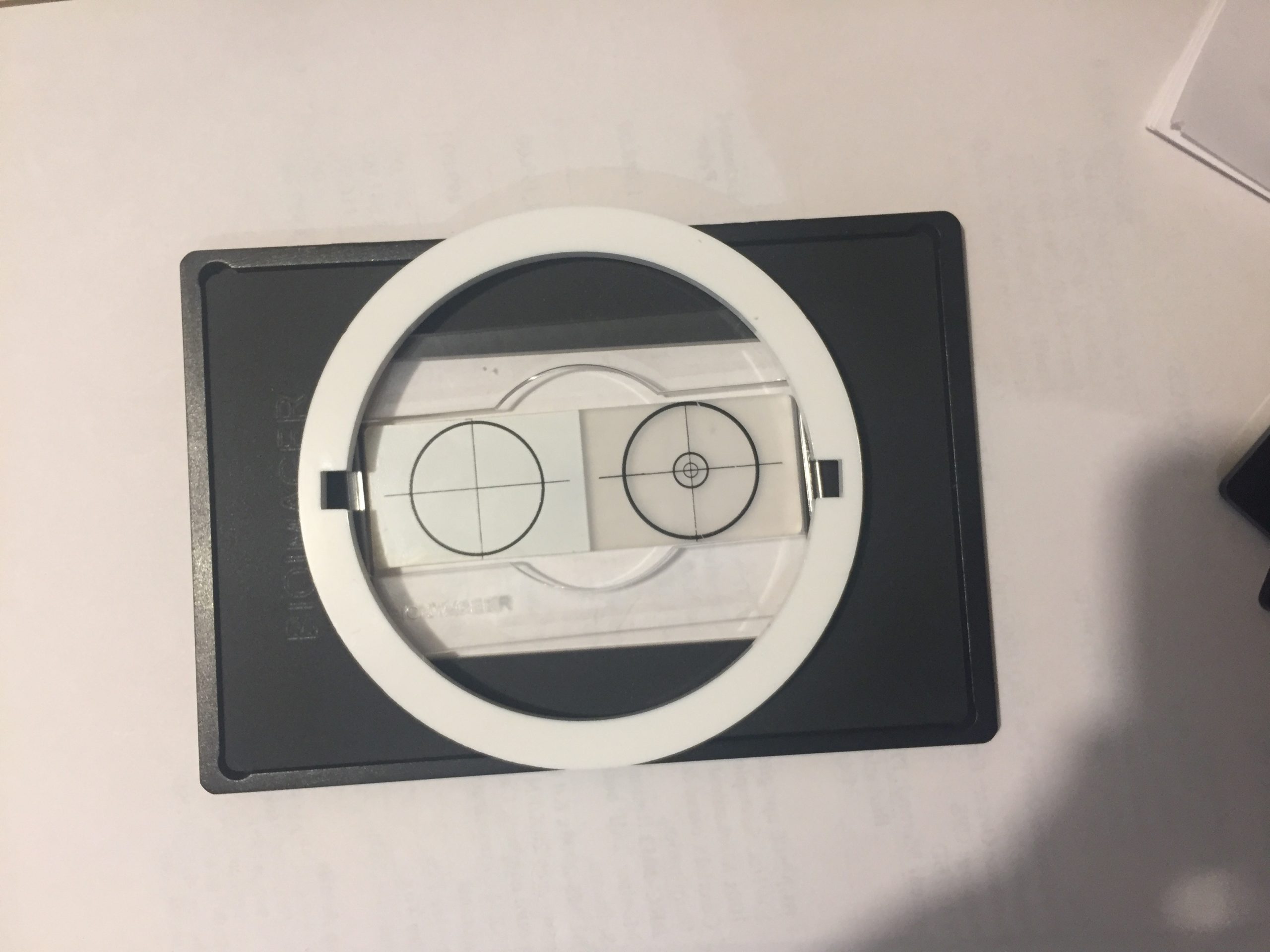

Customized Rotating Sample Holder

Application: Custom-made for all non-standard sizes, at any sizes you wish, rotatable, customized engraving name, label, marked, different and multiple dimensions at the same time, multi-layer. Contact us for customization.

Colors: black, white, transparent and custom colour.



Examples of our customers for this product:

  1. Florida Atlantic University, Department of BioMed, Boca Raton, FL, USA
  2. National Institutes of Health, Bethesda, MD, United States
