BSM350 Stereo Zoom Microscope


  • Binocular (Trinocular) head, inclined at 45°, rotatable 360°, Interpupilary Distance 54-76mm
  • Extra wide field eyepiece 10×/Φ23
  • Zoom objective 0.66×~5×, Zoom ratio 1:7.6
  • High resolution, Wide viewing field, Long working distance of 110mm
  • With Complete eyepieces, objectives and accessories, it is an ideal instrument for industry assembling, inspection and teaching field

$USD 888.00 $USD 1,000.00

Introduction

Stereo microscopes are also known as low magnification and dissecting microscopes. BSM350 Stereo Zoom Microscopes offer high quality 3D images throughout the zoom range. Optional eyepieces and auxiliary objectives expand magnification range and working distances.

BSM350 is a very popular zoom stereo microscope. Optional cold light and ring light can be chosen for this microscope. You can also choose trinocular head to add digital camera with the appropriate camera adapter. In summary BS-3500 gives many range of magnifications, working distances, photo options, accessories and is very convenient to use – no wonder it is popular!



Application area

BSM350 series stereo microscopes are of great value in a variety of applications such as school education, circuit board repair, circuit board inspection, surface mount technology work, electronics inspection, coin collecting, gemology and gemstone setting, engraving, repair and inspection of small parts.

Features

1. Updating optical design, large depth of field, stereoscopic effect.
2. Ergonomic design, sharp image display, wide viewing field and easy to operate.

3. Providing a wide viewing field of Φ23mm with the zoom ratio of 1:7.6.

4. Transmitting & Reflecting LED Illumination.

5. Ideal instrument in academic, medical and industrial field.

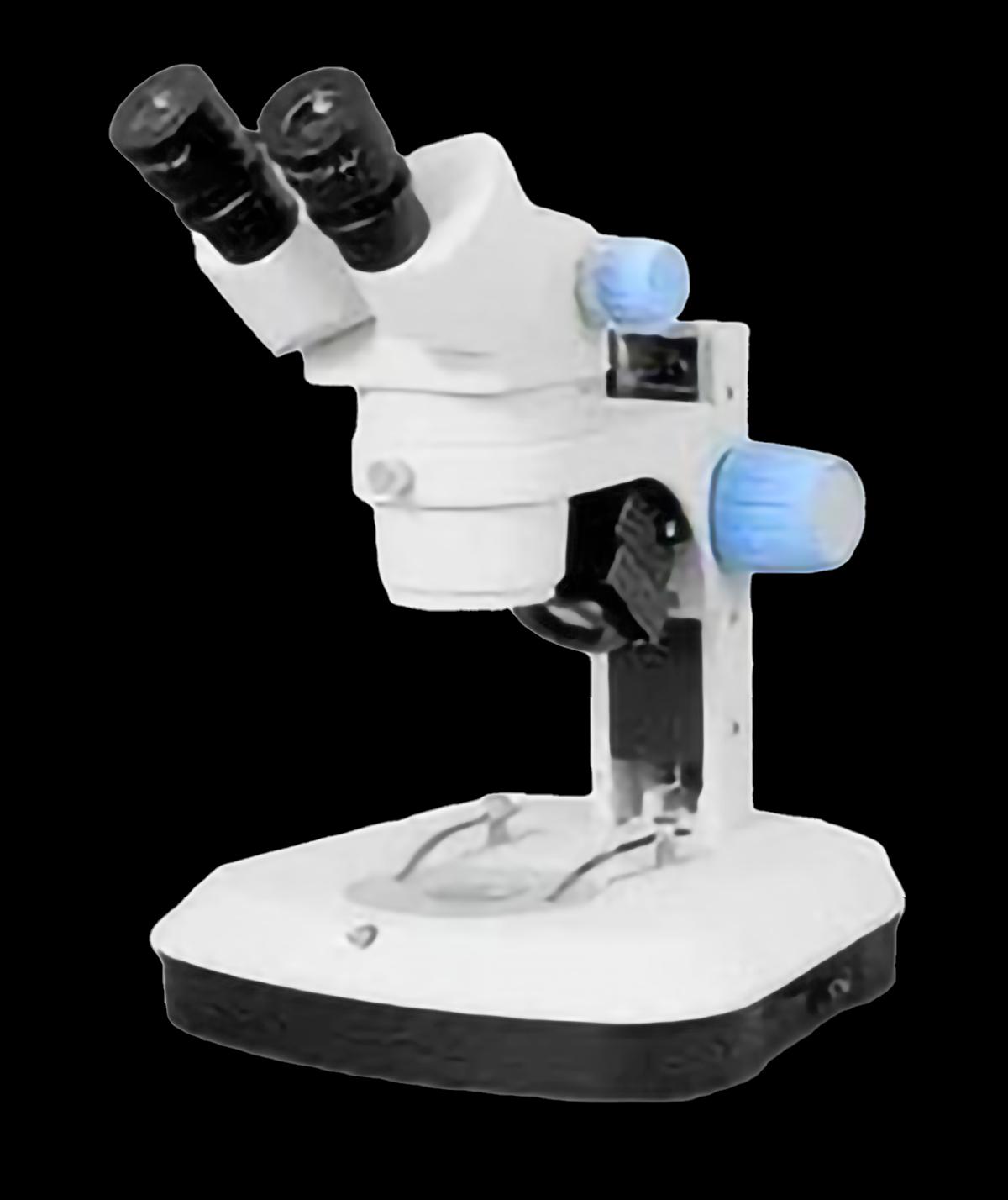

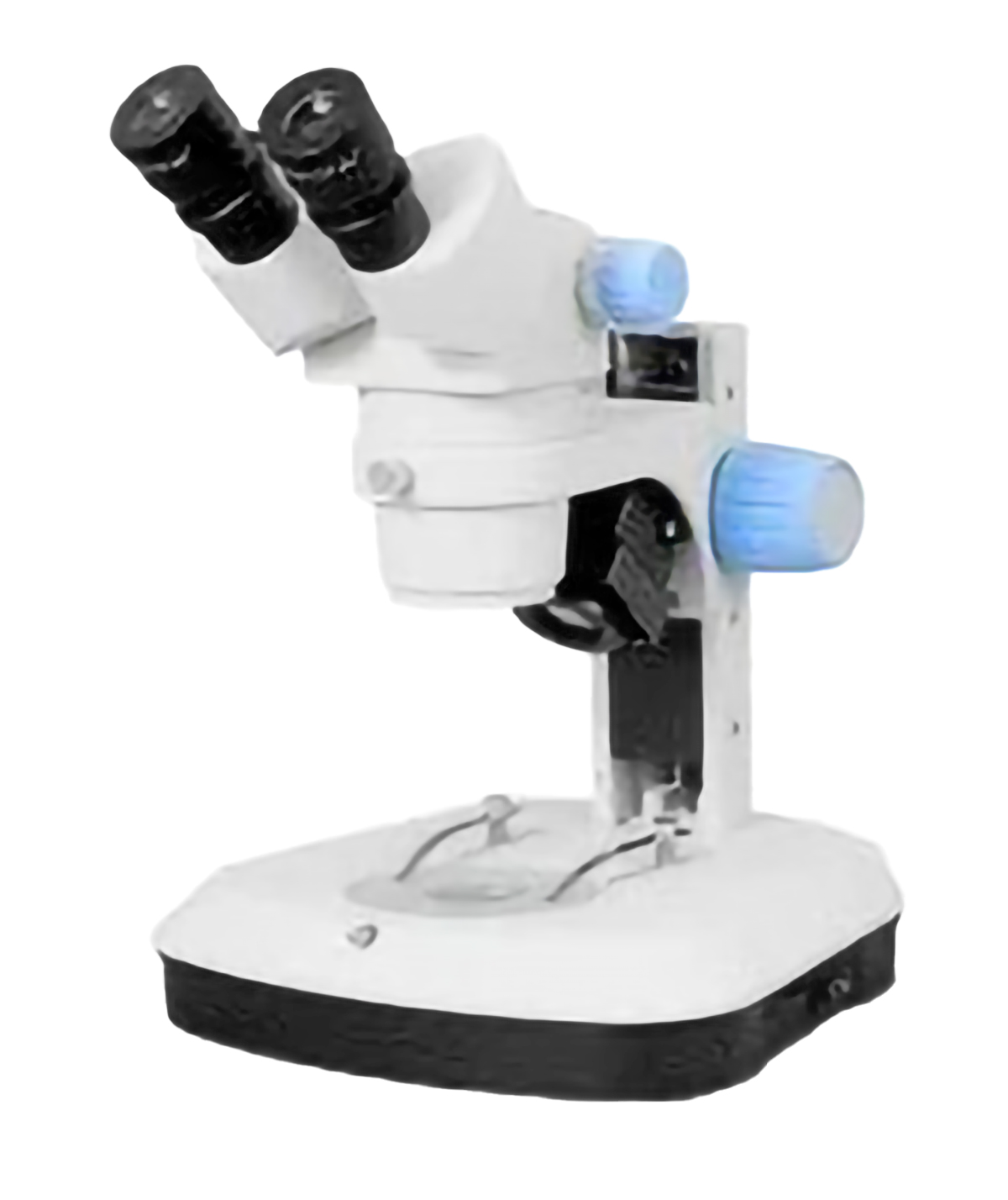

BSM350 Zoom Stereo Microscope

BSM350 Stereo Zoom MicroscopeBSM350 Stereo Zoom Microscope

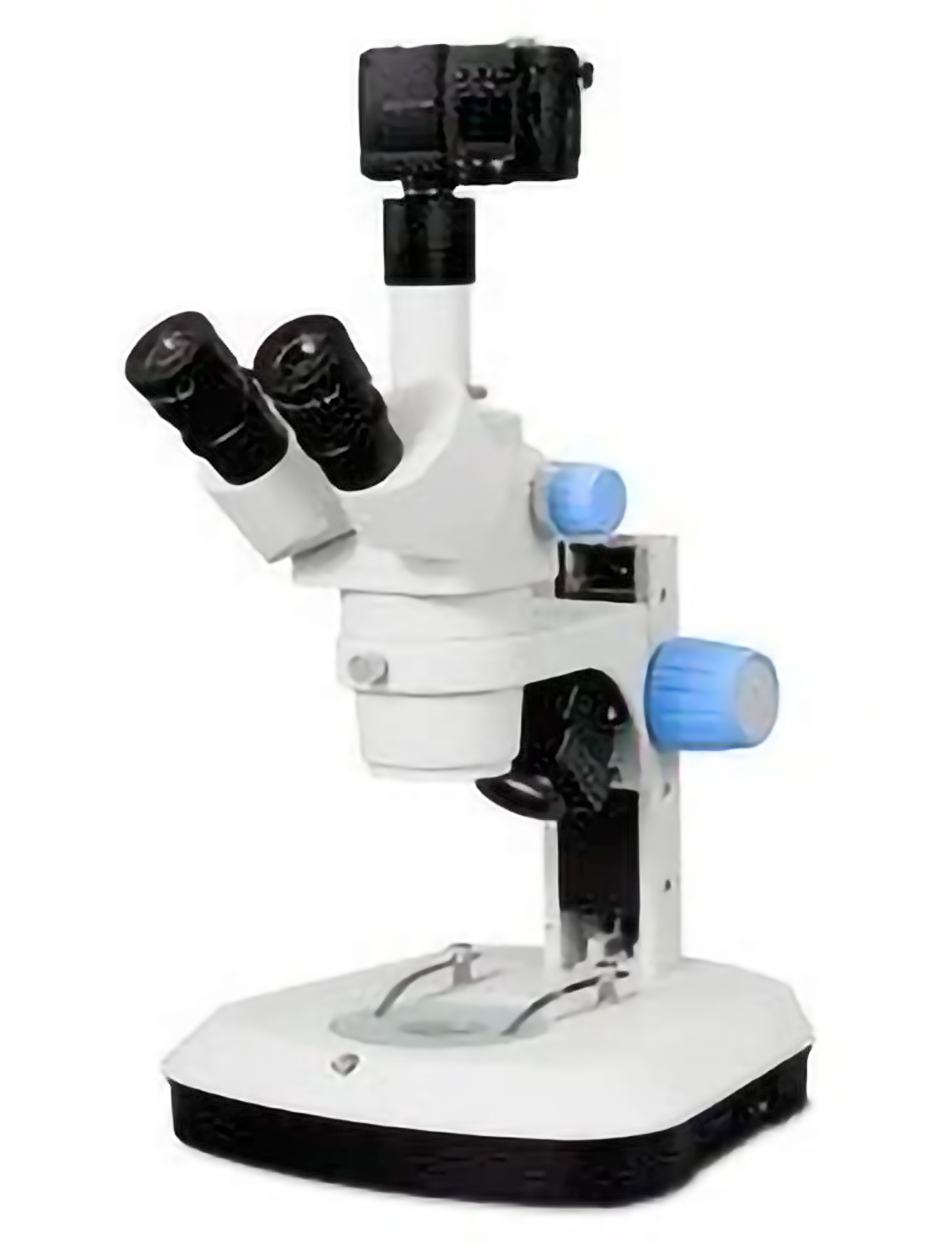

BSM350B with binocular headBSM350T with trinocular head

Note: The camera is not included with BS-3500T for standard configuration

A Quick Look:

  • Binocular (Trinocular) head, inclined at 45°, rotatable 360°, Interpupilary Distance 54-76mm
  • Extra wide field eyepiece 10×/Φ23
  • Zoom objective 0.66×~5×, Zoom ratio 1:7.6
  • High resolution, Wide viewing field, Long working distance of 110mm
  • With Complete eyepieces, objectives and accessories, it is an ideal instrument for industry assembling, inspection and teaching field

Introduction

Stereo microscopes are also known as low magnification and dissecting microscopes. BSM350 Stereo Zoom Microscopes offer high quality 3D images throughout the zoom range. Optional eyepieces and auxiliary objectives expand magnification range and working distances.

BSM350 is a very popular zoom stereo microscope. Optional cold light and ring light can be chosen for this microscope. You can also choose trinocular head to add digital camera with the appropriate camera adapter. In summary BS-3500 gives many range of magnifications, working distances, photo options, accessories and is very convenient to use – no wonder it is popular!

Features

1. Updating optical design, large depth of field, stereoscopic effect.

2. Ergonomic design, sharp image display, wide viewing field and easy to operate.

3. Providing a wide viewing field of Φ23mm with the zoom ratio of 1:7.6.

4. Transmitting & Reflecting LED Illumination.

5. Ideal instrument in academic, medical and industrial field.

Application area

BSM350 series stereo microscopes are of great value in a variety of applications such as school education, circuit board repair, circuit board inspection, surface mount technology work, electronics inspection, coin collecting, gemology and gemstone setting, engraving, repair and inspection of small parts.

BSM350 Stereo Zoom Microscope

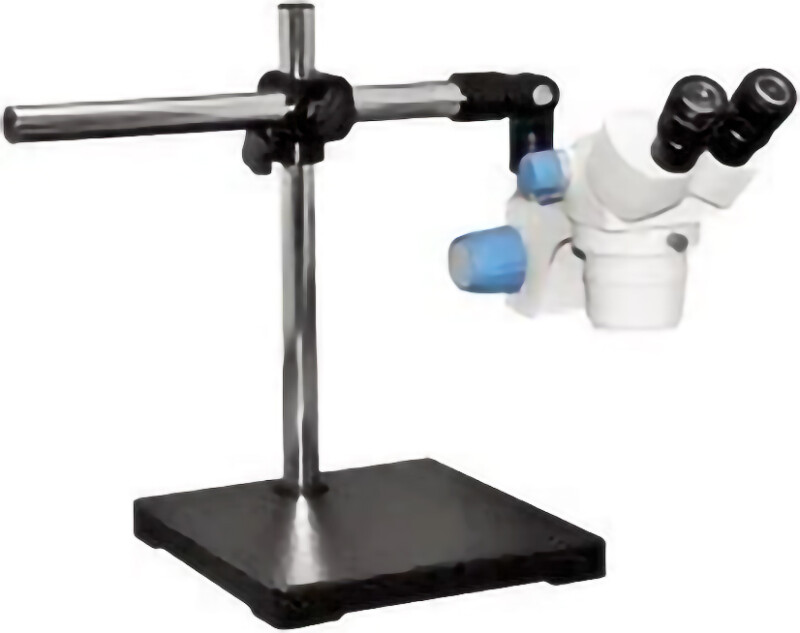

BSM350B with Universal Stand BSZ-F15

SKU: BSM350 Categories: ,
ModelBSM350BBSM350T
Optical systemGreenough
Viewing HeadBinocular head, inclined at 45°, rotatable360°, Interpupilary Distance 54-76mm
Trinocular head, inclined at 45°, rotatable360°, Interpupilary Distance, 54-76mm
Eyepiece10×/Φ23mm high point, diopter adjustable
20×/Φ13 mm
25×/Φ11 mm
10× Eyepiece with cross line
ObjectiveZoom objective0.66×~5×
Auxiliary objective0.5×, W.D. 189mm
0.75×, W.D. 122mm
2×, W.D. 36mm
Zoom Ratio1:7.6
Magnification6.6×~50×
Working Distance110mm
IlluminationLED Reflected illumination 3W
Halogen Reflected illumination 12V/15W
LED Transmission illumination 3W
Halogen Reflected illumination 12V/15W
AttachmentPhoto Attachment(For Nikon, Canon, Olympus, Sony DSLR)
0.35×(adjustable), 0.5×, 0.75× Video Attachment
Package & Dimension32cm*30cm*42cm, 1pc/carton, 6kg

Note: ● Standard Outfit, ○ Optional

Objective, Eyepiece Parameter List

Objectives0.5×0.75×1×(built in)
Working distance (mm)189mm122mm110mm36mm
10x EyepieceΦ23mmMagnification3.3~254.95~37.56.6~5013.2~100
Field dia. (mm)62.86~9.5741.90~6.3831.43~4.7815.71~2.39
20x EyepieceΦ13mmMagnification7~4610.5~6914~9228~184
Field dia.(mm)37.14~5.6524.76~3.7718.57~2.839.29~1.41
25x EyepieceΦ11mmMagnification8.8~57.513.1~86.317.5~11535~230
Field dia.(mm)31.43~4.7820.95~3.1915.71~2.397.86~1.20

BSM350 Zoom Stereo Microscope

BSM350 Stereo Zoom MicroscopeBSM350 Stereo Zoom Microscope
BSM350B with binocular headBSM350T with trinocular head

Note: The camera is not included with BS-3500T for standard configuration

Optional Accessories

BSM350 Stereo Zoom Microscope

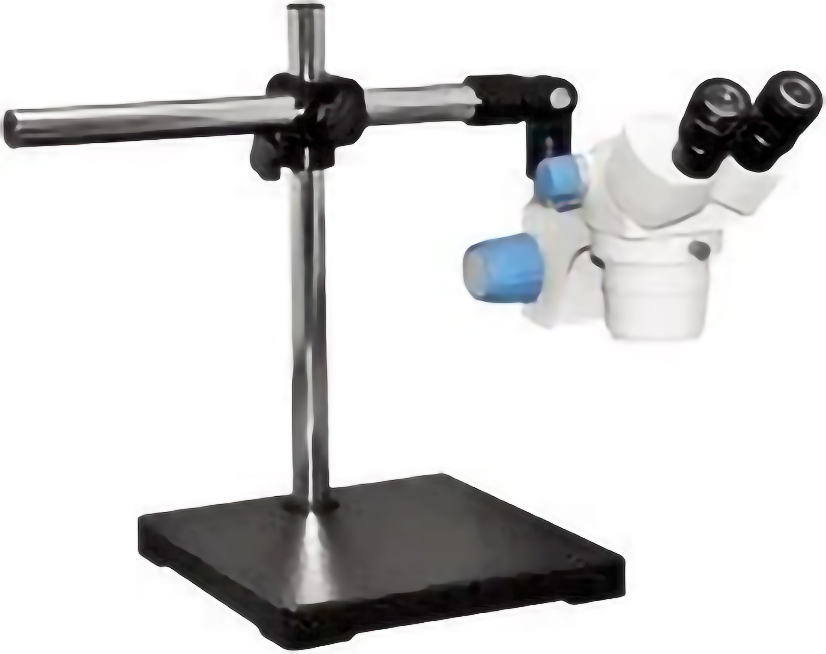

BSM350B with Universal Stand BSZ-F15

Parts name to review (a representative stereoscope):

Application area

BSM500 series stereo zoom microscopes with Infinity Parallel Optical System is of great value in a variety of applications such as Industrial, Medical and Scientific Research Areas, circuit board repair, circuit board inspection, surface mount technology work, electronics inspection, coin collecting, gemology and gemstone setting, engraving, and repair and inspection of small parts.

Sample Images

BSM500 Stereo Zoom MicroscopeBSM500 Stereo Zoom Microscope
BSM500 Stereo Zoom Microscope BSM500 Stereo Zoom Microscope
