Boom Stand Inspection Microscopes for SMD, SMT & MDM

Availability:

In stock


Compare
  • Stereo Zoom Microscope Body  with Trinocular Head
  • Eyepieces (Paired Super Wide Field 10X eyepiece – accepts a 25mm reticle)
  • Pole stand with rotatable and sliding Y-axis mirror in base with locking tension ring and Pseudo Dark eld LED transmitted light stand with a clear glass stage plate 9.5” pillar height and a 12” x 15” wide base
  • FC focusing Holder (Smooth precise focusing over 55mm of travel, with slip clutch and tension adjustment
  • Auxiliary Lens for added working distance ( MA517 –W.D. 150mm or MA794- W.D. 174mm)
  • FL151- Dual Arm Fiber Optic System for Incident Illumination
  • 6MP/60fps HDMI/USB 2.0 camera, with power transformer, USB cable, USB mouse, HDMI cable, SD card, application CD, 11.6 HDMI monitor

In stock

$3,010.00 $3,340.00

Surface-Mount Device (SMD) and Surface-Mount Technology (SMT) and Medical Device (MDM) Manufacturing Series

Boom Stand Zoom Stereo Microscope Inspection System is a complete microscope system comprised of:

  • Stereo Zoom Microscope Body (Binocular or Trinocular Zoom Stereo Microscope)
  • Eyepieces (Paired Super Wide Field 10X eyepiece – accepts a 25mm reticle)
  • Boom Stand (Provides complete exibility for horizontal and vertical adjustment, sturdy metal 40 lbs base for excellent stability with 20mm drop down post
  • F focusing Holder (Smooth precise focusing over 55mm of travel, with slip clutch and tension adjustment. Coarse focus focusing block with 84.2mm diameter opening accepts EMZ series)
  • Auxilliary Lens (MA517 –W.D. 150mm or MA794- W.D. 174mm)
  • MA964 or FT192 or FT191

Boom Stand Inspection System Zoom Stereo Microscopes

composed of the following items:

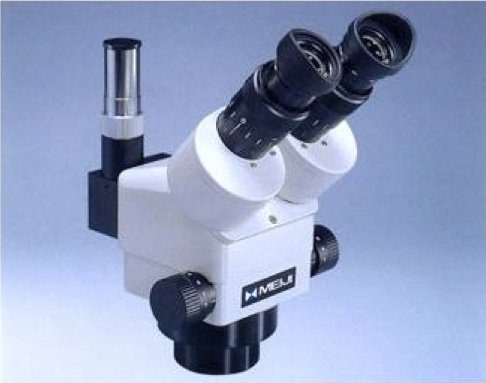

1. Zoom Stereo Microscope

Options:
ModelEMZ-5TREMZ-8TR
Zoom Range:0.7x-4.5x0.7x-4.5x
Zoom Ratio:6.5:16.5:1
Magnification (with 10x):7x-45x(90x with 20x eyepices)7x-45x(90x with 20x eyepices)
Working Distance:93mm104mm
Extended Magnification Range2.45x-20.5x2.45x-20.5x

2. Universal Boom Stand

Universal boom stand with 20 mm drop down post for F or FX block 400mm vertical post, S4100

3. Focus Block

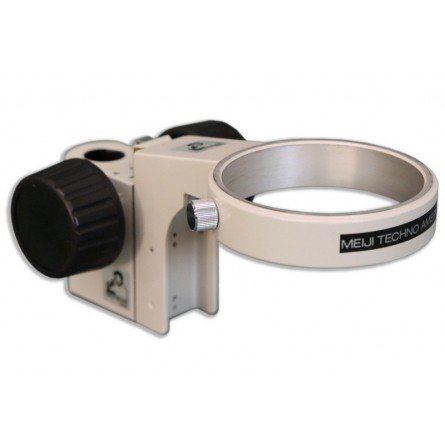

F Focus block with Coarse Focus

Focusing holder with rack and pinion mount that allows smooth, precise focusing over 55mm of travel. Coarse focus mechanism incorporates a slip clutch and tension adjustment. Fits 20mm diameter, 71mm long mounting post. The 84.2mm diameter opening accepts all EM Series stereo bodies.

4. Eyepieces

Superwidefield eyepieces (paired) to select:

5x7.5x10x / FN23(included)12.5x15x20x / FN11.5(included)30x/FN

5. Auxilliary lens:
Supplementary lens 0.5X, working distance becomes double

 6. Illumination

Ring LED for SMD Application (MA964)

  • 60 LED Array / 1860 cd (candela)
  • 10,000 hour rated lifetime
  • 53mm – 60mm inside diameter
  • CE approved

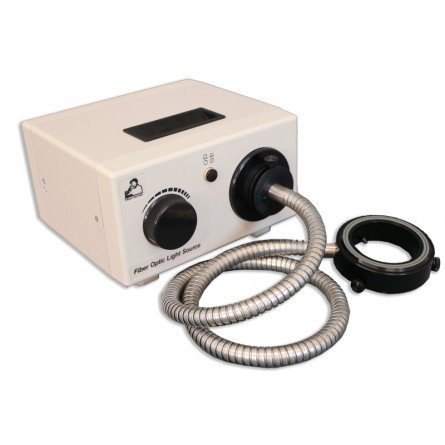

Annular Fiber Optic Illuminator for SMT, SMD or MDM Application (FT192)

  • Variable intensity
  • 150W quartz halogen light source
  • with 60mm I.D.
Dual arm 150W ber optic illumination system for SMD and MDM (FT191)

  • Variable intensity
  • 150W quartz halogen light source
  • with self supporting dual arm light guide

7. Accessories (optional)

a) C-Mount Adapter

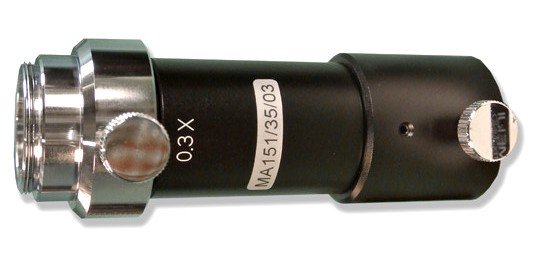

“C” Mount Adapter with 0.3X lens (Slips over existing 1/3″ CCD photo tube) (21mm reticle mount)

b) Calibration Slide & Reticle (optional)

ReticleCalibration slide
