Eyepieces (Paired Super Wide Field 10X eyepiece – accepts a 25mm reticle)
Pole stand with rotatable and sliding Y-axis mirror in base with locking tension ring and Pseudo Dark eld LED transmitted light stand with a clear glass stage plate 9.5” pillar height and a 12” x 15” wide base
FC focusing Holder (Smooth precise focusing over 55mm of travel, with slip clutch and tension adjustment
Auxiliary Lens for added working distance ( MA517 –W.D. 150mm or MA794- W.D. 174mm)
FL151- Dual Arm Fiber Optic System for Incident Illumination

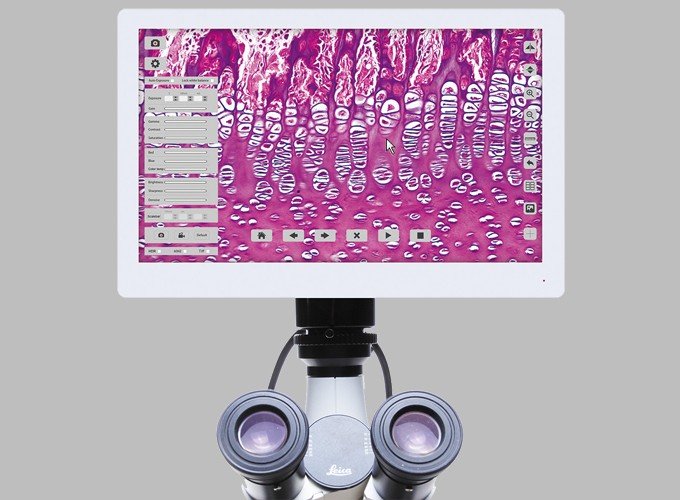

6MP/60fps HDMI/USB 2.0 camera, with power transformer, USB cable, USB mouse, HDMI cable, SD card, application CD, 11.6 HDMI monitor
In-Vitro Fertilization (IVF) zoom stereo miroscopes with high resolution live image
in full HDMI 11.8” monitor, 6MP camera and basic measurement software is a complete microscope system comprised of:
Stereo Zoom Microscope Body
Eyepieces (Paired Super Wide Field 10X eyepiece – accepts a 25mm reticle)
Pole stand with rotatable and sliding Y-axis mirror in base with locking tension ring and Pseudo Dark eld LED transmitted light stand with a clear glass stage plate 9.5” pillar height and a 12” x 15” wide base
FC focusing Holder (Smooth precise focusing over 55mm of travel, with slip clutch and tension adjustment
Auxilliary Lens for added working distance ( MA517 –W.D. 150mm or MA794- W.D. 174mm)

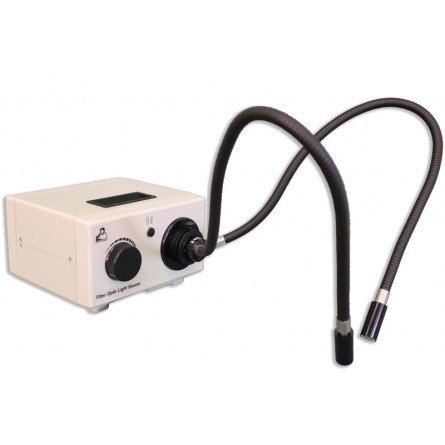

FL151- Dual Arm Fiber Optic System for Incident Illumination

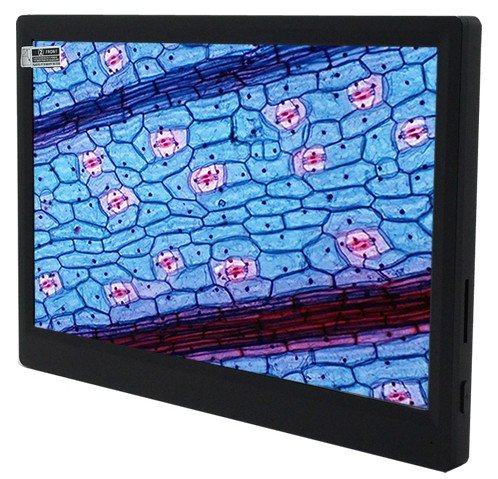

BRC-6012 – 6MP/60fps HDMI/USB 2.0 camera, with power transformer, USB cable, USB mouse, HDMI cable, SD card, application CD, 11.6 HDMI monitor
In-Vitro Fertilization (IVF) zoom stereo microscopes with high resolution live image
in full HDMI 11.8” monitor, 6MP camera and basic measurement software is a complete microscope system comprised of:
Stereo Zoom Microscope Body
Eyepieces (Paired Super Wide Field 10X eyepiece – accepts a 25mm reticle)
Pole stand with rotatable and sliding Y-axis mirror in base with locking tension ring and Pseudo Darkfield LED transmitted light stand with a clear glass stage plate 9.5” pillar height and a 12” x 15” wide base
FC focusing Holder (Smooth precise focusing over 55mm of travel, with slip clutch and tension adjustment
Auxiliary Lens for added working distance ( MA517 –W.D. 150mm or MA794- W.D. 174mm)
FL151- Dual Arm Fiber Optic System for Incident Illumination
BRC-6012 – 6MP/60fps HDMI/USB 2.0 camera, with power transformer, USB cable, USB mouse, HDMI cable, SD card, application CD, 11.6 HDMI monitor

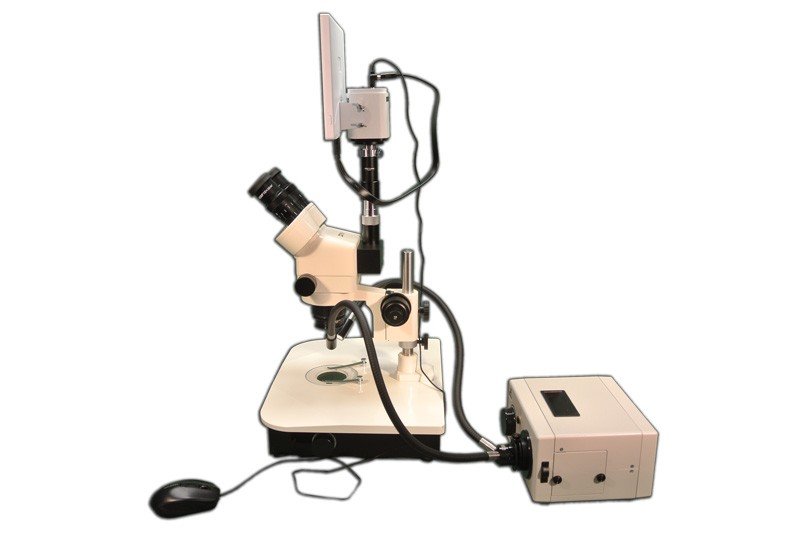

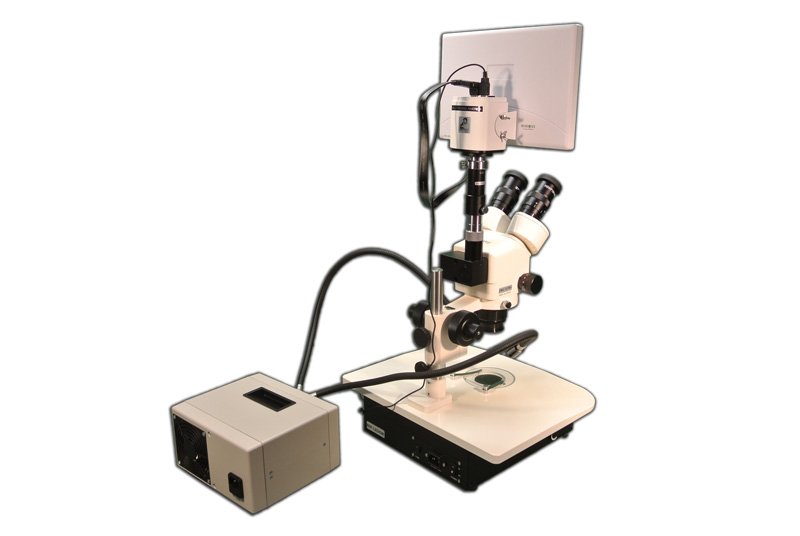

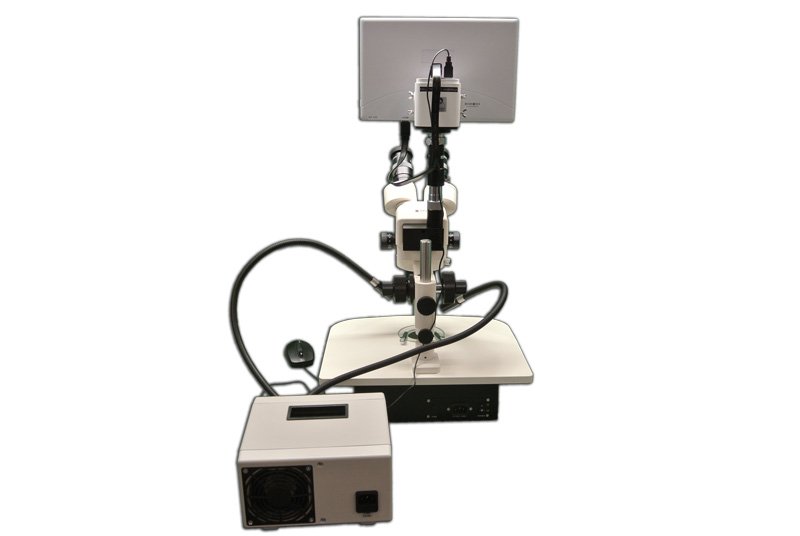

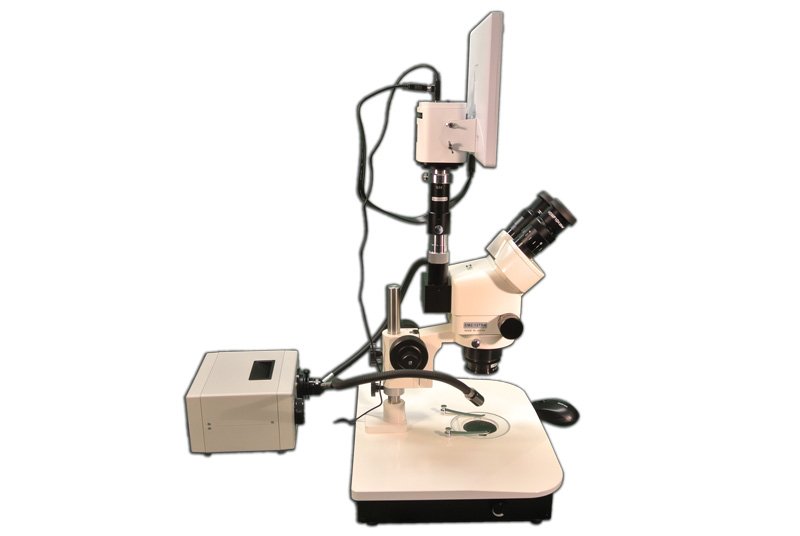

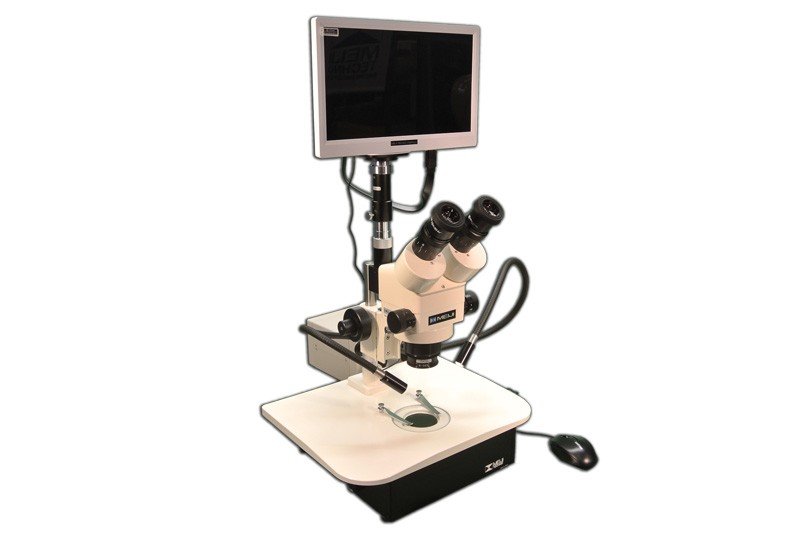

IVF zoom trinocular stereo microscope, complete set comprises
composed of the following items:
1. Zoom Stereo Microscope
Options:
Model

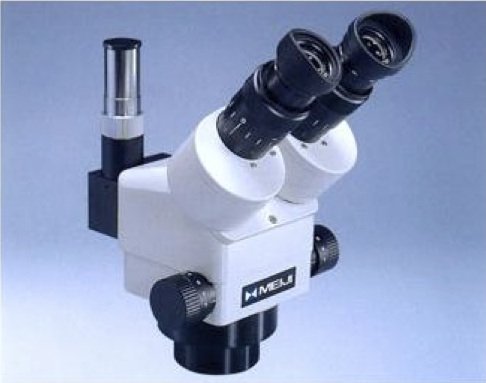

EMZ-13TR

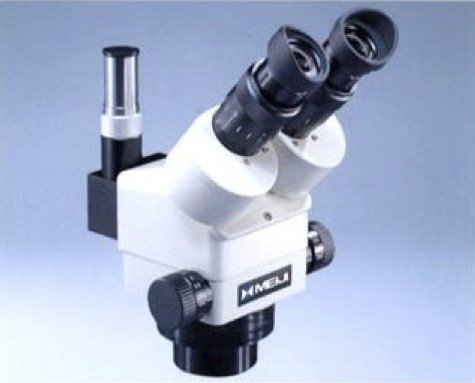

EMZ-8TR
Zoom Range:
1x-7x
0.7x-4.5x
Zoom Ratio:
7:1
6.5:1
Magnification (with 10x):
10x-70x
7x-45x
Working Distance:
90mm
104mm
Extended Magnification Range
3x-420x
WD: 32mm-230mm
2.45x-20.5x
WD: 57mm-250mm
2. Stand

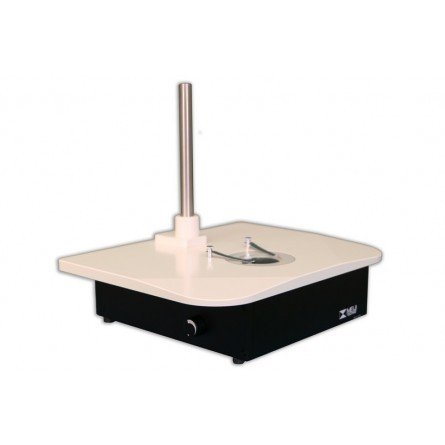

Pole type stand with rotatable and sliding Y-axis mirror in base with locking tension ring and “pseudo” LED transmitted light dark eld illumination, with variable intensity controls, clear glass stage plate, two stage clips. Wide ergonomic base dimensions is 12”(Length) x 15” (Wide), (9.5” pillar height, 20mm diameter pole) Integrated automatic voltage sensing power supply 115/240 volts
3. Focus Holder
FC Coarse and Fine Focus Block/Holder
Focus holder with coaxial coarse and fine focus for high magnification applications where precise fine focus adjustment is required. Rack and pinion mount allows smooth, precise focusing over 33mm of travel. Coarse and fine focus mechanism incorporates a slip clutch and tension adjustment. Fits 20mm diameter, 82mm long mounting post (FC11 adapter is required for mounting to the 71mm long posts on our S-4100, S-4200, and S-4500 stands). The 84.2mm diameter opening accepts all EM Series stereo bodies.
