BMU600L Digital LCD Metallurgical Microscope renovated the traditional way of microscopic observation and thoroughly resolves the fatigue for a long time working. It combines an 8inches LCD screen and a metallurgical microscope to generate genuine photos and videos. Eyepieces and LCD Screen can both be used for convenient and comfortable viewing by individuals and share with groups alike. It is also feature the latest 5 Mega Pixels digital imaging microscopy techniques for quick and easy snapshots or videos.

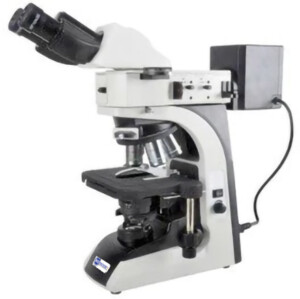

BMU400RF/TRF Upright Metallurgical Reflected/Transmitted BF/DF Microscope
BMU600LM Metallurgical Upright Transmitted/Reflected LCD Measuring Scope
BMU600L Metallurgical Upright Transmitted LCD Microscope
Original price was: $USD 4,500.00.$USD 2,999.00Current price is: $USD 2,999.00.
-33%- 9 Inches HD LCD Screen, Resolution is 1280×800
- With a 5 Mega Pixel high resolution camera
- Eyepiece: Wide Field Eyepiece WF10X/18
- Infinity Plan Achromatic Objective: 4×/0.1/∞/- WD25.4mm, 10×/0.25/∞/- WD11.0mm, 20×/0.40/∞/- WD6.0mm, 40×/0.60/∞/0 WD3.7mm
- Special designed metallurgical analysis optical system and an 9” LCD screen, images videos can be share with other people

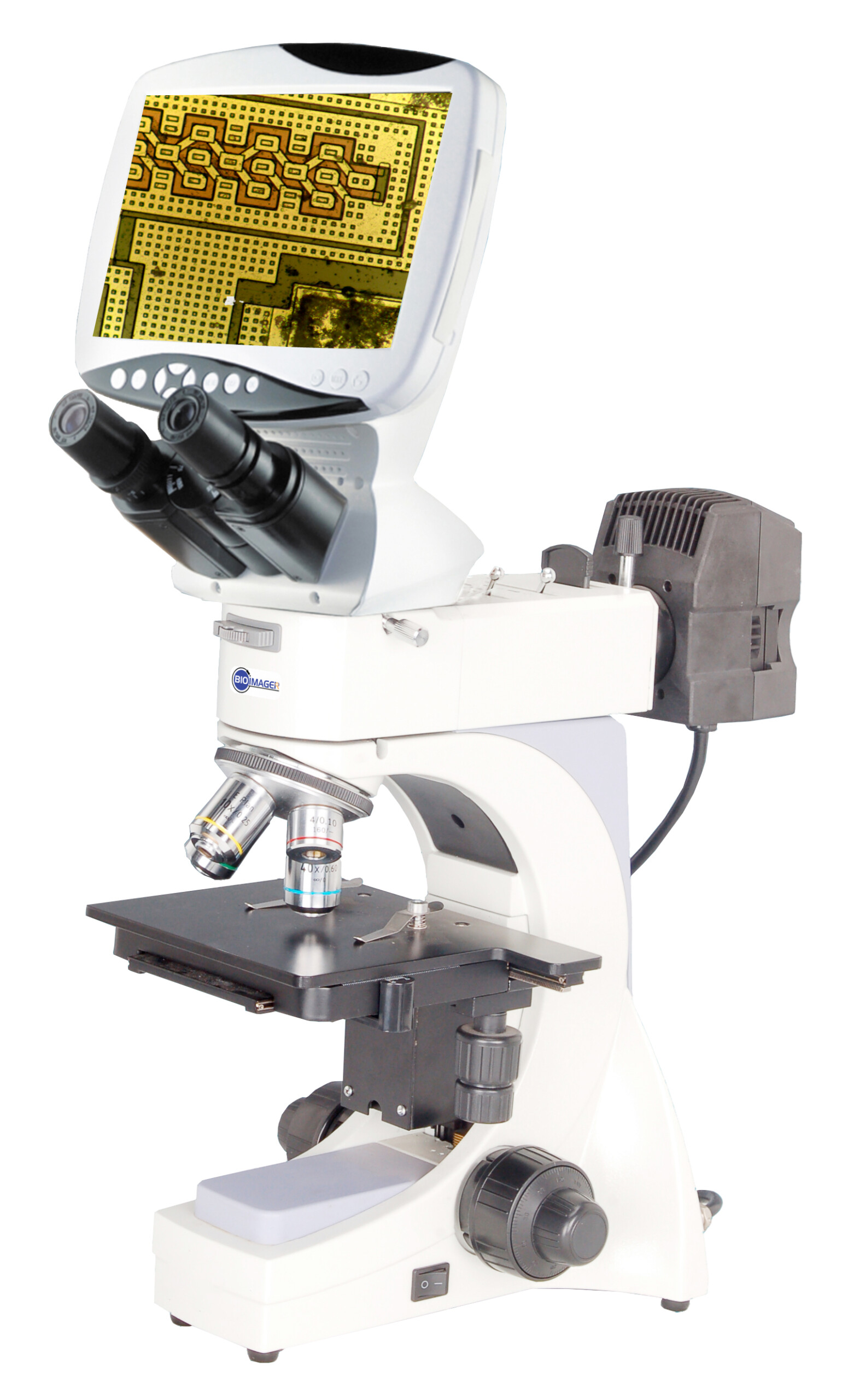

BMU600L Metallurgical Upright Transmitted LCD Microscope
- Special designed metallurgical analysis optical system and an 9” LCD screen, images and videos can be share with other people.
- 5Mega Pixel high resolution camera with real time imaging display and video recording function.
- With a high definition 9” LCD screen.
- 12VDC power supply safety and reliability of low voltage (Input Voltage 90-240V).
- 4G SD Card for storage and printing.

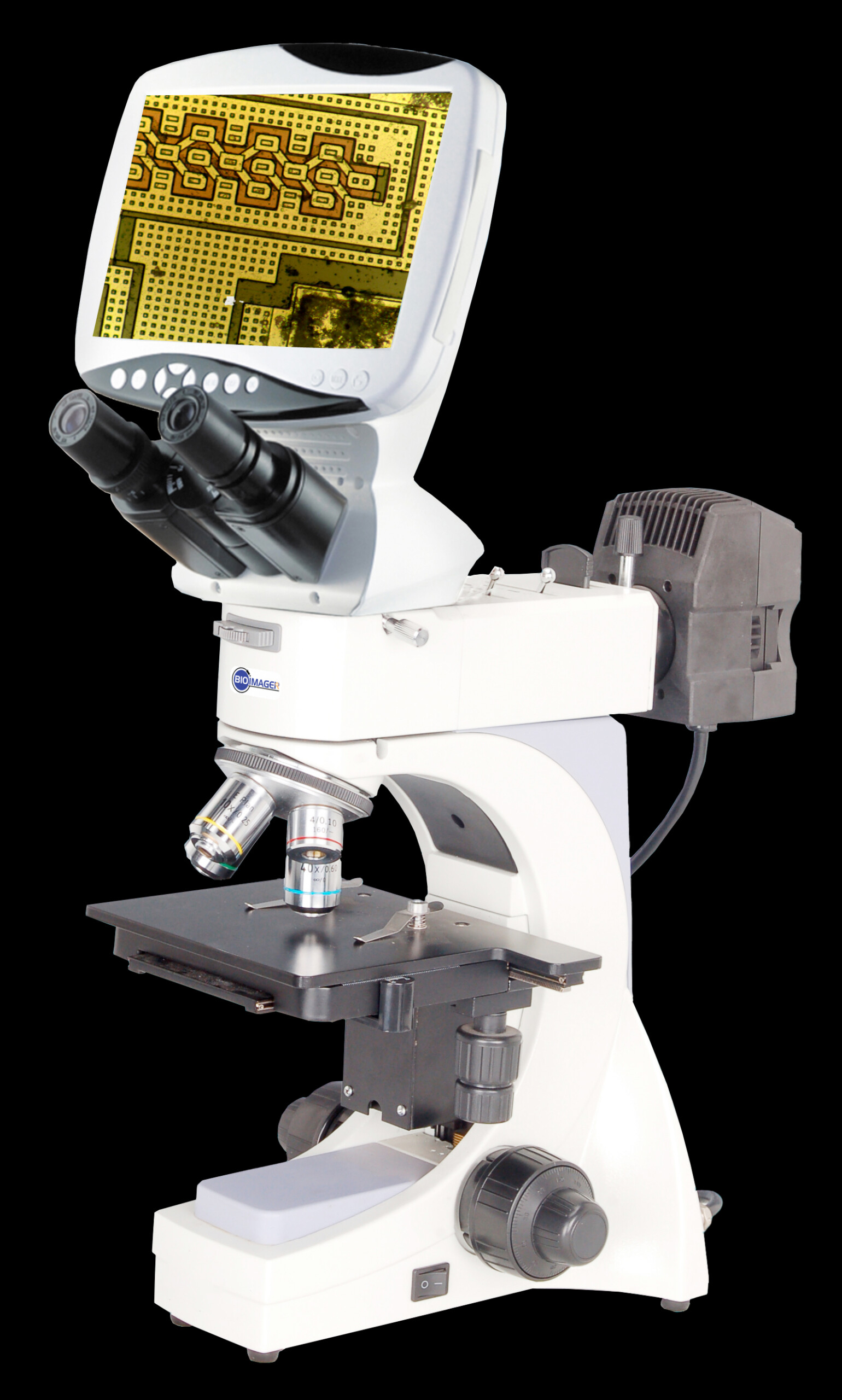

BMU600L Metallurgical Upright Transmitted LCD Microscope
Introduction
BMU600L Digital LCD Metallurgical Microscope renovated the traditional way of microscopic observation and thoroughly resolves the fatigue for a long time working. It combines an 8inches LCD screen and a metallurgical microscope to generate genuine photos and videos. Eyepieces and LCD Screen can both be used for convenient and comfortable viewing by individuals and share with groups alike. It is also feature the latest 5 Mega Pixels digital imaging microscopy techniques for quick and easy snapshots or videos.
Features
1. Special designed metallurgical analysis optical system and a 9″ LCD screen, images and videos can be share with other people.
2. A 5Mega Pixel high resolution camera with real time imaging display and video recording function.
3. With a high definition 9″ LCD screen.
4. A 12VDC power supply safety and reliability of low voltage (Input Voltage 90-240V).
5. USB Cable for Transferring Images to a PC.
6. SD Card slot for storage, archiving and printing, optional memory cards (Maximal Storage Capacity is 4GB).
7. Multi-function top LED ring illuminating system, four-region can be control separately.
Application
With the specially designed metallurgical analysis optical system, it also features of easy observation, intelligence and convenient operation, powerful functions and economy, it is widely used for PCB board, LCD display and metal structure observation and inspection.
Specification
| Digital Parts | Resolution | 5Mega Pixel | ||
| Photo Resolution | 2560×1920 | |||
| Video Resolution | 1280×720/30fps | |||
| Sensor Size | 1/2.5 Inches | |||
| LCD Screen | 9 Inches HD LCD Screen, Resolution is 1280×800 | |||
| Video Output | AV Output (NTSC/PAL) | |||
| Data Output | USB2.0 | |||
| Menu Language | Chinese / English | |||
| Storage | SD Card Slot with Optional Memory Cards (Maximal Storage Capacity is 4 GB) | |||
| Scene Mode | Standard / Softness / Vivid | |||
| Exposure Mode | Auto Exposure | |||
| Date Mode | Year, Month, Day, Hour, Minute | |||
| Optical Parts | Viewing Head | Seidentopf Binocular Head, 30° Inclined, Interpupillary Distance 55-75mm | ||
| Eyepiece | Wide Field Eyepiece WF10X/18 | |||
| Objective | Infinity Plan Achromatic | 4×/0.1/∞/- WD25.4mm | ||
| 10×/0.25/∞/- WD11.0mm | ||||
| 20×/0.40/∞/- WD6.0mm | ||||
| 40×/0.60/∞/0 WD3.7mm | ||||
| Nosepiece | Quadruple Nosepiece | |||
| Stage | Double Layers Mechanical Stage 150mmX140mm / 75mmX50mm | |||
| Focusing System | Coaxial Coarse/Fine Focus System | |||
| Illumination | Kohler Illumination, Epi-illuminator with Iris Aperture Diaphragm and Iris Field Diaphragm, 6V/20W Halogen Lamp, Brightness Adjustable | |||
| Filters | Blue, Green, Yellow & Ground Glass | |||
| Optional Parts | Eyepiece | WF8×/18 | ||
| WF10×/18 with 0.1mm Micrometer & Cross Hair | ||||
| WF12.5×/15 | ||||
| Objective | Infinity Plan Achromatic | 40×/0.65/∞/- WD0.78mm | ||
| 50×/0.75/∞/- WD0.32mm | ||||
| 80×/0.90/∞/- WD0.2mm | ||||
| 100×/0.90/∞/0 WD0.7mm | ||||
| Illumination | Diascopic Illumination, 6V/20W Halogen Lamp, Brightness Adjustable | |||
| Polarization Set | Simple Polarization
Attachment |
|||
Sample Images

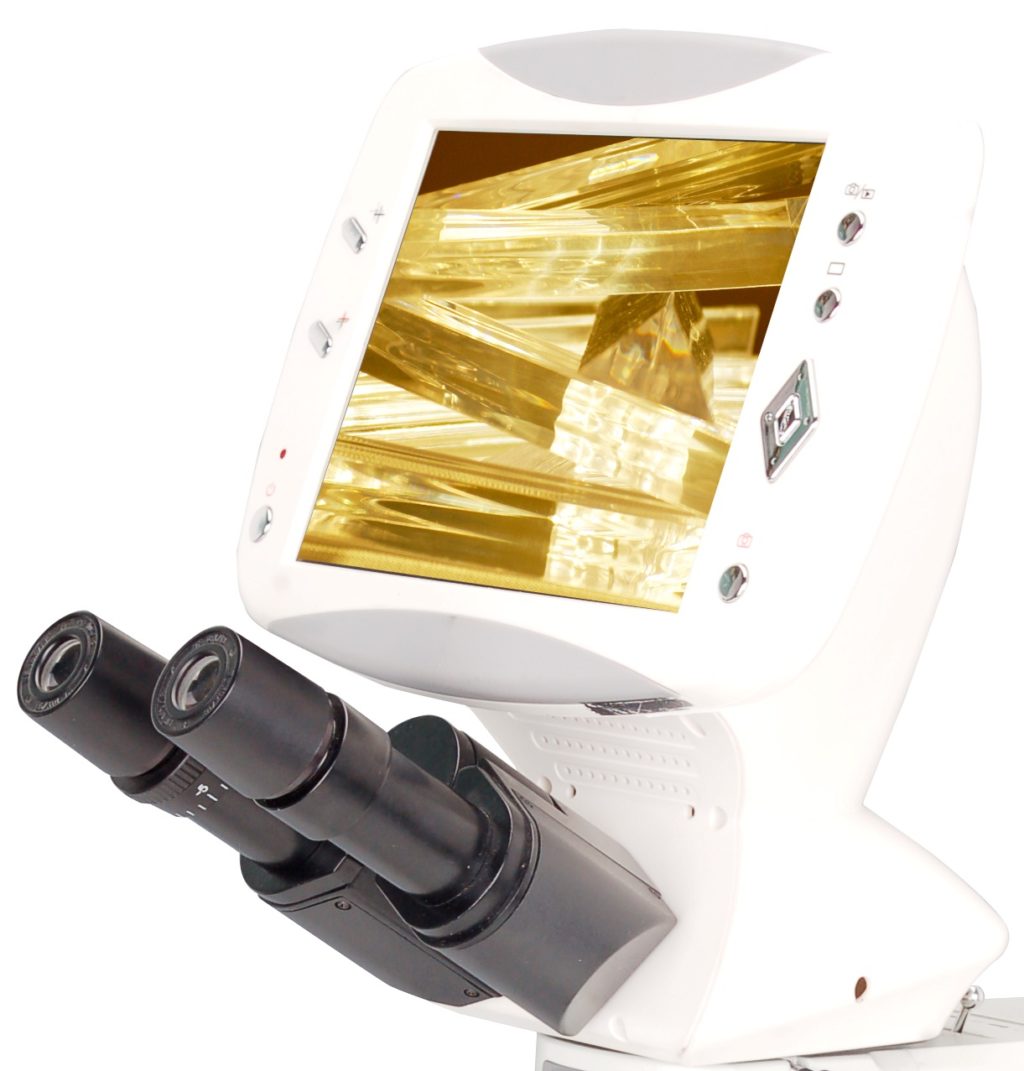

9″ HD LCD with 1280×800 resolution & Built-in Camera
