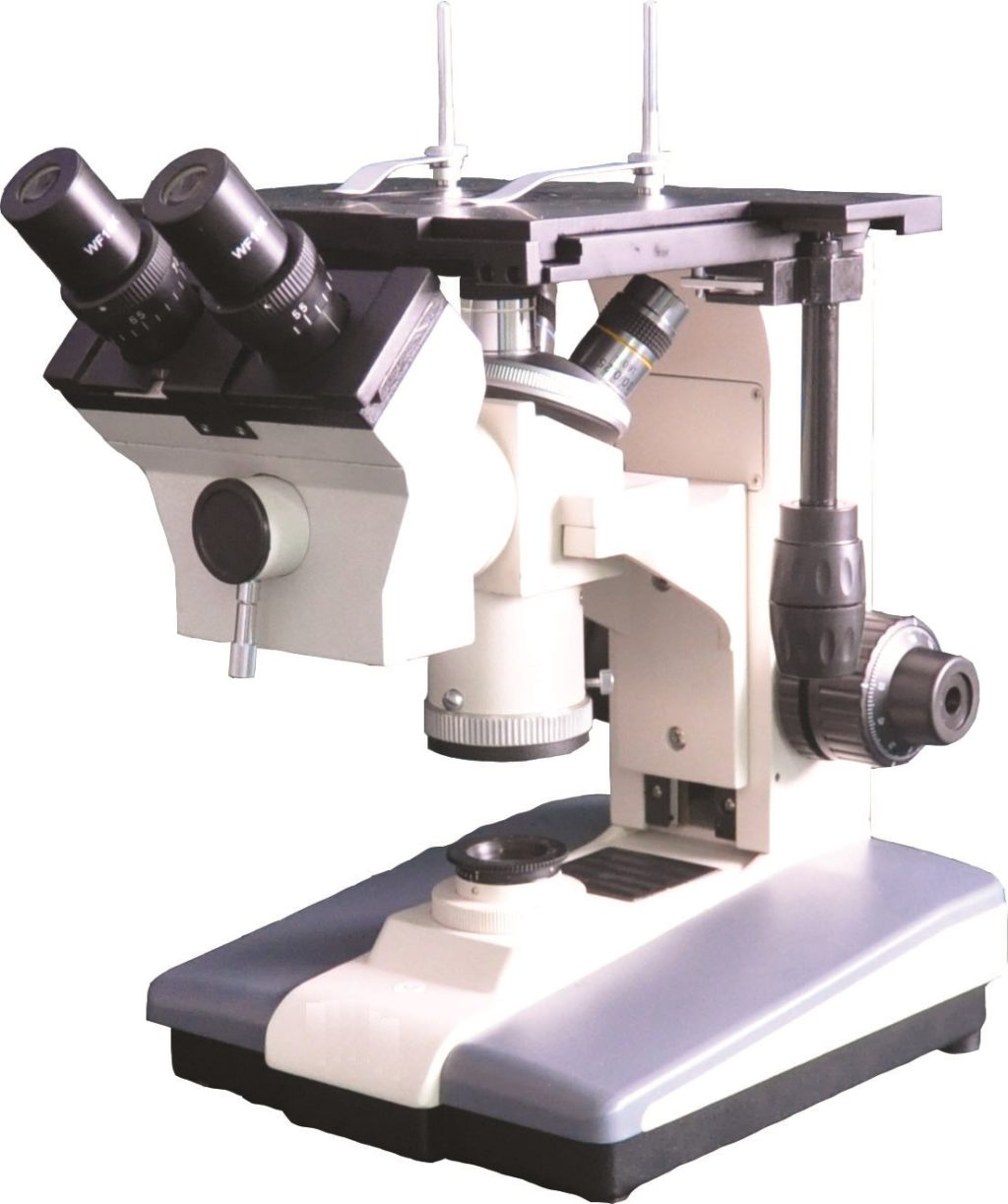

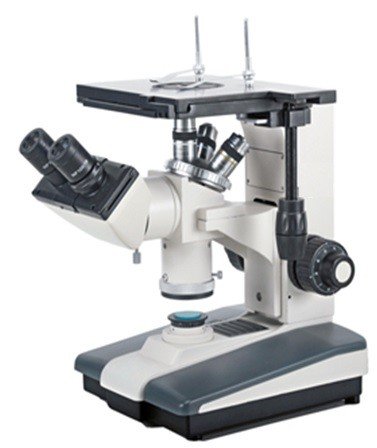

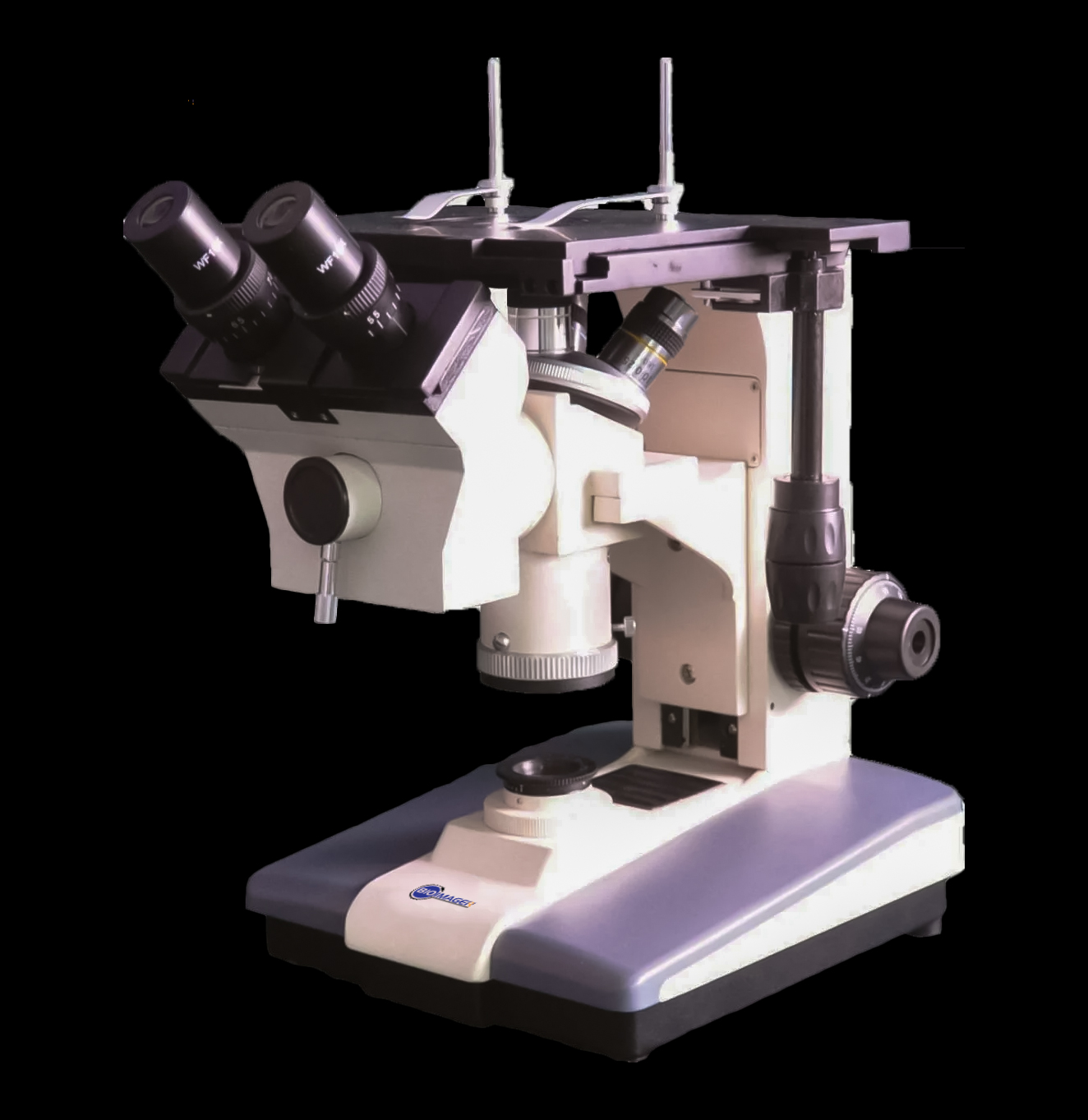

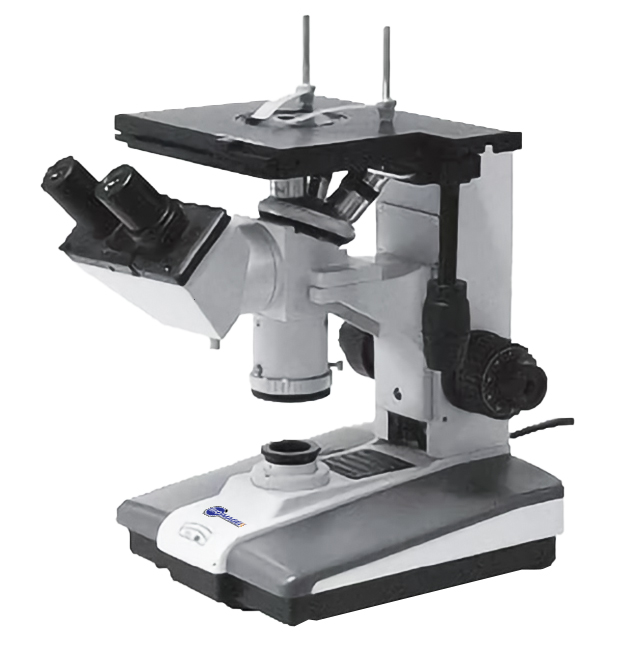

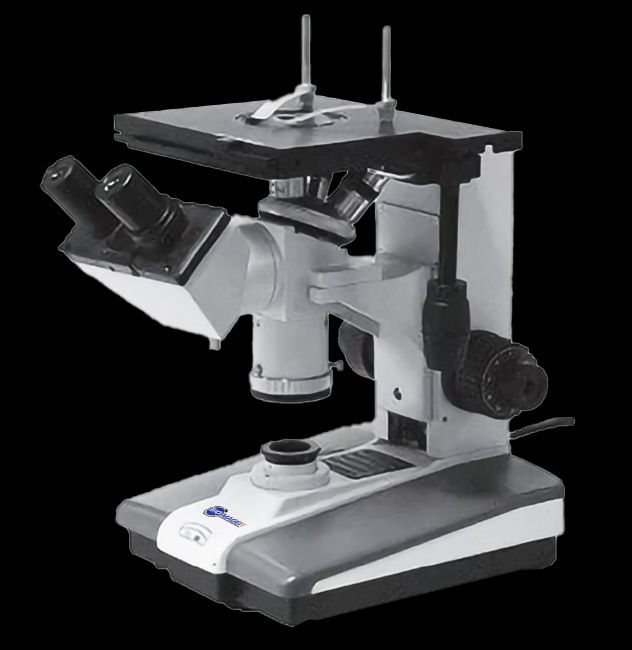

BMI200 Bench Inverted Microscope

Availability:

In stock


Compare

Bench Inverted microscope BMI200 series is widely used in colleges, universities, Industrial and mining enterprises laboratory in either biological or metallurgical fields as a great compact imaging tool. This microscope accords with principles of ergonomics for long time operation, safety and reliability with a wide and clear field of view.

In stock

$1,629.00 $2,189.00

Bench Inverted microscope BMI200 series is widely used in colleges, universities, Industrial and mining enterprises laboratory in either biological or metallurgical fields as a great compact imaging tool. This microscope accords with principles of ergonomics for long time operation, safety and reliability with a wide and clear field of view.

1.  Total magnification:1250X
2.  Mechanical tube length:160mm
3.  Objective :

ItemCategoryMagnificationNumerical Aperture N.A.SystemWorking Distance (mm)
1Achromatic10X0.25

dry

6.3
2Plan Achromatic (PC)40X0.650.7
3Plan Achromatic(PC)50X0.752
4Achromatic100X1.25oil0.1

4. Total Magnification of Objective and Eyepiece:

Total     objective

Magnification

Eyepiece

10XPC40XPC50X (optional)100X
10X100X400X500X1000X
12.5X125X500X625X1250X

5. Fine focusing adjustment range: 26mm, coarse stroke 32.7 mm per rotation, stage movement stroke 0.2mm per rotation,Fine focusing adjustment division 0.002mm.
6. Stage movement range at x and y direction: 40mm x 30mm
7.  Range of the opening diameter of stage inserts:Φ3-Φ12,Φ30mm.
8.  Interpupillary Distance Range:55mm – 75mm.
9.Dimension of Instrument: 290 (length) × 200 (width × 300 (height) mm
10. Weight: 8 kg.

Bench Inverted microscope BMI200 series is widely used in colleges, universities, Industrial and mining enterprises laboratory in either biological or metallurgical fields as a great compact imaging tool. This microscope accords with principles of ergonomics for long time operation, safety and reliability with a wide and clear field of view.

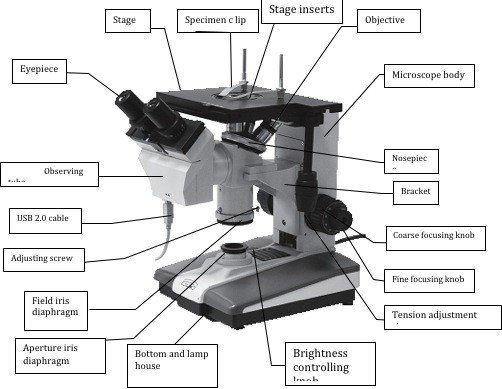

Metallurgical/BIM701D.jpg

BMI200 Bench MicroscopeMBTD
HeadMonocular Head
Sliding Binocular Viewing Head
Sliding Trinocular Viewing Head
Integrative sliding binocular digital head
EyepieceWF10x/18
WF12.5X/14
ObjectiveAchromatic Objective 10X, 100X
Plan Achromatic Objective 40X
NosepieceTriple Nosepiece
FocusingCoaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Moving Range 30mm
StageMechanical Stage180×155mm,40x30mm
Illumination12V/20W Halogen Lamp, Brightness Adjustable
Kohler Illumination
FilterBlue
Green
Yellow
ground glass
Optional AccessoriesItem No.
EyepieceWF16x/11 BMI200-16x
ObjectiveLWD Plan Achromatic Objective 50X

BMI200 Microscopes is offerd at the folowing submodels:

1) BMI200M with Monocular Head
2) BMI200B with Binocular Head
3) BMI200T with Trincoular Head
4) BMI200D with digital vieiwng head

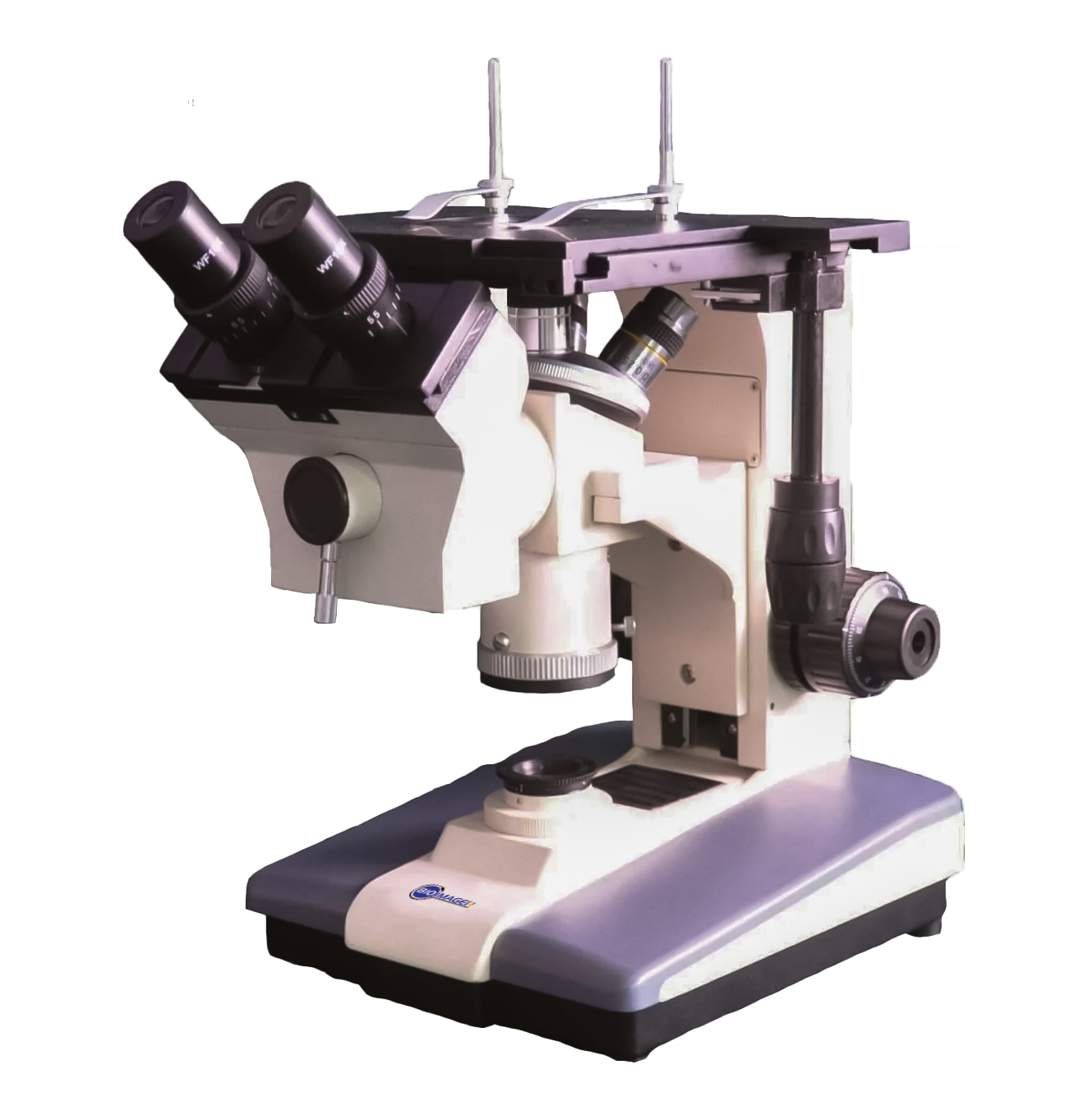

BMI200 Bench Inverted Microscope

Th default softwrae which comes with the BMI200D model (with digital vieiewng head) is ScopoeImage. Please visit this link for further info: https://www.bioimager.com/index.php/scopeimage.html

You can use your own or any camera software with trincoular model (BMI200T).

Recommended Softwrae: Panassis

trinocular

Metallurgical/BIM701D.jpg

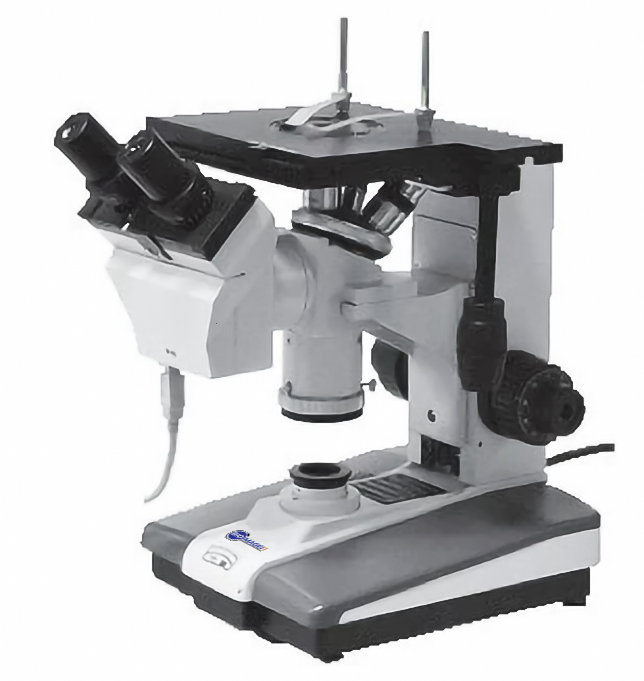

digital head

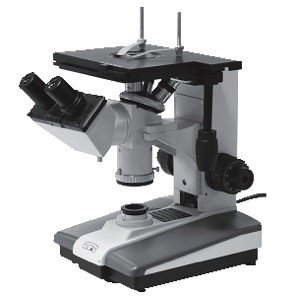

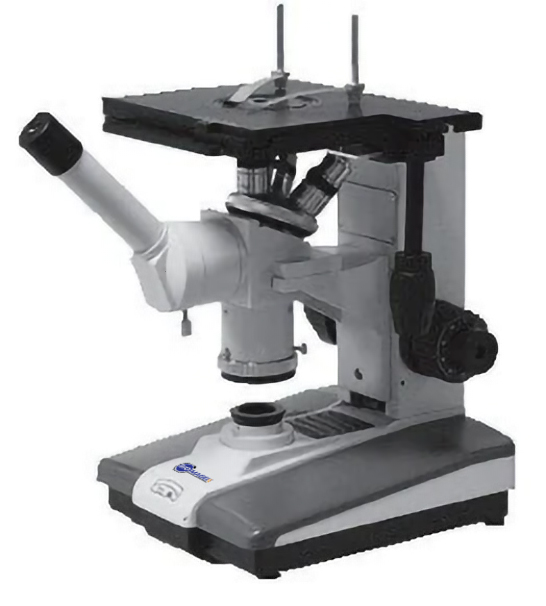

monocular
