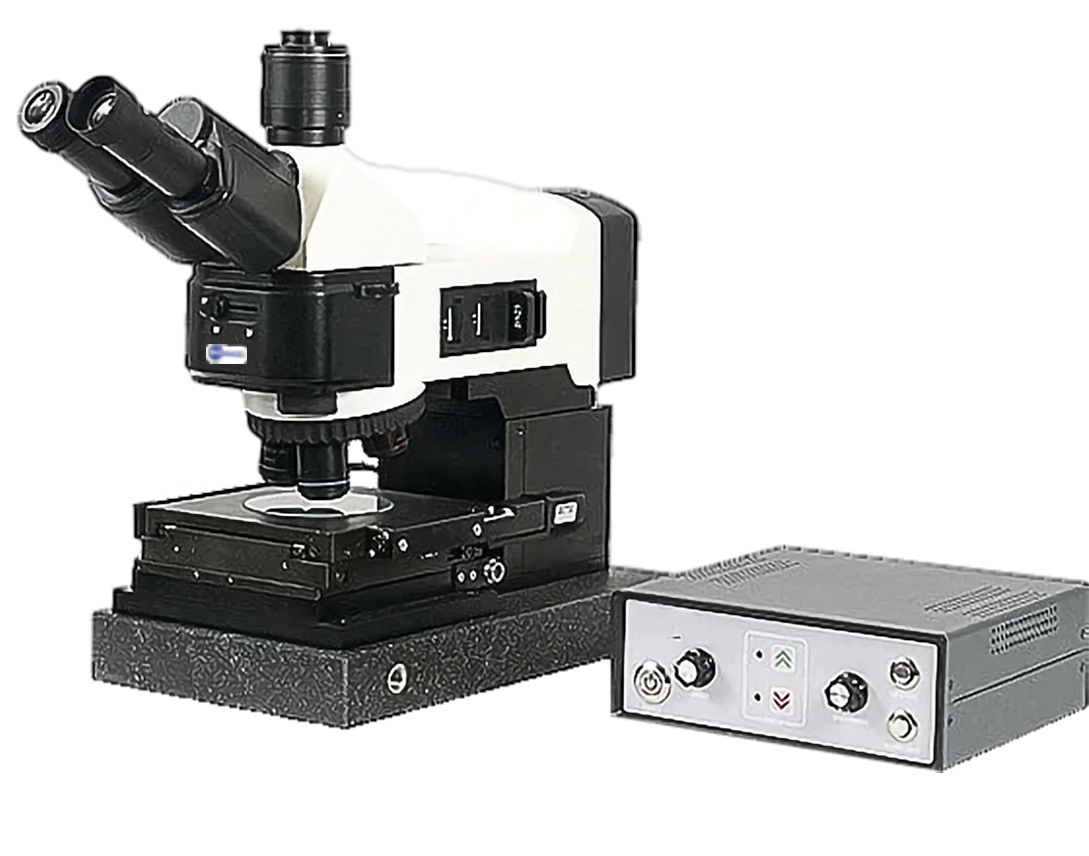

BMU3000A Motorized Focusing Metallurgical Upright Microscope with BF/DF/Pol/DIC Imaging Capabilities


  • Motorized Focusing Upright Metallurgical Microscope,
  • Reflected Only or Reflected & Transmitted illuminations

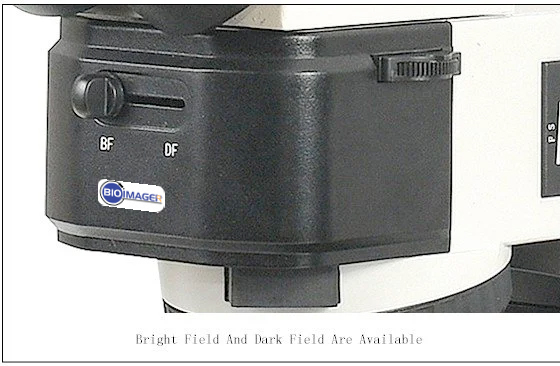

  • Bright field, drakfield, polarization and DIC Nomarsky observations
  • Trinocular viewing head
  • Extral wide field eyepiece EW10×/22
  • Infinite LWD Plan Achromatic Objectives 5x, 10x, 20x, 50x

$USD 13,950.00
$USD 20,000.00

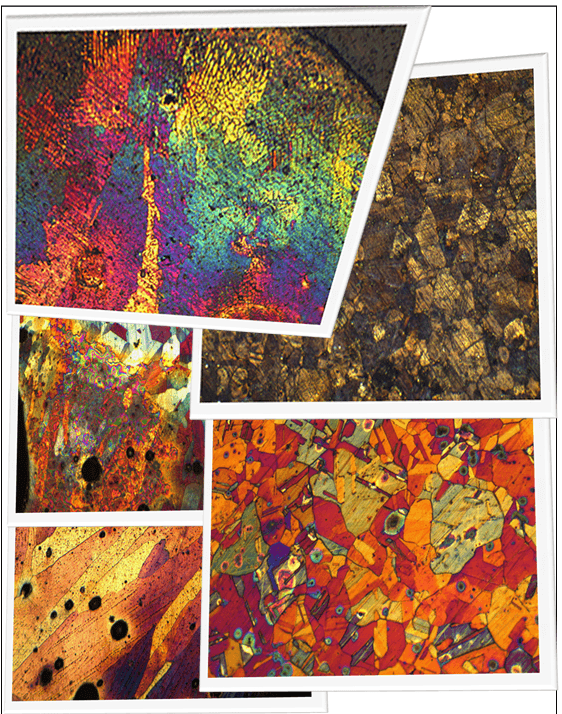

Introduction

BMU3000 motorized focusing metallurgical microscope is developed for semiconductor, wafer manufacturing, electronic information and metallurgical industry. Also it can be used as an advanced metallurgical microscope and to analyze and identify histology of various metals and alloy, therefore it is widely applied for cast quality identification , raw materials examination and metal structure analysis of material after process in factory and laboratory.

Quick View

  • Motorized Focusing Upright Metallurgical Microscope,
  • Reflected Only or Reflected & Transmitted illuminations

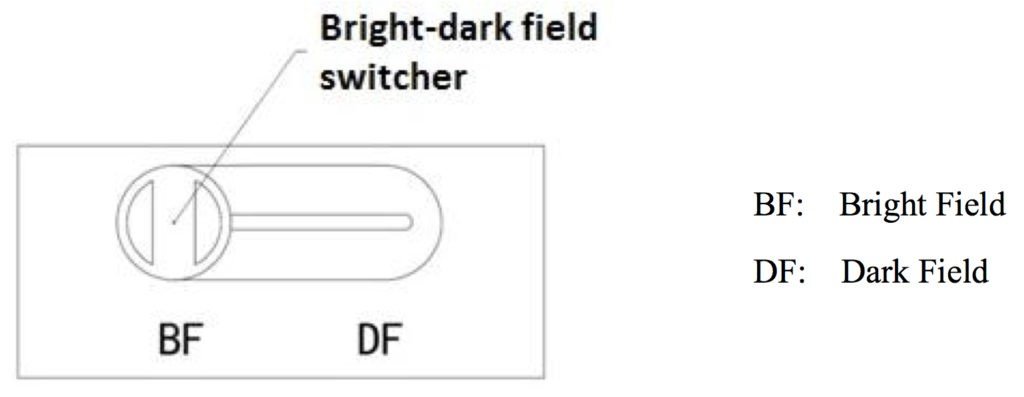

  • Bright field, darkfield, polarization and DIC Nomarsky observations
  • Trinocular viewing head
  • Extra wide field eyepiece EW10×/22
  • Infinite LWD Plan Achromatic Objectives 5x, 10x, 20x, 50x

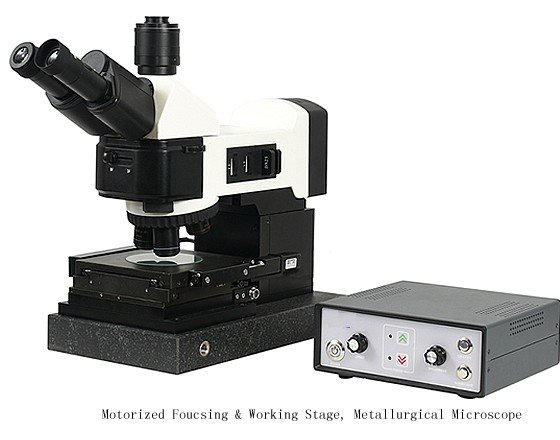

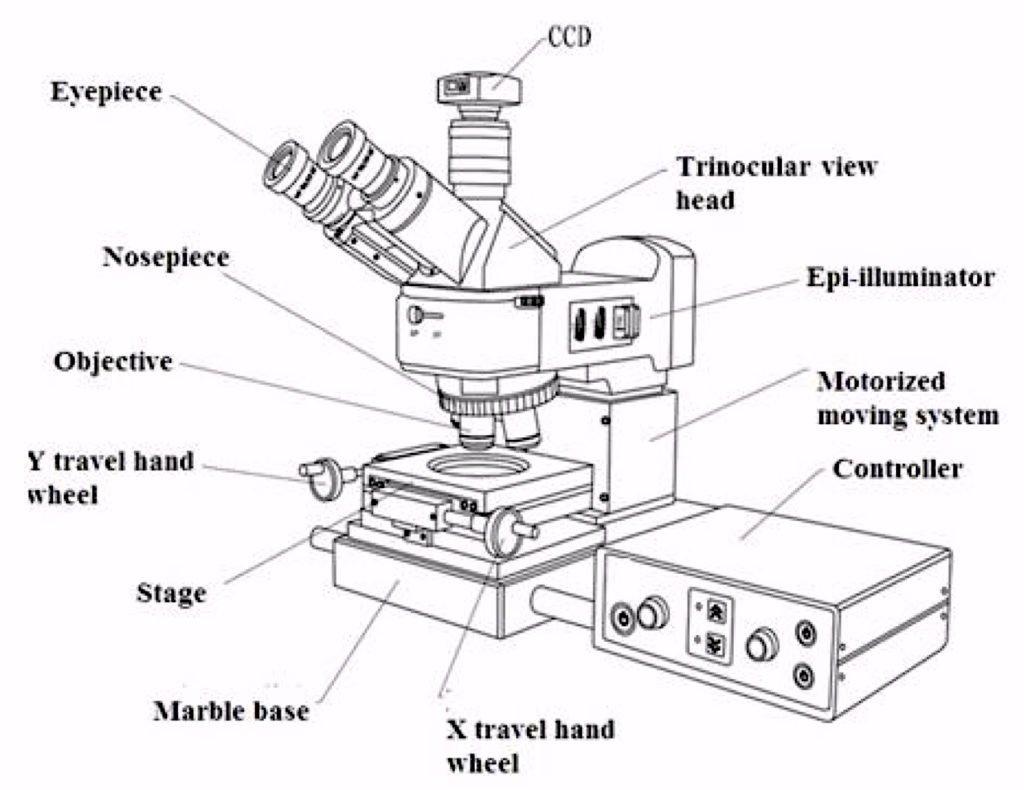

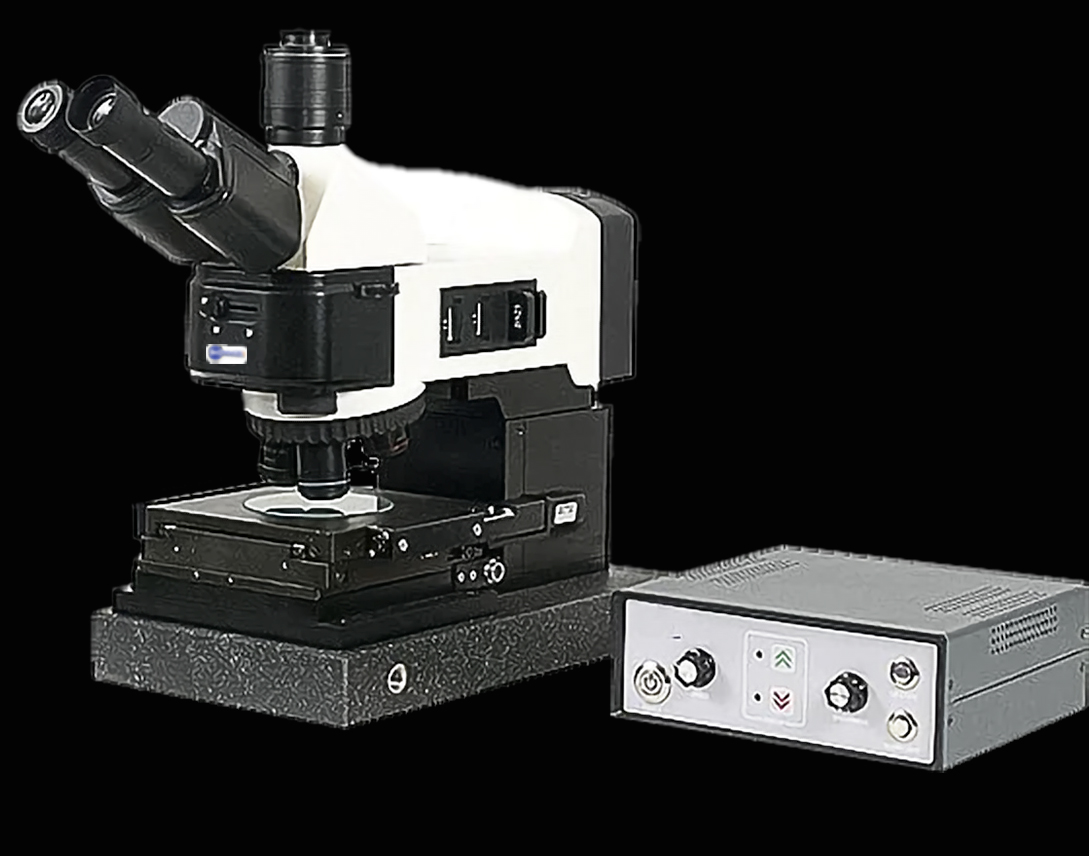

BMU3000A Motorized Focusing Metallurgical Upright Microscope with BF/DF/Pol/DIC Imaging Capabilities

Motorized metallurgical microscope, with motorized focusing and working stage, is developed for semiconductor, wafer manufacturing, electronic information and metallurgical industry. Also it can be used to analyze and identify histology of various metals and alloy, therefore it is widely applied for cast quality identification, raw materials examination and metal structure analysis of material after process in factory and laboratory

Specification
BMU3000A Motorized, Reflected and Transmitted
Optical System Infinite, Focal Distance f=200mm
Head Trinocular, 30° Inclined, 360° Rotatable, Interpupillary Distance Adjustable, ±5 Diopter Adjustment
Eyepiece EWF10x/26mm, WF10x/22mm With Micrometer 0.1mm/Div
Infinity LWD B/D Plan Achromatic Objective 5x/0.20 (W.D. 14.47mm)
10x/0.25 (W.D. 16.0mm)
20x/0.40 (W.D. 10.5mm)

50x/0.55 (W.D. 5.1mm)

Focus System

Motorized, Stepping Motor, Speed 0.05mm/s – 0.2mm/s, Moving Range 50mm

Nosepiece

Quadruple,With DIC Slot

Motorized Moving Stage
BMU3000A-100
BMU3000A-50
Stage Size: 180x180mm
Moving Range: 100 x 100mm Moving Range: 50 x 50mm
Slideway: Cross-roller Guide
Screw: High Grind Screw(Range 1mm)
Screw Clearance: 2μm
Max Speed: 10mm/sec
Reposition Accuracy: 2μm
Absolute Positioning Accuracy: 4μm
Linearity: 5μm
Parallelism: <15μm/100mm Parallelism: <10μm/50mm
Controlling System Control Mode: SCM Digital Control Control Mode: FPGA Control
Controller Connector: USB Controller Connector: PCI Slot
Control Motor: Two Phase Stepping Motor Control Motor: (Stepping Motor or Servo Motor
Control Axis: Three Axes
Moving Type: Manual or Automatic
With Controlling Software
Parallelism: <15μm/100mm Parallelism: <10μm/50mm
Program: Customized Program: NC Programming

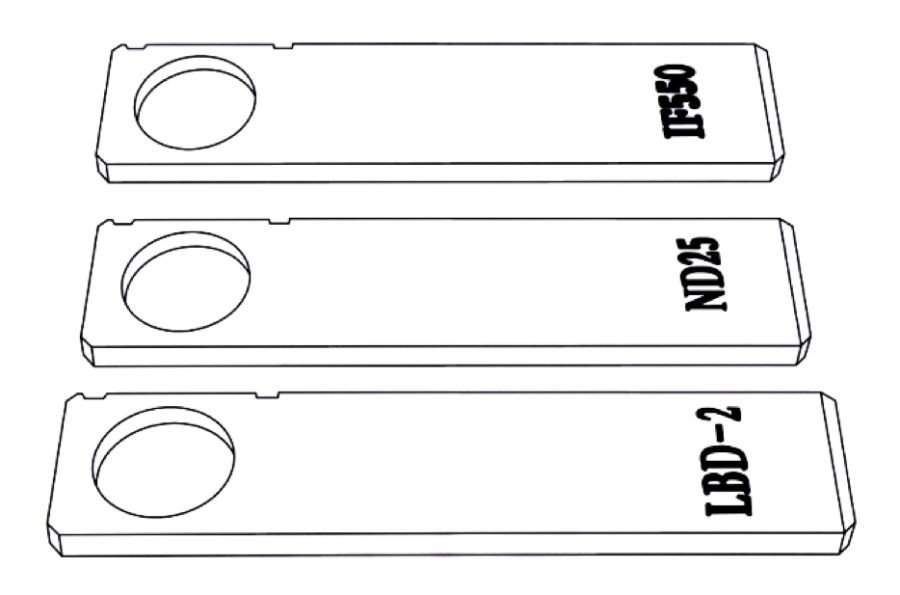

Filter Green,Blue,Neutral
Illumination Reflected (Epi) Illumination, Kohler,Halogen Lamp, 12V50W / AC85V-260V, Brightness Adjustable With Aperture Diaphragm And Filed Diaphragm
Transmitted illumination: LED, 5W / AC85V-260V,Brightness Adjustable
Polarization

Analyzer 360° Rotatable, and Polarizer, All Can Move Out Of Light Path,

Adapter
0.3x C-Mount
Base Marble
Power Supply AC85-260V Wide Power Range,
Testing Tool
Micrometer 0.01mm/Div

Specifications

Optical System Infinite, Focal Distance f=200mm
Head Trinocular, 30° Inclined, 360° Rotatable, Interpupillary Distance Adjustable, ±5 Diopter Adjustment
Eyepiece WF10x/22mm, One With Micrometer 0.1mm/Div
Infinity LWD Plan Achromatic Objective 5x/0.20 (W.D. 14.47mm)
10x/0.25 (W.D. 16.0mm)
20x/0.40 (W.D. 10.5mm)
50x/0.55 (W.D. 5.1mm)
Focus System Motorized Focusing System

Step-rate 0.02mm/s-0.5mm/s,

Max. Stroke 50mm, (can be enlarged accordingly)

Nosepiece Quadruple, With DIC Slot
Stage Measuring Stage, Manual Control, Moving Range 50X50, Precision 3μm+L/25
Filter Green, Blue, Neutral
Illumination Epi-Illumination, Halogen Lamp 12V/50W, Brightness Adjustable, Kohler Type With Aperture And Field Diaphragm
Transmitted Illumination, LED Lamp 5W, Brightness Adjustable
Polarization Analyzer 360° Rotatable, Polarizer, All Can Move Out Of Light Path
Adapter 0.3x C-Mount
Base Marble
Power Supply AC 85-260V Wide Power Range,
Testing Tool Micrometer 0.01mm/Div



Optional Items

Name Description Item #
Eyepiece WF10x/26mm, BMU3000-10xE
Infinity LWD Plan Achromatic BD Objective 80x/0.75 (W.D.4.0mm) BMU3000-80x
100x/0.80 (W.D.3.0mm) BMU3000-100x
Stage Revolving Stage BMU3000-stage
DIC DIC Attachment BMU3000-DIC
Software Professional Metallographic Image Analysis Software With Measuring Function BMU3000-SW



BMU3000 Motorized Foucsing Metallurgical Upright Microscope with BF/DF/Pol/DIC Imaging Capabilities

Package Contents

  • Trinocular, WF10x/22 with 0.1mm micrometer, Quadruple,
  • Infinity LWD Plan BD Objective 5x10x20x50x,
  • Marble Base,
  • Manual Control Stage,
  • Moving Range 50×50, Precision 3μ+L/25,
  • Motorized Focusing,
  • Epi-illumination 12V50W koehler,
  • Transmitted 5W LED,
  • Brightness Adjustable,
  • Analyzer (360° Rotatable) and Polarizer,
  • Micrometer 0.01mm,
  • G,B,ND Filter,
  • Power Supply AC85-260V,
  • 0.3x C-Mount Adapter
