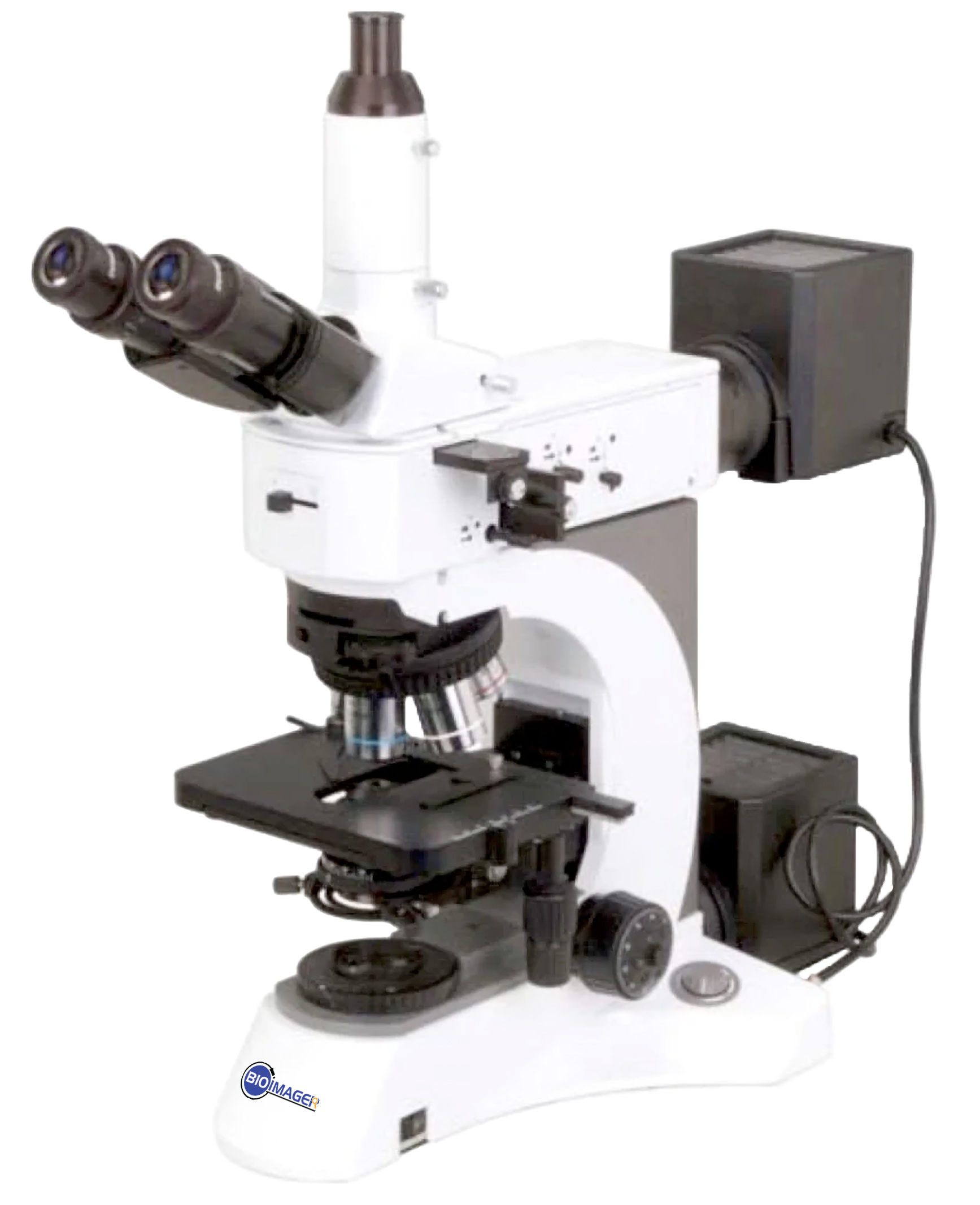

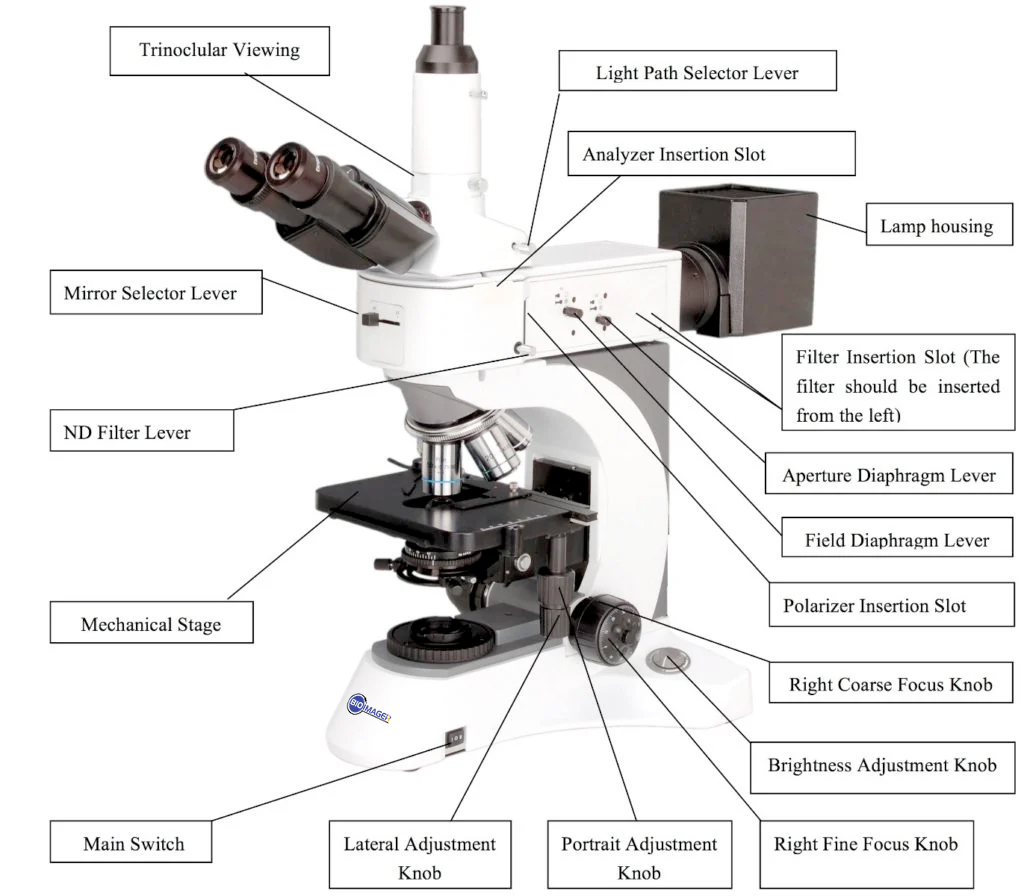

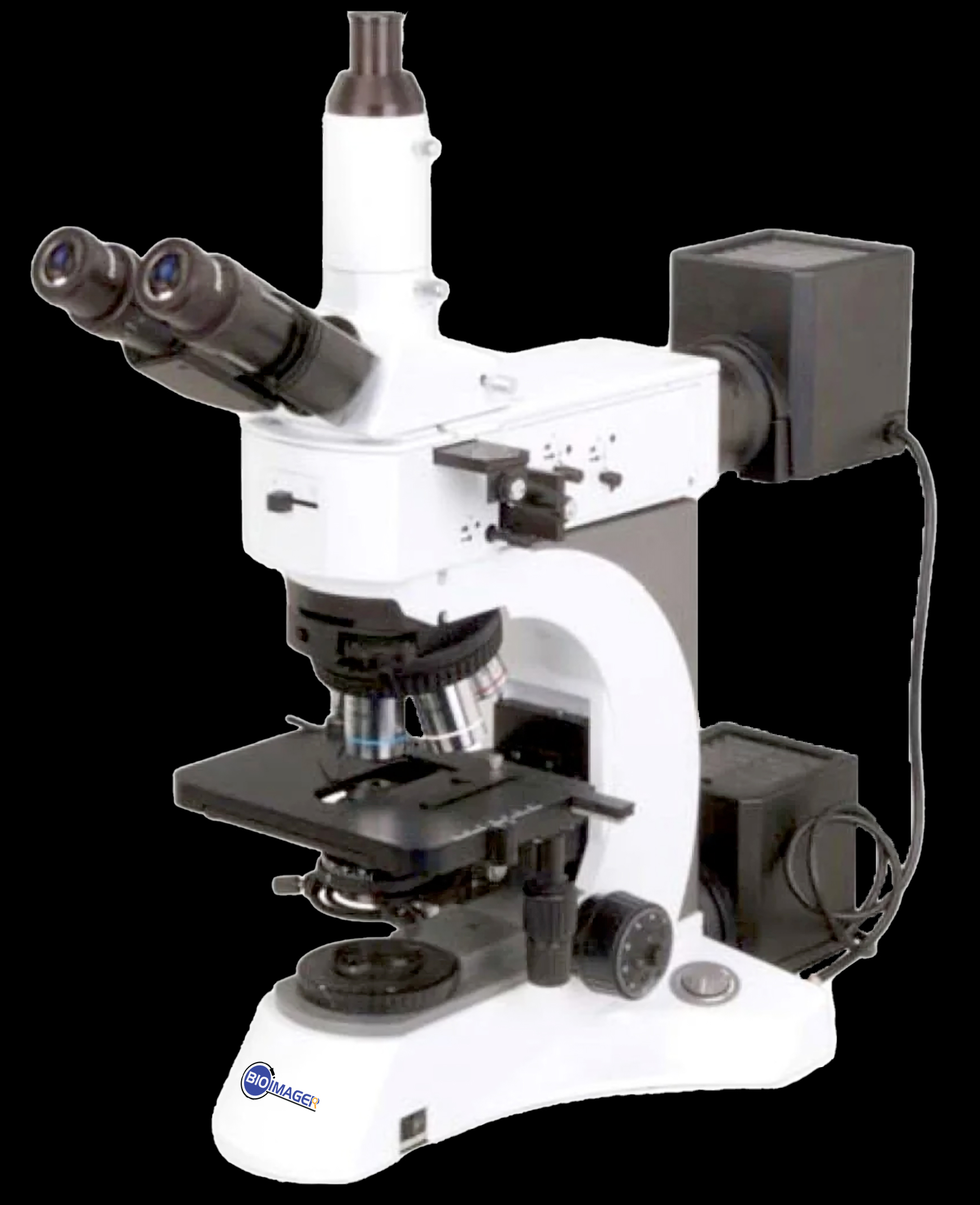

BMU500DIC Metallurgical Upright Reflected/Transmitted BF/DF/Pol & Optional DIC & 50x-1000x Magnifications

Availability:

In stock


Compare
  • Laboratory metallurgical microscope,
  • Reflected Only or Reflected & Transmitted illuminations
  • Bright field, darkfield, polarization and DIC Nomarsky observation system
  • Siedentopf trinocular viewing head, inclined at 30°, interpupillarty distance 48mm-75mm
  • Extra wide field eyepiece EW10×/22, eyepiece tube Φ30mm
  • Infinite Plan Achromatic Objectives of BF/DF:  5x, 10x, 20x, 50x, 100x and BF: 40x and 100x

In stock

$4,495.00 $6,000.00

Introduction

BMU500DIC RF/TRF metallurgical microscopes are high level professional microscopes which are specially designed for metallurgical analysis. With excellent optical system, ingenious stand and convenient operation, they will be your best choice. DIC observation attachment is optional for these microscopes to meet some special requirements.



Application

BMU500RF/TRF series are widely used in institutes and laboratories to observe and identify the structure of various metal and alloy, they also can be widely used in electronics, chemical and instrumentation industry, observe the opaque material and transparent material, such as metal, ceramics, integrated circuits, electronic chips, printed circuit boards, LCD panels, film, powder, toner, wire, fibers, plated coatings, and other non-metallic materials and so on.



BMU500 Metallurgical Upright Reflected/Transmitted BF/DF/Pol Microscope with 50x-1000x Magnification-10542

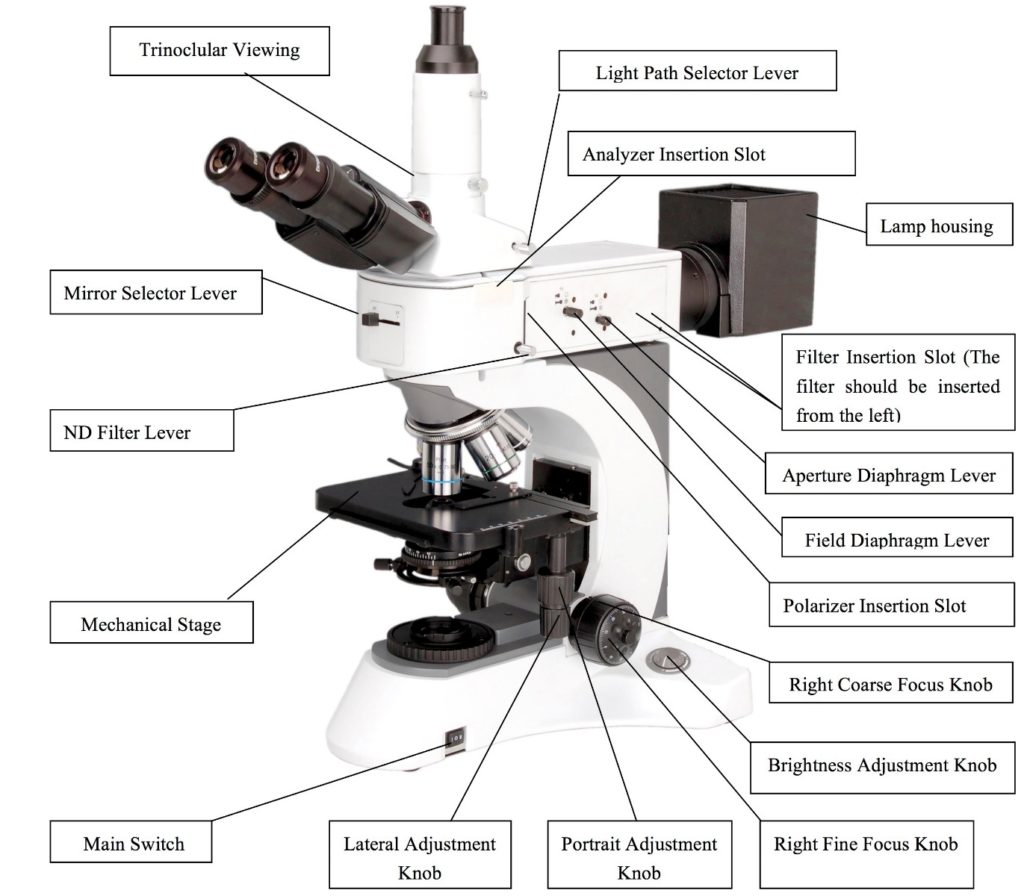

Features

1. Laboratory metallurgical microscope, including bright field, dark field, polarization and DIC observation system.

2. Powerful transmitted and reflected system with Kohler illumination.

BMU500A Fully Motorized Auto-Focus Metallurgical Microscope-10723

3. Ideal instrument for metallurgical analysis, industry inspection and science research.

BMU500A Fully Motorized Auto-Focus Metallurgical Microscope-10729

BMU500DIC Metallurgical Upright Reflected/Transmitted BF/DF/Pol & Optional DIC & 50x-1000x Magnifications-10567





BMU500DIC Metallurgical Microscope with BF/DF and optional Polarized and DIC Nomarski Imaging

BMU500DIC Laboratory DIC BF/DF Metallurgical Microscope, is an ideal instrument for industry inspection and science research laboratory. –Infinity Optical System, BF/DF, Transmit & Reflect Illumination, DIC Nomarski, Polarizing System –Full Range BF/DF Objectives Included –Polarization System Optional –DIC System Optional –Powerful Transmitted And Reflected Illumination System with Kohler Illumination.

Specifications:

Model

BMU500DIC

RF

BMU50DIC

TRF

Optical System

Infinite optical system

Viewing Head

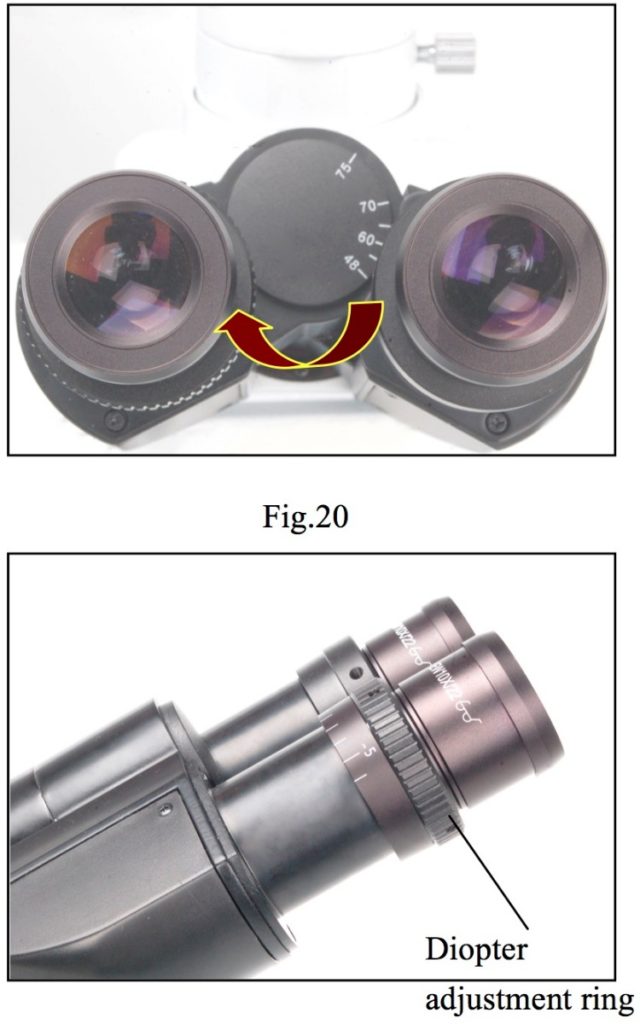

Siedentopf trinocular viewing head, inclined at 30°, interpupillarty distance 48mm-75mm

Eyepiece

Extra wide field eyepiece EW10×/22, eyepiece tube Φ30mm

Infinite Plan Achromatic Objective

5×/ 0.12/∞/ – (BF/DF) WD 12mm

10×/ 0.25/∞/ – (BF/DF) WD 10.0mm

20×/ 0.4/∞/ 0 (BF/DF) WD 4.3mm

40×/ 0.65/∞/ 0.17, WD 0.54mm

100×/ 1.25/∞/ 0.17, WD 0.13mm

40×/ 0.6/∞/ 0 (BF/DF) WD 2.9mm

50×/ 0.75/∞/ 0 (BF/DF) WD 0.32mm

100×/ 0.8/∞/ 0 (BF/DF) WD 2mm

DIC

20×, 100×

Maximum Sample Height

30mm

50mm

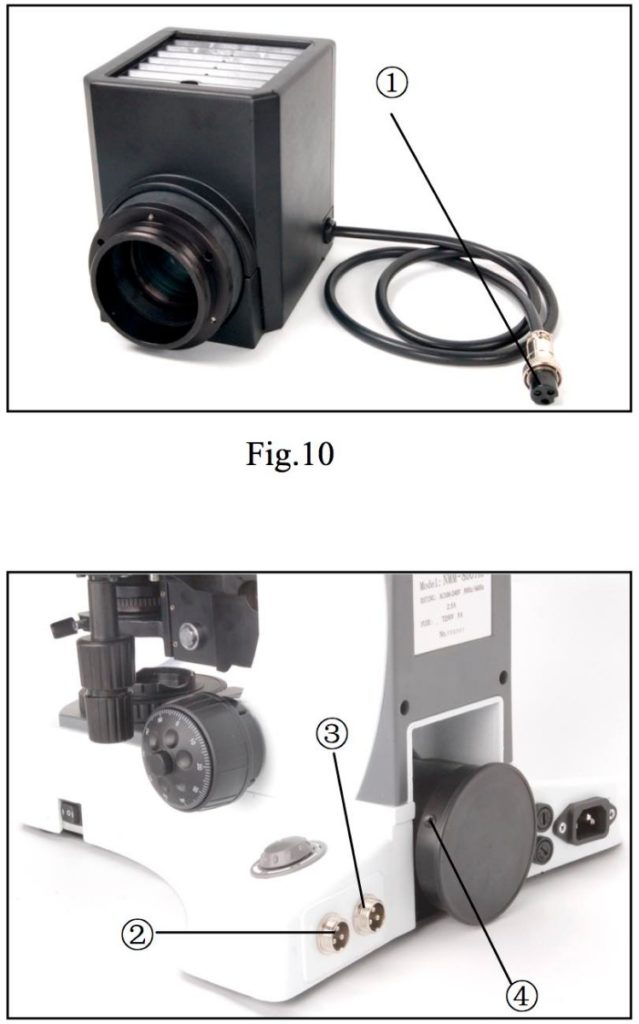

Reflected Light

24V/100W Halogen light, Brightness adjustable

Kohler illumination and aspherical condenser

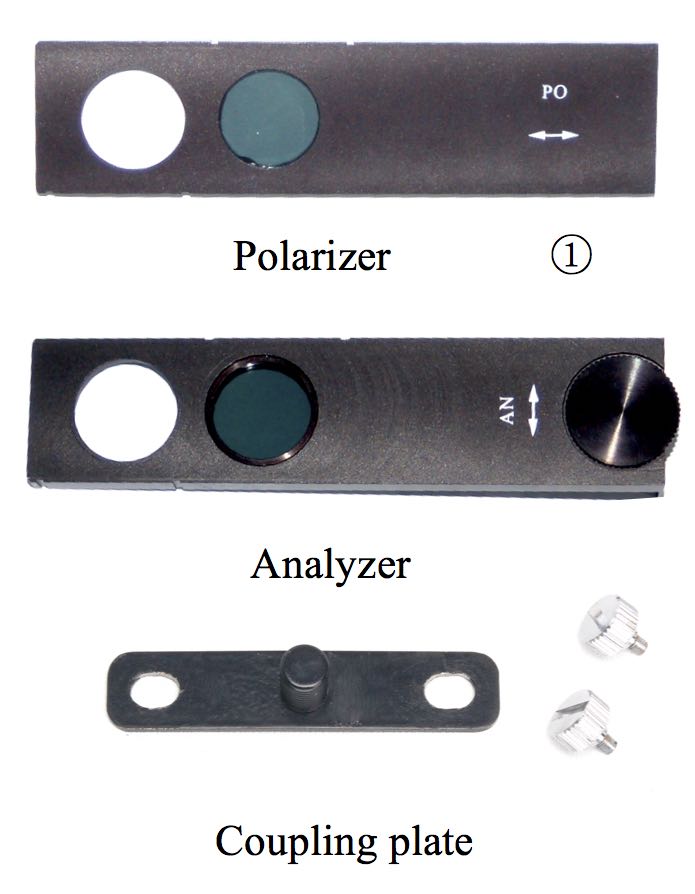

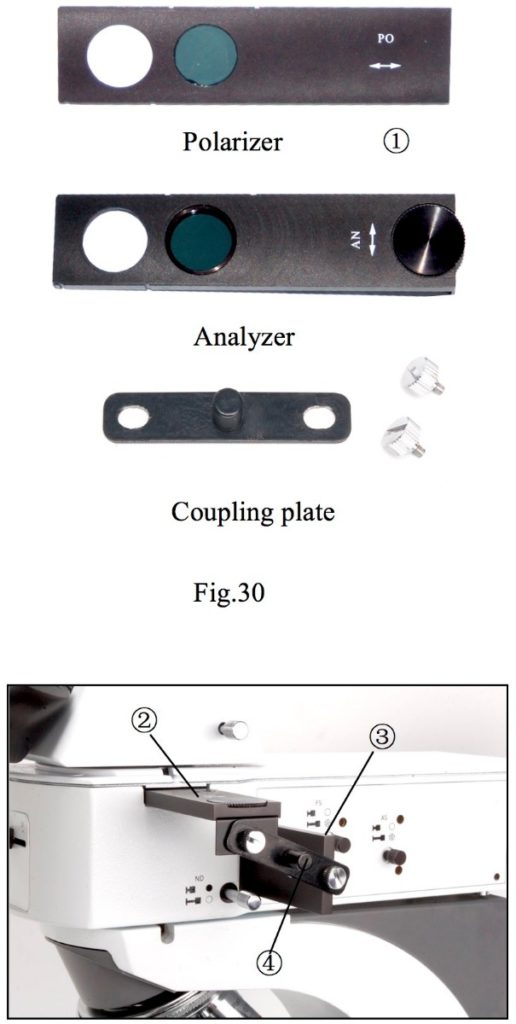

Polarizer and analyzer

An integrate device for polarizer and analyzer

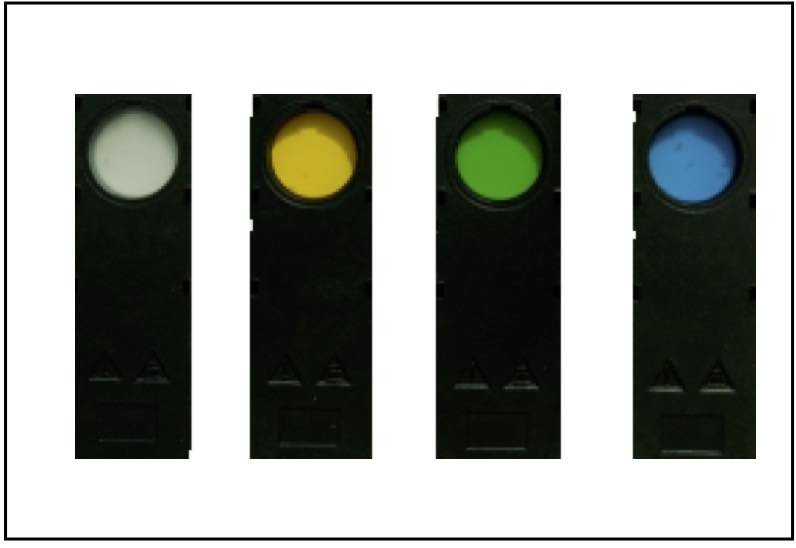

Blue, Green, Yellow and Frosted filter

Transmitted Light

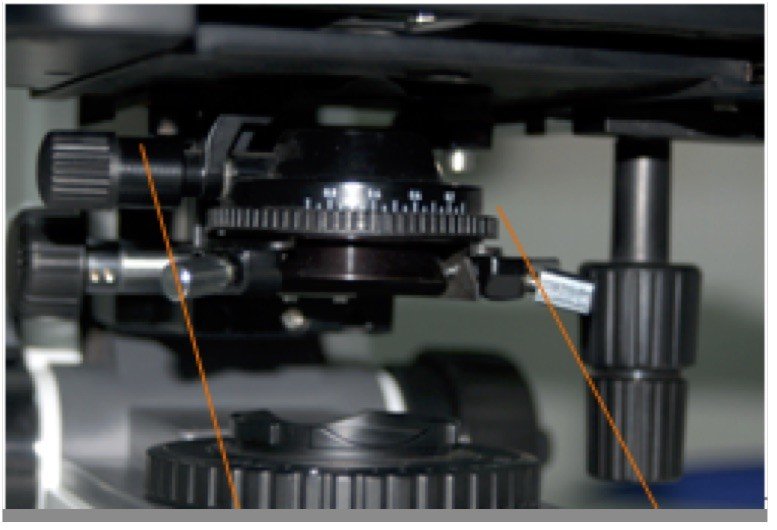

Swing-out condenser NA0.9/ 0.25

24V/100W Halogen light and aspherical condenser

Blue filter

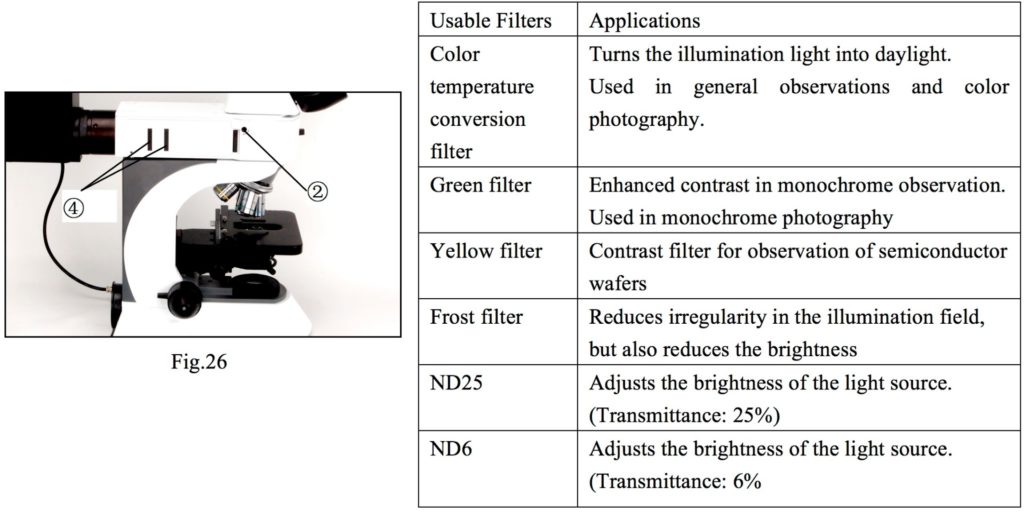

Filter

ND25, ND6

Focusing

Coaxial Coarse and Fine Adjustment, Fine Division 0.001mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.1mm per Rotation, Moving Range 24mm

Nosepiece

Backward quintuple nosepiece

Stage

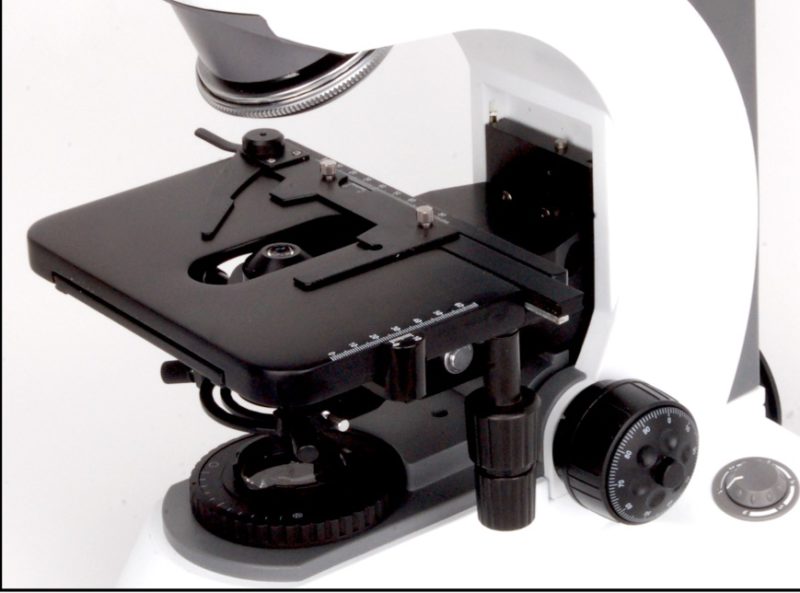

Double layer mechanical stage(without hole) 186×138mm/ 74mm×50mm

Double layer mechanical stage 186×138mm/ 74mm×50mm

Glass specimen preparation plate

Specimen preparation plate

Slide glass

Accessories

Specimen Presser

Photo Attachment

Video Attachment, C Mount 1×, 0.5×

Note: ●Standard Outfit, ○Optional

Specification

ItemSpecification

BMU500DIC

RF

BMU500DIC

TRF

Optical SystemInfinite optical system
Viewing HeadSiedentopf trinocular viewing head, inclined at 30°, interpupillarty distance 48mm-75mm
EyepieceExtral wide field eyepiece EW10×/22mm, eyepiece tube Φ30mm
Infinite Plan Achromatic Objective5×/ 0.12/∞/ – (BF&DF)   WD 12mm
10×/ 0.25/∞/ – (BF&DF)  WD 10.0mm
20×/ 0.4/∞/ 0 (BF&DF)   WD 4.3mm
40×/ 0.65/∞/ 0.17       WD 0.54mm
100×/ 1.25/∞/ 0.17      WD 0.13mm
40×/ 0.6/∞/ 0 (BF&DF)   WD 2.9mm
50×/ 0.75/∞/ 0 (BF&DF)  WD 0.32mm
100×/ 0.8/∞/ 0 (BF&DF)  WD 2mm
DIC Attachment20×, 100×
Maximum Sample Height30mm
50mm
Reflected Light24V/100W Halogen light, Brightness adjustable
Kohler illumination and aspherical condenser
Polarizer and analyzer
An integrate device for polarizer and analyzer
Blue, Green, Yellow and Ground glass filter
Transmitted LightSwing-out condenser NA0.9/ 0.25
24V/100W Halogen light and aspherical condenser
Blue filter
FilterND25, ND6
FocusingCoaxial Coarse and Fine Adjustment, Fine Division 0.001mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.1mm per Rotation, Moving Range 30mm
NosepieceBackward quintuple nosepiece
StageDouble layer mechanical stage(without hole) 186×138mm/ 74mm×50mm
Double layer mechanical stage 186×138mm/ 74mm×50mm
Glass specimen preparation plate
Specimen preparation plate
Slide glass
AccessoriesSpecimen Presser
Photo Attachment
Video Attachment, C-Mount 1×, 0.5×
0.01mm stage micrometer

Note: ●Standard Outfit, ○Optional



Custom Microscopy package of this model was provided to several customers. These are some examples:

  1. Thorlabs Quantum Electronics, MD, USA
  2. Montana State University, Bozeman, MT, USA
  3. POSTECH University, S. Korea
  4. A private corporate at Cabrière d’Avignon, France
  5. International Sci. & Technol. Center (ISTC) Astana, Kazakhstan & Yerevan, Armenia
  6. A private  firm at Brownstown, MI, USA
