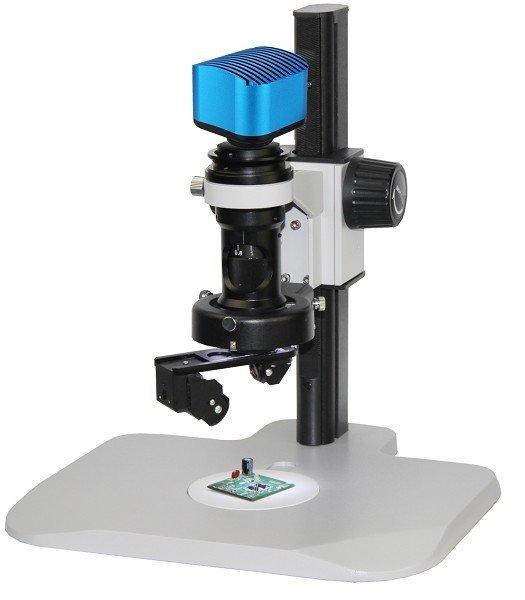

BIOIMAGER BI-3D-302: 2D/3D Digital Microscopes
Original price was: $USD 4,000.00.$USD 2,499.00Current price is: $USD 2,499.00.
-38%Advanced Optical System, Low Distoration, High Definition, Large Field of View, Super Depth of Field(≥6mm) and Good Parfocality. New Design, Easy Operation.
BIOIMAGER BI-3D-302: 2D/3D Digital Microscopes
Features
- Advanced Optical System, Low Distoration, High Definition, Large Field of View, Super Depth of Field(≥6mm) and Good Parfocality.
- New Design, Easy Operation
- Manual 36° 2D/ 3D Rotary Observation Lens Attachment
- Super Long Working Distance, Standard W.D: 95mm
- Auto-focus for Different Digital and Analog Cameras
- Compact, Practical and Cost-effective
Life Science Hardware&Precision Parts Criminal Investigation Micro-electronics
| Zoom Range | 0.3X—2.2X |
| Zoom Ratio | 1:7 |
| Standard Objective Lens and Coupler | 1X |
| Total Magnification | 7X—150X(17″LCD, Maximum 300X) |
| Field of View | 3.5—25mm |
| Working Distance | 45.66—99mm |
| Optional Objective Lenses | 0.5X, 2.0X (Can’t Work with 2D/ 3D Rotary Observation Lens Attachment) |
Optical Parameter
| Objective Lens | 0.5X | 1X | 2X |
| N.A. | 0.0058-0.041 | 0.012-0.08 | 0.014-0.1 |
| Res.(lp/mm) | 17.3-122 | 35.8-238 | 41-298 |
| MAG. | 0.16X-1.13X | 0.32X-2.27X | 0.65X-4.55X |
| D.O.F.(mm) | 16.3-0.33 | 6-0.086 | 2.8-0.055 |
| W.D.(mm) | 190 | 95 | 45.6 |
| F.O.V.(mm) 1/2″ | 50-7 | 25-3.5 | 12.3-1.8 |
Package Contents
- BIHT1008 Zoom Microscope Body
- 2D/3D Angle Lens Attachment
- 1X Standard Objective Lens
- 1X Video Couplers
- HA-TS50 White Track Stand
- HS-72 LED Ring Light
