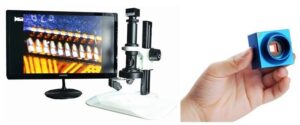

BI3D-302USB: BIOIMAGER 2D/3D Digital USB Video Microscope


3DM-02 Microscope features the quality optical system,low distortion, high resolution,flat and large field of view, high depth of field and superior parfocality. The novel design and one-up technology make it easy for operation. The 2D/3D angle lens attachment is changed manually from two-dimensional image to three-dimensional. The microscope can realize 3D image effects for observing the components and deep holes.

$USD 2,848.00 $USD 4,560.00

Applications:

SMT          Micro-electronics Criminal Investigation Hardware& Precision Parts sciences
Features:

  1. 3DM-02 Microscope features the quality optical system,low distortion, high resolution,flat and large field of view, high depth of field and superior parfocality. The novel design and one-up technology make it easy for operation.
  2. The 2D/3D angle lens attachment is changed manually from two-dimensional image to three-dimensional. The microscope can realize 3D image effects for observing the components and deep holes. It remains the same superior resolution and the central position keeps consistent.
  3. The 3D 36 degree rotary observation lens can achieve 95mm (Max) working distance,which is the highest level in the world so far. Digital and Analog video systems can meet the different users’ demands.The 3DM-02 Microscope can be widely used in micro-electronics, precision electronic inspection and PCB solder testing industries

BIHT1008 Zoom Microscope Body:

Large field of view Low  distortion and high resolution, Flat and high depth of field (equal or more than 6mm) Auto-focus for different digital and analog camera Compact, practical and cost-effective   HT-108 Zoom Microscope can be widely used in machine version, semi-conductor and micro-electronics inspection and solder testing industry. The Zoom lens is designed with high resolution and clear image. When the manual zoom with detents (click stops) is used in measuring systems, the calibration of magnification is needed, and the pre-set stops are at 0.3X, 0.5X,1X, 1.5X, 2.2X. By selecting the appropriate objectives, different magnification, field of view and depth of field can be acquired.

USB Digital Microscope Specifications:

Zoom Range: 0.3X-2.2X Standard objective lens and coupler : 1x Total Optical Magnification: 7x-300x(17,,CD) Field of View: 3.5mm-50mm Working Distance: 46mm-95mm, 95mm is standard working distance. Optional Objective Lenses: 0.5X, 0.8X and 2.0X(no work with 2D/3D Rotary Observation lens attachment)   Plan achromatic design, outside dia. 30mm, fo HT Series Micro Zoom Lens.

Zoom lens body OD:

Objective lens0.5X1X2X
N.A.0.0058-0.0410.012-0.080.014-0.1
Res.(lp/mm)17.3-12235.8-23841-298
MAG.0.16X-1.13X0.32X-2.27X0.65X-4.55X
D.O.F.(mm)16.3-0.336-0.0862.8-0.055
W.D.(mm)1909545.6
F.O.V.(mm) 1/2″50-725-3.512.3-1.8

2D/3D Angle Lens Attachment :

Rotary Observation: 360 degree Angle 3D Attachment for a 1X Objective Lens (Standard) Depth of field: 6mm W.B: Manual W.D: 95mm(Long working distance) Change 2D to 3D image Same working distance ,superior resolution Consistent centre position

BI-3DM–2002-USB Configurations:

BIHT-1008 Zoom microscope body ,video couplers:1x
2D/3D angles lens attachment,1x objective lens
 White track stand
 BIMUC500 high definition scientific microscope camera is a new digital imaging solution, which features itself with superior performance, cost-effective and excellent color fidelity. Adopting USB 2.0 image processing, BIMUC500 transfers the data quickly with its ultrafast responce speed to the light signals. It has been applied successfully to various optical imaging fields.
 HS-72 LED ring light Parts:Power supply LED Body Control box of brightness and 4-zone lighting

Package Contents:



  • BIHT1008 Zoom Microscope Body
  • 2D/3D Angle Lens Attachment
  • 1X Standard Objective Lens
  • 1X Video Couplers
  • HA-TS50 White Track Stand
  • HS-72 LED Ring Light
  • BIMUC500 USB High Definition Scientific Microscope Camera
