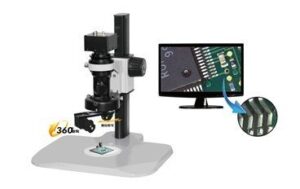

BI3D-302VGA: BIOIMAGER 2D/3D Digital VGA Video Microscope


High Definition. High Resolution, Real Time Measurement and Image Management, Quality Inspection or Research and Development, Need Computer, All Kinds of Optional Accessories. 3DM-02 Microscope features the quality optical system,low distortion, high resolution,flat and large field of view, high depth of field and superior parfocality. The novel design and one-up technology make it easy for operation.

$USD 2,749.00 $USD 4,400.00

2D/3D Video Microscope With VGA Output

USB Digital Microscope-VGA  Application

Features:

  • High Definition. High Resolution, Real Time Measurement and Image Management, Quality Inspection or Research and Development, Need Computer, All Kinds of Optional Accessories.
  • 3DM-02 Microscope features the quality optical system,low distortion, high resolution,flat and large field of view, high depth of field and superior parfocality. The novel design and one-up technology make it easy for operation.
  • The 2D/3D angle lens attachment is changed manually from two-dimensional image to three-dimensional. The microscope can realize 3D image effects for observing the components and deep holes. It remains the same superior resolution and the central position keeps consistent.

USB Digital Microscope-VGA Specifications

Zoom Range: 0.3X-2.2X Standard objective lens and coupler : 1x Total Optical Magnification: 7x-300x (17,,CD) Field of View: 3.5mm-50mm Working Distance: 46mm-95mm, 95mm is standard working distance. Optional Objective Lenses: 0.5X, 0.8X and 2.0X (no work with 2D/3D Rotary Observation lens attachment)   Plan achromatic design, outside dia. 30mm, fo HT Series Micro Zoom Lens.

HT-108 Zoom Microscope Body

Large field of view Low  distortion and high resolution, Flat and high depth of field (equal or more than 6mm) Auto-focus for different digital and analog camera Compact, practical and cost-effective   HT-108 Zoom Microscope can be widely used in machine version, semi-conductor and micro-electronics inspection and solder testing industry. The Zoom lens is designed with high resolution and clear image. When the manual zoom with detents is used in measuring systems, the calibration of magnification is needed, and the pre-set stops are at 0.3X, 0.5X,1X, 1.5X, 2.2X. By selecting the appropriate objectives, different magnification, field of view and depth of field can be acquired.

2D/3D Angle Lens Attachment

Rotary Observation :36 degree Angle 3D Attachm-ent for a 1X Objective Lens (Standard) Depth of field: 6mm

W.B: Manual W.D: 95mm(Long working distance) Change 2D to 3D image Same working distance , superior resolution Consistent centre position

3DM-02-VGA Configurations:



BIHT1008 scope Body, Video Couplers: 1x2D/3D angle changer,1x objective lenswhite track StandHA-TS50VGA CameraHS-72 Microscope LED

Ring Light

Black Suitcase

Package Contenets

  • BIHT1008 Zoom Microscope Body
  • 2D/3D Angle Lens Attachment
  • 1X Standard Objective Lens
  • 1X Video Couplers
  • HA-TS50 White Track Stand
  • HS-72 LED Ring Light
  • VGA Microscope Camera
