Save $1,020

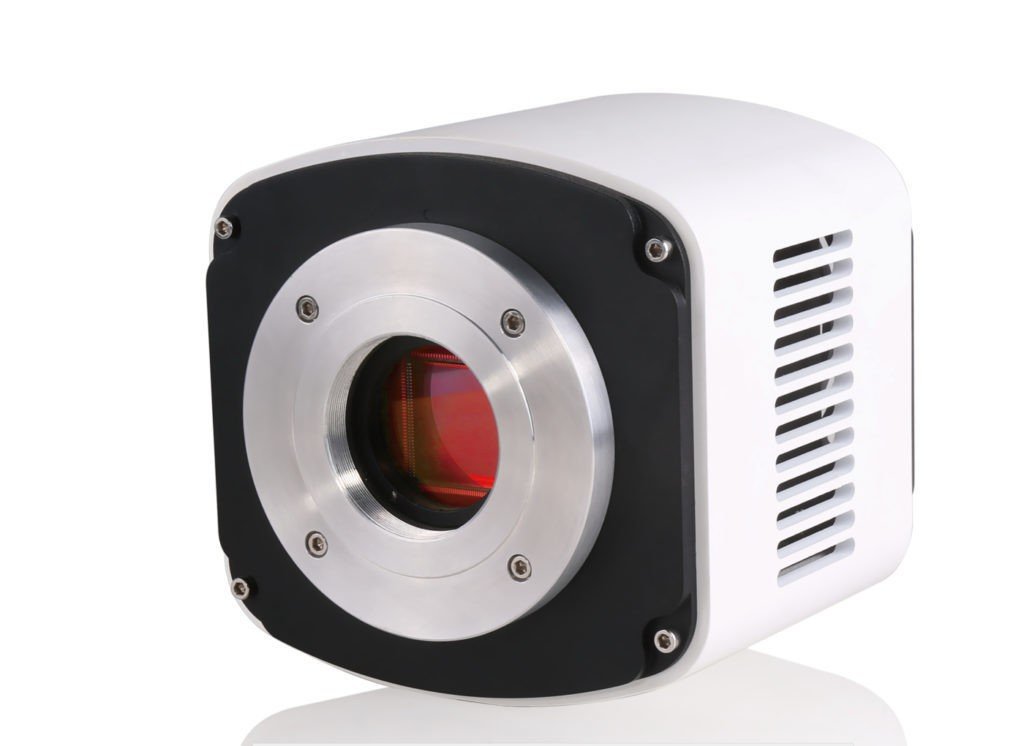

BIC-C40D sCMOS 4MP 1.2″ 6.5μm/pixel Microscope Camera with external trigger


  • Scientific CMOS / sCMOS Camera
  • 1.2″ Sensor, 4MP (2048×2048) Monochrome
  • 6.5 μm/pixel
  • 2e- Readout Noise
  • 85dB dynamic range
  • Progressive Scan Mode
  • Perfect 16bit color reproduction
  • External triggering
  • Peltier Cooled Device
  • USB3.0-Faster data transmission
  • C-Mount port

$6,980.00 $8,000.00

High Sensitivity Color sCMOS Sensor

Some opportunities are fleeting, but should not be missed.

As a result of the breakthrough performance of the scientific grade color CMOS sensor, the BIC-C40D produces perfect images in very low light conditions, allowing for vastly reduced exposure times and corresponding high frame rates, whilst maintaining the richness of the image detail information.
  • 2e- Readout Noise
  • 1.2 inch-larger field of view
  • Perfect 16bit color reproduction
  • Outstanding color, with unique user control
  • 16 bit ISP image processor
  • Peltier Cooled Device
  • USB3.0-Faster data transmission

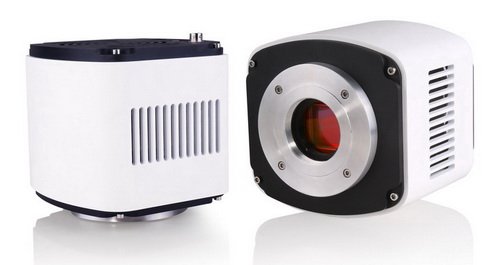

BIC-C40D 1.2″ 4MP Monochrome sCMOS Microscope Camera

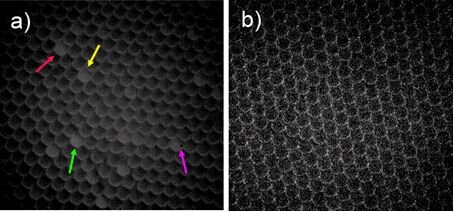

BIC-C40D 4MP 1.2" 6.5μm/pixel Monochrome sCMOS Microscope Camera with external triggerLow Readout Noise

Through with superb large pixel size 6.5µm×6.5µm, the BIC-C40D only has low to 1.5e readout noise. Regarding with the readout noise per unit area of each pixel, BIC-C40D has the lowest noise than all the CCD and sCMOS cameras in the market. BIC-C40D offers truly extraordinary signal to noise ratio.

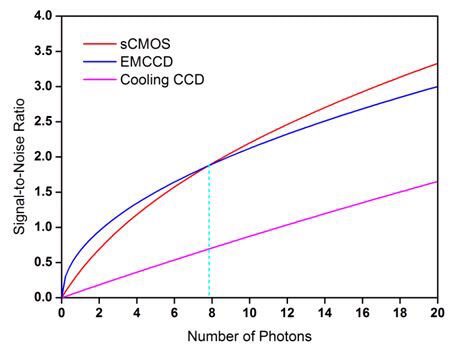

High Signal-to-Noise Ratio

The BIC-C40D shows dramatically higher SNR performance over the cooling CCD at any amount of incoming photons. If the number of photons is over the crossover point at 8 photons, the SNR of BIC-C40D also outperforms the EMCCD.

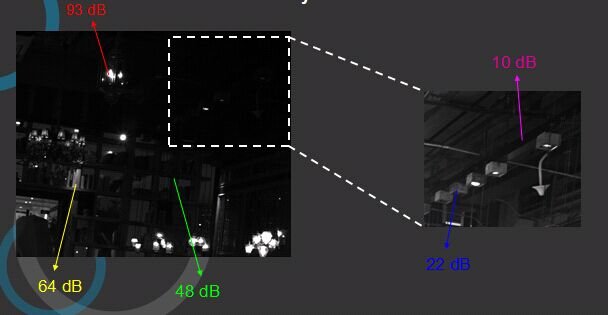

High Dynamic Range

85dB dynamic range and 16 bit digital signal presents ultra-low signals and strong signal simultaneously. You can take images under any complicated light environment.

High Frame Speed

 By USB 3.0 data transfer technology, the frame speed reaches 25 fps at 2048×2048 resolution. BIC-C40D has the capability to capture fast-moving object images.

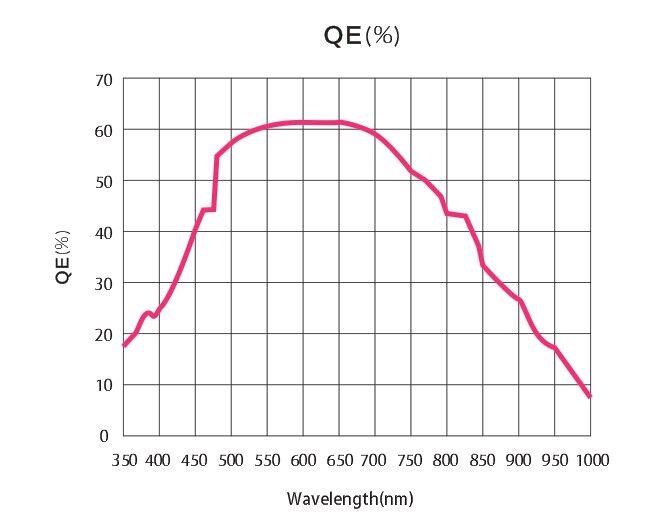

Excellent Quantum Efficiency

The BIC-C40D extends the remarkable photo-electric conversion range from 470 nm to 750 nm, in which the quantum efficiency is over 50% to even 60%. If you need high QE application, we can supply “black illuminated” BIC-C40B for you, the camera will has UV detect capability and >85% QE at 600 nm.



Technical Specifications

ModelBIC-C40D
Sensor size1.2″
Color/monochromeColor
Pixel size (μm)6.5μm x 6.5μm
Effective pixels4MP
Max. Resolution (H×V)2048 x 2048 (HxV)
Effective Area13.3 x 13.3 mm
Full well capacity30,000e-
ShutterRolling shutter
Frame rate[email protected] resolution
Read noise2e-
Shutter typeRolling Shutter
Exposure modeAuto/Manual
Exposure time0.021ms-10s
Cooling methodPeltier cooling
Cooling temperatureForced air (Ambient at +25’C):-10’C
Dark current0.6 electrons/pixel/s (0‘C)(typ.)

0.35 electrons/pixel/s (-10’C)(typ.)

Dynamic range85dB
Sub-arrayAvailable

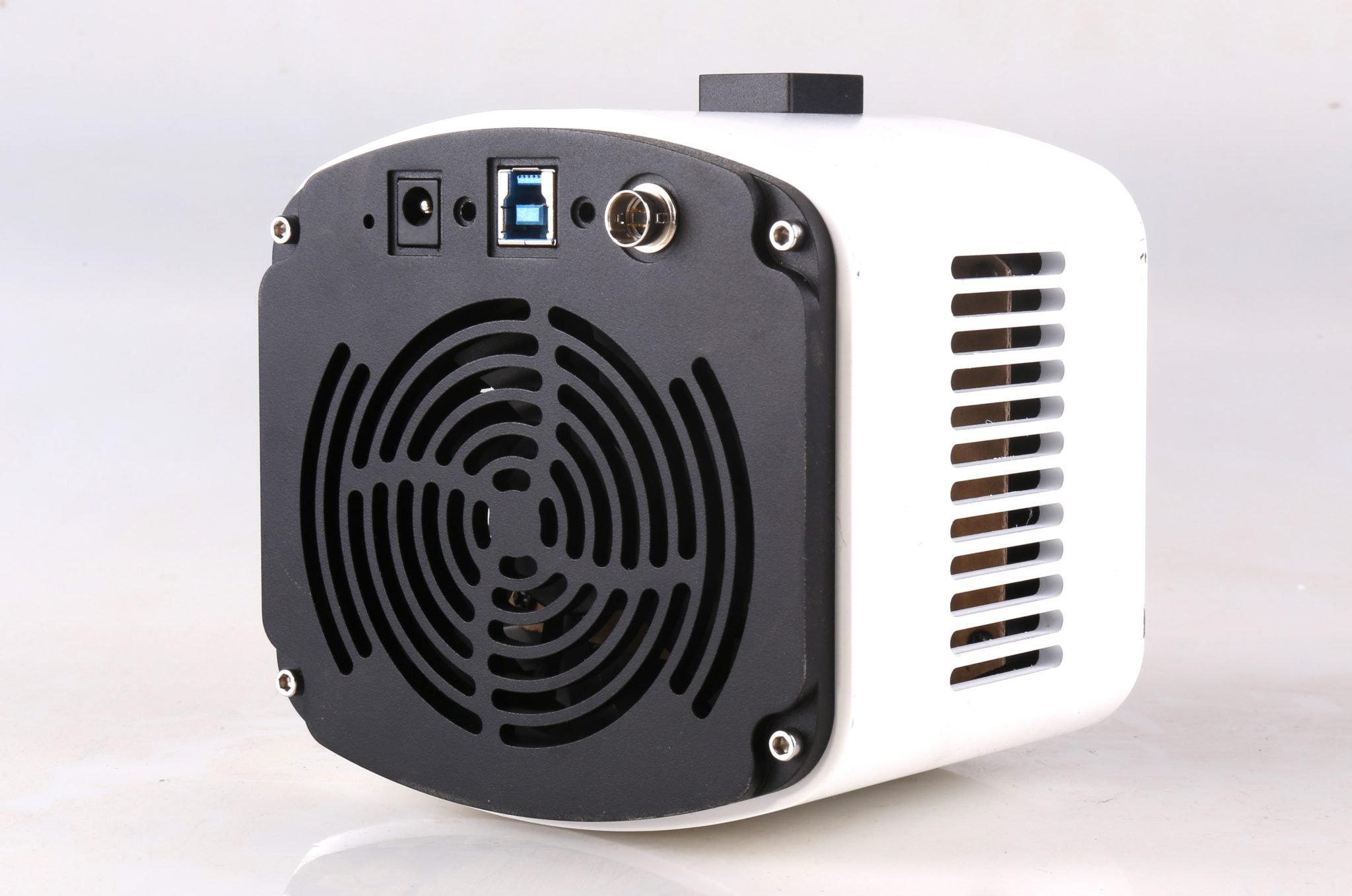

External trigger modeStandard / Synchronous / Global trigger
Trigger delay function0-10s (1μs steps)
Trigger output3 programmable timing outputs (Exposure/Global/readout signal)
External trigger routingHIROSE connector
Digital interfaceUSB3.0
SDKSupport
Bit depth16 bit
Lens mountC-mount
Power supply12V/8A
Power consumption50W
Camera size120 x 119 x 121(mm)
Parameter settingsWhite balance, Exposure, 3D denoise, Gamma, Gain, Contrast, Saturation, Flat fielding, Auto level
PC softwareMosaic/LabVIEW/Matlab/Micromanager
Compatible systemWindows is supported and Linux/Mac is under development
Operating temperature0-60’C
Operating humidity10%-85% RH



ModelBIC-C40D
Sensor size1.2″
Color/monochromeColor
Pixel size (μm)6.5μm x 6.5μm
Effective pixels4MP
Max. Resolution (H×V)2048 x 2048 (HxV)
Effective Area13.3 x 13.3 mm
Full well capacity30,000e-
ShutterRolling shutter
Frame rate[email protected] resolution
Read noise2e-
Shutter typeRolling Shutter
Exposure modeAuto/Manual
Exposure time0.021ms-10s
Cooling methodPeltier cooling
Cooling temperatureForced air (Ambient at +25’C):-10’C
Dark current0.6 electrons/pixel/s (0‘C)(typ.)

0.35 electrons/pixel/s (-10’C)(typ.)

Dynamic range85dB
Sub-arrayAvailable
External trigger modeStandard / Synchronous / Global trigger
Trigger delay function0-10s (1μs steps)
Trigger output3 programmable timing outputs (Exposure/Global/readout signal)
External trigger routingHIROSE connecter
Digital interfaceUSB3.0
SDKSupport
Bit depth16 bit
Lens mountC-mount
Power supply12V/8A
Power consumption50W
Camera size120 x 119 x 121(mm)
Parameter settingsWhite balance, Exposure, 3D denoise, Gamma, Gain, Contrast, Saturation, Flat fielding, Auto level
PC softwareMosaic/LabVIEW/Matlab/Micromanager
Compatible systemWindows is supported and Linux/Mac is under development
Operating temperature0-60’C
Operating humidity10%-85% RH
