BRC-4kHD 4k High-Definition USB3.0 GE Microscopy Camera

Original price was: $USD 4,000.00.Current price is: $USD 1,999.00.

-50%
  • 4k HDMI USB 3.0 Microscopy camera
  • Sony CMOS HD sensor
  • 4K HDMI, GE, WLAN and USB3.0 multiple  ports
  • Auto switching between 4k and 1080P resolution according to the display resolution
  • Saves images and videos on an SD card via built-in software, controlled by a mouse
  • USB flash disk for the captured image and video storage by advanced image acquisition software for a Software
  • With strong ISP and image processing function
  • iOS/Android applications for smart phones or tablets
Guaranteed Safe Checkout

Guaranteed Safe Checkout

BRC-4kHD: One Microscopy Camera with Multiple Outputs and Various Function

Interface & Button Functions
USB Mouse Connect USB mouse for easy operation of the built-in viewing software
USB3.0 Connect USB flash disk for image or video storage;

Connecting 5G WLAN adapter as WLAN camera in AP or STA mode;

HDMI Comply with HDMI2.0 standard. 4K/1080P format video output and supporting auto switching between 4K and 1080P format according to the connected display resolution
GE Gigabit Ethernet port to connect to the peripheral for the video streaming
SD Comply with SDIO3.0 standard and SD card could be inserted for the images or videos storage
DC12V Power adapter connection (12V)
ON/OFF Power Switch
LED Camera status indicator

BRC-4kHD Series – 4K High-Definition Microscopy Camera with 60 FPS

BRC 4KHD camera 1

The BRC-4kHD series is a cutting-edge live-view imaging system designed for high-resolution microscopy. Featuring 4K ultra-HD resolution at 60 FPS, this microscopy camera delivers exceptional clarity and smooth real-time imaging. It is equipped with a high-sensitivity, low-dark-current CMOS sensor and utilizes R, G, and B primary color mosaic filters to eliminate smearing and enhance color accuracy.

Seamless Integration with Any Microscopy System

The camera is built with a standard C-mount interface, ensuring easy compatibility with stereo microscopes, biological microscopes, and industrial microscopes.

Versatile Standalone & Live Streaming Functionality

The BRC-4kHD camera functions as a standalone imaging device, featuring built-in software for image capture and video recording. Simply connect it to an HDMI monitor or television for instant viewing or stream live to a PC via Gigabit Ethernet (GE) for real-time image processing and remote video recording.

Advanced Image Processing & Enhancement

Equipped with 3D denoising technology and tone mapping control, this camera significantly enhances image sharpness and video clarity. These advanced functions make it ideal for precision imaging in scientific research, medical diagnostics, and industrial inspections.

Powerful Software for Image Acquisition & Analysis

The Windows-compatible software package provides robust image acquisition and measurement tools. Key features include:

  • Image stitching and tiling for high-resolution composite images

  • Extended Depth of Focus (EDF) for capturing images with greater depth clarity

  • Calibration tools for adding scale bars at multiple magnifications

  • Multi-level inspection capabilities for detailed analysis

For Mac and Linux users, a lite version of the software is available, allowing video and image capture with basic image processing tools.

Ideal for a Wide Range of Applications

The BRC-4kHD microscopy camera is perfect for:
Scientific research – Universities, educational institutions, and academic demonstrations
Medical research & pathology – Remote diagnosis, telepathology, and expert consultations
Industrial inspection – PCB examination, IC quality control, and manufacturing analysis
Food safety & microbiology – Bacterial contamination assessment and microbial colony counting
Aerospace & military applications – Precision imaging for defense and advanced technologies

With its high-speed 4K imaging, advanced image processing, and versatile connectivity options, the BRC-4kHD is the ultimate solution for microscopy imaging, medical diagnostics, and industrial quality control.

Order Code Sensor & Size(mm) Pixel(μm) G Sensitivity
Dark Signal
FPS/Resolution Binning Exposure

BRC-4kHD-8

4K/Sony IMX334(C)
1/1.8″(7.68×4.32)
2.0×2.0 505 mv with 1/30s
0.13 mv with 1/30s
60@3840×2160(HDMI)
60@1920×1080(HDMI)
30@3840×2160(WiFi,GE)
1×1 0.1ms~1000ms

BRC-4kHD-16*

4K/Sony IMX183(C)
1/1.06″(13.06×7.27)
2.4×2.4 1847 mv with 1/30s
0.84 mv with 1/30s
30@3840×2160(HDMI)
30@1920×1080(HDMI)
30@3840×2160(WiFi,GE)
1×1 0.1ms~2000ms

*BRC-4kHD-16 has high sensitivity and is much suitable for fluorescence, DIC Nomarski, darkfield and polarized imaging application.

Other Specification for HDMI Output
UI Operation With USB Mouse
Image Capture 8M (3840*2160) JPEG Image in SD Card or USB Flash Disk
16M (5440*3060) JPEG Image in SD Card or USB Flash Disk
Video Record Video Format:8M(3840*2160) H264 Encoded MP4 Format

Video Recording Frame Rate:50~60FPS(XCAM4K8MPA),26~30FPS(XCAM4K16MPA)(related with the SD card speed class and video resolution)

Camera Control Panel Including Exposure, Gain, White Balance, Color Adjustment, Sharpness and Denoising Control
Toolbar Including Zoom, Mirror, Comparison(Video~image,image~image, Freeze,
Cross, Browser Function
Other Specification for GE Output
White Balance Auto/Manual/ROI White Balance
Color Technique Ultra-Fine Color Engine (USB)
Capture/Control API Standard network API for Windows/Linux/Mac(USB)
Recording System Still Picture or Video
Software Environment (for USB2.0 Connection)
Operating System Microsoft® Windows® XP /Vista /7/8/8.1/10(32 & 64 bit)
OSx(Mac OS X)
Linux
PC Requirements CPU: Equal to Intel Core2 2.8GHz or Higher
Memory: 4GB or More
Ethernet Port: RJ45 Ethernet Port
Display:   19” or Larger
CD-ROM
Operating Environment
Operating Temperature(in Centidegree) -10~ 50
Storage Temperature(in Centidegree) -20~ 60
Operating Humidity 30~80%RH
Storage Humidity 10~60%RH
Power Supply DC 12V/2A Adaptor
Overall Dimensions
Width x Depth x Height 98.3 mm (3.87”) x 65 mm (2.56”) x 78mm (3.07”)
Shipping Weight 0.47 kg (1.0lbs)

Monitors

Model BRC-1160B BRC-1330-B BKC-1330-B
Monitor Size (active area) 11.6 in 13.3 in

295mm(W) × 165mm(H)

13.3 in

295mm(W) × 165mm(H)

LCD Panel IPS LCD Screen(Super TFT) IPS LCD Screen(Super TFT) IPS LCD Screen

(Super TFT)

Input Video Format HDMI HDMI HDMI
Native Resolution 1920×1080 1920×1080 3840 x 2160
Display Type 16:9 Ratio 13.3 Inch Active Matrix Super TFT LCD 16:9 Ratio 13.3 Inch Active Matrix Super TFT LCD 16:9 Ratio 13.3 Inch Active Matrix Super TFT LCD
Typical Contrast Ratio 1000:1 1000:1 1000:1
Colors 16.7 Million 16.7 Million 16.7 Million
Viewing Angle(L/R/U/D) IPS Full View(178°) IPS Full View(178°) IPS Full View(178°)
Active Display Area 295mm(W) × 165mm(H) 295mm(W) × 165mm(H) 295mm(W) × 165mm(H)
Pixel Pitch 0.154(W) X 0.154(H) mm 0.154(W) X 0.154(H) mm 0.154(W) X 0.154(H) mm
Refresh Rate 60Hz 60Hz 60Hz
Brightness 400cd/m2 400cd/m2 400cd/m2
Backlight LED Backlight,50000 hours LED Backlight,50000 hours LED Backlight,50000 hours



Images captured by BRC-4kHD 4k High-Definition USB3.0 GE Microscopy Camera:

BRC-4kHD 4k High-Definition USB3.0 GE Microscopy Camera captured image

BRC-4kHD 4k high definition camera:

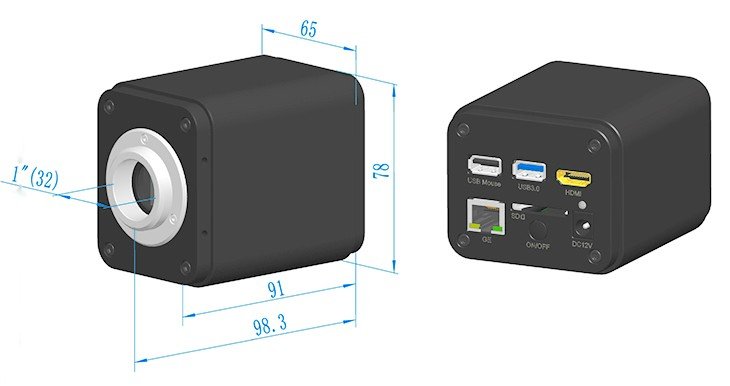

BRC-4kHD 4k high definition camera dimension:

BRC-4KHD-camera-dimension

BRC-4kHD 4K High-Definition USB 3.0 GE Microscopy Camera Software Description

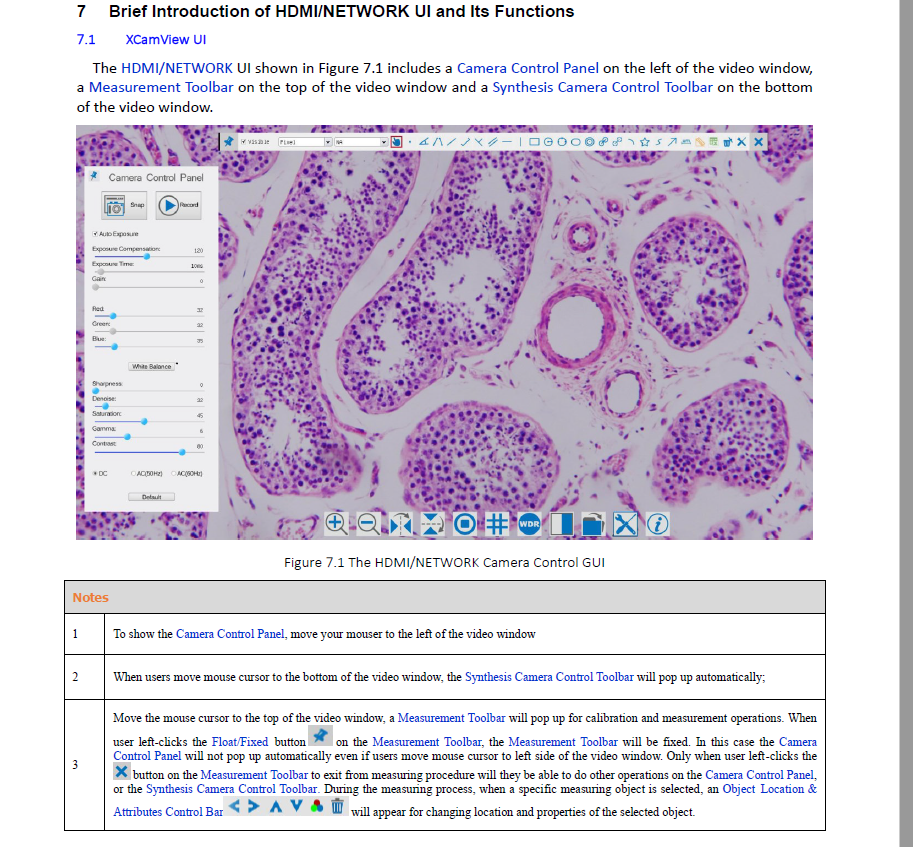

Brief Introduction to HDMI/Network UI and Its Functions

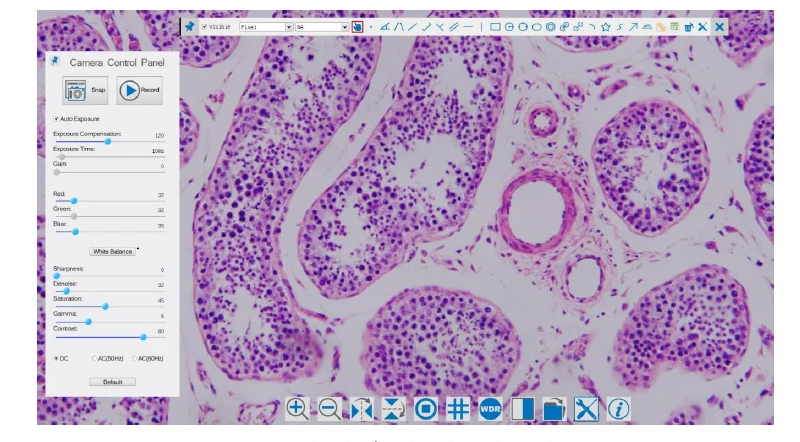

The HDMI/Network user interface (UI) of the BRC-4kHD, as shown in the image, features a Camera Control Panel located on the left side of the video window, a Measurement Toolbar positioned at the top, and a Synthesis Camera Control Toolbar at the bottom.

BRC-4kHD 4k High-Definition USB3.0 GE Microscopy Camera

Notes

  1. To display the Camera Control Panel, move your mouse to the left side of the video window.

  2. When you move the mouse cursor to the bottom of the video window, the Synthesis Camera Control Toolbar will automatically appear.

  3. Moving the mouse cursor to the top of the video window will bring up the Measurement Toolbar for calibration and measurement functions.

    • Clicking the Float/Fixed button on the Measurement Toolbar will lock it in place. In this case, the Camera Control Panel will not appear automatically, even if the mouse is moved to the left side of the video window.

    • To exit the measuring mode, click the ✖ button on the Measurement Toolbar. This will enable other operations on the Camera Control Panel and the Synthesis Camera Control Toolbar.

    • During measurement, selecting a specific object will activate the Object Location & Attributes Control Bar, allowing changes to the object’s position and properties

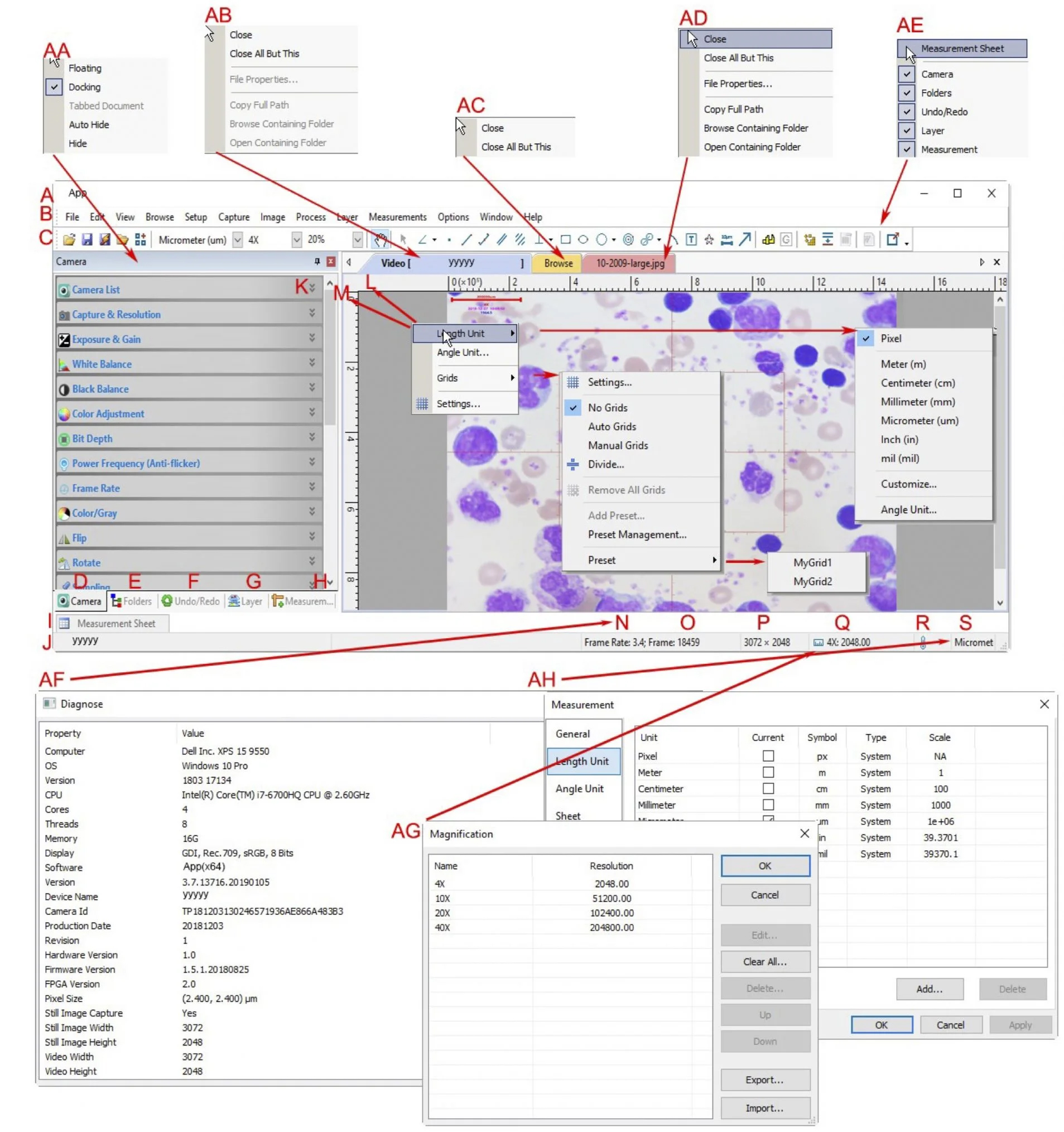

 BRC-4kHD--4k-High-Definition-USB3.0-GE--Microscopy-Camera-software

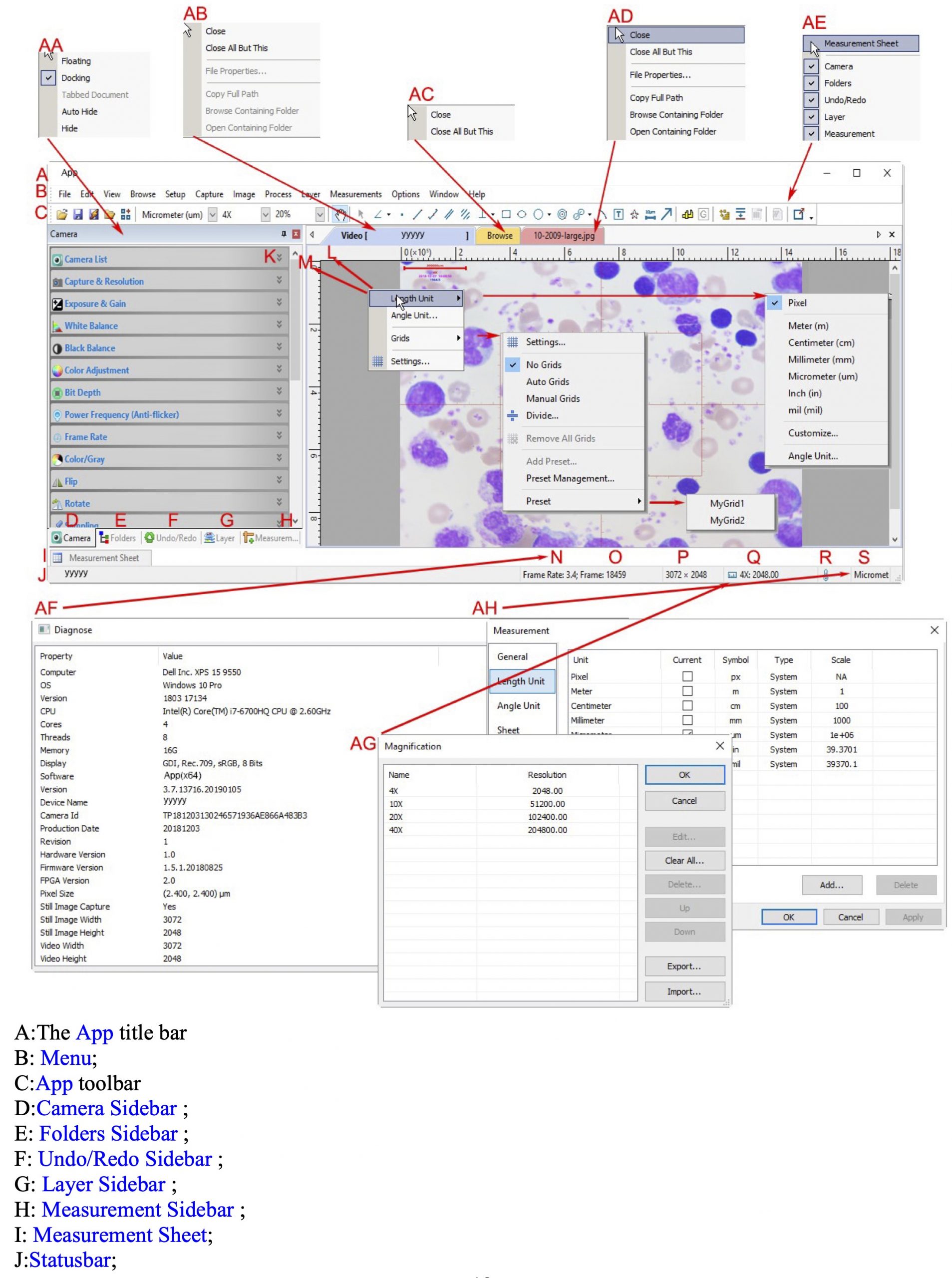

A: Application Title Bar
B: Menu
C: Application Toolbar
D: Camera Sidebar
E: Folders Sidebar
F: Undo/Redo Sidebar
G: Layer Sidebar
H: Measurement Sidebar
I: Measurement Sheet
J: Status Bar
