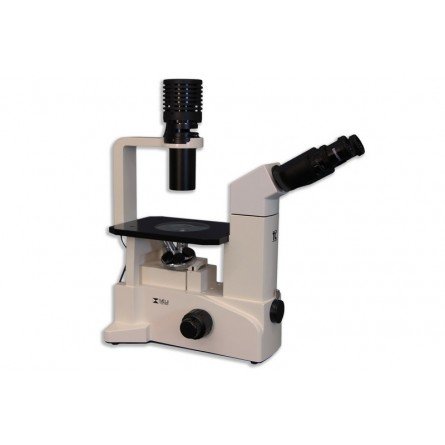

TC-5100 Binocular Inverted Brightfield Biological Microscope
$USD 4,305.00
Full Eyepiece View 5MP / 8MP CMOS Camera, BIC-FEV500
Original price was: $USD 4,830.00.$USD 4,395.00Current price is: $USD 4,395.00.
-9%Our latest inverted microscope line is the cost-effective TC-5000 Series Inverted Biological Microscopes. The TC Series makes routine examining of tissue cultures, microbes and other live specimens in petri dishes and culture bottles fast and easy while delivering an excellent performance-to-cost ratio.
Our latest inverted microscope line is the cost-effective TC-5000 Series Inverted Biological Microscopes. The TC Series makes routine examining of tissue cultures, microbes and other live specimens in petri dishes and culture bottles fast and easy while delivering an excellent performance-to-cost ratio.
The TC Series is available in brightfield, phase contrast and epi-fluorescence models. The TC5300 Microscope have an integrated front mounted camera port with adapters available for 35mm, CCD/CMOS and other cameras.
Includes:
• TC-5300: Binocular Inverted Phase Contrast/Brightfield Compound Microscope, ∞ Infinity Corrected Optical System F-200MM with 6V 30W Halogen Koehler illumination with quintuple nosepiece and auto voltage sensing power supply
• MA814: Siedentopf type binocular, inclined at 30°, Interpupillary adjustment 53mm to 75mm graduated diopter on left eyetube (30mm I.D. eyetubes)
• MA817 (x 2): SWH10X Widefield high eyepoint eyepiece, Field No. 22, tube O.D. 30.0 mm
• MA826: TC Long Working Distance LWD Planachromat Phase 10X objective ∞/1.0
• MA827: TC Long Working Distance LWD Planachromat Phase 20X objective ∞/1.0
• MA853: TC Extra Long Working Distance ELWD Condenser, N.A. 0.30, W.D. 73.0mm
• MA861: Green interference filter in 51mm mount (546mm)
• MA863: Cobalt clear filter in mount in 51mm mount
• STAGE: Plain stage with 180mm(X) x 245mm(Y) plain stage with replaceable glass insert with 45mm opening
• MA878: Glass Stage plate insert for plain stage (Round-109mm diameter, 1.5mm thick with 44.3mm central opening)
• MA855: Phase slider
• MA458/05: Centering telescope (O.D. = 30.0)
• MA809/10: Removable AC Electric cord with plug for 115V models
• MA326: Bulb 6V 30W Halogen (Factory Installed)
• MA327: Fuse 3 Amp (Factory Installed)
• Manual: TC-5000 Meiji Techno Instruction Manual
• Warranty: Limited Lifetime Warranty Card
Product Information:
• Manufactured: 100% MADE IN JAPAN
• Warranty: LIMITED LIFETIME WARRANTY
• Customer Support: 1-(800) 832-0060 (U.S.A Based)
Package Information:
• Weight: 23 lbs (10.5 kg)
• Box Size: 16 x 14 x 21 inches
• Footprint: 364mm (D) x 220mm (W)
• Binocular head type: 485 mm(D) x 411 mm(H) x 220 mm(W) (8.0kg)( 29.0 lbs)
• Trinocular head type: 485 mm(D) x 440 mm(H) x 2210 mm(W) (8.5Kg)(31.0 lbs)
• Binocular Ergonomic head type: 485 mm(D) x 440mm(H) x 2210mm(W) (8.5Kg)(31.0 lbs)
| Model | Head | Illumination | Eyepieces | Objectives | Stage | Condenser |
| TC-5100 Brightfield | Binocular | Koehler w/o iris 6V 30W halogen | SWH10x FN22 | Quintuple Nosepiece w/LWD 10X & LWD 20X |
Plain Fixed Stage 180mm X 247mm |
TC Condenser WD 73mm NA 0.30orTC Condenser2 WD 20.5mm NA 0.55 |
| TC-5100E Brightfield | Ergonomic Binocular | |||||
| TC-5200 Brightfield | Trinocular | |||||
| TC-5300 Phase Contrast | Binocular | Koehler w/o iris with phase slider 6V 30W halogenKoehler 6V 30W halogen |
||||
| TC-5300E Phase Contrast | Ergonomic Binocular | |||||
| TC-5400 Phase Contrast | Trinocular | |||||
| TC-5500 Epi-Fluorescent | Binocular | 100W Mercury + Koehler w/o iris 6V 30W halogen | Quintuple Nosepiece TC Planachromat F10X, F20X |
TC Condenser WD 73mm NA 0.30 or TC Condenser2 WD 20.5mm NA 0.55 |
||
| TC-5600 Epi-Fluorescent | Trinocular |
VIEWING HEADS
Binocular models, the TC5100, TC5300 and TC5500, incorporate the MA814 Siedentopf-type binocular head while the trinocular models, the TC5200, TC5400 and TC5600 have the MA816/10 Siedentopf-type trinocular head. The MA816/10 uses an 80/20 beamsplitter that can be engaged for photo-microscopy. (100% to eyetubes or 80% to phototube and 20% to the eyetube.) Each microscope head has the eyetubes inclined at 30 degrees with the left eyetube having graduated diopter settings. The interpupillary distance on the viewing heads is adjustable between 53mm – 75mm.
EYEPIECES
10X Super Widefield High Eyepoint eyepieces are standard and 15X and 20X eyepieces are also available as an option. A Super Widefield High Eyepoint 10X focusable eyepiece that accepts standard 25mm reticules is also available.
OBJECTIVE CHANGER
Quintuple nosepiece provides effortless objective changes with smooth-operating, ball bearing mounted.
OBJECTIVES
Meiji Techno America offers an assortment of Planachromat Infinity Corrected (ICOS) objectives for Brightfield, Darkfield and Phase Contrast observation modes.
STAGE
The optional attachable mechanical stage measures 112mm(X) x 72mm(Y). It has ergonomically positioned right-handed coaxial drop down controls. It also accepts the following optional accessory plates: 35mm, 55mm, 65mm, Petrie Dish Holders, 96-well Terasaki Plate Holder, 1″ X 3″ glass slide holder, Hemacytometer holder.Slide, chamber, and petri dish holding plates of various sizes are available separately.
CONDENSER
The standard condenser has a working distance of 73mm.
ILLUMINATION
A powerful 6 volt 30 watt halogen bulb with pre-centered socket provides enhanced image quality and brightness for the observation of specimens.
PHOTOMICROGRAPHY
Meiji Techno offers a broad range of digital video cameras which offers excellent sensitivity, high resolution and a wide dynamic range for the most demanding brightfield and darkfield microscopy applications including clinical pathology and cytology, life sciences and geology. Some models has included software, that can preview and capture still shots and live videos to a PC or Mac with USB port or HDMI connectivity.
Included:
• TC-5300: Binocular Inverted Phase Contrast/Brightfield Compound Microscope, ∞ Infinity Corrected Optical System F-200MM with 6V 30W Halogen Koehler illumination with quintuple nosepiece and auto voltage sensing power supply
• MA814: Siedentopf type binocular, inclined at 30°, Interpupillary adjustment 53mm to 75mm graduated diopter on left eyetube (30mm I.D. eyetubes)
• MA817 (x 2): SWH10X Widefield high eyepoint eyepiece, Field No. 22, tube O.D. 30.0 mm
• MA826: TC Long Working Distance LWD Planachromat Phase 10X objective ∞/1.0
• MA827: TC Long Working Distance LWD Planachromat Phase 20X objective ∞/1.0
• MA853: TC Extra Long Working Distance ELWD Condenser, N.A. 0.30, W.D. 73.0mm
• MA861: Green interference filter in 51mm mount (546mm)
• MA863: Cobalt clear filter in mount in 51mm mount
• STAGE: Plain stage with 180mm(X) x 245mm(Y) plain stage with replaceable glass insert with 45mm opening
• MA878: Glass Stage plate insert for plain stage (Round-109mm diameter, 1.5mm thick with 44.3mm central opening)
• MA855: Phase slider
• MA458/05: Centering telescope (O.D. = 30.0)
• MA809/10: Removable AC Electric cord with plug for 115V models
• MA326: Bulb 6V 30W Halogen (Factory Installed)
• MA327: Fuse 3 Amp (Factory Installed)
OPTIONAL COMPONENTS & ACCESSORIES BELOW
Viewing Heads:
• MA816/10: Siedentopf type trinocular head, inclined at 30°, I.P. adjustment 53mm to 75mm graduated diopter on left eyetube (30mm I.D. eyetubes) (Included with TC-5400) Includes 80/20 beamsplitter (100% to eyetubes or 80% to photo 20% to eyetube)
• MA957/15: Ergonomic binocular head, inclination adjustable vertically from 10° to 50° (Included with TC-5100E)
• MA1034: Trinocular Siedentopf head, erect image, inclined at 30°, I.P. adjustment 53mm to 75mm, graduated diopter on left eyetube (30mm I.D. eyetubes) Includes 0/100 beamsplitter (100% to eyetubes or 100% to phototube)
Eyepieces:
• MA818: SWH 15X Widefield high eyepoint eyepiece, Field No. 16.0, tube O.D. 30.0 mm (each) (19mm reticle mount)
• MA819: SWH 20X Widefield high eyepoint eyepiece, Field No. 12.0, tube O.D. 30.0 mm (each) (19mm reticle mount)
• MA859: SWH 10X-F Focusing eyepiece with reticle mount (without reticle), tube O.D. 30.0 mm (each) (25mm reticle mount)
Phase Objectives:
• MA825: TC Planachromat Phase 4X objective ∞/1.0 N.A. 0.13, F.L. 50.0, W.D. 17.3
• MA828: TC Planachromat Phase 40X objective ∞/1.0 N.A. 0.65, F.L. 5.0, W.D. 2.8
Condensers:
• MA854: TC Condenser, N.A. 0.55, W.D. 20.5mm (For use with MA823 40X objective)
Filters:
• MA856: LB100 Blue clear filter in 51mm mount
• MA857: G533 Green clear filter in 51mm mount
• MA858: ND25 Neutral density filter in 51mm mount
Stages (Fixed 245mm x 180mm, plain stage is included with stand):
• MA878: Replacement glass stage plate insert for plain stage – TC5000 Series (Round – 109mm diameter, 1.5mm thick with 44.3mm opening) (Fits plain stage only not for use with MA380/05)
• MA380/05: Attachable mechanical stage, movement 112mm(X) x 72mm(Y) with test plate holder and drop-down coaxial X-Y controls.
Specimen Holders for use with MA380/05 Attachable Mechanical Stage (Rectangular Plate 129.74mm x 89.78 mm x 3mm):
• MA382: Slide glass holder, 1”x 3”
• MA383: Chamber holder (For 55mm x 80mm chamber)
• MA384; Petri dish holder 35mm diameter
• MA385; Petri dish holder 55mm diameter
• MA387: Petri dish holder 65mm diameter
• MA864: Terasaki plate holder (For 56mm x 87mm Terasaki plate)
• MA378: Hemacytometer holder
Miscellaneous:
• MA809/20: Removable AC Electric cord with plug for 220V models (included in all 220V models) CAMERA ADAPTERS FOR “C” MOUNT TYPE CAMERAS
• MA877 “C” mount type camera adapter for CCD/CMOS camera (No internal lens) (Magnification factor of 0.66X from TC5000 Series front camera port)
CAMERA ADAPTERS FOR DIGITAL STILL CAMERAS
• MA868:: Digital camera adapter for non “C” mount type cameras (52mm O.D. thread) For TC Series front camera port only: (Requires additional DCA adapter ring for your specific model of camera which are listed on the last two pages of the TC5000 section) CAMERA ADAPTERS FOR 35mm TYPE CAMERAS
• MA869: 35mm SLR camera attachment Magnification at film plane is 2.23X of objective in use
