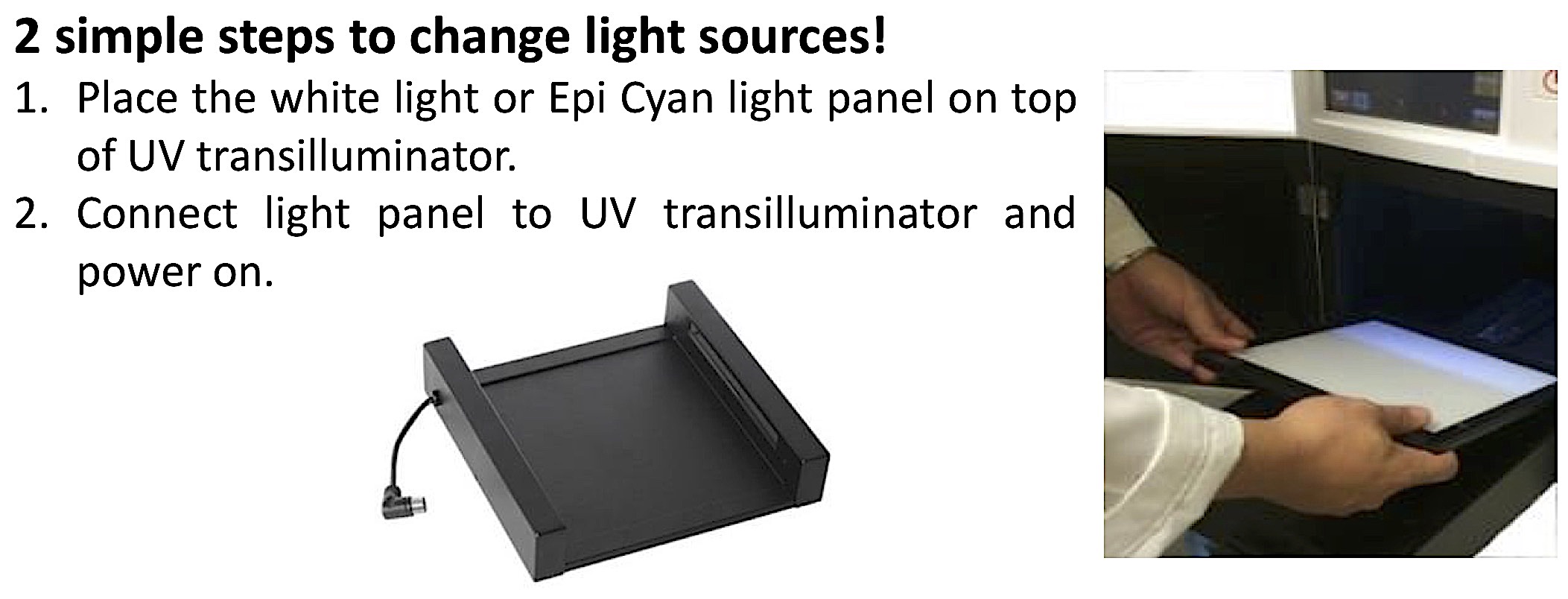

Portable & Easy replacement oflightsource
Two simple steps to change light sources!

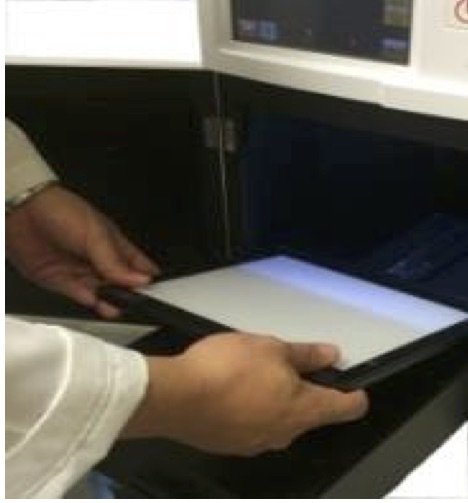

1. Place the white light or Epi Cyan light panel on top of UV transilluminator.
2. Connect light panel to UV transilluminator and power on.
BioScan-1040 10x-40x 5MP Digital Microscope Slide Imager
Chemlux 600 Chemiluminescent Gel / Blot Imager with Fluorescent/luminescent/colorimetric Imaging
Slite 600 Series Affordable Gel Doc System with 6MP Camera
Original price was: $USD 8,000.00.$USD 5,995.00Current price is: $USD 5,995.00.
-25%- 6MP Resolution camera
- Multiple light sources: UV, Cyan, Epiwhite & white backlight
- UV light for fluorescent dye-stained DNA (ex. EtBr)/protein (ex. SYPRO Ruby) gel imaging
- Cyanlightforsafedye-stained gel
- Easily interchangeable light sources
- Stand-alone operation with no PC required
- Wire connection available for system operation/image capture
Slite 600 Series Affordable Gel Doc System with 6MP Camera
- Introduction
- Features
- Description
- Specification
- Applications
- Images
- Configuration
- Softwares
- Links
- References
- Reviews 0
- Contact
- 6MP Resolution camera
- Multiple light sources: UV, Cyan, Epiwhite & white backlight
- UV light for fluorescent dye-stained DNA (ex. EtBr)/protein (ex. SYPRO Ruby) gel imaging
- Cyanlightforsafedye-stained gel
- Easily interchangeable light sources
- Stand-alone operation with no PC required
- Wire connection available for system operation/image capture
- Optional Cyan light source
- Optional Western-blot gel imaging
Slite 600 Series Affordable Gel Doc System with 6MP Camera
Image Precision Meets Budget-Friendly Performance
The Slite 600 Series Gel Documentation System offers a cost-effective yet highly capable solution for imaging DNA, RNA, and protein gels. Equipped with a high-resolution 6MP CMOS camera and advanced motorized zoom lens, this compact and efficient system is designed for routine gel documentation with professional-grade image quality.
Whether you’re in a research lab, teaching facility, or diagnostic center, the Slite 600 ensures reliable and reproducible results without compromising on performance or clarity.
Key Features:
-
6 Megapixel High-Resolution Camera
Capture crystal-clear images of your gels with 3096 × 2080 pixel resolution for detailed analysis. -
Motorized 6× Zoom Lens
Easily adjust focus and magnification with motorized control, providing flexibility for various gel sizes and intensities. -
Versatile Illumination Options
Includes UV transilluminator (302 nm), white light panel, and white EPI lighting for a broad range of gel stains and applications. The 600C model additionally supports Epi Cyan 505 nm illumination. -
Touchscreen Control Panel
A user-friendly 8” TFT LCD touch screen allows for stand-alone operation—no computer needed. -
Advanced Imaging Software
Save images in TIFF, JPEG, or BMP formats with 8 or 16-bit depth, supporting publication-quality documentation and quantitative analysis. -
Smart Exposure Control
Automatically adjusts exposure times from 0.001 to 10 seconds for optimal image clarity. -
Efficient Workflow & Connectivity
Features include USB for storage/printing and Ethernet for network integration. -
Spacious Viewing Area
Accommodates large gels with a 20 × 16 cm imaging surface. -
Compact & Robust Design
Durable construction with a sleek footprint (300 × 430 × 600 mm), weighing 30 kg.
With the Slite 600 Series, you don’t have to choose between quality and affordability. Experience fast, easy, and accurate gel imaging with a system that’s built to deliver exceptional results—every time.
Slite 600 vs Slite 600C Specifications:
| Specifications | Slite 600 | Slite 600C |
|---|---|---|
| Camera Sensor | CMOS | |
| Image Resolution | 6 Mega pixels (3096 x 2080) | |
| Lens Type | 6× Zoom Lens / Motor-driven Lens | |
| Focus | Auto Focus, Motorized | |
| Saving Bit Depth | 8, 16 bits/channel | |
| Exposure Time | 0.001 to 10 sec | |
| UV Transilluminator 302nm | ✔ | ✔ |
| Epi Cyan 505nm | NA | ✔ |
| White Light Panel | ✔ | ✔ |
| White EPI Light | ✔ | ✔ |
| Viewing Area | 20 x 16 cm | |
| Filter Turret | Motor-Driven, 6 position | |
| Display Panel | 8” TFT LCD touch screen / stand-alone operation | |
| Image Format | TIFF, JPEG, BMP | |
| I/O Port | USB: storage/printing ; Ethernet | |
| Dimensions (WxHxD) | 300 x 430 x 600 mm (11.81 x 16.93 x 23.62 inch) | |
| Weight | 30 Kg (70.75 lb) | |
Ideal Applications:
-
DNA/RNA gel documentation
-
Protein gels (Coomassie, silver stain)
-
Western blot imaging
-
Teaching and training labs
-
Routine diagnostics and QC labs

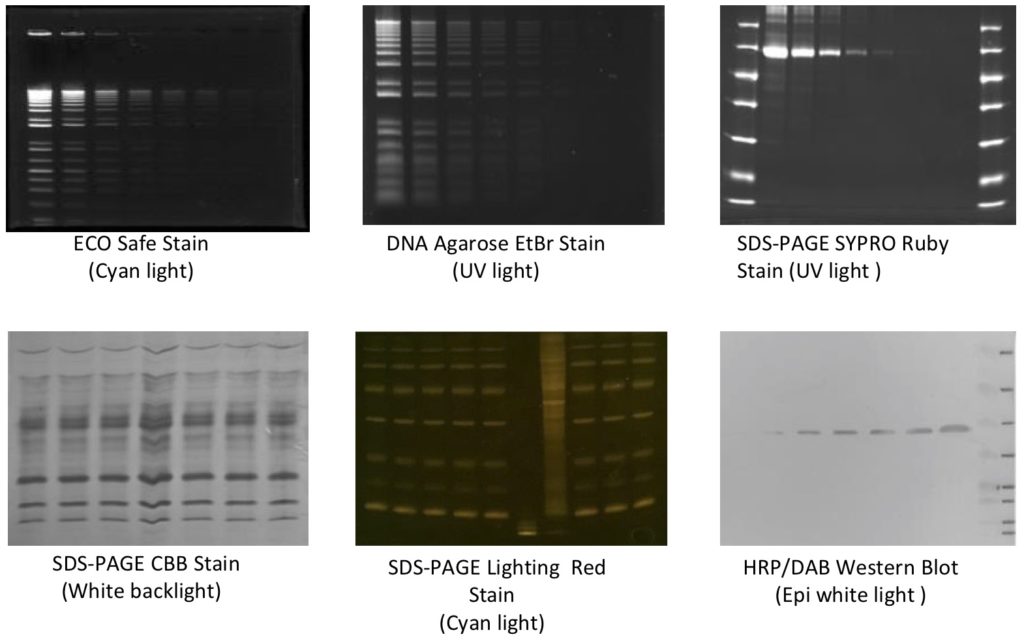

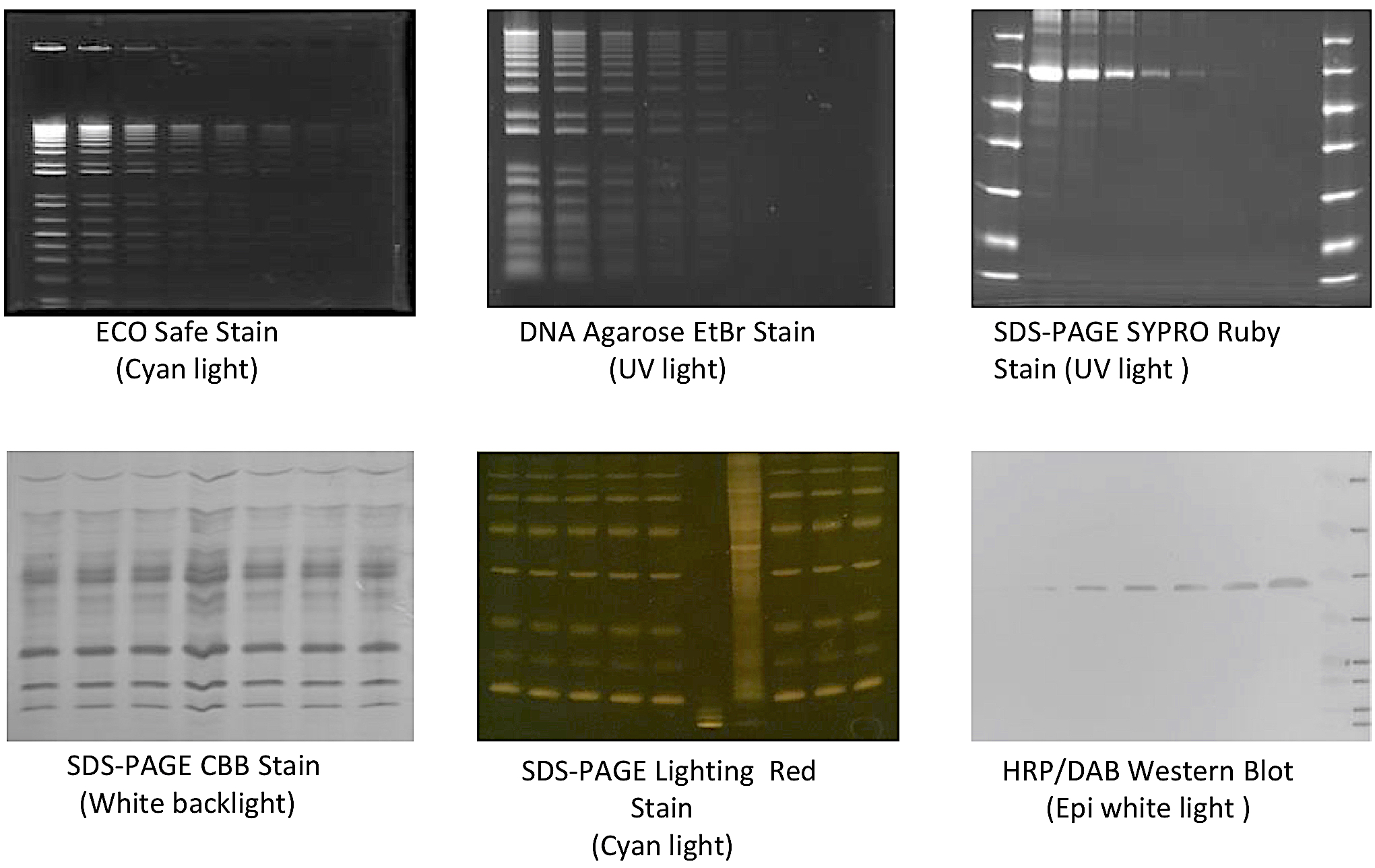

UV, Cyan White Backlight and Epi-White Light Sample Images
Below are some sample images for:
- UV Light for DNA Agarose EtBr Stain, SDS-PAGE SYPRO Ruby Stain
- Cyan Light for Eco Safe Satin and SDS-PAGE Lighting Red Stain
- Epi-White light for HRP/DAB Western Blot
- White Backlight for SDS-PAGE CBB Stain

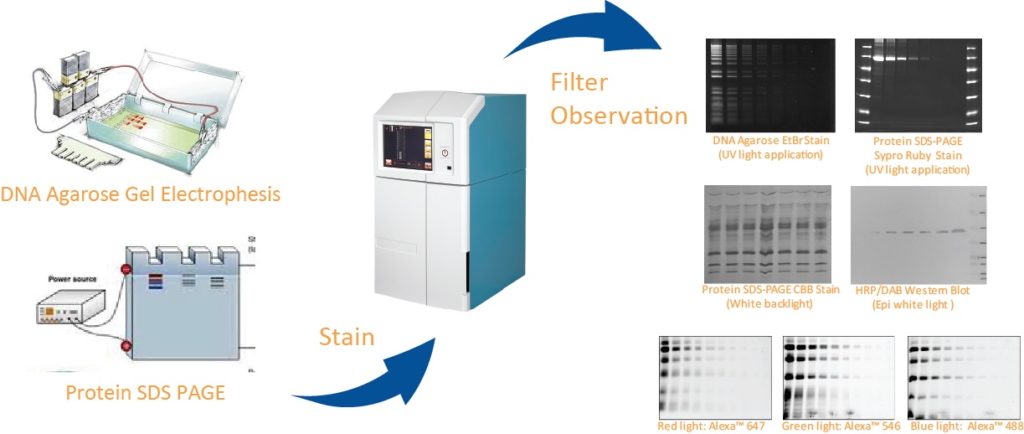

Configurations
Slite 600 can do fluorescent & colorimetric gel imaging as long as there is no need to do chemiluminesence imaging which needs long time exposure with cooled CCD camera.
Slite 600 can be configured for DNA gel (with UV light) CBB stain (White backlight) & HRP/DAB stain Western blotting (Epi white light) .
