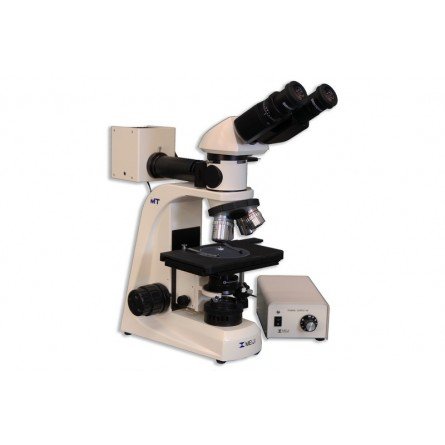

MT8520L LED Bino Incident/Transmitted Light BF/DF Metallurgical Microscope
$USD 9,345.00
MT8530L LED Trino Incident/Transmitted Light BF/DF Metallurgical Microscope
$USD 9,555.00
$USD 9,240.00
MT8500 is a versatile, modular ergonomic metallurgical microscope system. Newly designed Plan EPI optics provides exceptionally bright, crisp images with good color rendition and superior flat field of view. Metallurgical Brightfield /Darkfield Compound Microscope. Eyepieces adjustable vertically from 10°to 50°degrees.
MT8500 is a versatile, modular ergonomic metallurgical microscope system. Newly designed Plan EPI optics provides exceptionally bright, crisp images with good color rendition and superior flat field of view. Metallurgical Brightfield /Darkfield Compound Microscope. Eyepieces adjustable vertically from 10°to 50°degrees.
The MT8500 Series features include:
Includes:
• MT8530: Trinocular Metallurgical Brightfield /Darkfield Compound Microscope with Incident (Reflected) light BF/DF and Transmitted light BF/DF and simple Polarization Observation. ∞ Infinity Corrected optical system F-200MM. Vertical Köhler illuminator , with infinity tube lens, focal length 200mm, 12V 50W Halogen lamp with clear blue, clear green, ND 25, neutral density filter, and polarizing filters in metal mounts and Transmitted Kohler 6V 30W Halogen and simple polarization with quadruple nosepiece and auto voltage sensing power supply 110-240V. Ceramic Coated, flat-top stage, 191mm X 126mm with 100mm X 100mm travel.
• MA816: Trinocular head – Siedentopf type, Interpupillary adjustment 53mm to 75mm, graduated diopter on left eyetube (30.0 mm I.D. eyetube). Inclined at 30° degrees (Included in Model MT8530 and MT8530L)
• MA817 (x 2): SWH10X Widefield high eyepoint eyepiece, Field No. 22, tube O.D. 30.0 mm (each) (MA817 accepts optional 25mm diameter reticle)
• MA906 (x 2): Eyeshield for MA817 SWH 10X eyepiece (each)
• MA923: Plan Epi Objective BD 5X, N.A. 0.10, W.D. 17.0 mm, F.N. 22, ∞ Infinity Corrected
• MA924: Plan Epi Objective BD 10X, N.A. 0.25, W.D. 7.48 mm, F.N. 22, ∞ Infinity Corrected
• MA925: Plan Epi Objective BD 20X, N.A. 0.40, W.D. 5.20 mm, F.N. 22, ∞ Infinity Corrected
• MA926: Plan Epi Objective BD 50X, N.A. 0.75, W.D. 0.38 mm, F.N. 22, ∞ Infinity Corrected
• MA928:Vertical Köhler illuminator, with infinity tube lens, focal length 200mm, 12V 50W halogen lamp with clear blue, clear green, ND 25, neutral density filter, and polarizing filters in metal mounts. 100V~240V (requires MA928/05)
• MA928/05: Electronic external transformer with automatic voltage sensing capability for MA928 in separate case (Input 100V~240V, Output 12V 50W) (Included on Halogen models only)
• MA942: Ceramic Coated, flat-top stage, 191mm X 126mm with 100mm X 100mm travel. Equipped with precision ball bearing quides and low positioned drop down coaxial controls for X-Y movement and 94.5mm circular glass insert stage plate. (Included in Model MT8520 and MT8530) (Factory Installed)
• Focusing Adjustment: Coaxial coarse and fine focusing controls with graduation reading 2 microns per division. Range of travel is 23mm. Incorporates tension adjustment and safety Auto-focus stage stop lever. (Factory Installed)
• MA275/25: Blue clear filter, 19.5mm diameter filter in metal mount, fits 30mm filter slot
• MA275/30: Green clear filter, 19.5mm diameter filter in metal mount, fits 30mm filter slot
• MA275/50: N.D.50 neutral density filter, 19.5mm diameter filter in metal mount, fits 30mm filter slot
• MA959: Polarizing filter, 19.5mm diameter filter in metal mount, fits 30mm filter slot
• MA910/05: Substage condenser with iris diaphragm, dovetail mount
• MA275/05: Bulb 12V 50W Halogen lamp (Incident light)(Factory Installed)
• MA326: Bulb 6V 30W Halogen lamp (Transmitted light)(Factory Installed)
• MA327: Fuse 3A for transmitted light Halogen Illuminator(Factory Installed)
• MA809/10: Removable AC Electric cord with plug for 115V Models (Included in all 115V models) or
• MA809/20: Removable AC Electric cord with plug for 220V Models (Included in all 220V models)
• MA709: Dust cover for all MT8500 Series models
• Manual: Meiji Techno America MT8500 Manual
• Warranty: Limited Lifetime Warranty Card
Product Information:
• Manufactured: 100% MADE IN JAPAN
• Warranty: LIMITED LIFETIME WARRANTY
• Customer Support: 1-(800) 832-0060 (U.S.A Based)
Package Information:
• Weight: 35 lbs (9.4kg)
• Box Size: 17 x 14 x 27 inches
• Footprint: 263mm (D) x 176mm (W)
• Binocular head type: 477.5 mm(D) x 471mm (H) x 210mm(W) (9.4kg)( 34.0 lbs.)
• Trinocular head type: 477.5 mm(D) x 526mm(H) x 210mm(W) (9.6kg)(35.0 lbs.)
• Ergonomic Binocular head type: 477.5 mm(D) x 471mm (H) x 210mm(W) (9.4kg)( 34.0 lbs.)
• Ergonomic Trinocular head type: 477.5 mm(D) x 550mm(H) x 210mm(W) (10.2kg)(37.0 lbs.)
| Model | Head | Illumination | Eyepieces | Objectives | Stage |
| MT8520 | Binocular | 12V, 50W Vertical Koehler + 30W Transmitted Koehler | SWH10x FN22 | Plan Epi BD 5x, 10x, 20x, 50x | Ceramic Coated Fixed Flat-top left or right-handed controls |
| MT8520EH | Ergonomic Binocular | ||||
| MT8530 | Trinocular | ||||
| MT8530EH | Ergonomic Trinocular | ||||
| MT8520L | Binocular | LED Illumination | |||
| MT8520EL | Ergonomic Binocular | ||||
| MT8530L | Trinocular | ||||
| MT8530EL | Ergonomic Trinocular |
VIEWING HEADS
Model MA815 is the Siedentopf-type binocular head and Model MA816 is the trinocular head for camera integration. Each head has the eyetubes inclined at 30° with the left eyetube having graduated diopter settings. The interpupillary distance is adjustable between 53mm – 75mm. An 80/20 beamsplitter for the trinocular tube can be engaged for photo work. The optional Ergonomic Viewing Head has the inclination adjustable from 10 to 50 degrees to fit any size user.
EYEPIECES
10X Super Widefield High Eyepoint eyepieces F.N.22 are standard, and 15X and 20X eyepieces are available as an option. A Super Widefield High Eyepoint 10X focusable eyepiece that accepts 25mm reticules is also available.
OBJECTIVE CHANGER
The smooth-operating, ball bearing mounted, quintuple nosepiece provides effortless objective changes.
OBJECTIVES
Meiji Techno offers an assortment of Plan Epi Infinity Corrected objectives for Brightfield work.
STAGE
Ceramic coated left or right-handed, flat top stage measures 191mm x 126mm with travel: 100mm(X) x 100mm(Y). Ergonomically positioned coaxial drop down controls.
ILLUMINATION
Powerful 50 watt halogen vertical illumination along with 30W Transmitted Koehler Illumination provides super enhanced image quality and brightness for the observation of metallurgical specimens and photomicroscopy.
PHOTOMICROGRAPHY
Meiji Techno offers a broad range of digital video cameras which offers excellent sensitivity, high resolution and a wide dynamic range for the most demanding brightfield and darkfield microscopy applications including clinical pathology and cytology, life sciences and geology. Some models has included software, that can preview and capture still shots and live videos to a PC or Mac with USB port or HDMI connectivity.
Included:
• MT8530: Trinocular Metallurgical Brightfield /Darkfield Compound Microscope with Incident (Reflected) light BF/DF and Transmitted light BF/DF and simple Polarization Observation. ∞ Infinity Corrected optical system F-200MM. Vertical Köhler illuminator , with infinity tube lens, focal length 200mm, 12V 50W Halogen lamp with clear blue, clear green, ND 25, neutral density filter, and polarizing filters in metal mounts and Transmitted Kohler 6V 30W Halogen and simple polarization with quadruple nosepiece and auto voltage sensing power supply 110-240V. Ceramic Coated, flat-top stage, 191mm X 126mm with 100mm X 100mm travel.
• MA816: Trinocular head – Siedentopf type, Interpupillary adjustment 53mm to 75mm, graduated diopter on left eyetube (30.0 mm I.D. eyetube). Inclined at 30° degrees (Included in Model MT8530 and MT8530L)
• MA817 (x 2): SWH10X Widefield high eyepoint eyepiece, Field No. 22, tube O.D. 30.0 mm (each) (MA817 accepts optional 25mm diameter reticle)
• MA906 (x 2): Eyeshield for MA817 SWH 10X eyepiece (each)
• MA923: Plan Epi Objective BD 5X, N.A. 0.10, W.D. 17.0 mm, F.N. 22, ∞ Infinity Corrected
• MA924: Plan Epi Objective BD 10X, N.A. 0.25, W.D. 7.48 mm, F.N. 22, ∞ Infinity Corrected
• MA925: Plan Epi Objective BD 20X, N.A. 0.40, W.D. 5.20 mm, F.N. 22, ∞ Infinity Corrected
• MA926: Plan Epi Objective BD 50X, N.A. 0.75, W.D. 0.38 mm, F.N. 22, ∞ Infinity Corrected
• MA928:Vertical Köhler illuminator, with infinity tube lens, focal length 200mm, 12V 50W halogen lamp with clear blue, clear green, ND 25, neutral density filter, and polarizing filters in metal mounts. 100V~240V (requires MA928/05)
• MA928/05: Electronic external transformer with automatic voltage sensing capability for MA928 in separate case (Input 100V~240V, Output 12V 50W) (Included on Halogen models only)
• MA942: Ceramic Coated, flat-top stage, 191mm X 126mm with 100mm X 100mm travel. Equipped with precision ball bearing quides and low positioned drop down coaxial controls for X-Y movement and 94.5mm circular glass insert stage plate. (Included in Model MT8520 and MT8530) (Factory Installed)
• Focusing Adjustment: Coaxial coarse and fine focusing controls with graduation reading 2 microns per division. Range of travel is 23mm. Incorporates tension adjustment and safety Auto-focus stage stop lever. (Factory Installed)
• MA275/25: Blue clear filter, 19.5mm diameter filter in metal mount, fits 30mm filter slot
• MA275/30: Green clear filter, 19.5mm diameter filter in metal mount, fits 30mm filter slot
• MA275/50: N.D.50 neutral density filter, 19.5mm diameter filter in metal mount, fits 30mm filter slot
• MA959: Polarizing filter, 19.5mm diameter filter in metal mount, fits 30mm filter slot
• MA910/05: Substage condenser with iris diaphragm, dovetail mount
• MA275/05: Bulb 12V 50W Halogen lamp (Incident light)(Factory Installed)
• MA326: Bulb 6V 30W Halogen lamp (Transmitted light)(Factory Installed)
• MA327: Fuse 3A for transmitted light Halogen Illuminator(Factory Installed)
• MA809/10: Removable AC Electric cord with plug for 115V Models (Included in all 115V models) or
• MA809/20: Removable AC Electric cord with plug for 220V Models (Included in all 220V models)
• MA709: Dust cover for all MT8500 Series models
• Manual: Meiji Techno America MT8500 Manual
OPTIONAL COMPONENTS & ACCESSORIES BELOW
Viewing Heads:
• MA816: Trinocular head – Siedentopf type, I.P. adjustment 53mm to 75mm, graduated diopter on left eyetube (30.0 mm I.D. eyetube). Inclined at 30 degrees (Included in Model MT8530 and MT8530L)
• MA957: Ergonomic tilting binocular head – Adjustable vertically from 10 to 50 degrees
• MA979: Trinocular head – Siedentopf type, erect image with sliding 0/100 beamsplitter, inclined at 30 degrees, I.P. adjustment 53mm to 75mm,
graduated diopter on left eyetube
Photo/Video Attachment:
• MA958: Photo/video attachment with sliding 80/20 beam-splitter. For use with video or digital cameras when MA957 ergonomic head is used
Eyepieces:
• MA818: SWH15X Widefield high eyepoint eyepiece, Field No. 16.0, tube O.D. 30.0 mm (each) (MA818 accepts optional 19mm diameter reticle)
• MA819: SWH20X Widefield high eyepoint eyepiece, Field No. 12.0, tube O.D. 30.0 mm (each) (MA819 accepts optional 19mm diameter reticle)
• MA859: SWH10X-F Focusing eyepiece with reticle mount (without reticle), tube O.D. 30.0 mm (each) (MA859 accepts optional 25mm diameter reticle)
Brightfield/Darkfield Plan Epi Objectives:
• MA989: Plan Epi Objective BD100X, N.A. 0.90, W.D. 0.37 mm, F.N. 22
Eyepiece Micrometer (25mm diameter for use with MA817 or MA859 eyepieces):
• MA523: Eyepiece micrometer, cross-line reticle, 25mm diameter
• MA506: Eyepiece micrometer, 10mm line divided into 100 units, 25mm diameter
• MA509: Eyepiece micrometer, 5mm line divided into 100 units, 25mm diameter
• MA510: Eyepiece micrometer, 10mm square divided into 100 parts, each square 1.0 mm, 25mm diameter
Eyepiece Micrometer (19mm diameter for use with MA818 or MA819 eyepieces):
• MA279: Eyepiece micrometer, cross-line reticle, 19mm diameter
• MA280: Eyepiece micrometer, 10mm line divided into 100 units, 19mm diameter
• MA281: Eyepiece micrometer, 5mm line divided into 100 units, 19mm diameter
• MA283: Eyepiece micrometer, 10mm square divided into 100 parts, each square 1.0 mm, 19mm diameter
• MA539: Eyepiece micrometer, cross-line reticle with 0.1mm graduations, 19mm diameter
Stage Micrometer:
• MA292: Metal stage micrometer, 1mm divided into 100 units, 0.01mm (For reflected light)
Bulbs and Fuses:
• MA275/05: Spare bulb 12V 50W halogen lamp (Incident light)
• MA326: Spare bulb 6V 30W halogen lamp (Transmitted light)
• MA327: pare Fuse 3A for transmitted light halogen Illuminator
Miscellaneous:
• MA686/05: Adapter to mount RMS thread objective to MT7500/ MT8500 nosepiece
