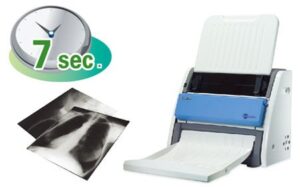

High End X-Ray Digitizer
7 Seconds per Chest X-Ray

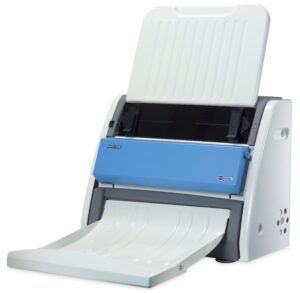

Bioimager medical grade digitizer, the Medi-7000, can digitize X-Ray films rapidly in 7 seconds per chest X-Ray. With the advanced technology of the LED light source, the Medi-7000 can reach full brightness and on/off operation immediately. The Medi-7000 can scan various sizes of X-Ray films up to 14×35 inches, letting user easily archive many kinds of X-Ray films. Equipped with high optical resolution, excellent Dmax, and 16-bit grayscale, the Medi-7000 ensures that the scans will capture all the details presenting in any area of the film and offer the superior image quality to the medical professionals.With the optional MiPAX systems of DICOM ready function, Medi-7000 is perfect for fast-paced environment of the medical doctor’s office, QC Station and PACS system.
1. ScanWizard Medi Software (Included )
Bioimager’s “ScanWizard Medi” is the software specifically designed for Bioimager digitizers of Medi series. With many powerful functions such as high density, exposure time tool, Smart-Scan, One-pass Scan for multiple scan jobs, etc., ScanWizard Medi is capable of shifting the focal length to the best position automatically; thus you can get images with top quality.
Bioimager’s digitizers of Medi series, including Medi-1200, Medi-2200 Plus, Medi-3200, Medi-5000, Medi-6000, Medi-6000 Plus, Medi-7000, Medi-9000.
- High density (for X-ray mode only)
- Exposure Time tool (for X-ray mode only)
- Auto Scan / “Smart-Scan”, Auto-crop & Auto-deskew
- Scan Material
High density (for X-ray mode only)
Great dynamic range can make scanning to capture all the details presenting in light and darkness areas .
Exposure Time tool (for X-ray mode only)
Exposure Time extending to average the intensity of the image and to compensate for a very dark image, making the dark areas of the image much brighter.
Auto Scan / “Smart-Scan”, Auto-crop & Auto-deskew
The scanner implements the auto film detection feature, allowing the scanner to detect and to scan the X-ray film automatically, and then to deliver the scanned images to your preferred folder or application.
One-pass Scan for Multiple Scan Jobs
This allows the scanner performs scanning in a single pass for all the selected scan jobs.
X-ray films and reflective prints. (Except Mdi-7000 for X-ray only)
Microsoft Windows XP, Vista, Windows 7 or Windows 8
512 MB RAM or above
CD-ROM drive (for installing software)
Color display with 24-bit color output capability
Pentium IV PC or higher with Hi-Speed USB (USB 2.0) port
2. MiPAX XRay Software (Optional)
CE Certified Medical PACS
MiPAX is a medical image management software system, the major functions are: archive, storage, transmission, and medical images printing.MiPAX series products play a major role on connecting with X-Ray or document digitizers to scan medical images or documents. They combine captured images or documents with patients’ information from other sites in the hospital, then transfer them into a format of the worldwide committed DICOM standard, and finally save these files in a database. MiPAX series products turn physical films and physical documents into digital files which are easier for storage and future references. MiPAX series products allow users to copy, print, and share these files on demand.

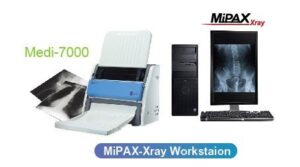

There are two digitizing solutions for the MiPAX-Xray workstations, including general X-Ray films workstations with Medi-6000 Plus/Medi-7000, and mammography workstation with Medi-5000. MiPAX-Xray gives medical professionals document/film scanning solutions with many powerful features and great image quality at an affordable price. Equipped with high optical resolution, excellent Dmax, and 16-bit grayscale, MiPAX-Xray systems ensure that your scans will capture all the details presenting in light and darkness areas, offering the superior image quality to the medical professionals. The systems are able to scan various sizes of X-Ray films up to 14″ x 35″ (Medi-6000 Plus/Medi-7000), letting medical professionals easily archive any size of X-Ray films. With designed compact size, the digitizers are perfect for limit space of doctor’s office and quality check station. The systems are easy to operate, clean, and maintain.
In addition, through MiPAX systems with DICOM ready function, you can easily and quickly make medical images digitized or archiving with many features to support query, retrieve, view, measurement, notation, report, DICOM print, CD-burning, database backup, and send DICOM files to any PACS/RIS system from any medical department.
Perfect with Bioimager X-ray film digitizers：
Medi-7000, Medi-6000 Plus, Medi-5000
‧ Built-in image adjustment and measurement tools
‧ Support two image display modes: normal and
By built-in medical lexicon and pre-defined reporting templates, users can create reports in seconds.
‧ Send to PACS button after capturing images
‧ Capable to select needed images to upload
‧ Capable to select unwanted images to delete
DVD-burning in DICOMDIR format to review with built-in CD Viewer
Supports DICOM Printers
Supports Database Backup & Restore
Secure database backup and restore efficiently
|01||Product Name||MiPAX-Xray Workstation|
|02||Certifications||CE MDD 93/42/EEC, TFDA, GMP, ISO 13485|
|03||System Requirements PC||Intel® Core2 Duo E7400|
2GB DDR2 800
Integrated Intel® Graphics Media Accelerator 4500
Gigabit Ethernet LAN
Speaker : Internal
Monitor : 19″ Monitor (4:3)
|04||Inbox Contents||Workstation Unit|
