M95 Plan Apo Industrial Objective Lenses


  • M95 Plan APO objective lenses
  • M26 threads
  • Can replace Mitutoyo lenses easily and saves huge cost
  • Various wavelength available: visible range, near ultra violet, near infra red.
  • Various magnifications: 1x, 2x, 5x, 7x, 10x, 20x, 50x, 100x, 150x, 200x, 250x, 500x
  • large-field, high-resolution, high NA and long WD lenses are available.



Request a Quote

What is M95 and why M95?

M95 objective lenses have total parfocal length of 95mm and mainly used with metallurgical or industrial microscopes. This is why they are called M95. FYI, regular objective lenses in biological and metallurgical microscopes are mainly M45 (45m mm parfocal length), while there is M60 also available for some applications.

The M95 are excellent choices for long working distance microscopy optics. They have great combination of long working distance and resolution at the same time. These lenses use mainly foal length of 200mm which is written on the lens enclosure.

These lenses can easily replace Mitutoyo lenses. They use the same thread of M26.



M95 Plan APO Objectives for Metallurgical/Industrial  Microscopes, Visible, NIR and NUV

The M95 objective lenses are offered at different wavelengths:

  • a) Visible (VIS) range (400-700nm)
  • b) Near Infrared  (NIR) range (650-800nm) which are also suitable for VIS range
  • c) Near Ultraviolet range (200-400nm), which can also be used for VIS range Plan Apo 20

a) NUV Range

Name (objectives)
Magnification
Numerical aperture(N.A)
Working distance (mm)
Conjugate distance(mm)
Parfocalization
distance(mm)
Infinity M Plan APO HL Objective (NUV)
20X
0.40
17.15
f T=200
95
50X
0.43
14.81
50X
0.70
3.50





b) VIS Range

Name (objectives)
Magnification
Numerical aperture (N.A)
Working distance (mm)
Conjugate distance (mm)
Parfocalization
distance (mm)

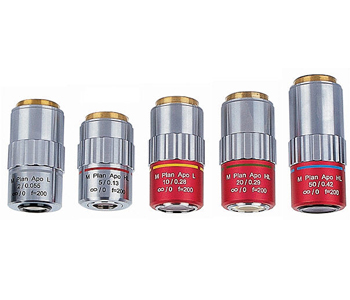

Infinity M95 Plan APO SL Objective (Visible)

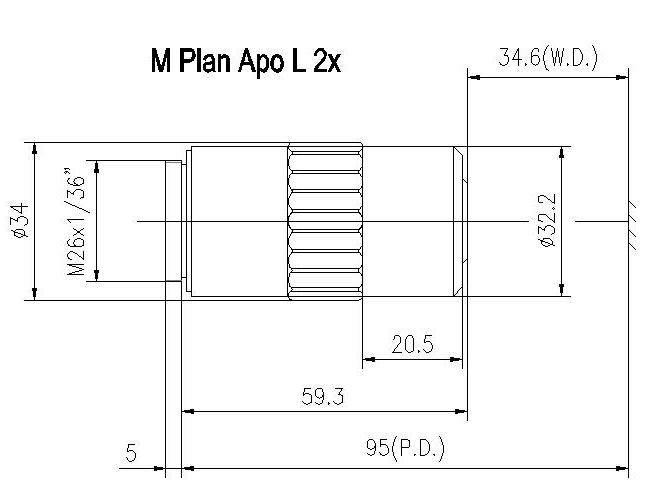

2X
0.055
34.60
f=200
95

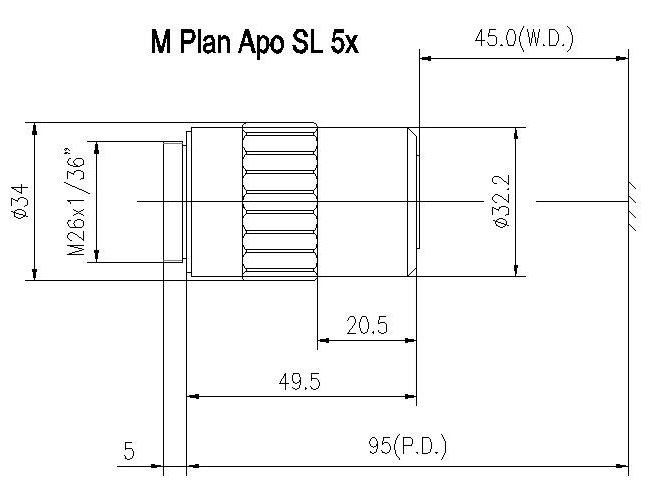

5X
0.14
44.50
f T=200
95
10X
0.28
34.00

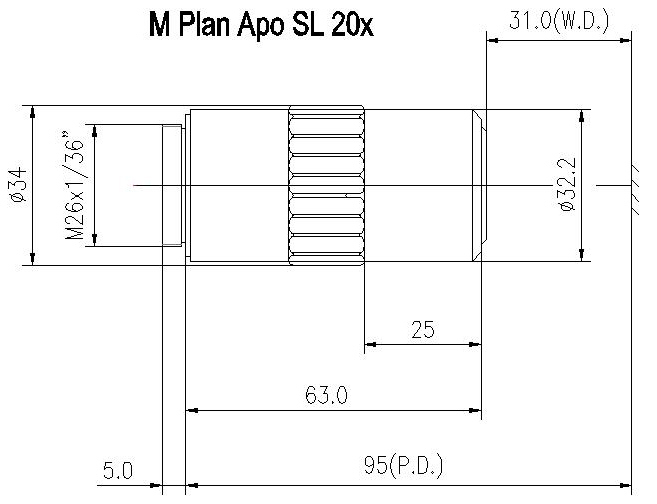

20X
0.29
31.00

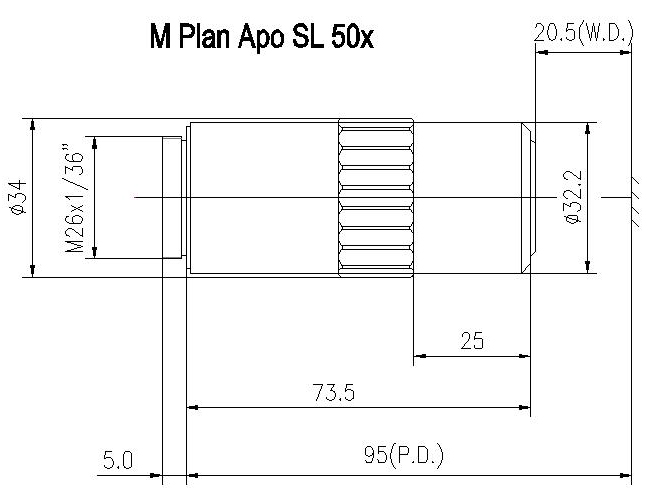

50X
0.42
20.50
100X
0.55
12.50







c) Near Infra Red (NIR) Obj lenses

Name Magnification N.A. W.D.(mm) Focus Depth of Field (μm) Resolution
Length (mm) (μm)
M95 Long
Working

Distance

Infinity Plan
Apo NIR
Objective
2x 0.055 34.6 100 91 5
5x 0.14 45 40 14 2
10x 0.28 34 20 3.5 1
20x 0.29 30.8 10 3.5 1
50x 0.42 20.5 4 1.6 0.7

d) Large-field  industrial obj lenses

These are an unusual 0bjective lenses with large field of view size. There are always some special applications that appreciate such an objective lens existence.

Magnification Model NA WD(mm) f’ (mm) R (μm) DF (μm) on object

(mm)

on image

(mm)

Screw
1x MPlanApo(95)-1X 0.015 14 200 22 148 34 34 M26
2x MPlanApo(95)-2X 0.05 20 100 6.67 133 23 46 M26
5x MPlanApo(95)-5X 0.12 22 40 2.7 23 10 50 M26
7x MPlanApo(95)-7X 0.22 36.4 28.57 1.25 5.7 3.6 25 M26
10x MPlanApo(95)-10X 0.3 34 20 1.1 3.7 4.4 44 M26
10x MPlanApo(95)-10XB 0.3 34 20 1.1 3.7 4.8 48 M26
20x MPlanApo(95)-20X 0.3 33 10 1.1 3.7 2.5 50 M26
50x MPlanApo(95)-50X 0.5 20.7 4 0.67 1.33 1 50 M26
100x MPlanApo(95)-100X 0.8 4 2 0.42 0.52 0.5 50 M26
150x MPlanApo(95)-150X 0.6 4.4 1.33 0.56 0.93 0.33 50 M26
200x MPlanApo(95)-200X 0.65 2.2 1 0.51 0.79 0.25 50 M26
250x MPlanApo(95)-250X 0.7 2 0.8 0.48 0.68 0.2 50 M26
500x MPlanApo(95)-500X 0.75 1.96 0.4 0.44 0.59 0.1 50 M26

e) High Numerical Aperture NA and High Resolution NIR APO Objectives

NAME N.A. W.D.

(mm)

f′

(mm)

R

(μm)

±Δp VISUAL FIELD

(mm/φ)

VISUAL FIELD

(mm/1/2CCD)

TRANSMITTANCE
 (μm) REMARK

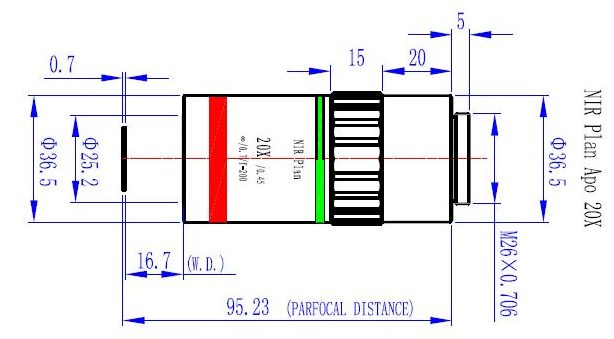

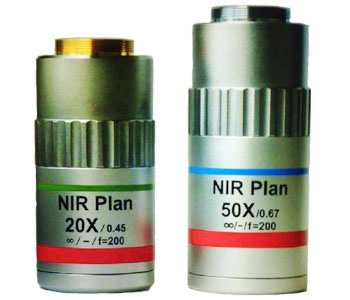

NIR Plan
Apo 20X
0.45 16.7 10 0.61 1.36 Φ1.2 0.24×0.32 450nm-700nm >70%,
770nm~790nm>90%Achromatic
Wavelength:780nm
NIR Plan
Apo 50X
0.8 3.34 4 0.34 0.43 Φ0.48 0.10×0.13 450nm~700nm>70%,
770nm~790nm>90%Achromatic
Wavelength:780nm

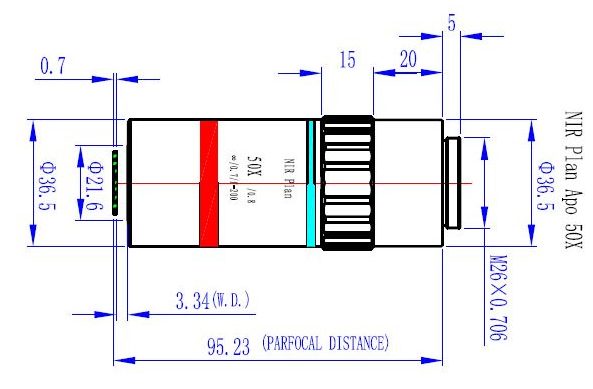

NIR Plan
Apo 50X
0.67 10 4 0.7 1.6 Φ0.48 450nm~700nm>70%,
770nm~790nm>90%Achromatic
Wavelength:780nm
SKU: High Resolution Objective Lenses-1 Categories: ,

Large-field  industrial obj lenses

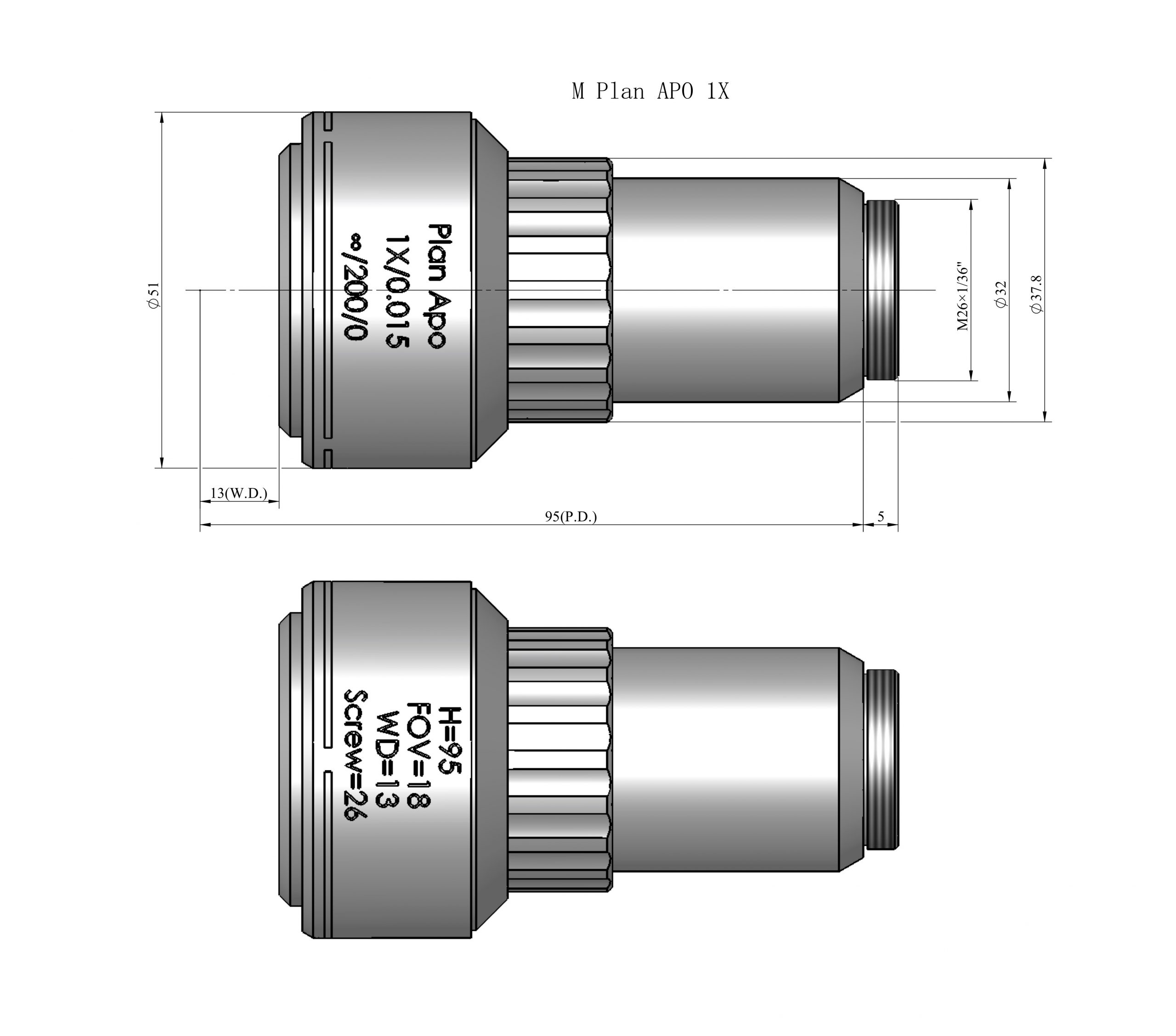

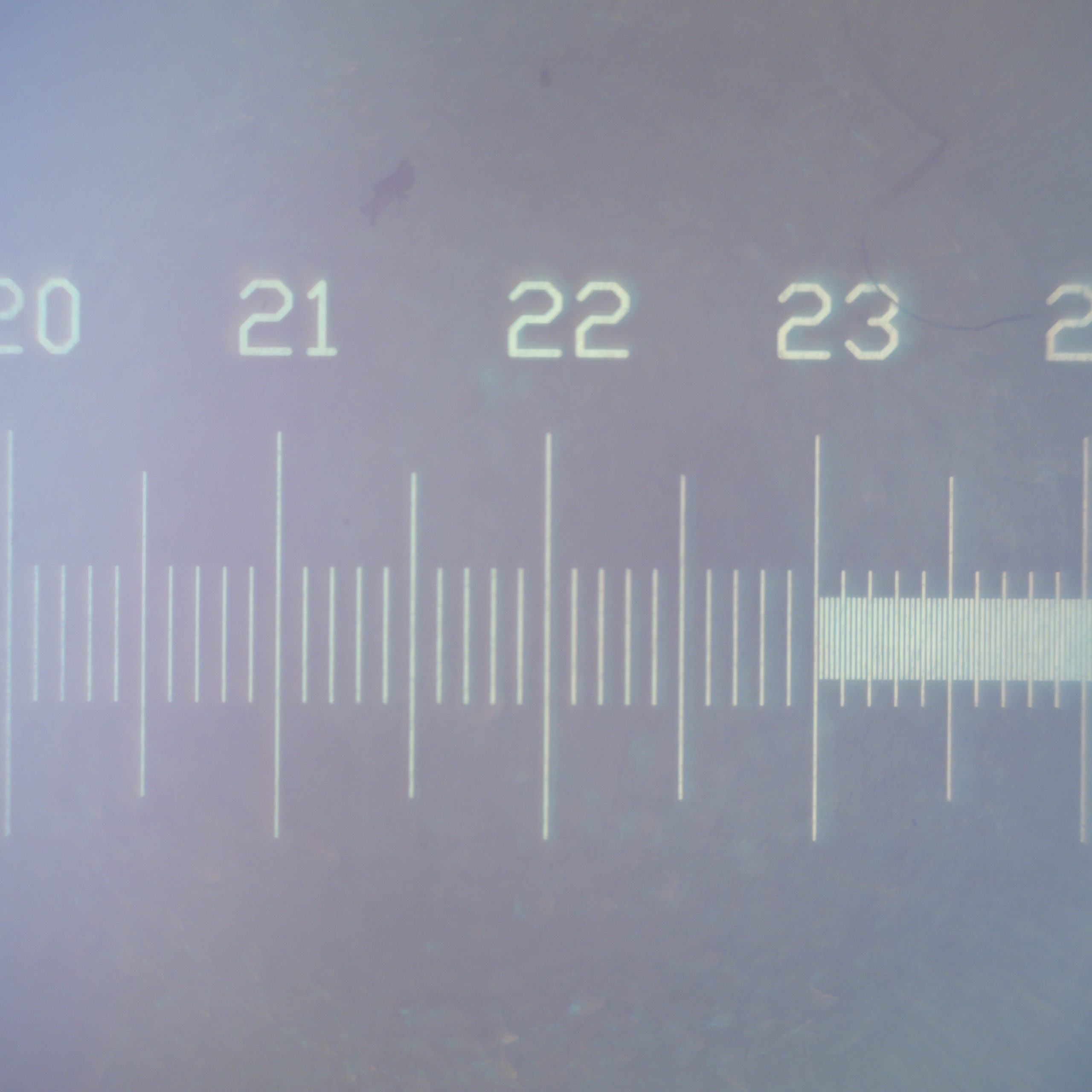

1x M95 Large-field Plan APo lens, FOV 18mm

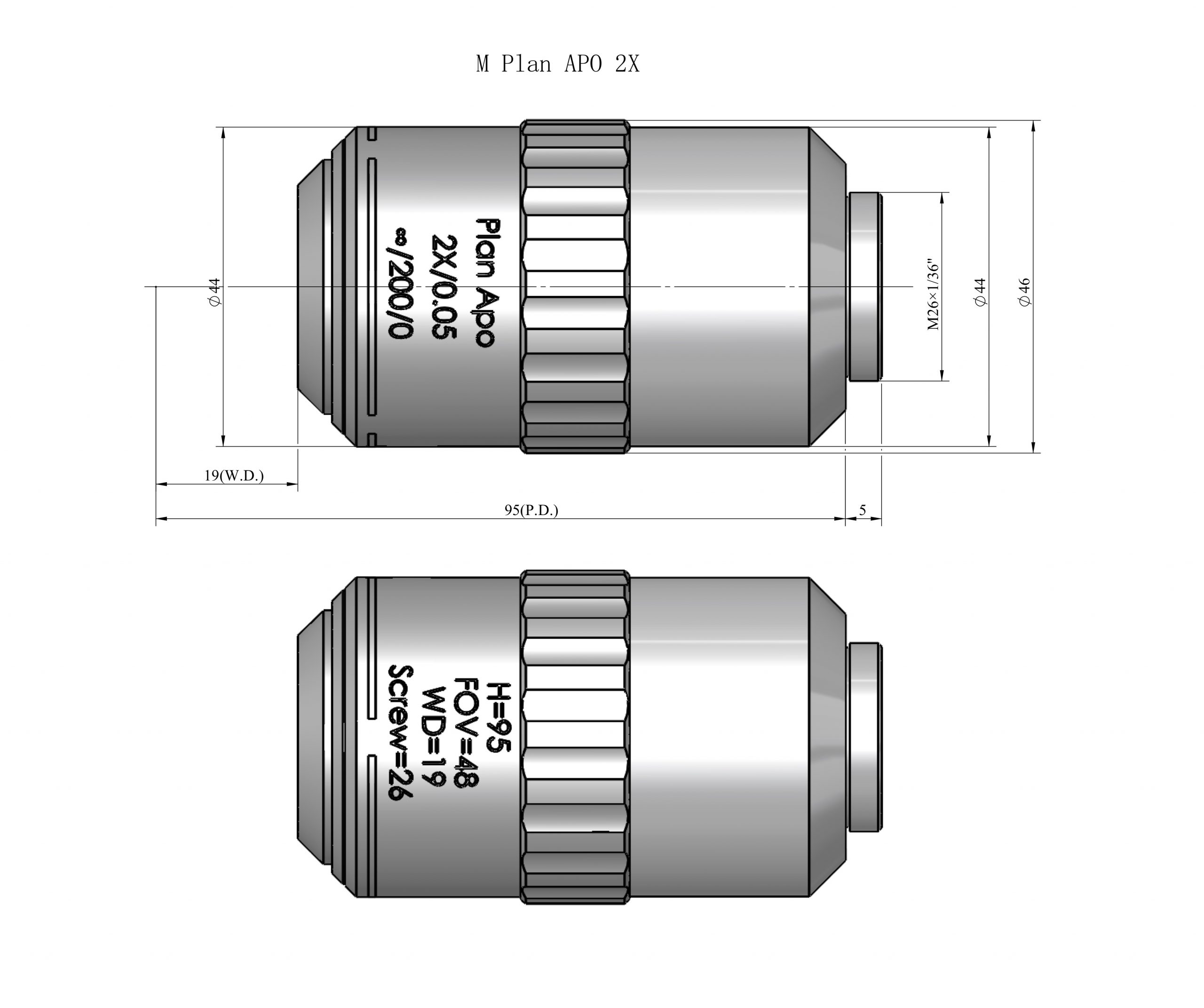

2x M95 with FN=48mm, FOV=24mm

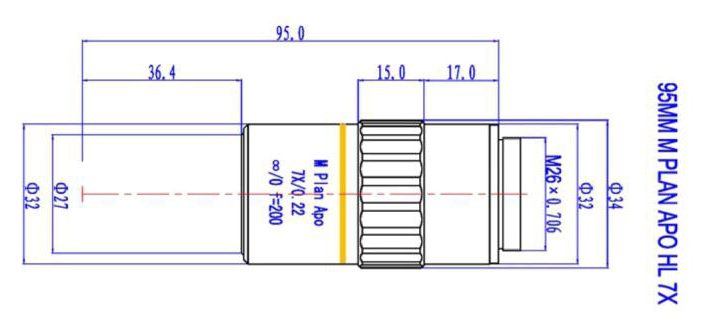

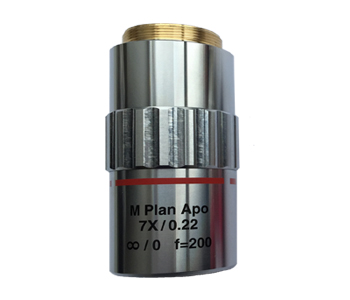

7x M905 Plan Apo, FN=36, FOV=5.1mm

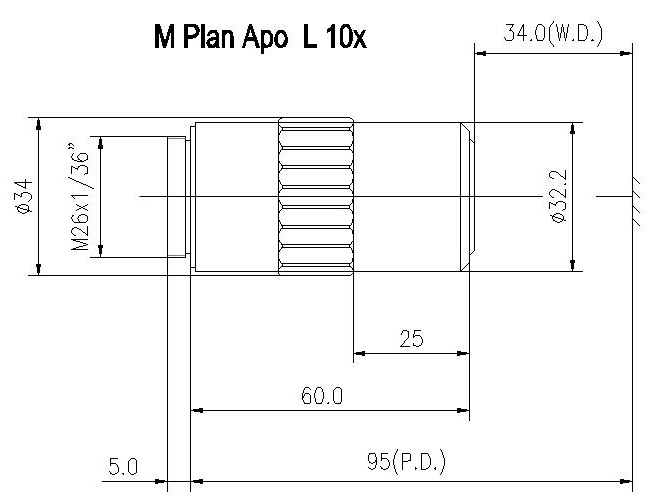

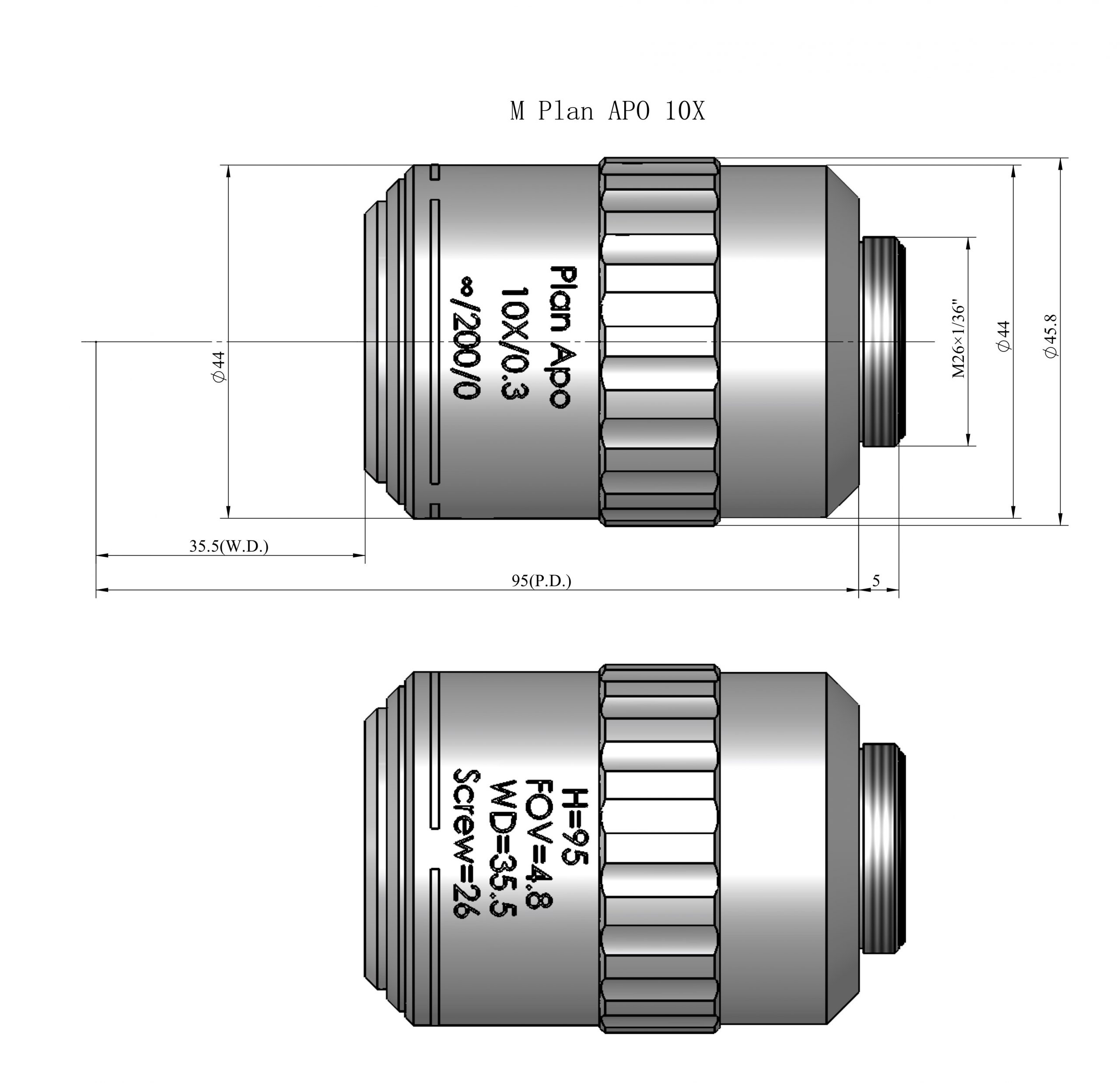

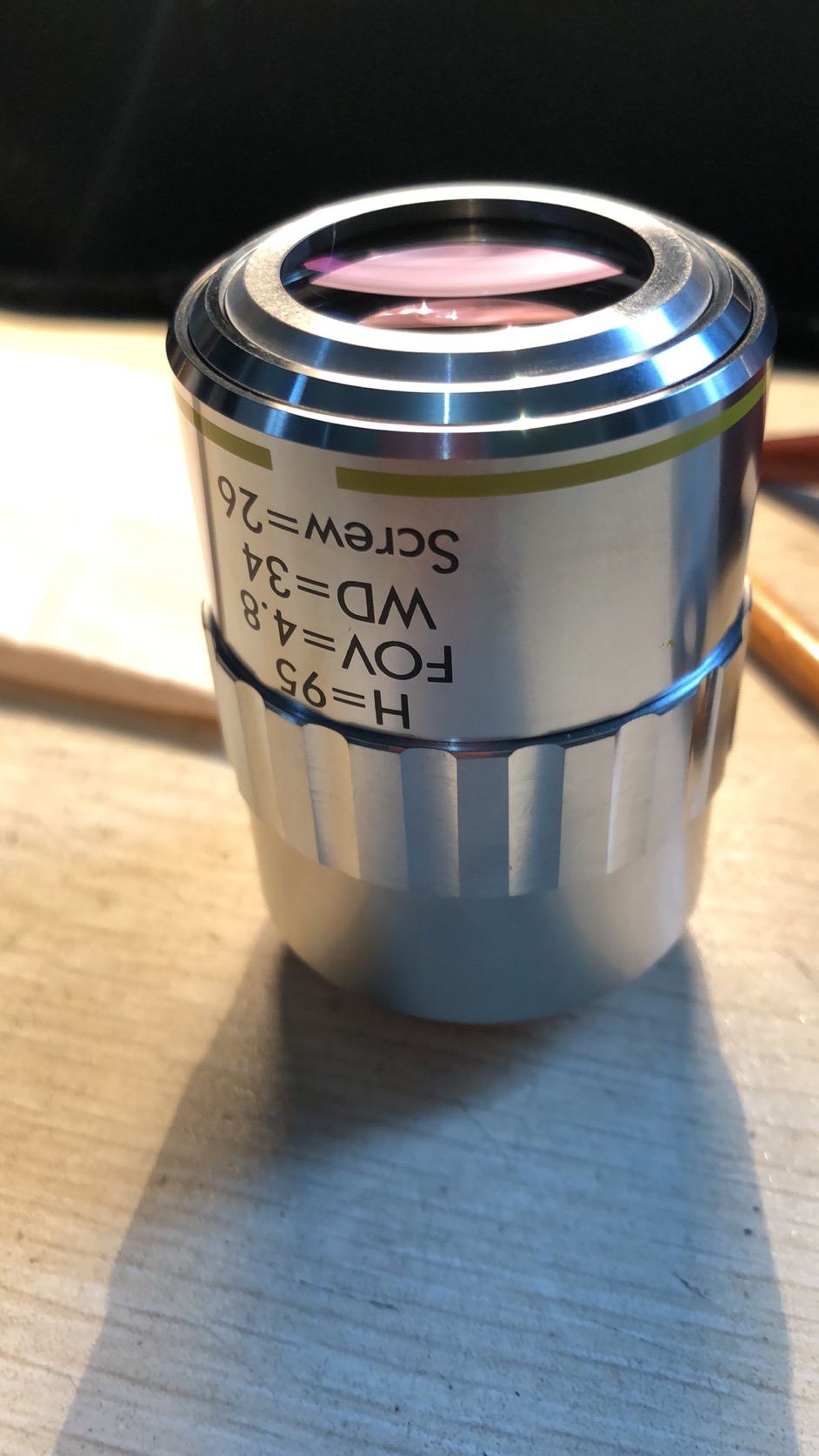

10x M95 largefield, FN=48mm, FOV=4.8mm

e) High Numerical Aperture NA and High Resolution NIR APO Objectives

Near Infra Red (NIR) Obj lenses





Large Field Application

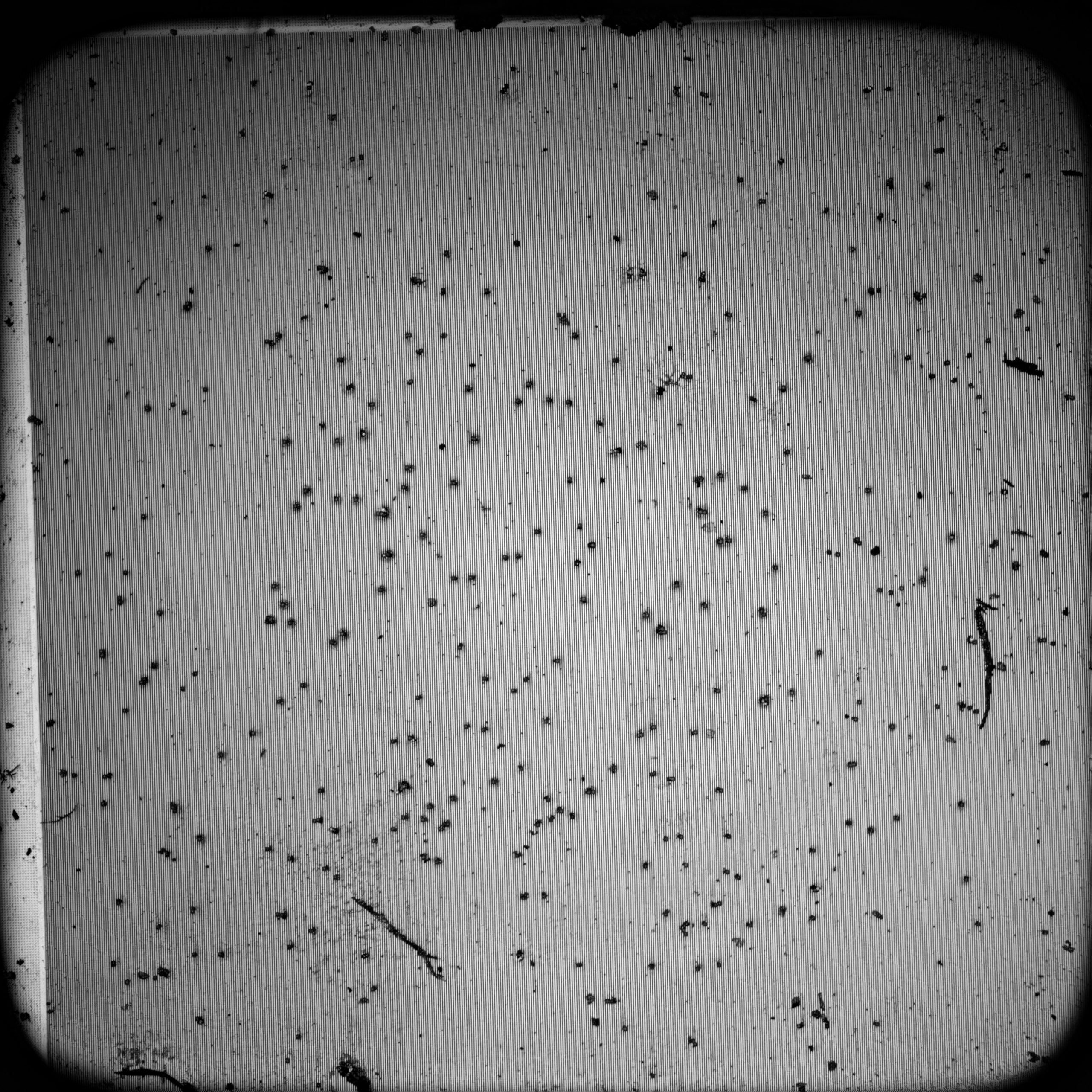

We have designed a special imaging module to get the largefield of view of 4mmx4mm, at 1.25um resolution, with both reflected illumination or transmitted light. The below image was taken using reflected light. The beads are at 16.8um size.
