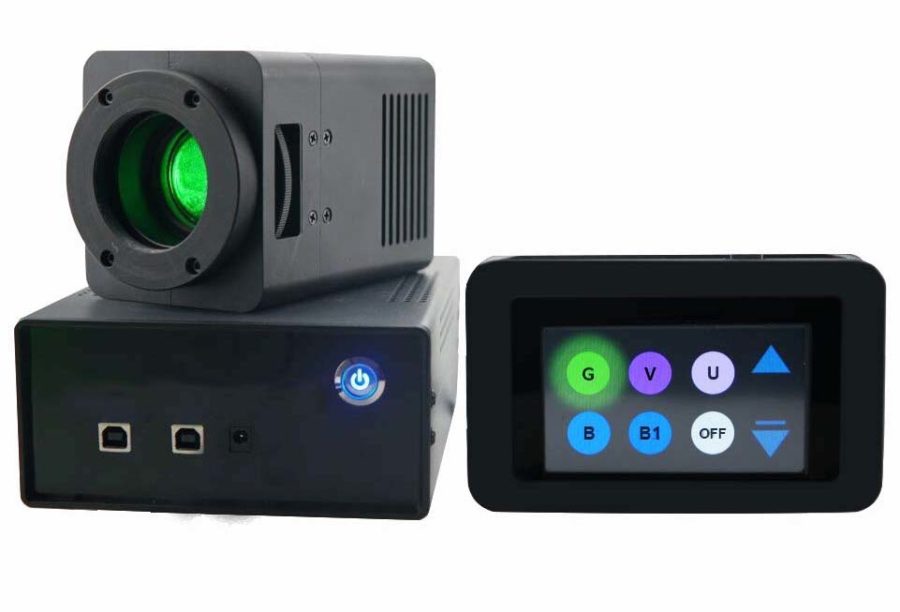

5-Channel LED Fluorescence Illumination Attachment BIA-FL-IS5-0 3-, 4- or 5-Channel LED Fluorescence Illumination Attachment BIA-FL-IS $USD 5,000.00 Original price was: $USD 5,000.00.$USD 2,995.00Current price is: $USD 2,995.00.
Novel Coronavirus COVID-19 Medical Products Request a Quote

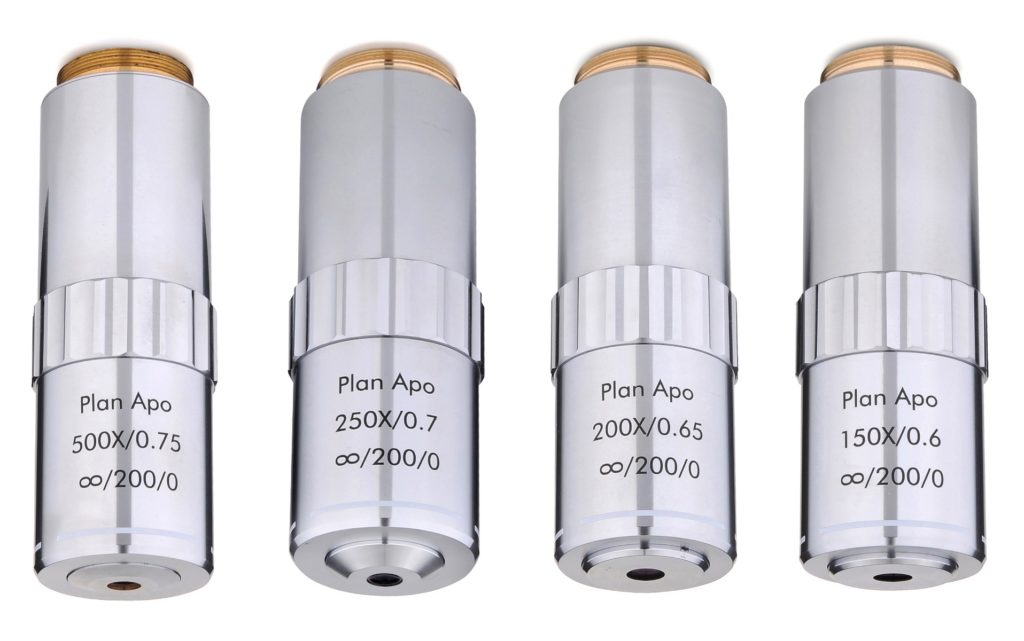

High Magnification Objective Lenses 150x-500x

$USD 3,500.00

Add to Wishlist
Guaranteed Safe Checkout

Questions? Request a Call Back

BF and DF objective lenses 5x-100x

Cat# Magnification Type NA WD(mm) f’ (mm) R (μm) DF (μm) Resolution on object on image Thread
BIA-HM150x 150x MPlanApo(95)-150X 0.6 4.4 1.33 0.56 0.93 0.33 50 M26
BIA-HM200x 200x MPlanApo(95)-200X 0.65 2.2 1 0.51 0.79 0.25 50 M26
BIA-HM250x 250x MPlanApo(95)-250X 0.7 2 0.8 0.48 0.68 0.2 50 M26
BIA-HM500x 500x MPlanApo(95)-500X 0.75 1.96 0.4 0.44 0.59 0.1 50 M26

High Magnification Objective Lenses 150x-500x-0
