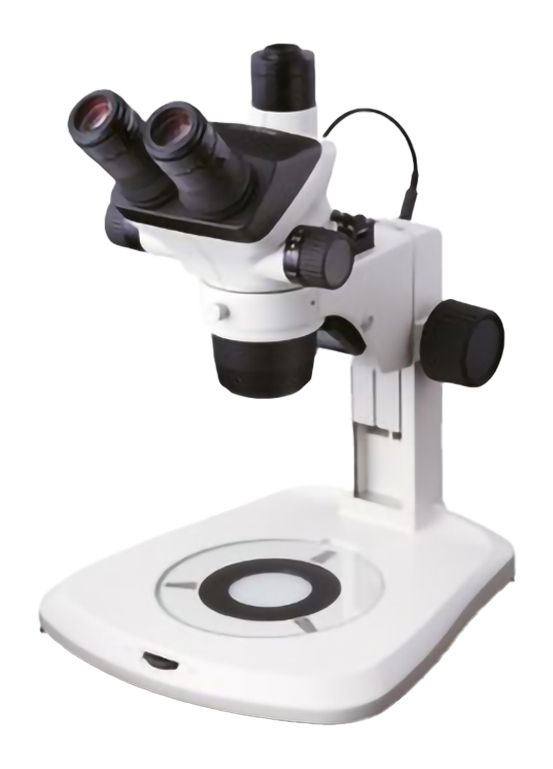

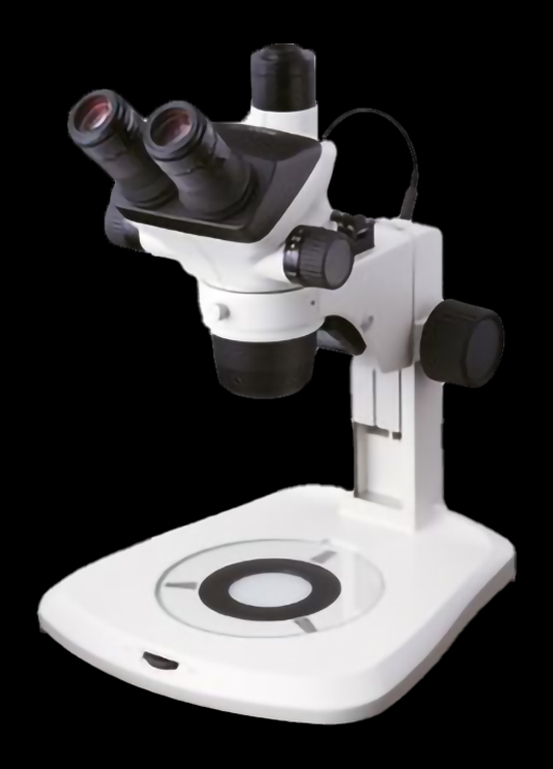

Huvitz HSZ-600 Stereoscope (Olymous SZX61 Clone)


HSZ-600 Series The superior performance makes it easier to work by using simple and intuitive controls. The convenience of user-friendly and compact design creates the ideal combination.

Request a Quote

Huvitz Stereoscopes: S. Korean Product, Chinese Price, Japanese Quality

HSZ-600 Series
The superior performance makes it easier to work by using simple and intuitive controls.

The convenience of user-friendly and compact design creates the ideal combination.

Greenough Optical System
Efficient greenough optical system offers superior flatness and outstanding depth of focus.
Effective 6:7:1 Zoom
The predominant 6.7:1 zoom ratio provides for a flexible and effective working environment.
Click-Stop
To achieve consistent magnification, the Click Stop function has been implemented to improve work efficiency. (HSZ-645TR)
Variety of Video Ports
Huvitz exclusive video port lenses assure better quality video images for any digital camera systems.(HSZ-645TR)
Wider Base Stand
Ergonomic wide base stand is designed to accommodate a large sample.
High Intensity LED
Bright, adjustable and durable LED illuminator provides an efficient, low energy source of light.

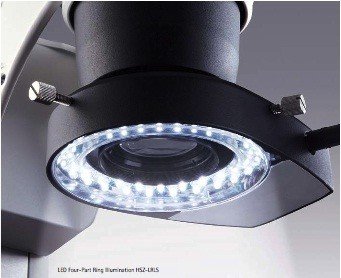

4 Split LED ring light
Compact and adaptable, this LED illuminator can light each quadrant individually or in any combination to better manage reflection and observation.

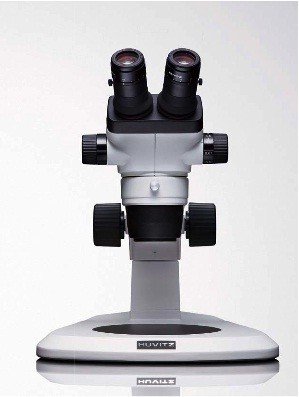

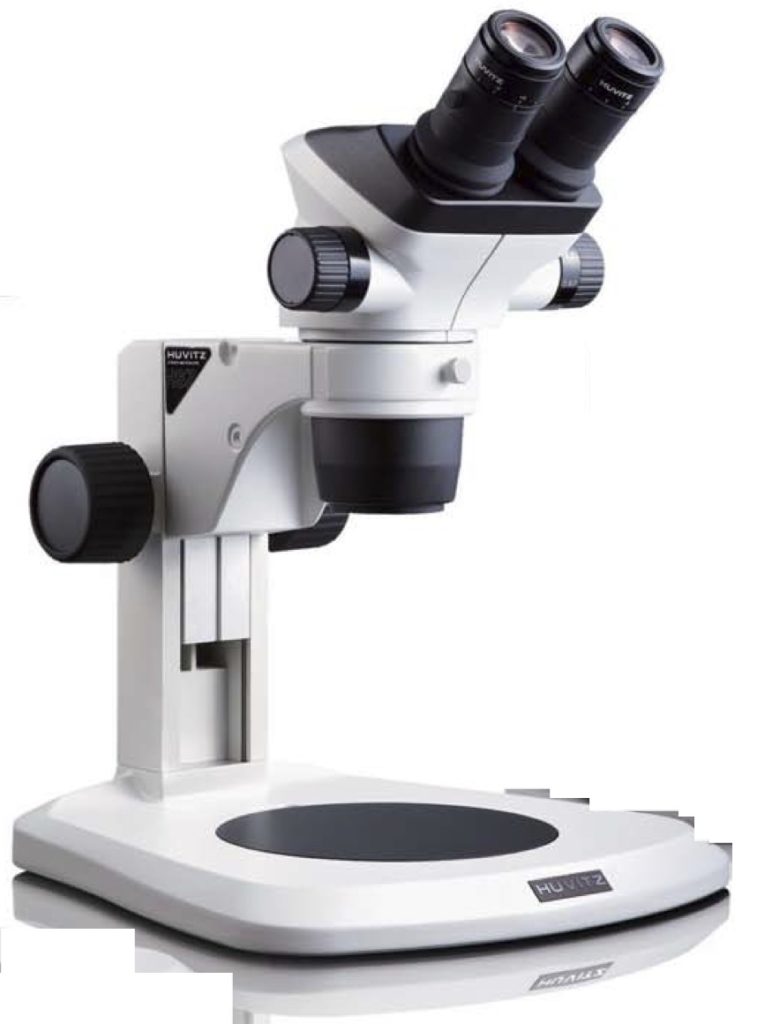

HSZ645BHSZ660HSZ645TR
6.7:1 Zoom Ratio

Zoom Magnification: 0.67-4.5x

Working Distance: 110 mm

Detent Lock at each zoom

Huvitz HSZ-600 Stereoscope (Olymous SZX61 Clone)Huvitz/hsz660-head.jpgHuvitz HSZ-600 Stereoscope (Olymous SZX61 Clone)Optional
Zoom Body:

Viewing Inclination Angle:

Binocular

45′

 Binocular

 60′

Trinocular & C-Mount

45′

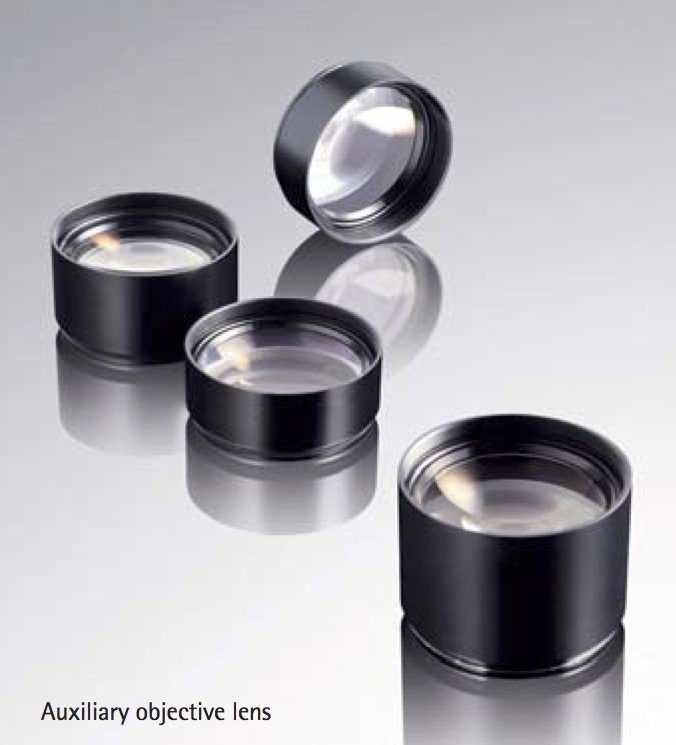

HSZ-AOL0.5XAuxilary Obj Lens, Working Distance=200mm

HSZ-AOL0.75X

Auxilary Obj Lens, Working Distance=130mm
HSZ-AOL1.5XAuxilary Obj Lens, Working Distance=64mm
HSZ-AOL2.0XAuxilary Obj Lens, Working Distance=39.5mm

HSZ-EPA10X

Eyepiece 10X (F.N: 22) Diopter Adjustment

HSZ-EPA15XEyepiece 15X (F.N: 16) Diopter Adjustment
HSZ-EPA20XEyepiece 20X (F.N: 12.5) Diopter Adjustment
HSZ-ST6Standard Stand for HSZ 600 Series,

Focusing Stroke: 120mm,

Base Size: 290 x 314 mm (W x H)

Huvitz/hsz-ilst6.jpg
HSZ-ILST6Standard Stand for HSZ 600 Series,

LED Reflected/Transmitted

Focusing Stroke: 120mm,

Base Size: 290 x 314 mm (W x H)

Huvitz/hsz-ilst6.jpg
HSZ-STPPole Type Stand for HSZ 600 Series,

Focusing Stroke: 120mm,

Base Size: 290 x 314 mm (W x H)

Huvitz/hsz-ilstp.jpg
HSZ-ILSTPPole Type Stand for HSZ 600 Series

LED Reflected/Transmitted

Focusing Stroke: 120mm,

Base Size: 290 x 314 mm (W x H)

Huvitz/hsz-ilstp.jpg
HSZ-STUB1Universal Stand Large Base Type

Table Size:400 x 300 mm (Wx H)

Huvitz HSZ-700 Research Stereoscope

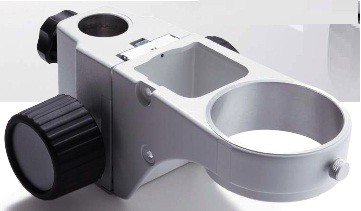

HSZ-FMFocus Mount For Pole Type Stand>Huvitz/hsz-fm.jpg
HSZ-ILFMFocus Mount For Pole Type Stand,

Built-in LED Reflected light

Huvitz/hsz-fm.jpg
HSZ-SPBWBlack/White Plate d=160mmHuvitz/hsz-spbw.jpg
HSZ-SPGGlass Plate d=160mmHuvitz/hsz-spbw.jpg
HSZ-LRLS4 split LED Ring LightHuvitz/hsz-lrls.jpg
HSZ-LRLA6LED Ring Light Guide AdapterHuvitz/hsz-hrla6.jpg

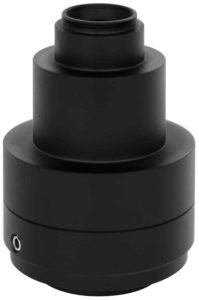

0.5X C-Mount Adapter includedHuvitz HSZ-700 Research Stereoscope

Specifications

ItemSpecifications
Microscopy bodyHSZ-645HSZ-660HSZ-645TR
HSZ-645Magnification0.67x ~ 4.5x
HSZ-660Zoom ratio6.7 : 1
HSZ-645TRWorking distance110mm
Tube inclination angle45°60°45°
InterpupillaryLeft / right interlocked
distance adjustmentAdjustment range : 55 to 75mm
Viedo camera adaptabilityC-mount(0.5x built in)
Click stopClick stop for each zoom magnification:On-Off switching possible
Auxilliary objective lensMounting by screwing into the thread at the bottom of frame(M48 thread x0.8)
StandHSZ-ILST6HSZ-ILST6
HSZ-ST6Standard large standLED reflected / transmitted illumination large stand
HSZ-ILST6Frame installationMounting diameter : 76mm
Focusing adjustmentKnob rotation tension adjustment
Focusing stroke:120mm
Stage plateHSZ-SPGHSZ-SPG
HSZ-SPBW
Light sourceTransmitted illumination:LED
Reflected illumination:LED
Average LED life span:10,000 hrs.
Input rating:AC 100-240V, 50/60Hz, 10W
EyepiecesHSZ-EPA10x10x / FN 22 / Diopter adjustment:-8D~+5D / Eyepiece micrometer dist mountable
HSZ-EPA15x15x / FN 16 / Diopter adjustment:-8D~+5D / Eyepiece micrometer dist mountable
HSZ-EPA20x20x / FN 12.5 / Diopter adjustment:-8D~+5D / Eyepiece micrometer dist mountable
HSZ-EPA30x30x / FN 7 / Diopter adjustment:-8D~+5D / Eyepiece micrometer dist mountable
Dimensions / WeightDimensions (W*D*H):289.9 x 329.9 x 371.3 / Weight: 5.2Kg

Huvitz HSZ-600 Series Korean Product, Chinese Price, Japanese Quality.
