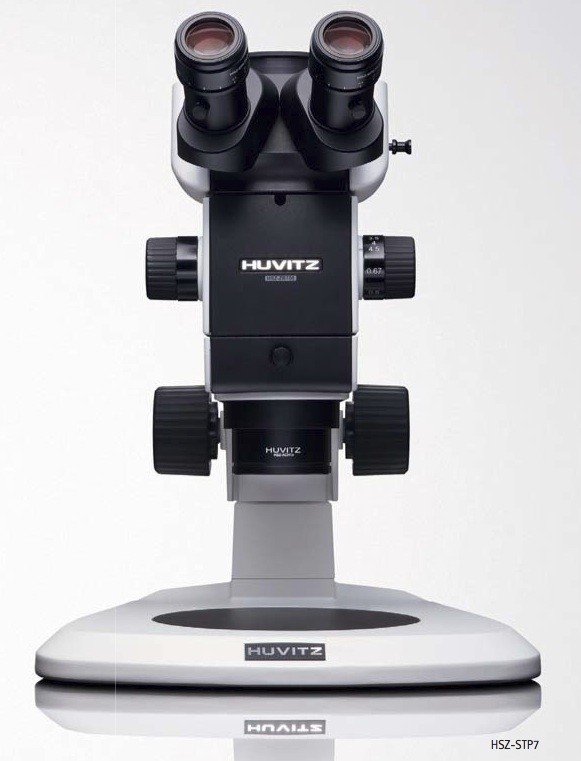

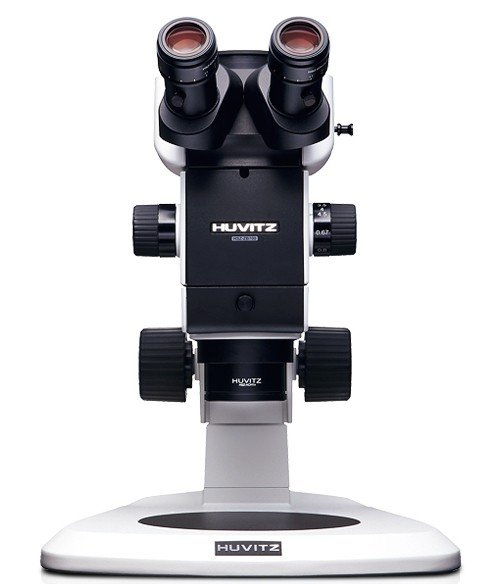

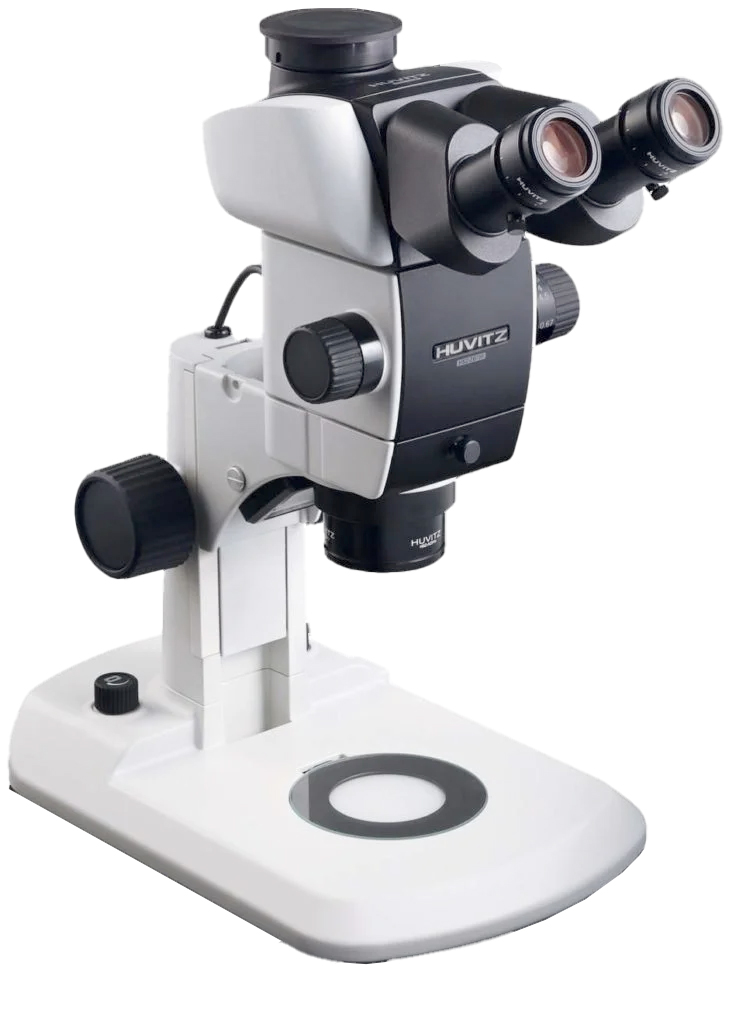

Huvitz HSZ-700 Research Stereoscope


HSZ-700 Series Optimized zoom range and color reproduction offer top quality images. Interchangeable objective lenses and accessories can be implemented to provide a guaranteed satisfaction for any given inspection environment and task.

Request a Quote

Huvitz HSZ-700 Research Stereoscope

Optimized zoom range and color reproduction offer top quality images.

Interchangeable objective lenses and accessories can be implemented to provide a guaranteed satisfaction for any given inspection environment and task.

Huvitz Stereoscopes: S. Korean Product, Chinese Price, Japanese Quality

HSZ-700 Series

Galilean Optical System
The Galilean Optical System uses interchangeable objective lens that provide the best quality images.
Effective 7:1 Zoom
The 8x to 56x zoom magnification range accommodates a vast majority of inspection tasks.

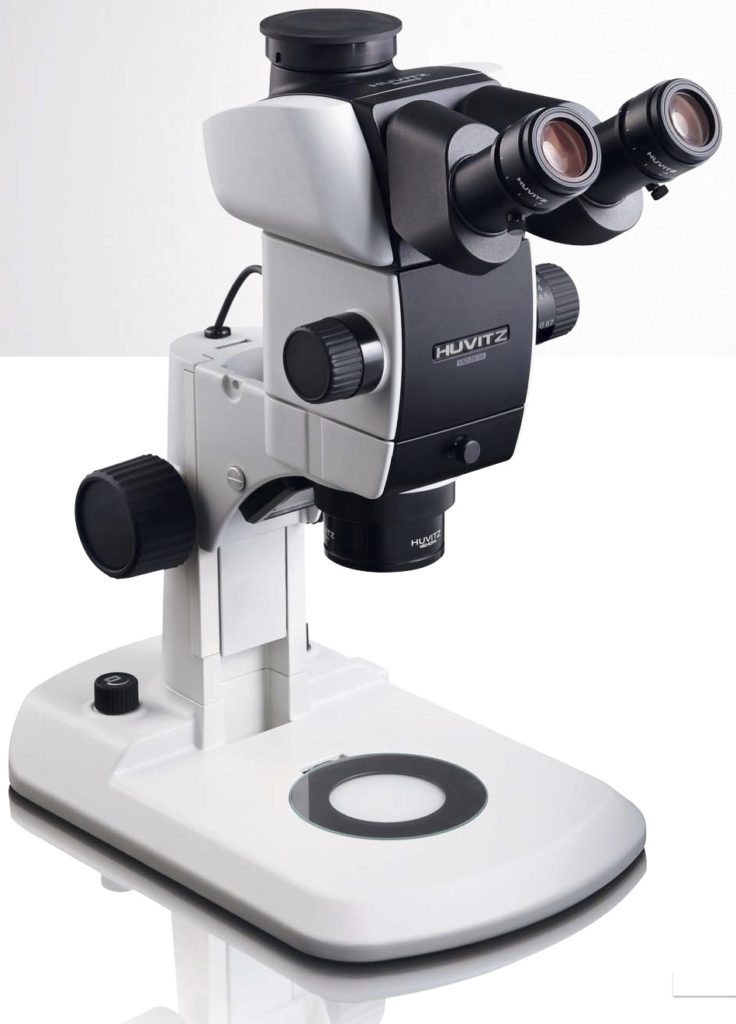

Click-Stop
To achieve consistent magnification, the Click Stop function has been implemented to improve work
efficiency. (HSZ-730TR)
Variety of Video Ports
Huvitz exclusive video port lenses assure better quality video images for any digital camera systems.
(HSZ-730TR)
Superior optic system
Accurate color reproduction and high resolution power are the result of superior optic design minimizing
distortion and aberration offering a clear image on wide range and variety of samples.
Built-in LED
Bright and durable LED illumination provides suitable transmission or reflection with low energy
consumption. (HSZ-ILST7)

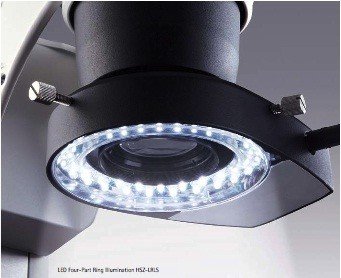

4 Split LED
Compact and adaptable, this LED illuminator can light each quadrant individually or in any combination to
better manage reflection and observation.
How to make your microscope to be Professional

Stereo/measurement_stage2.jpg



Stereo/led-ring01.jpgStereo/K2.jpgcamera/bi-xfocus01.jpg
Measuring Digital XY Stage up to 1um resolutionRing LED for stereo microscopes Cold LED LightCameras & SLR/C-Mount Adapters
SKU: HSZ-700 Categories: , Tags: , , ,
ItemSpecifications
Zoom microscope body HSZ-ZB700
  • Zoom drive : Horizontal knob system
  • Click stop for each zoom magnification: On-Off switching possible
  • Zoom ratio values : 7:1 (0.8~5.6x)
  • Zoom magnification indication : 0.8, 1, 1.25, 1.6, 2, 2.5, 3.2, 4, 5, 5.6.
  • Objective lens mounting : Screw mounting into thread

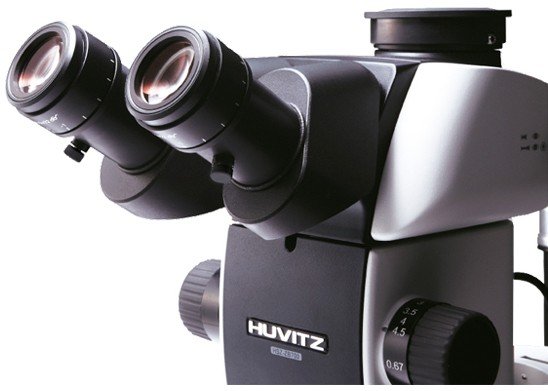

Observation tube HSZ-TR30 HSZ-BI30
  • Trinocular tube(HSZ-TR30), Binocular tube(HSZ-BI30)
  • View inclination angle : 30°
  • Light path selection(only HSZ-TR30) : 2 steps (Binocular 100%, Video 80%-Binocular 20%)
  • Interpupillary distance adjustable range : 55 to 75mm
  • Eyepiece clamping knob provided
StandHSZ-ST7HSZ-ILSTS7HSZ-ILST7
HSZ-ST7Standard large standLED reflected / transmitted illumination standLED reflected / transmitted illumination large stand

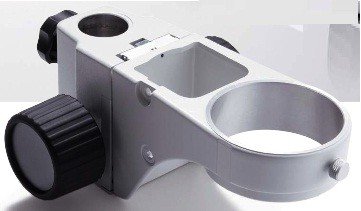

HSZ-ILST7Frame installationMounting diameter : 76mm
HSZ-ILSTL7Focusting adjustmentKnob rotation tension adjustment Focusing storoke : 120mm
Stage plate
  • HSZ-SPG
  • HSZ-SPBW
  • HSZ-SPG100
  • HSZ-SPG
  • HSZ-SPBW
Light source
  • Transmitted illumination: LED
  • Reflected illumination: LED
  • Average LED life span: 10,000 hrs.
  • Input rating: AC 100-240V, 50/60Hz, 10W

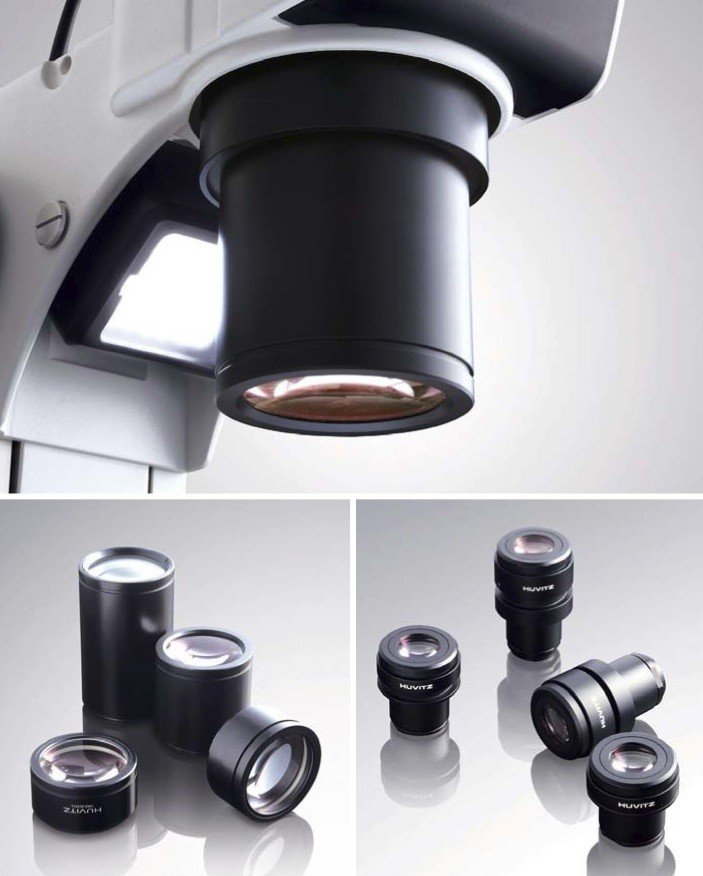

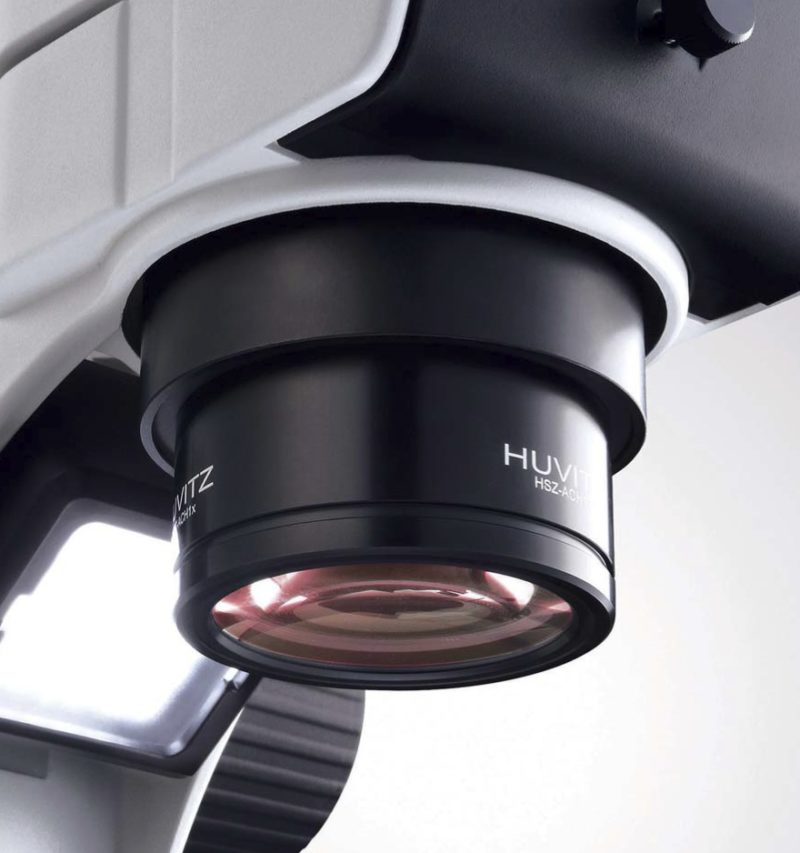

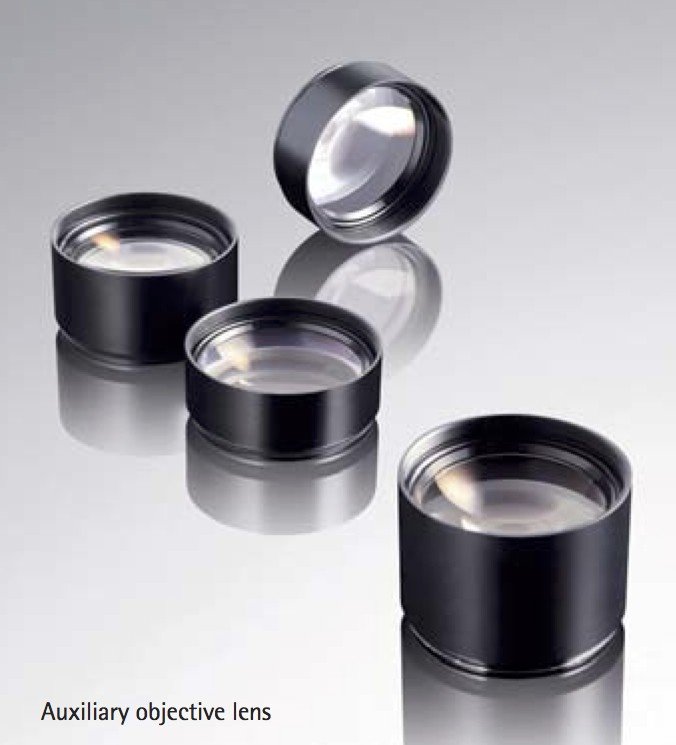

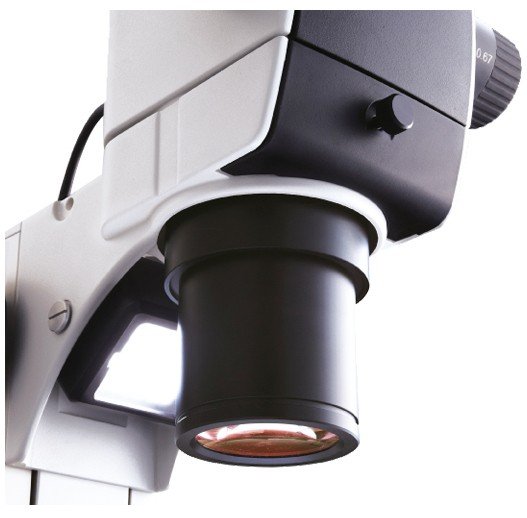

Objective lens
  • Model
  • HSZ-ACH1x
  • HSZ-PLAPO1x
  • HSZ-ACH1.5x
  • HSZ-ACH2x
  • Working distance
  • W/D : 90.5mm
  • W/D : 81mm
  • W/D : 45.5mm
  • W/D : 33.5mm
EyepiecesEyepiece series
Weight

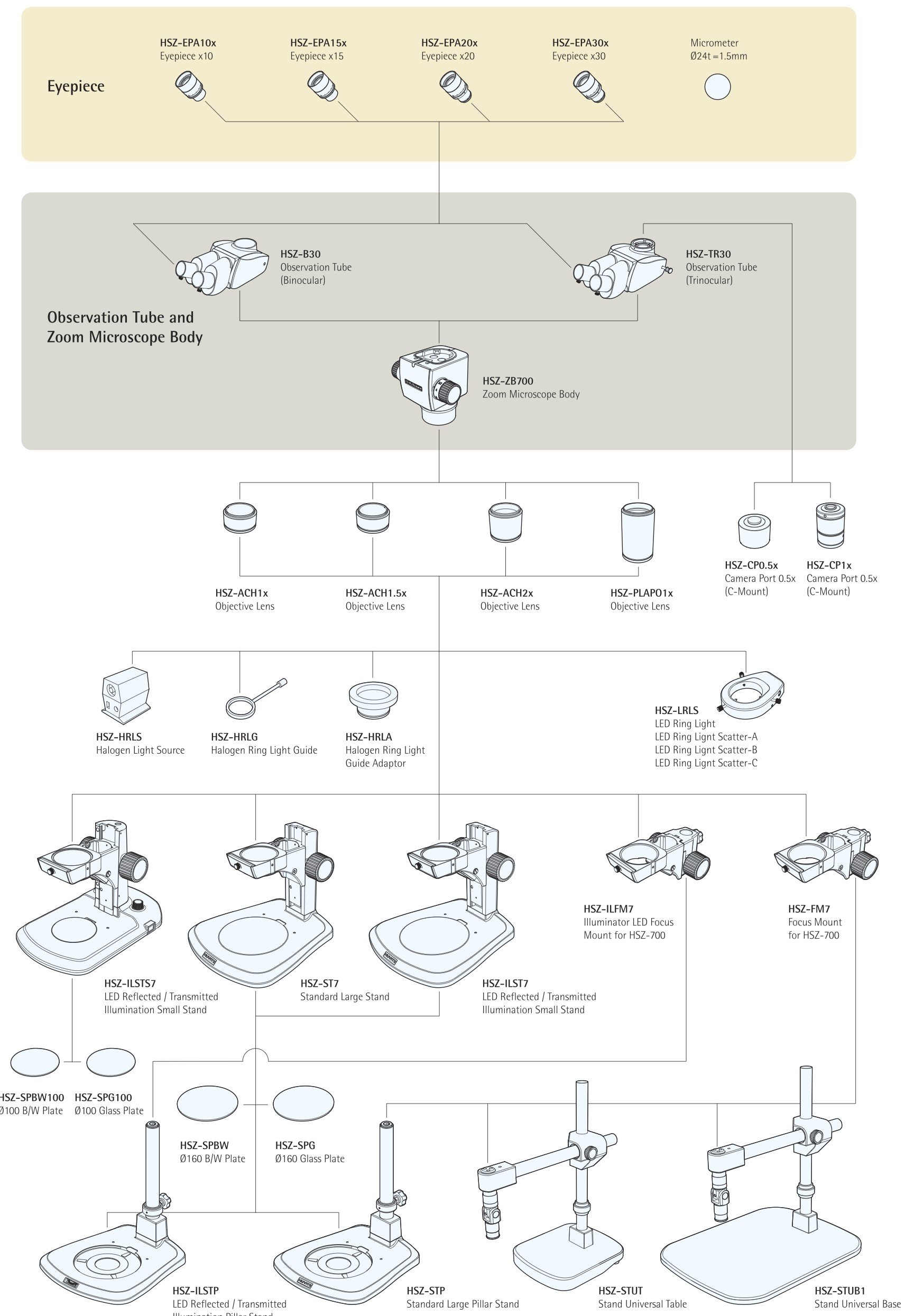

1. Configuration

2. Stands

3. Accessories

HSZ-700 Brochure
